Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

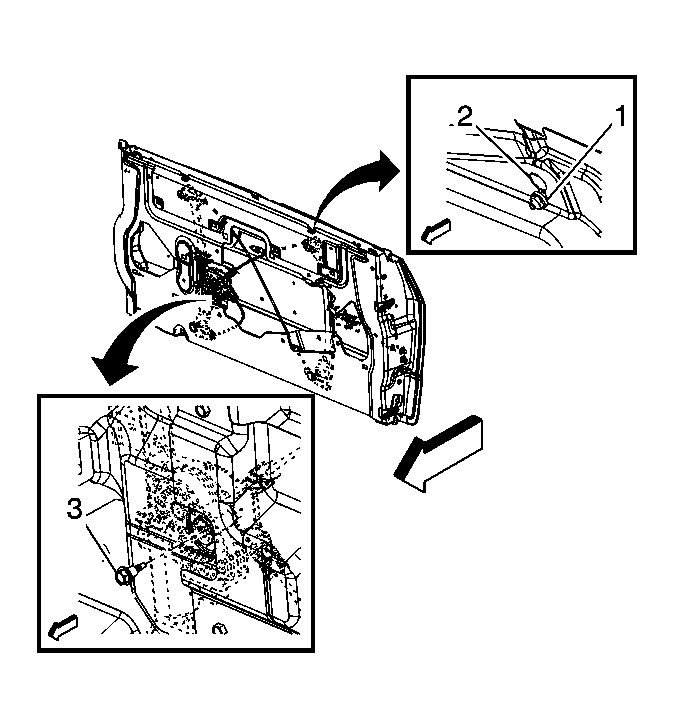

    Fig 1: Installing Endgate Window Regulator
    GM902615Courtesy of GENERAL MOTORS CORP.
  1. Install the regulator assembly to the endgate through the access hole.
  2. Connect the electrical connector to the window regulator.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the regulator side rails to the endgate by inserting the nuts (1) in the keyhole slots (2).

    Tighten:  Tighten the regulator side rail nuts to 25 N.m (18 lb ft).

  4. Install the bolt (3) retaining the regulator motor bracket to the endgate.

    Tighten:  Tighten the regulator motor bracket bolt (3) to 10 N.m (89 lb in).

  5. Install the endgate window. Refer to Window Replacement - Endgate .
  6. Adjust the endgate window fore/aft. Refer to Window Adjustment - Endgate Fore/Aft .
  7. Adjust the endgate window cross car. Refer to Window Adjustment - Endgate Cross Car .
  8. Adjust the endgate window up/down. Refer to Window Adjustment - Endgate Up/Down .
  9. Install the endgate inner panel reinforcement. Refer to Reinforcement Inner Panel Replacement - Endgate .
  10. Install the endgate trim panel. Refer to Trim Panel Replacement - Endgate (Envoy XUV) .
  11. Install the regulator bolt access plugs (3).
    Fig 2: Installing Regulator Bolt Access Plugs
    GM902601Courtesy of GENERAL MOTORS CORP.
  12. Perform an endgate window learn cycle. Refer to Window Learn Cycle - Endgate .
