Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing/Installing Fluid Level Sensor

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Ensure that the fluid sensor is fully seated before releasing the snap ring.

Install the fluid level sensor.

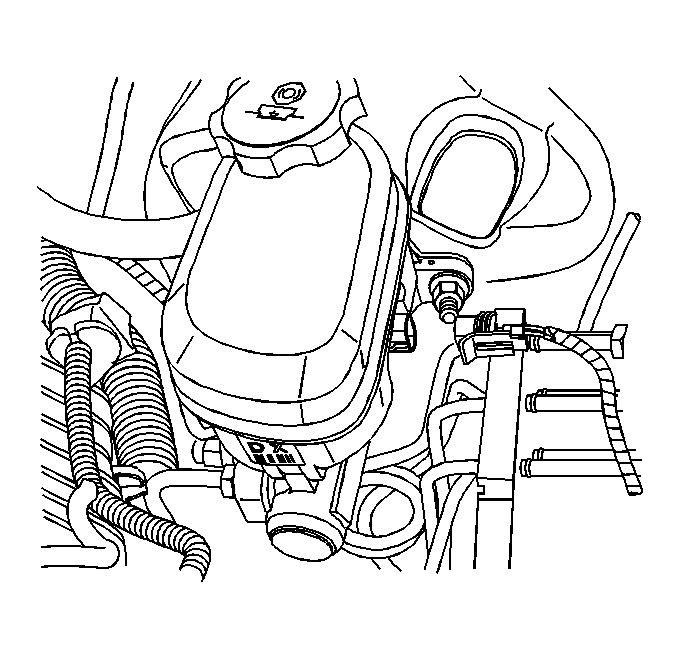

Fig 2: Identifying Fluid Level Sensor Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Install the electrical connector to the fluid level sensor.
