Suspension Controls Component Views
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

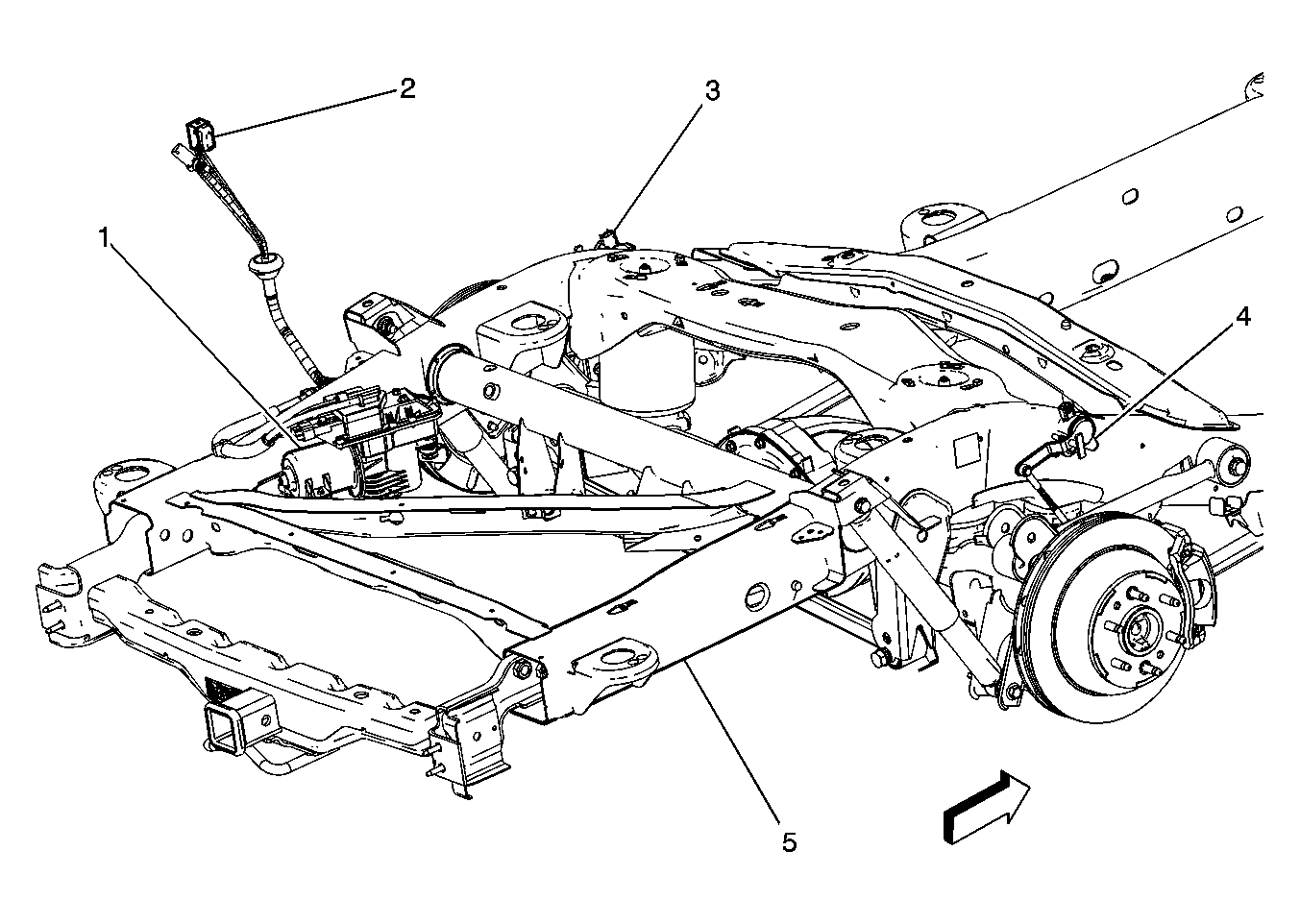

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Air Suspension Sensor - LR |
| 2 |
Air Suspension Sensor - RR |
| 3 |
Air Suspension Compressor Assembly |
| 4 |
Air Suspension Inflator Switch |
| 5 |
Frame |

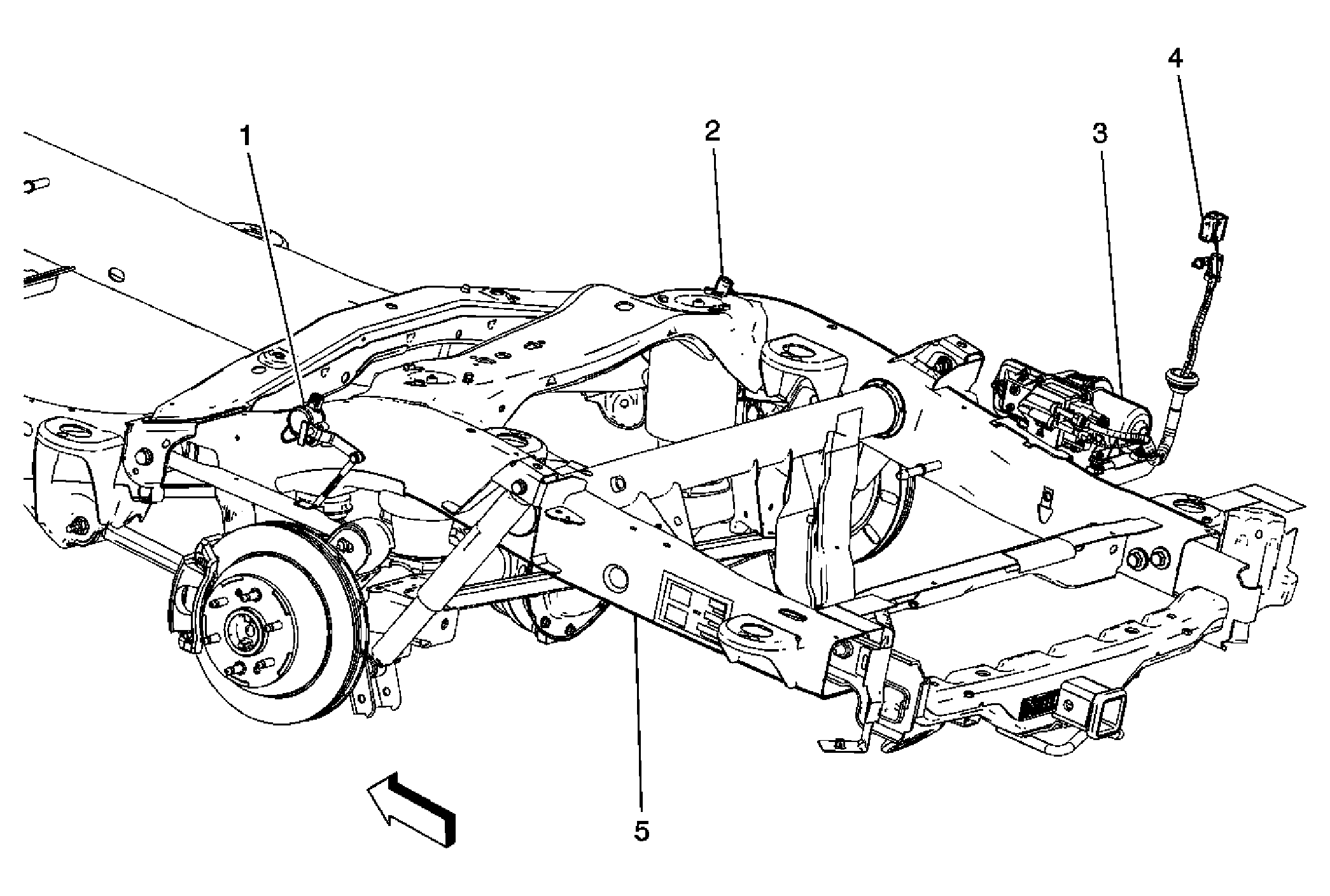

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Air Suspension Compressor Assembly |
| 2 |
Air Suspension Inflator Switch |
| 3 |
Air Suspension Sensor - LR |
| 4 |
Air Suspension Sensor - RR |
| 5 |
Frame |
