Rear Axle Disassembled Views
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

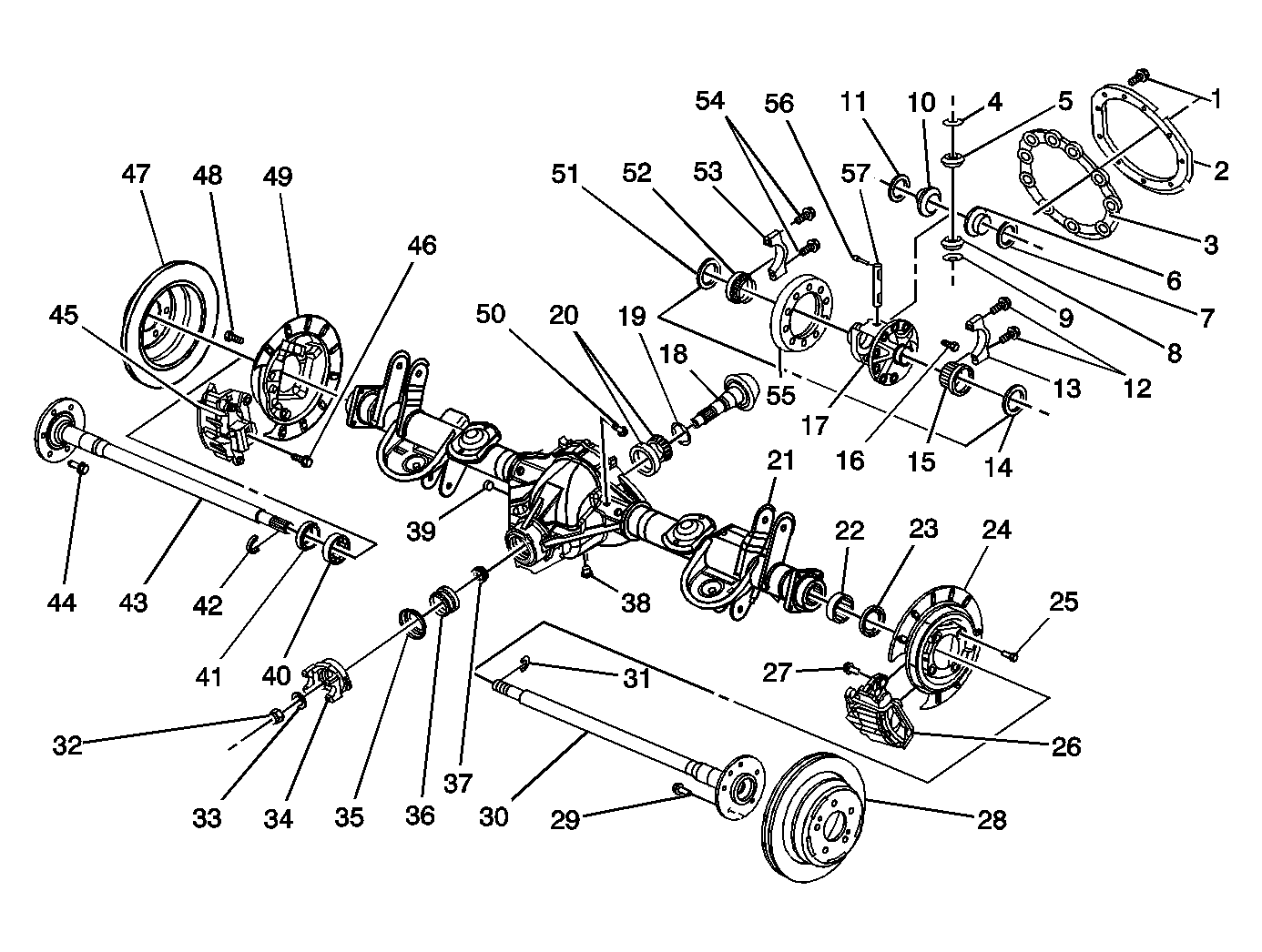

| Callout | Component Name |
|---|---|
| 1 | Bolt |
| 2 | Rear Axle Housing Cover |
| 3 | Rear Axle Housing Cover Gasket |
| 4 | Thrust Washer |
| 5 | Differential Pinion Gear |
| 6 | Differential Side Gear |
| 7 | Thrust Washer |
| 8 | Differential Pinion Gear |
| 9 | Thrust Washer |
| 10 | Differential Side Gear |
| 11 | Thrust Washer |
| 12 | Bearing Cap Bolts |
| 13 | Bearing Cap |
| 14 | Differential Bearing Shim |
| 15 | Differential Bearing and Cup |
| 16 | Differential Ring Gear Bolt |
| 17 | Differential Case |
| 18 | Pinion Gear Shaft |
| 19 | Pinion Gear Bearing Shim |
| 20 | Inner Pinion Bearing and Cup |
| 21 | Rear Axle Housing |
| 22 | Wheel Bearing |
| 23 | Rear Axle Shaft Seal |
| 24 | Brake Backing Plate |
| 25 | Brake Backing Plate Bolt |
| 26 | Brake Caliper |
| 27 | Brake Caliper Bolt |
| 28 | Brake Rotor |
| 29 | Wheel Stud |
| 30 | Rear Axle Shaft |
| 31 | Rear Axle Shaft Lock |
| 32 | Pinion Yoke Nut |
| 33 | Pinion Yoke Washer |
| 34 | Pinion Yoke |
| 35 | Pinion Gear Seal |
| 36 | Outer Pinion Bearing and Cup |
| 37 | Pinion Gear Bearing Spacer |
| 38 | Rear Axle Housing Drain Plug |
| 39 | Rear Axle Housing Fill Plug |
| 40 | Wheel Bearing |
| 41 | Rear Axle Shaft Seal |
| 42 | Rear Axle Shaft Lock |
| 43 | Rear Axle Shaft |
| 44 | Wheel Stud |
| 45 | Brake Caliper |
| 46 | Brake Caliper Bolt |
| 47 | Brake Rotor |
| 48 | Brake Backing Plate Bolt |
| 49 | Brake Backing Plate |
| 50 | Rear Axle Vent Hose Connector |
| 51 | Differential Bearing Shim |
| 52 | Differential Bearing and Cup |
| 53 | Bearing Cap |
| 54 | Bearing Cap Bolts |
| 55 | Differential Ring Gear |
| 56 | Differential Pinion Gear Shaft Bolt |
| 57 | Differential Pinion Gear Shaft |
