Removal Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine support fixture. Refer to one of the following procedures:
  2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  3. Remove the front tires and wheels. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  4. Remove the lower radiator air deflector. Refer to Radiator Air Baffle and Deflector Replacement - Lower in Engine Cooling.
  5. Remove the positive battery cable retainers. Position the positive battery cable aside. Refer to Battery Positive Cable Replacement in Engine Electrical.
  6. Disconnect the power steering cooler pipe from the frame. Refer to Power Steering Cooler Pipe/Hose Replacement in Power Steering System.
  7. Secure the power steering cooler to the exhaust pipe.
  8. Remove the stabilizer shaft links. Rotate the stabilizer shaft up to gain access to the mounting bolts for the power steering gear. Refer to Stabilizer Shaft Link Replacement in Front Suspension.
  9. Remove the mounting bolts for the power steering gear. Refer to Power Steering Gear Replacement in Power Steering System.
  10. Secure the power steering gear.

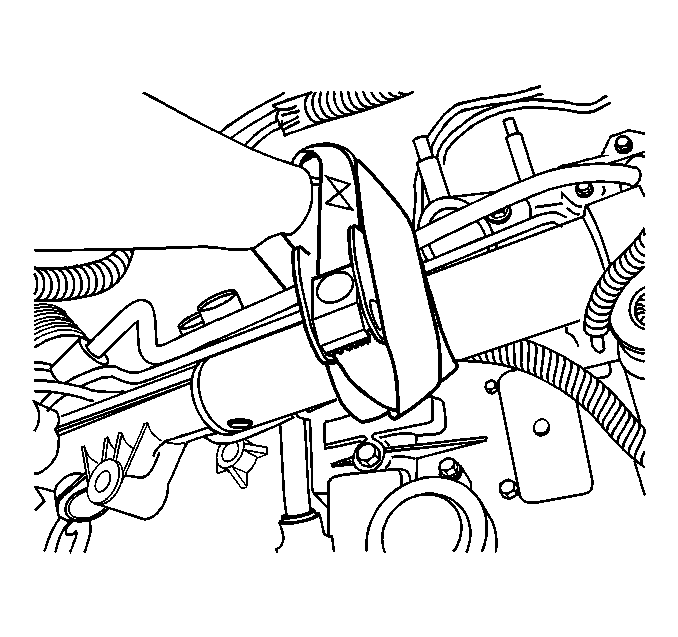

  11. Fig 1: Power Steering Gear
    GM378919Courtesy of GENERAL MOTORS CORP.
  12. Remove the nuts which secure the engine mount to the frame. Refer to one of the following procedures:
  13. Remove the nuts which secure the transaxle mount to the frame. Refer to Automatic Transmission Mount Replacement in Automatic Transaxle-4T65-E.
  14. Disconnect both front wheel speed sensor connectors (1), if equipped.
  15. Remove both front wheel speed harness retainers (2) from the frame and the lower control arms, if equipped.
  16. Fig 2: Front Wheel Speed Sensor Connectors & Speed Harness Retainers
    GM460829Courtesy of GENERAL MOTORS CORP.
  17. Separate both of the lower ball joints from the steering knuckle. Refer to Lower Ball Joint Replacement in Front Suspension.
  18. Lower the vehicle until the frame contacts J 39580  .
  19. Fig 3: Identifying Utility Stand
    GM333118Courtesy of GENERAL MOTORS CORP.
  20. Remove the bolts which secure the front frame to the body.
  21. Fig 4: Front Frame To Body Bolts
    GM540167Courtesy of GENERAL MOTORS CORP.
  22. Remove the bolts which secure the rear frame to the body.
  23. Fig 5: Rear Frame To Body Bolts
    GM540082Courtesy of GENERAL MOTORS CORP.
  24. Raise the vehicle in order to separate the frame from the body.
  25. If you are replacing the frame, remove the following components:
