Ground Distribution Schematics

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

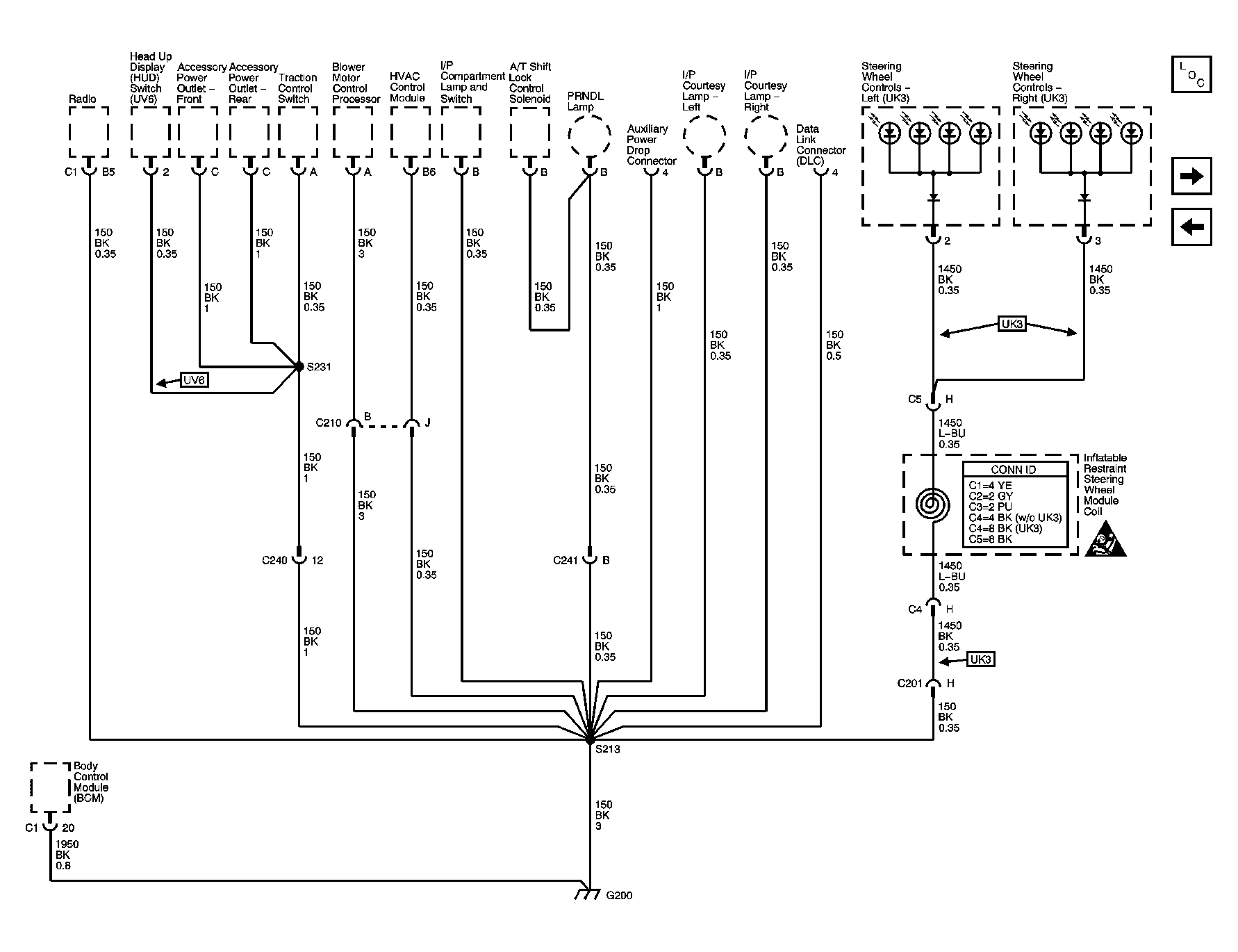

Fig 1: G100

Courtesy of GENERAL MOTORS CORP.

Fig 2: G101, G112, and G113

Courtesy of GENERAL MOTORS CORP.

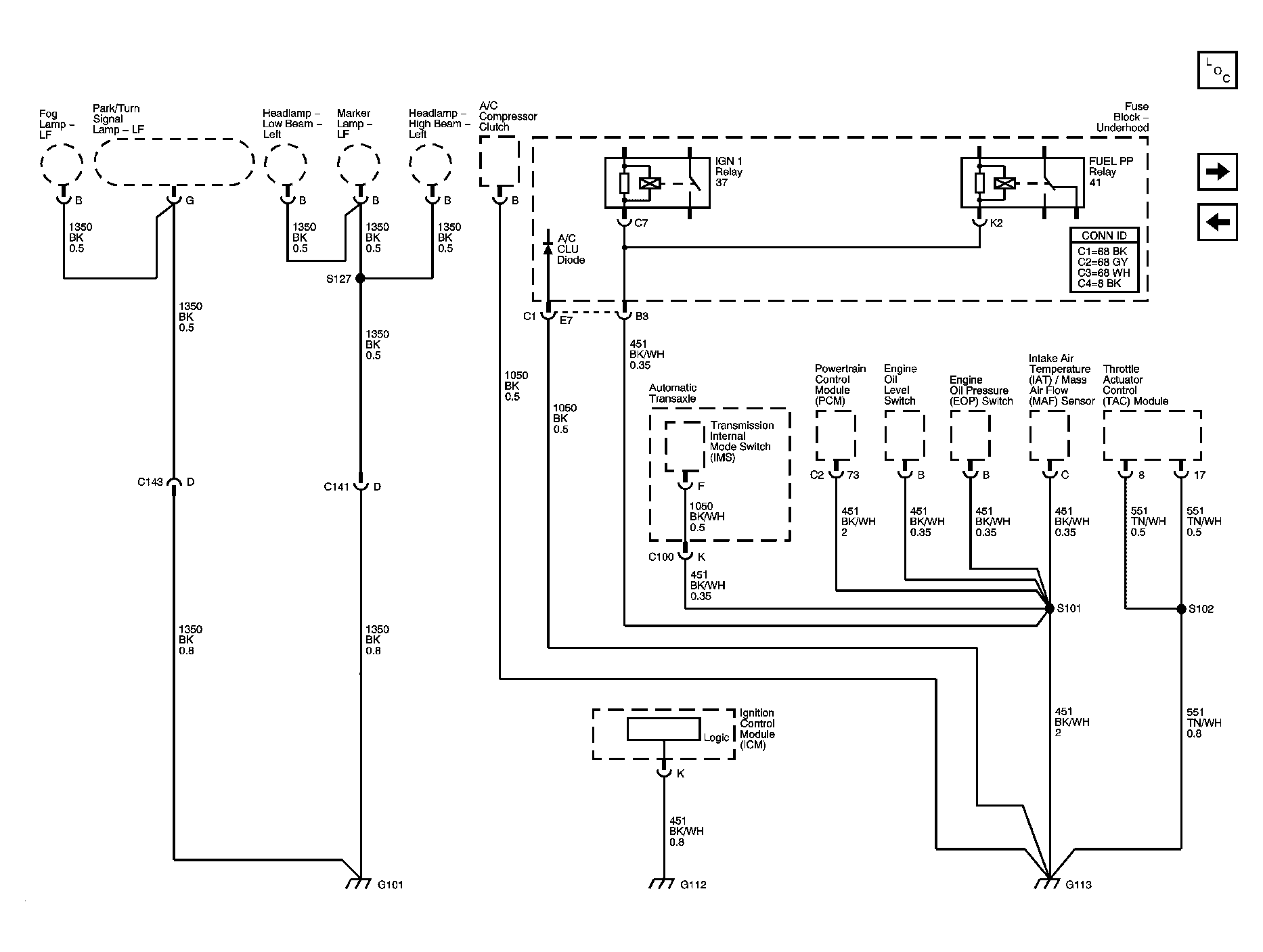

Fig 3: G102, G115, and G201

Courtesy of GENERAL MOTORS CORP.

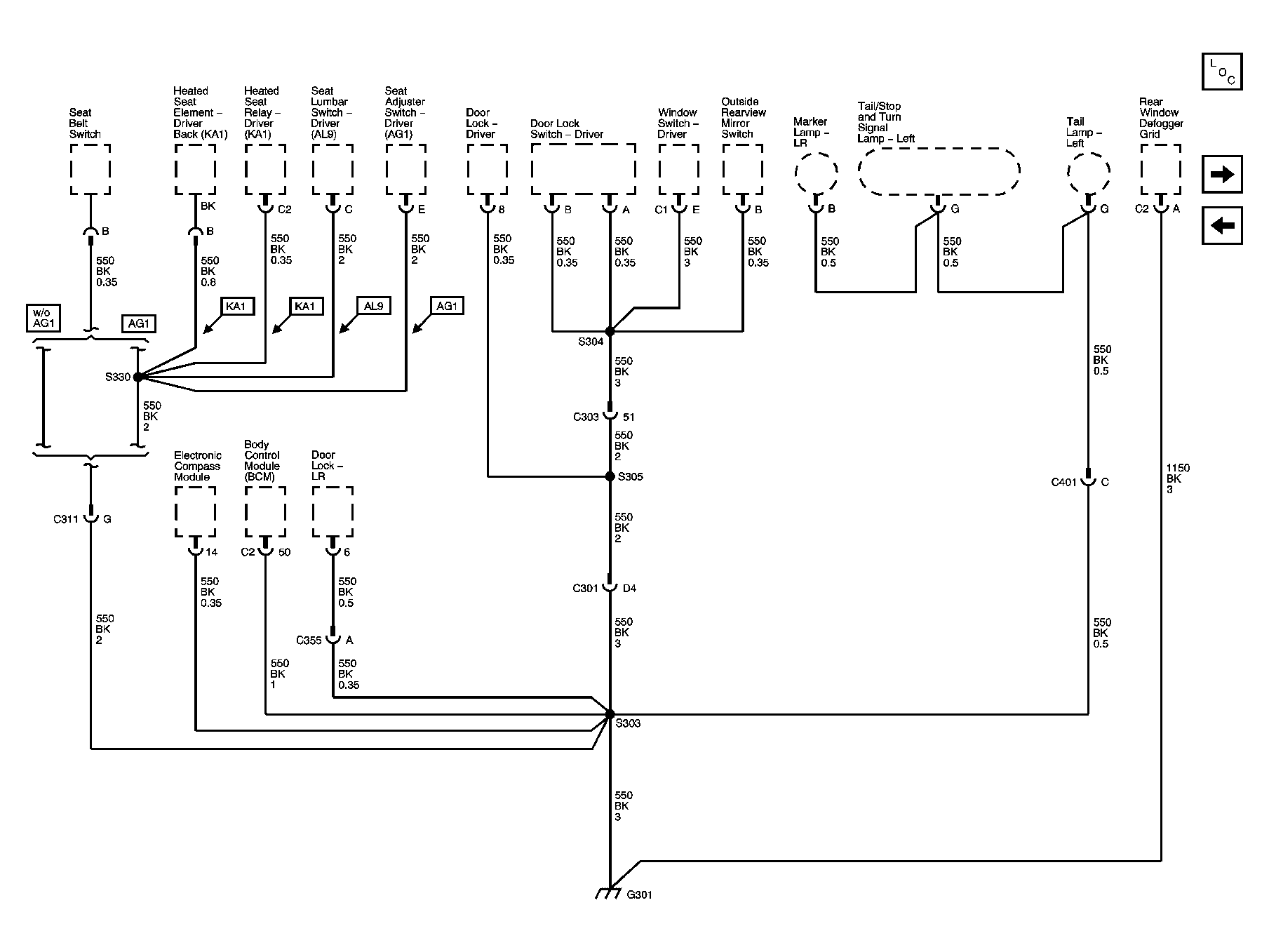

Fig 4: G200

Courtesy of GENERAL MOTORS CORP.

Fig 5: G202

Courtesy of GENERAL MOTORS CORP.

Fig 6: G301

Courtesy of GENERAL MOTORS CORP.

Fig 7: G302

Courtesy of GENERAL MOTORS CORP.
