Interior Lights Schematics

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

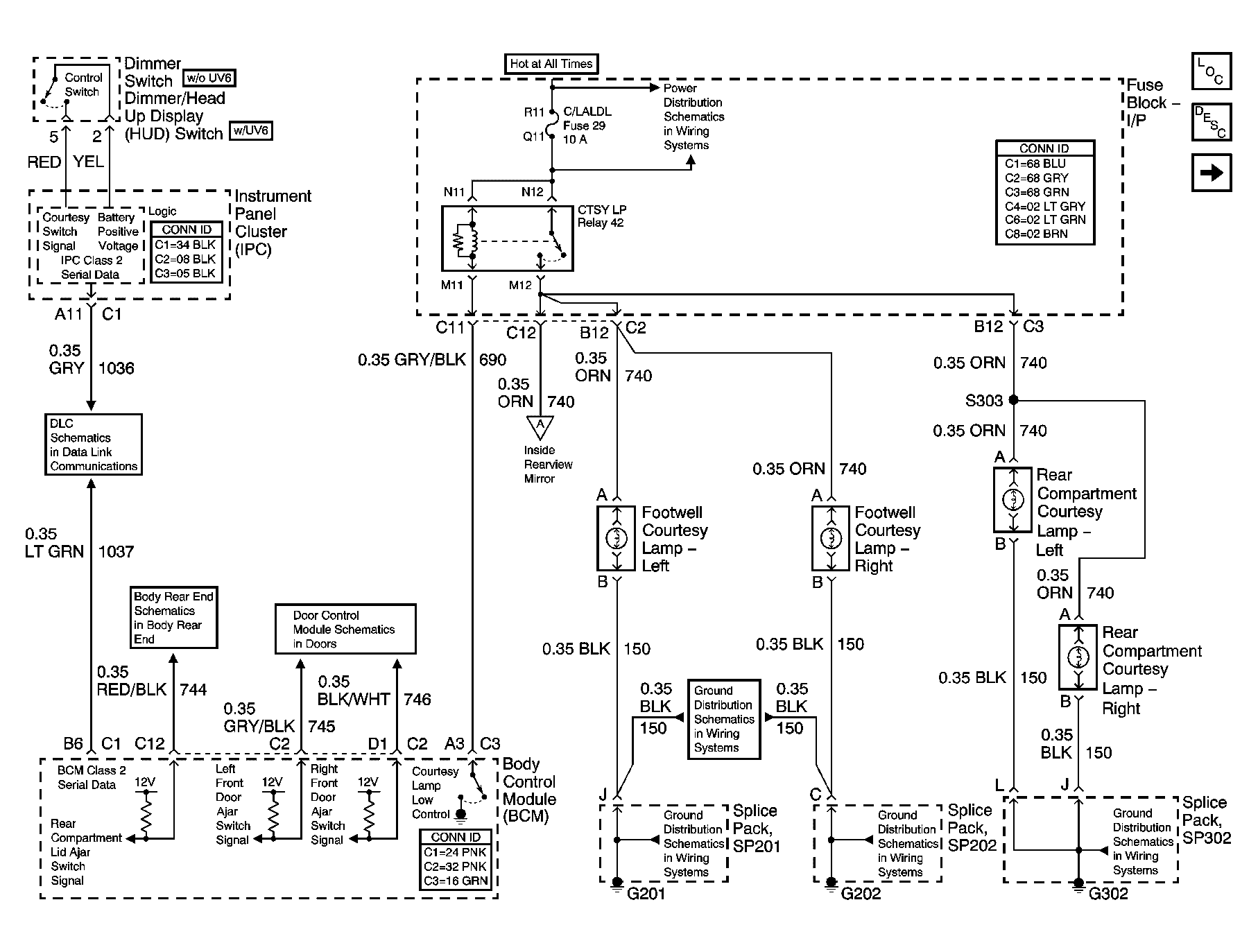

Fig 1: Courtesy Lamps Schematics

Courtesy of GENERAL MOTORS CORP.

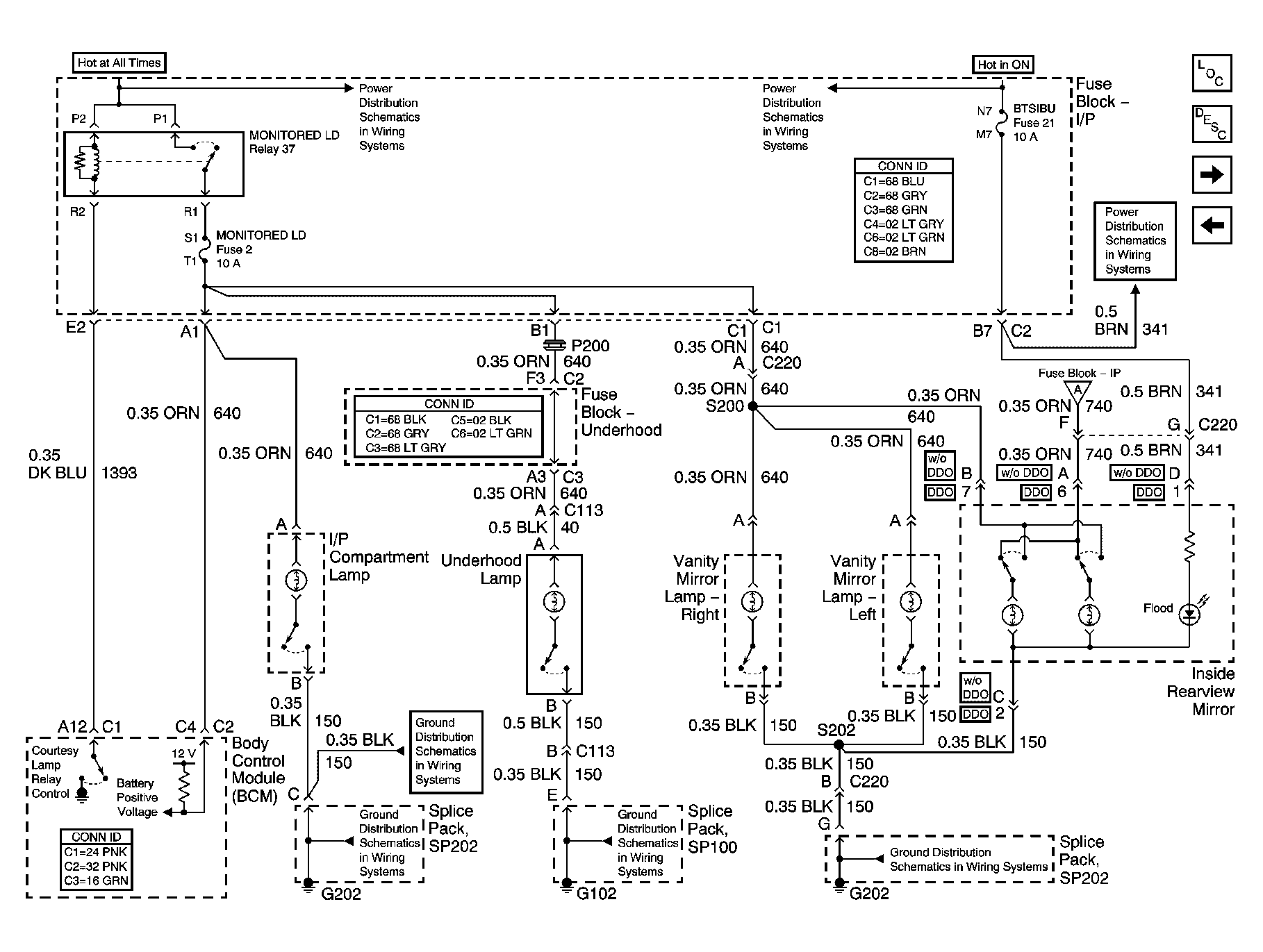

Fig 2: Vanity Mirror, Inside Rearview Mirror, Underhood And Instrument Panel Compartment Lamps Schematics

Courtesy of GENERAL MOTORS CORP.

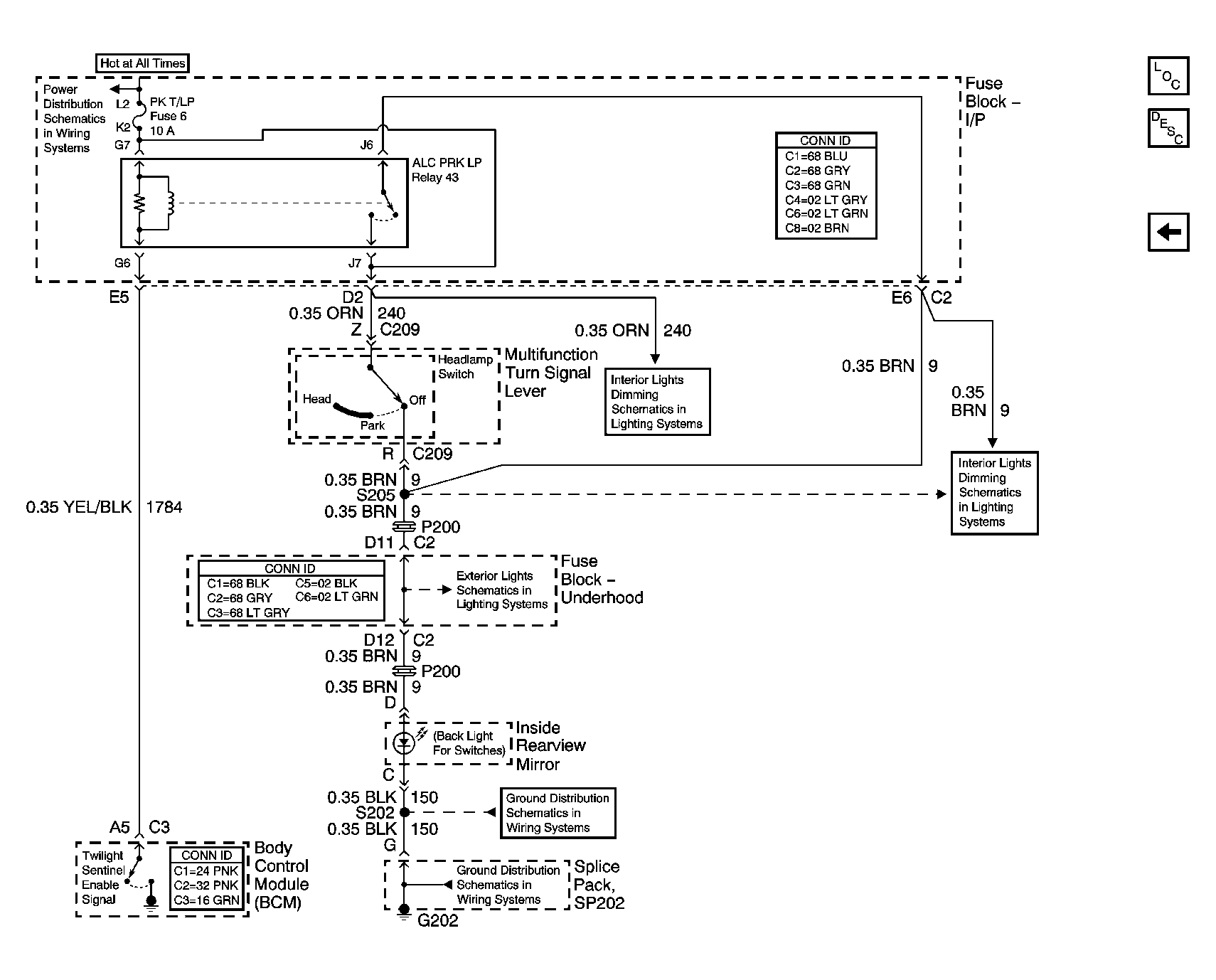

Fig 3: Inside Rearview Mirror Switch Backlight Schematics

Courtesy of GENERAL MOTORS CORP.
