Drive Belt Routing: Notes
WARNING: This page is about a different car, the 2004 Chevrolet Corvette and 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

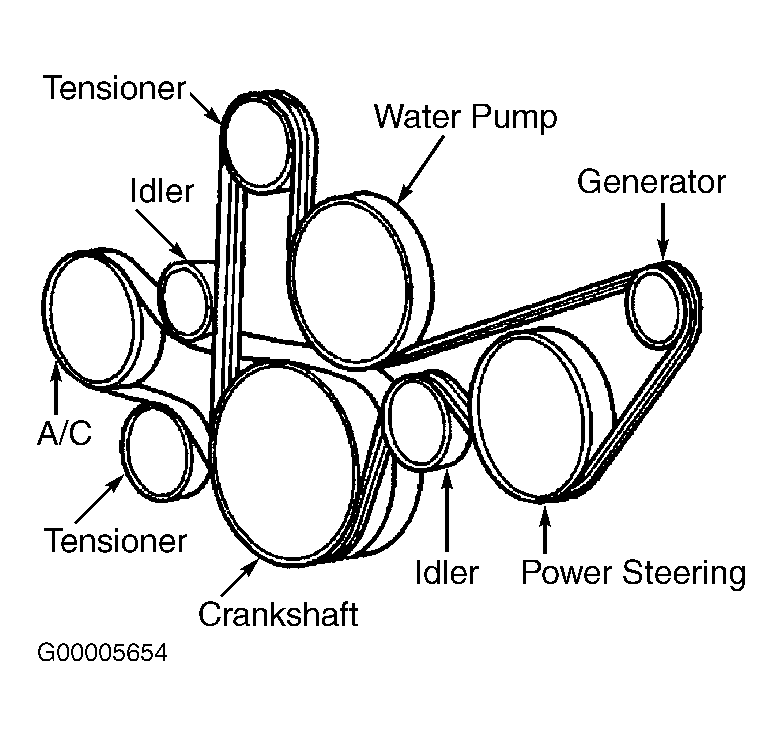

For serpentine belt routing, see underhood label or refer to appropriate illustrations. See Figure
.
