Component Location

WARNING: This page is about a different car, the 2003 Chevrolet Corvette and 2002 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

For an exploded view of axle shaft, see Fig 1 .

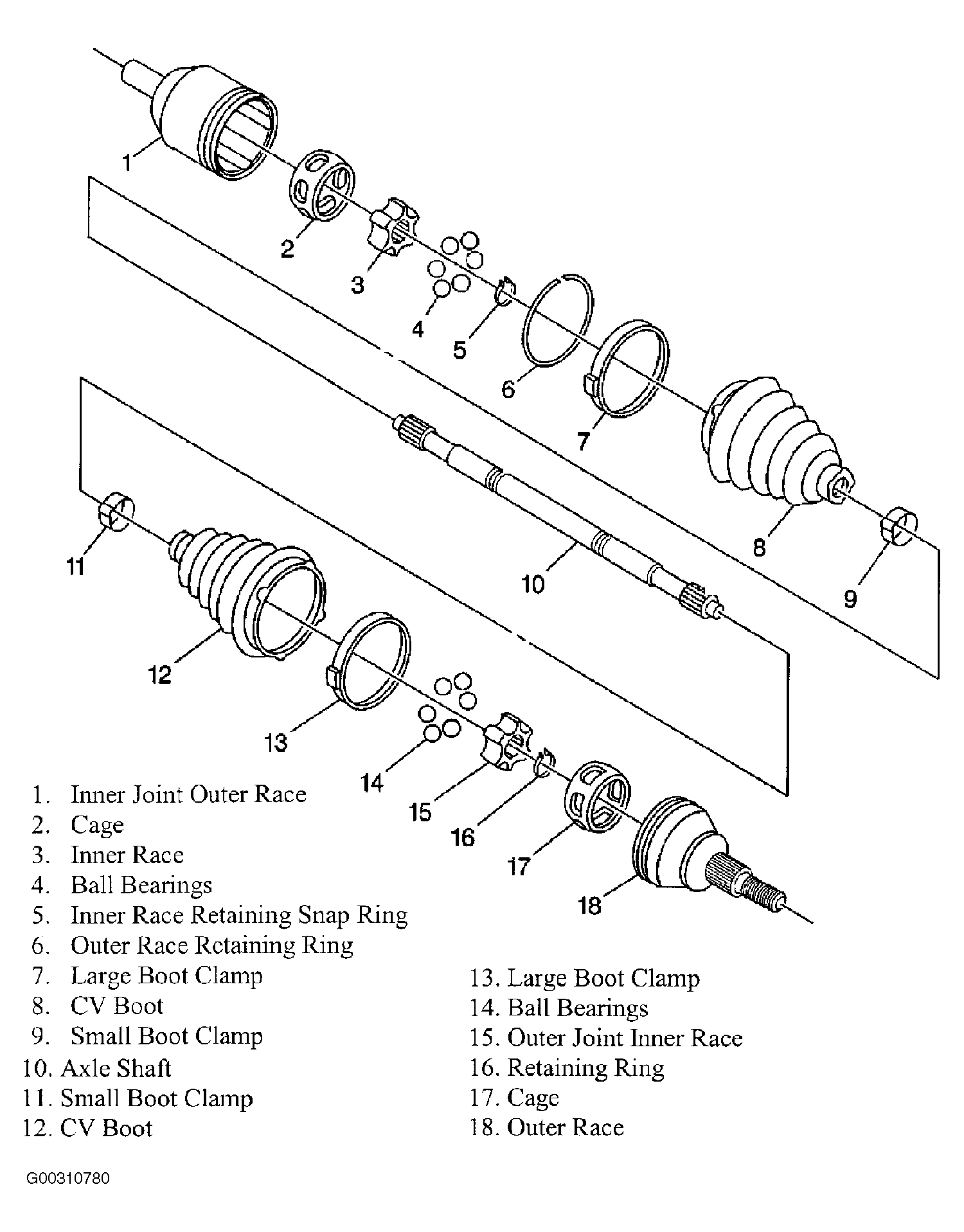

Fig 1: Exploded View Of Axle Shaft (Typical - Independent Rear Suspension)

Courtesy of GENERAL MOTORS CORP.
