HVAC Component Views

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

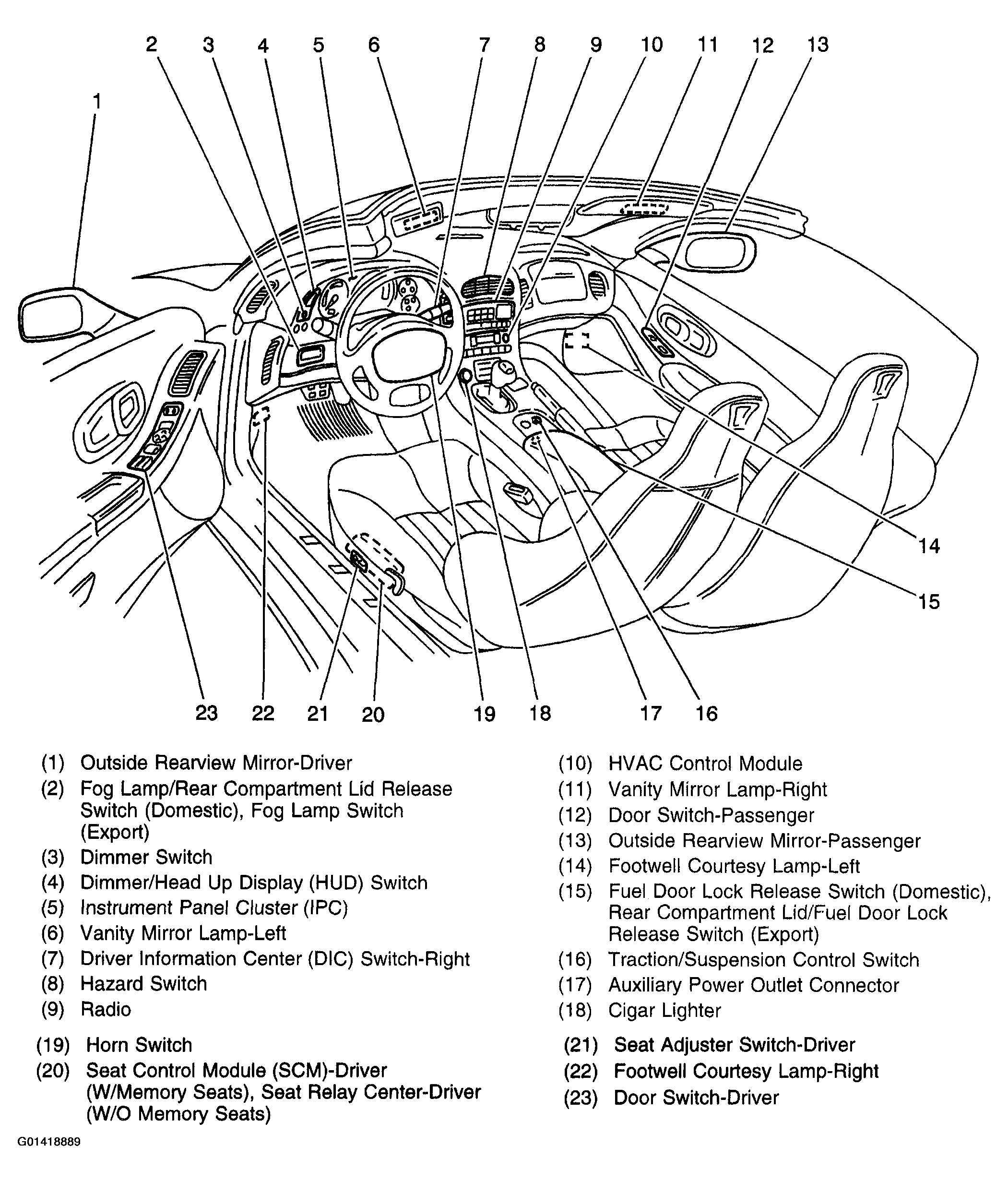

Fig 1: Locating HVAC Component View (Cockpit View)

G01418889

Courtesy of GENERAL MOTORS CORP.

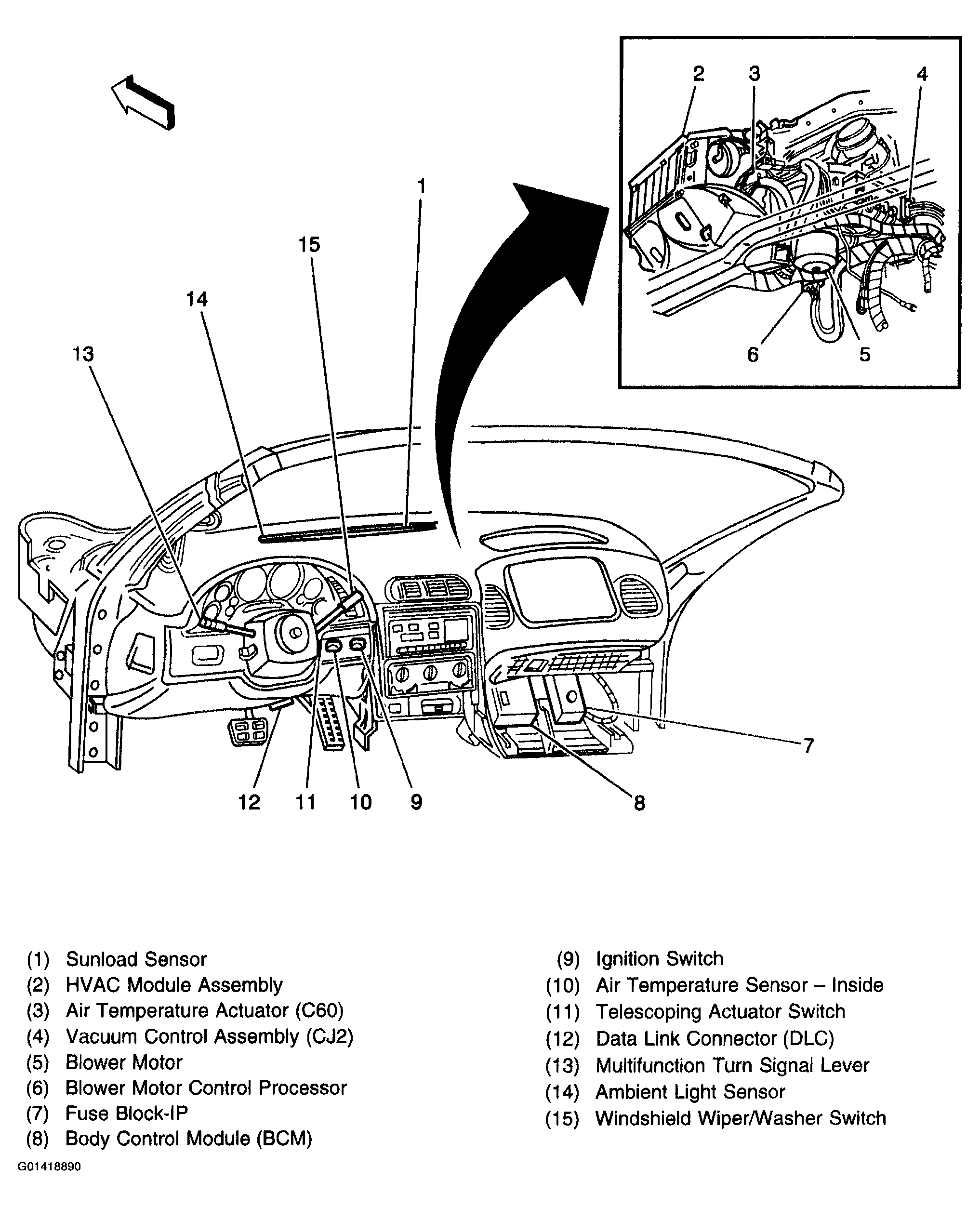

Fig 2: Locating HVAC Component View (Instrument Panel)

G01418890

Courtesy of GENERAL MOTORS CORP.

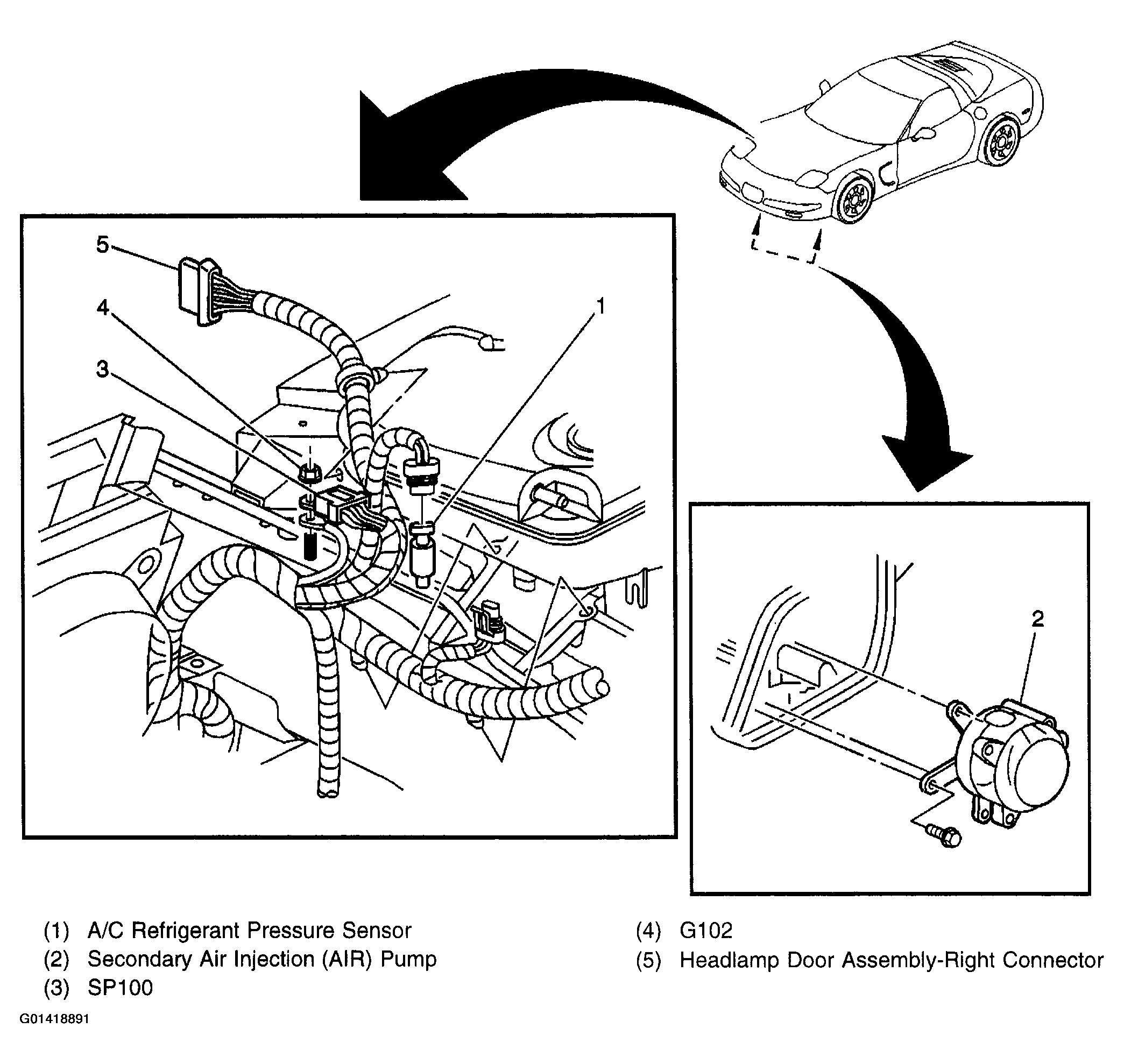

Fig 3: Locating HVAC Component View (Front Of Engine Compartment)

G01418891

Courtesy of GENERAL MOTORS CORP.

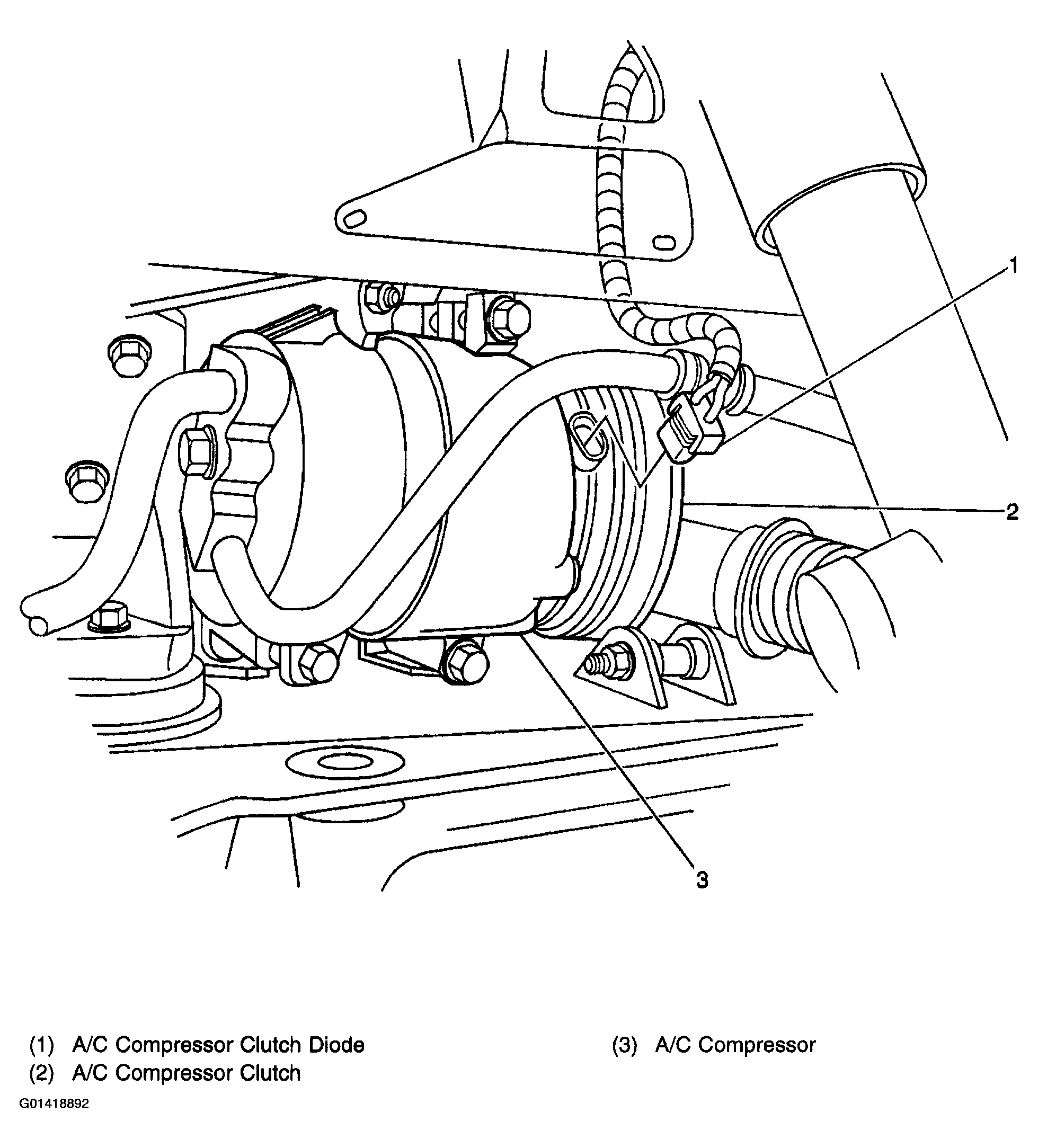

Fig 4: Locating A/C Compressor And Components

G01418892

Courtesy of GENERAL MOTORS CORP.

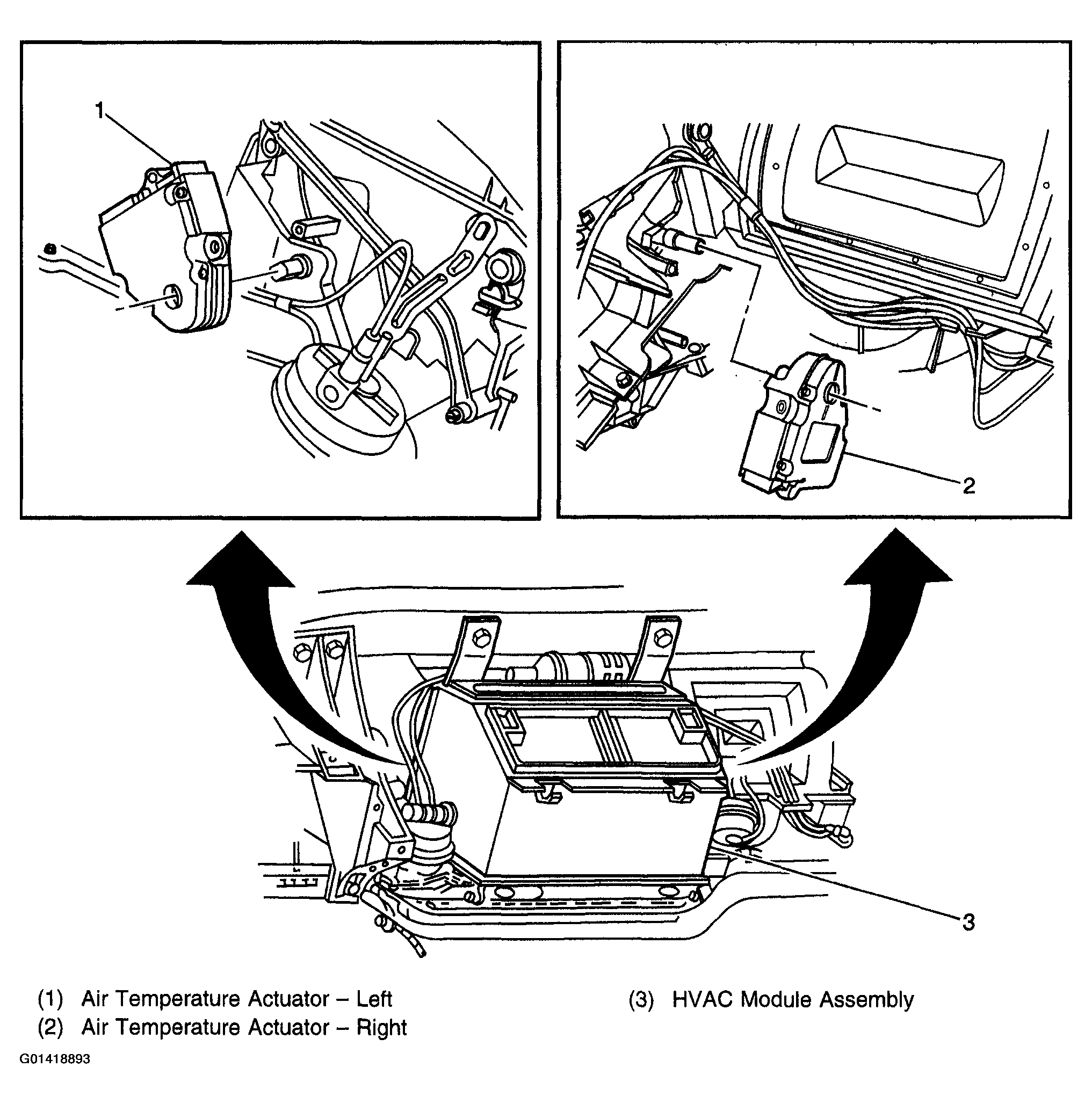

Fig 5: Locating HVAC Component View (Behind Center Of I/P)

G01418893

Courtesy of GENERAL MOTORS CORP.

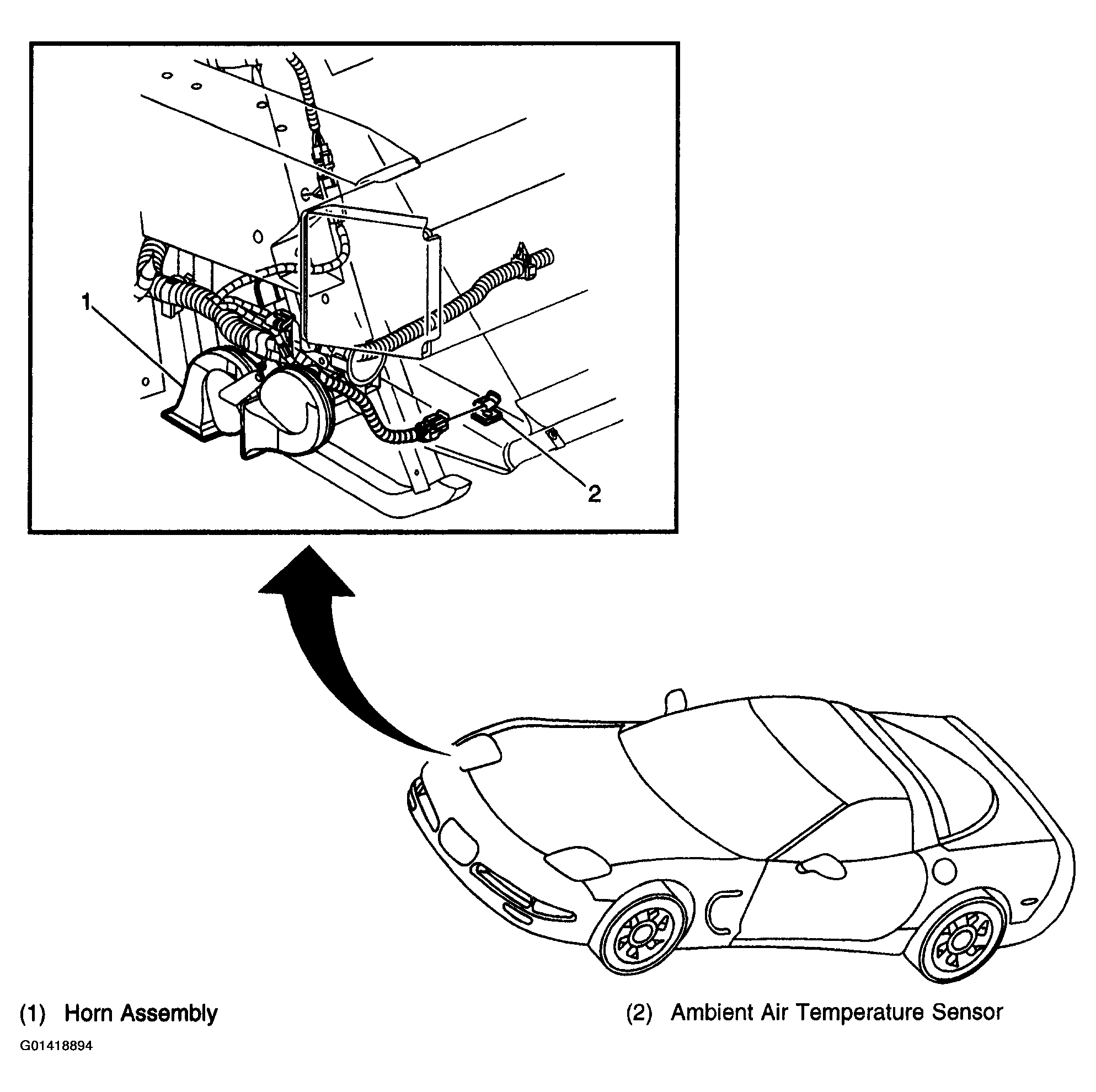

Fig 6: Locating HVAC Component View (Lower RF Of Vehicle)

G01418894

Courtesy of GENERAL MOTORS CORP.
