Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Align the inside air temperature sensor to the driver knee bolster trim panel, then push to secure the retaining tabs.

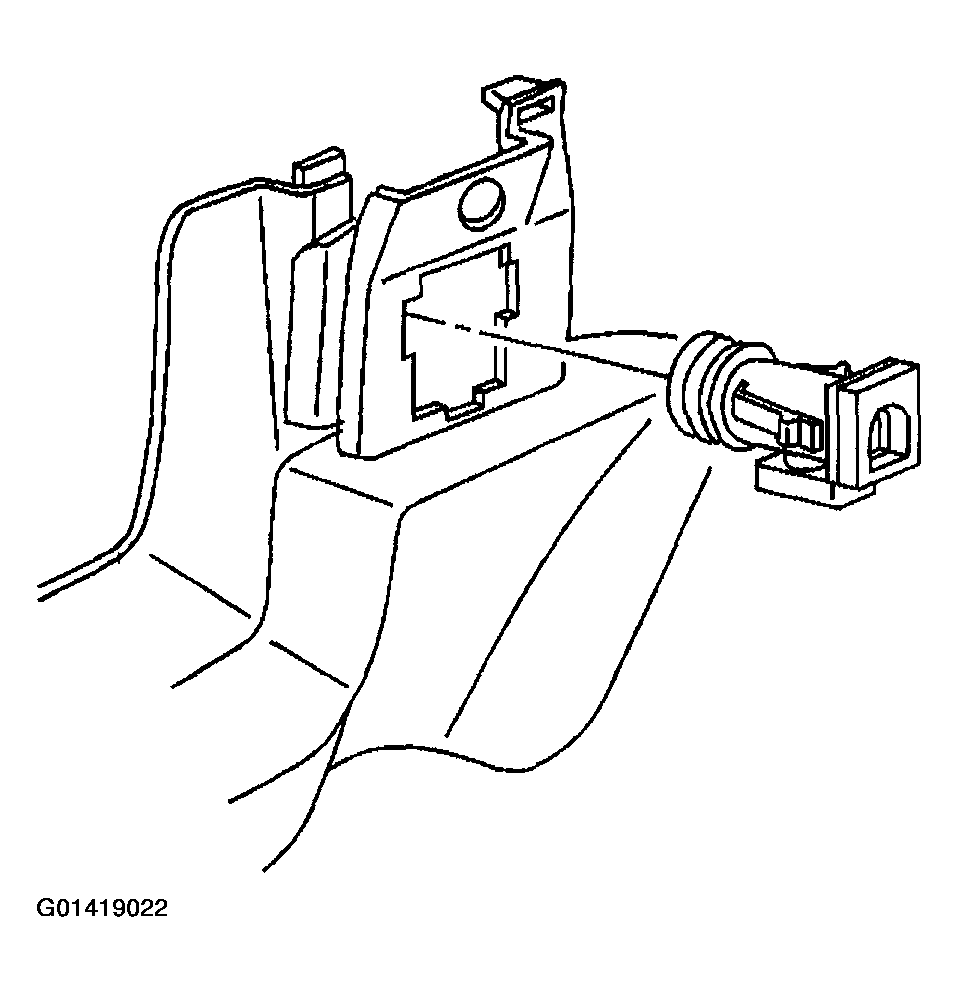

Fig 1: Installing Inside Air Temperature Sensor To Driver Knee Bolster Trim Panel
Courtesy of GENERAL MOTORS CORP.

Important: The inside air temperature sensor must be aligned with and fit into the end of the inside air temperature sensor aspirator duct.
Be sure to ALIGN the inside air temperature sensor with the inside air temperature sensor aspirator duct, while installing the driver knee bolster trim panel.

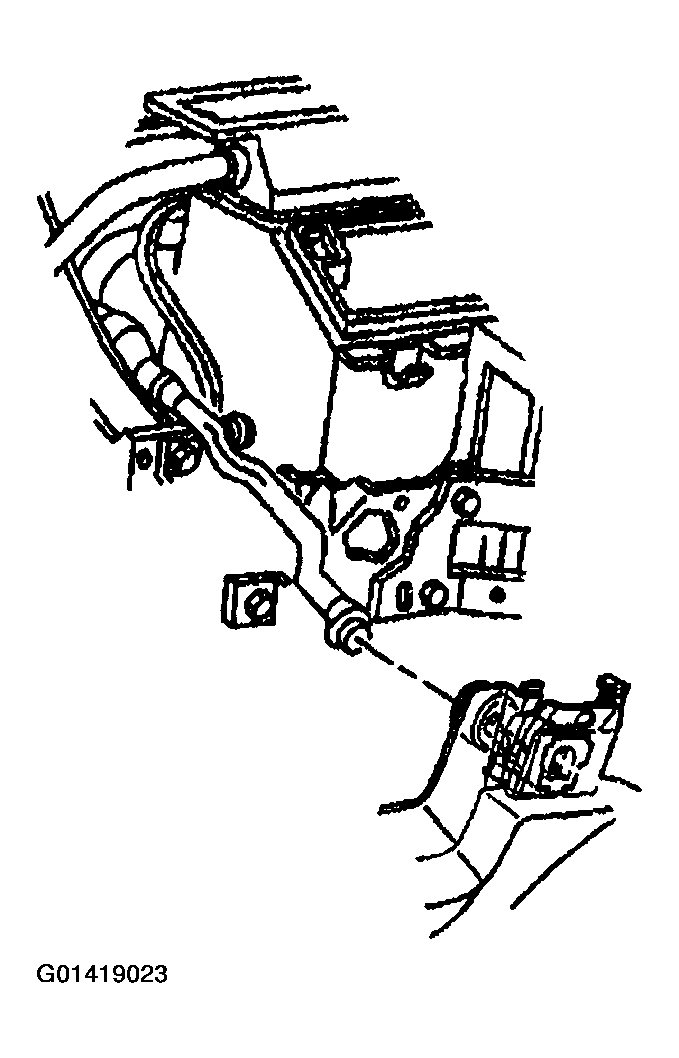

Fig 2: Aligning Inside Air Temperature Sensor With Inside Air Temperature Sensor Aspirator Duct
Courtesy of GENERAL MOTORS CORP.
Install the drivers knee bolster trim panel. Refer to TRIM PANEL REPLACEMENT - KNEE BOLSTER in Instrument Panel, Gages and Console.
Install the I/P accessory trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY in Instrument Panel, Gages and Console.
