Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the spring guide into the tilt spring.
    Fig 1: Installing Spring Guide
    G01419210Courtesy of GENERAL MOTORS CORP.
  2. Perform the following steps to install the tilt spring (1):
    1. 2.1. Install the tilt spring (1) to the post on the steering column support assembly (2).
    2. 2.2. Secure the tilt spring (1) with locking pliers.
    3. 2.3. Push the guide end of the tilt spring (1) onto the post on the steering column tilt head assembly.
    4. 2.4. Push the tilt spring (1) into position.

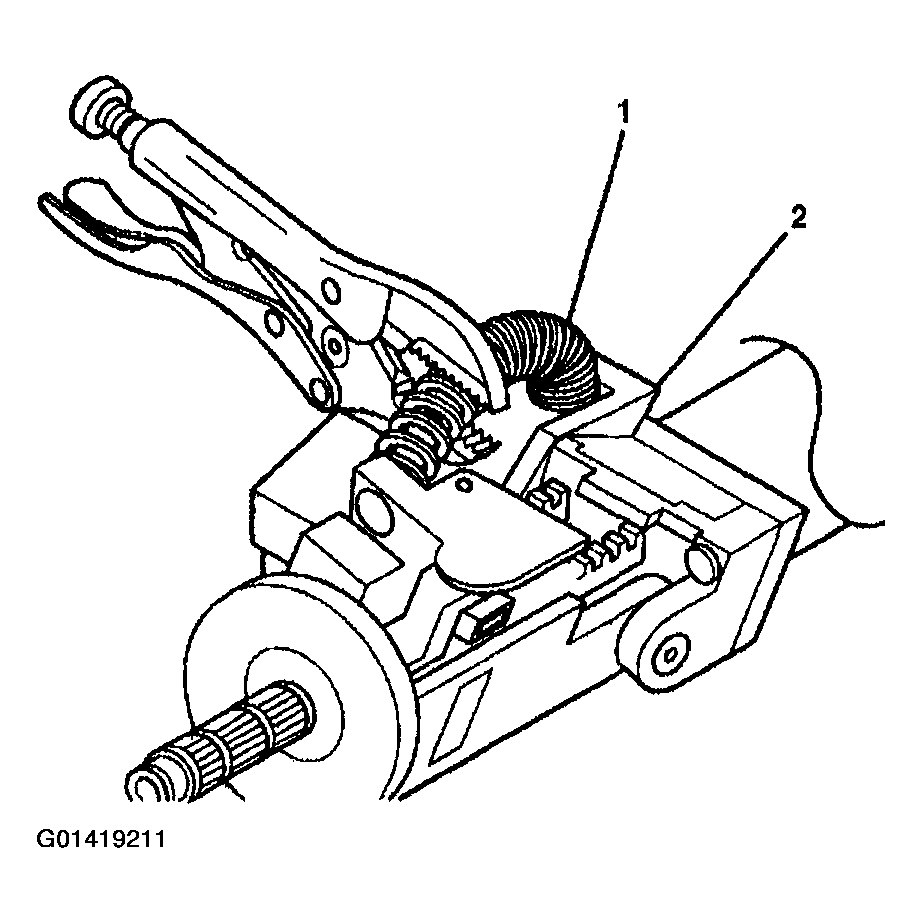

    Fig 2: Installing Tilt Spring
    G01419211Courtesy of GENERAL MOTORS CORP.
  3. Install the upper and lower trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT (TELESCOPING)  or STEERING COLUMN TRIM COVERS REPLACEMENT (MANUAL)  .
  4. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
