Driveline Disassembled Views

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

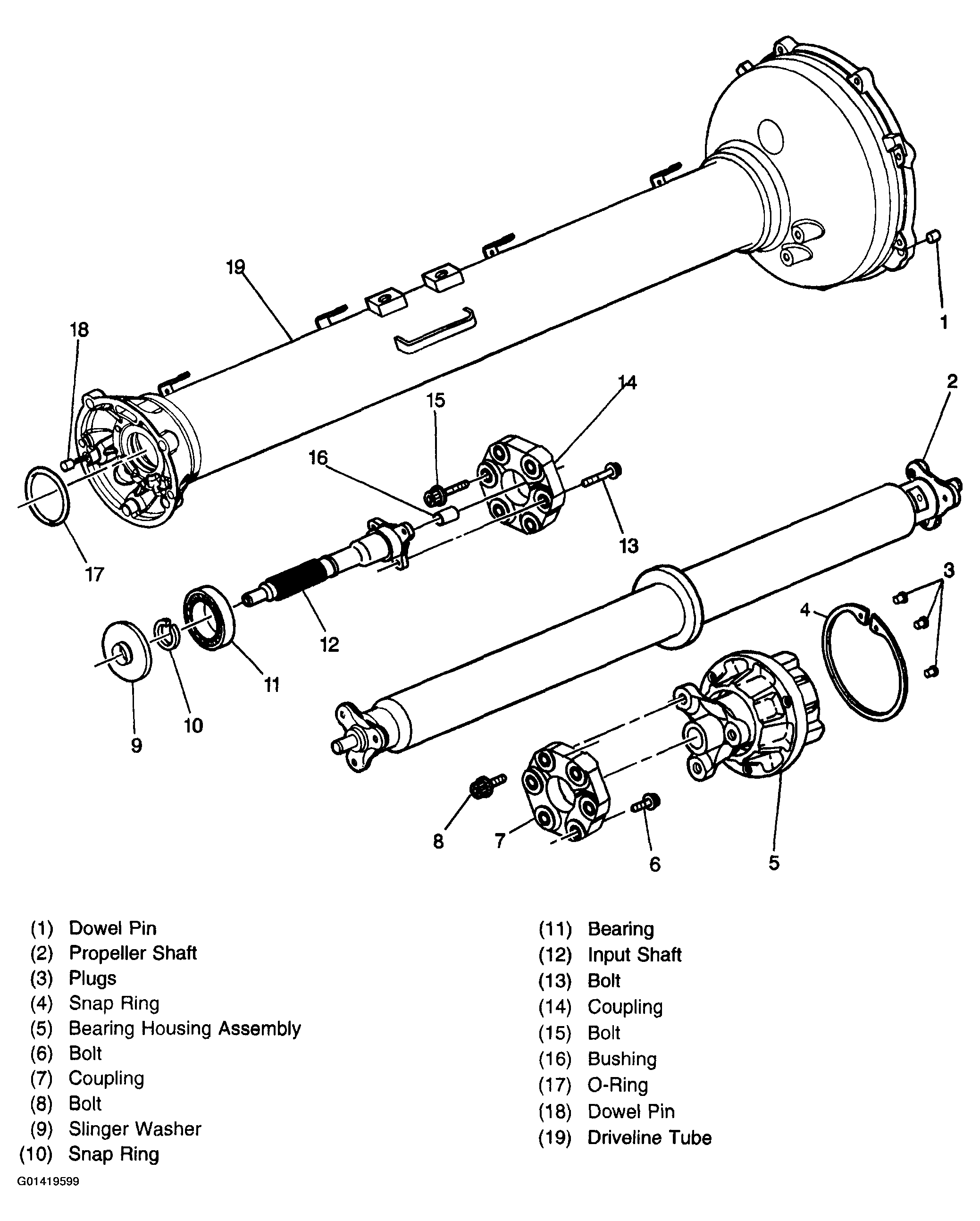

Fig 1: Driveline Assembly (Manual Transmission)
G01419599Courtesy of GENERAL MOTORS CORP.

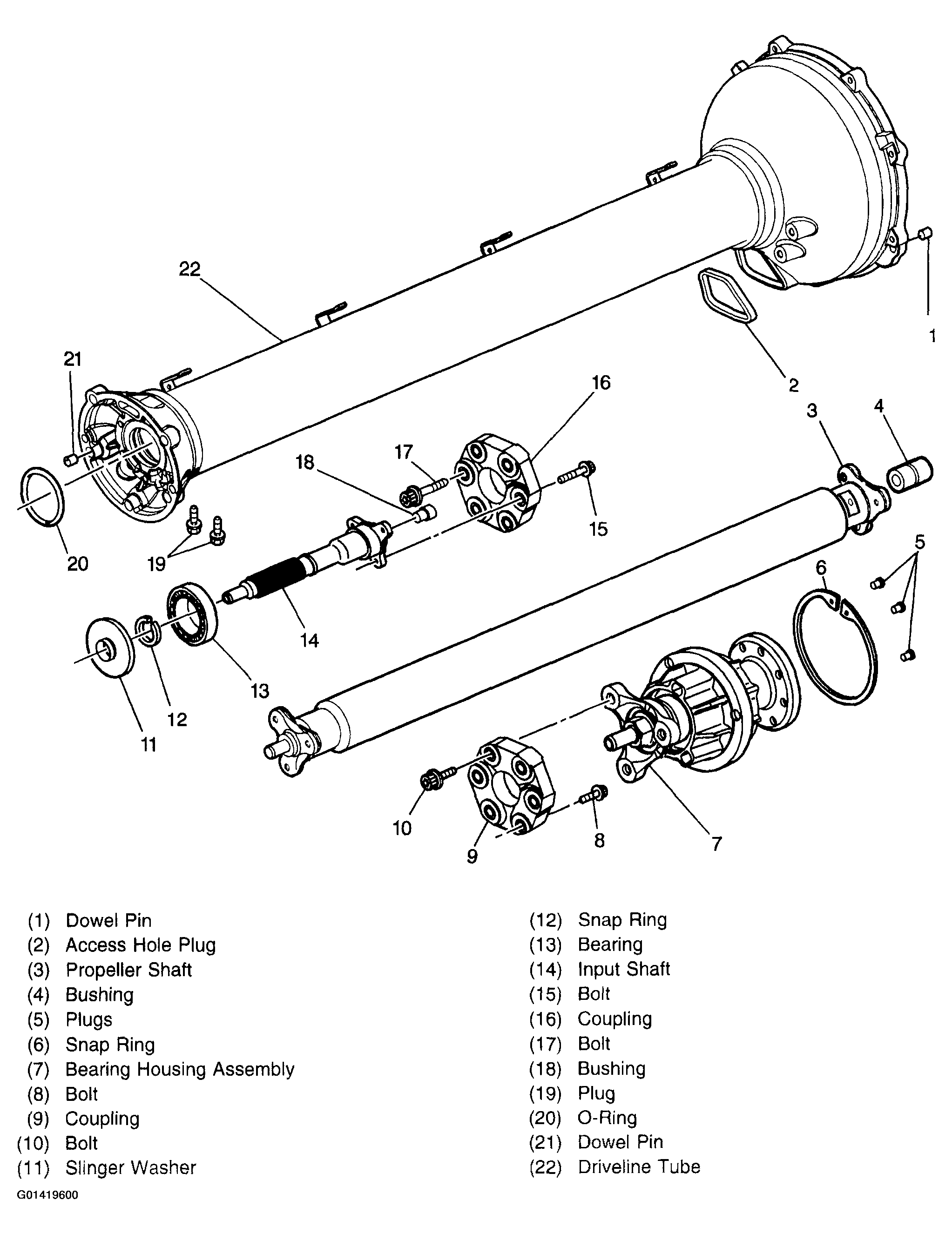

Fig 2: Driveline Assembly (Automatic Transmission)
G01419600Courtesy of GENERAL MOTORS CORP.

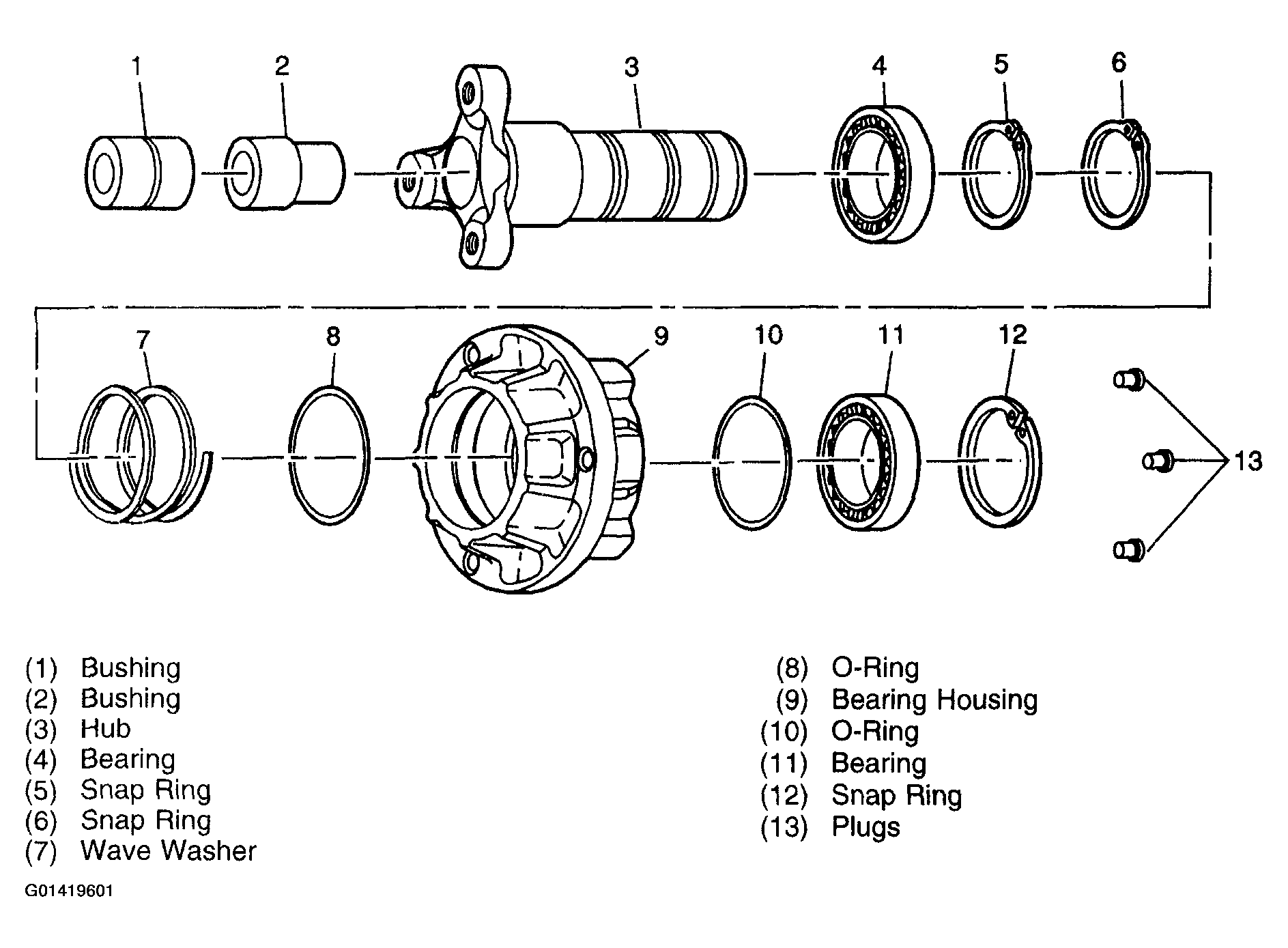

Fig 3: Rear Bearing Housing Assembly (Manual Transmission)
G01419601Courtesy of GENERAL MOTORS CORP.
Fig 4: Rear Bearing Housing Assembly (Manual Transmission)
G01419602Courtesy of GENERAL MOTORS CORP.
