Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Position the headlamp intermediate bracket to the position as marked prior to removal.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the headlamp intermediate bracket retaining screws.
Tighten

Tighten the headlamp intermediate bracket screws to 2 N.m (18 lb in).
Install the headlamp opening door. Refer to HEADLAMP OPENING DOOR REPLACEMENT .

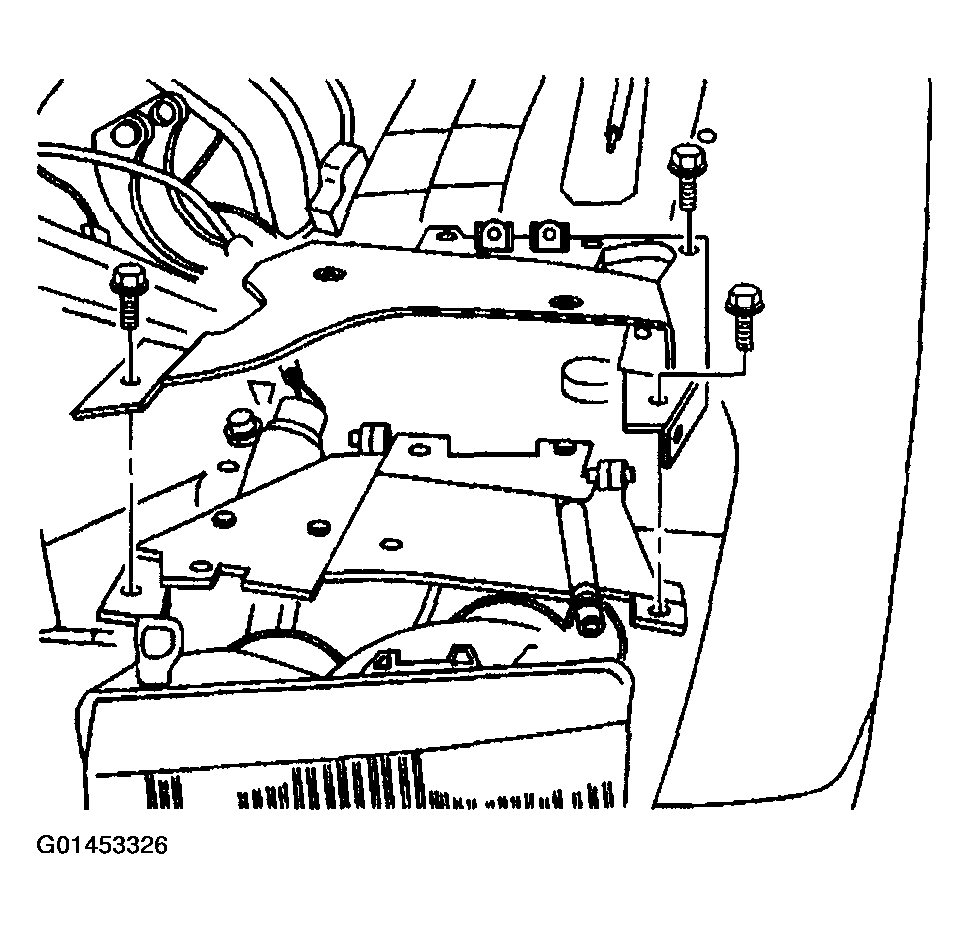

Fig 1: Headlamp Intermediate Bracket Retaining Screws
Courtesy of GENERAL MOTORS CORP.
