Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Open the hood.
Disconnect the electrical connector from the underhood lamp assembly.

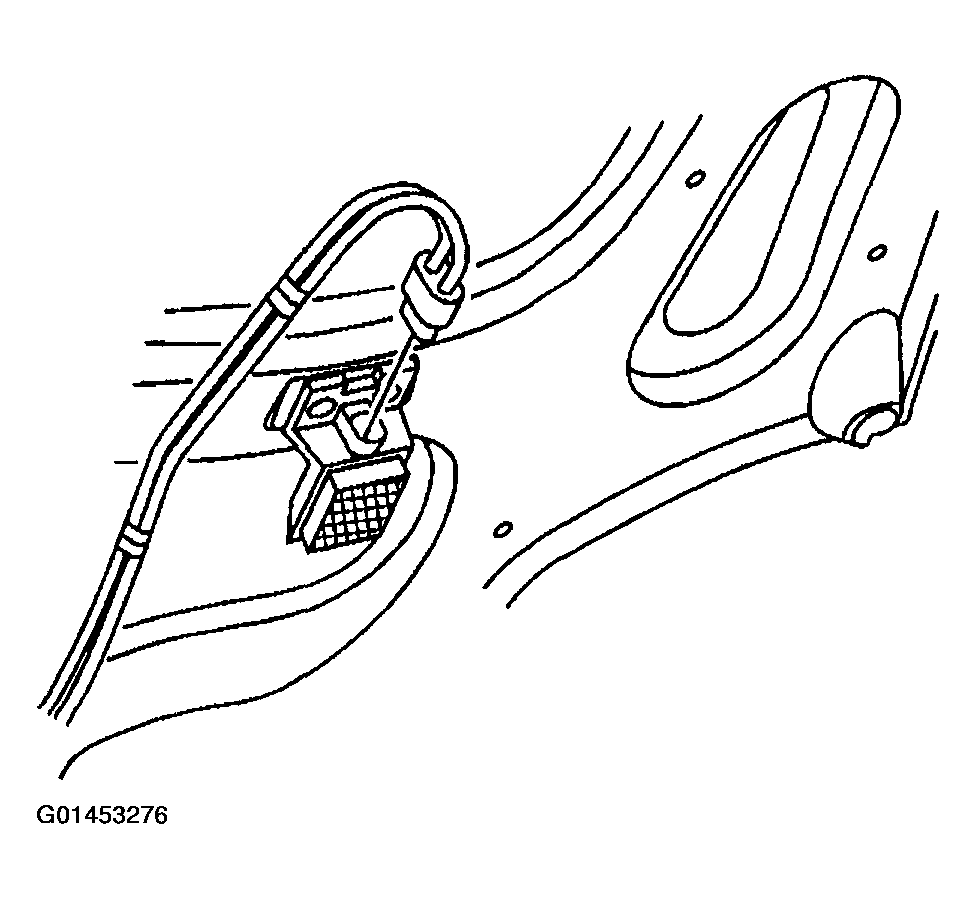

Fig 1: Disconnecting Electrical Connector From Underhood Lamp Assembly
Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to SAFETY GLASSES CAUTION in Cautions and Notices.
Drill out the 2 rivets retaining the underhood lamp assembly.
Remove the underhood lamp from the vehicle.

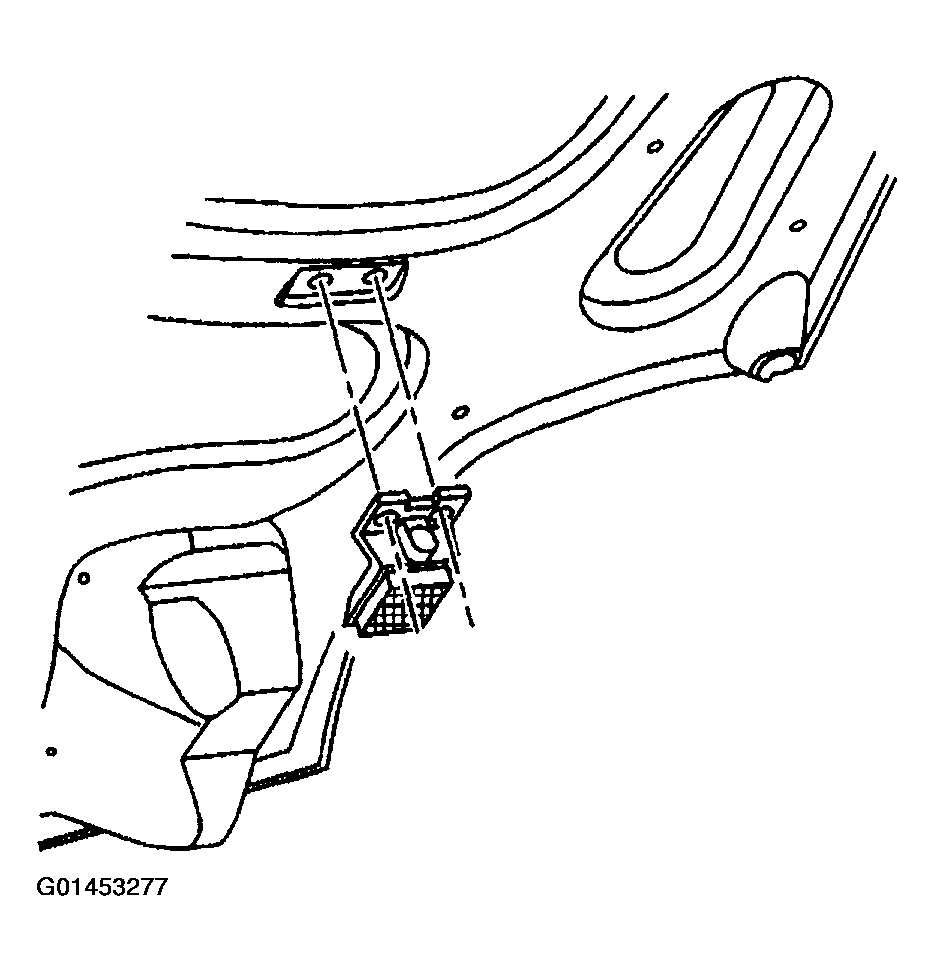

Fig 2: Removing Underhood Lamp From Vehicle
Courtesy of GENERAL MOTORS CORP.
