Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Install the radio fixed antenna mast to the radio fixed antenna.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Using the tool taped previously, tighten the antenna mast.
Tighten

Tighten the radio fixed antenna mast to 5 N.m (44 lb in).

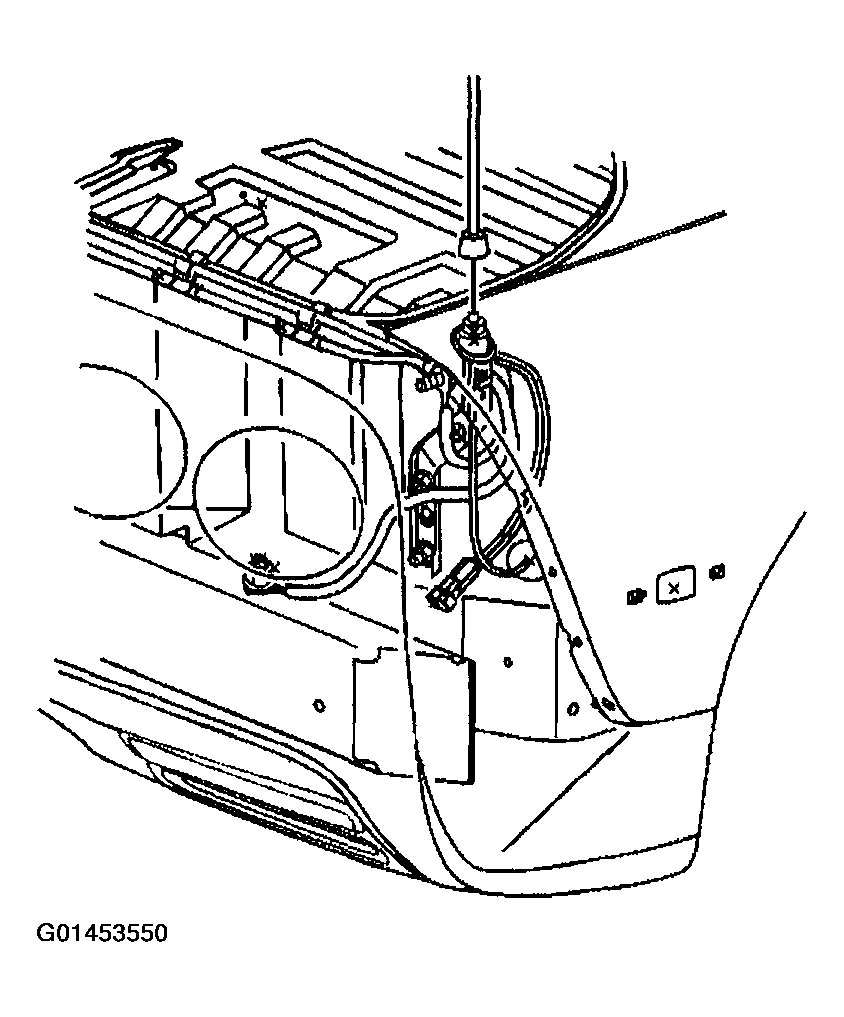

Fig 1: Installing Radio Fixed Antenna Mast To Radio Fixed Antenna
Courtesy of GENERAL MOTORS CORP.
