Symptom List

Refer to a symptom diagnostic procedure from the following list in order to diagnose the symptom:

• See Fig 1
• See Fig 2

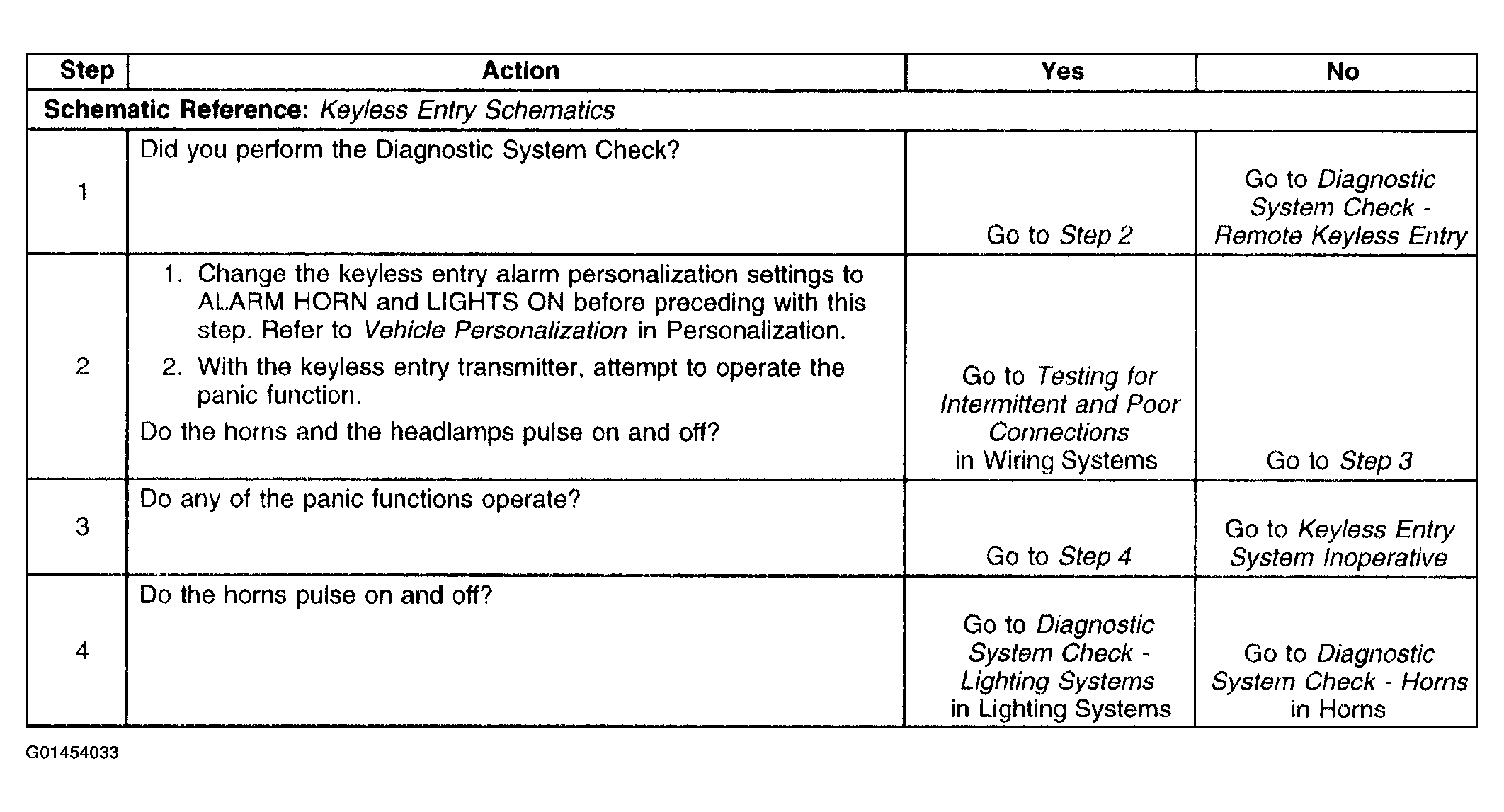

  Fig 1: Panic Mode Inoperative

  Courtesy of GENERAL MOTORS CORP.

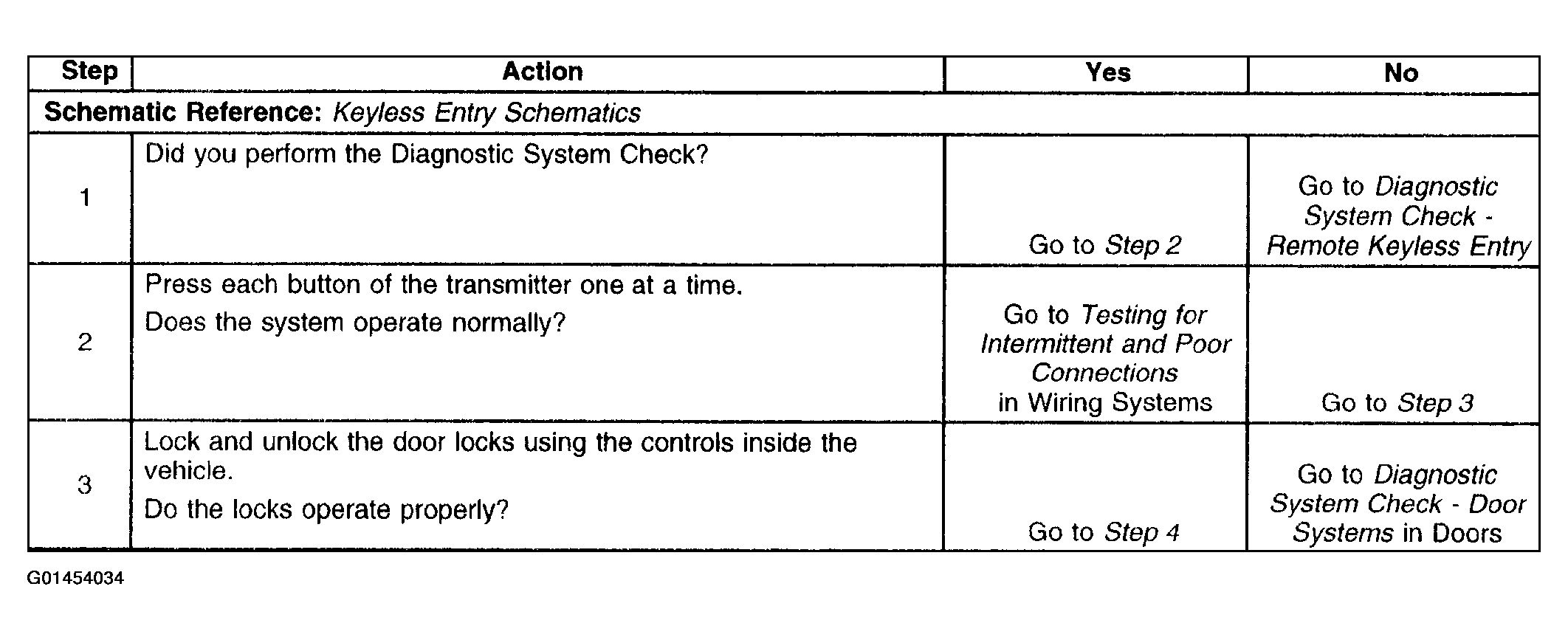

  Fig 2: Keyless Entry System Inoperative (1 Of 2)

  Courtesy of GENERAL MOTORS CORP.

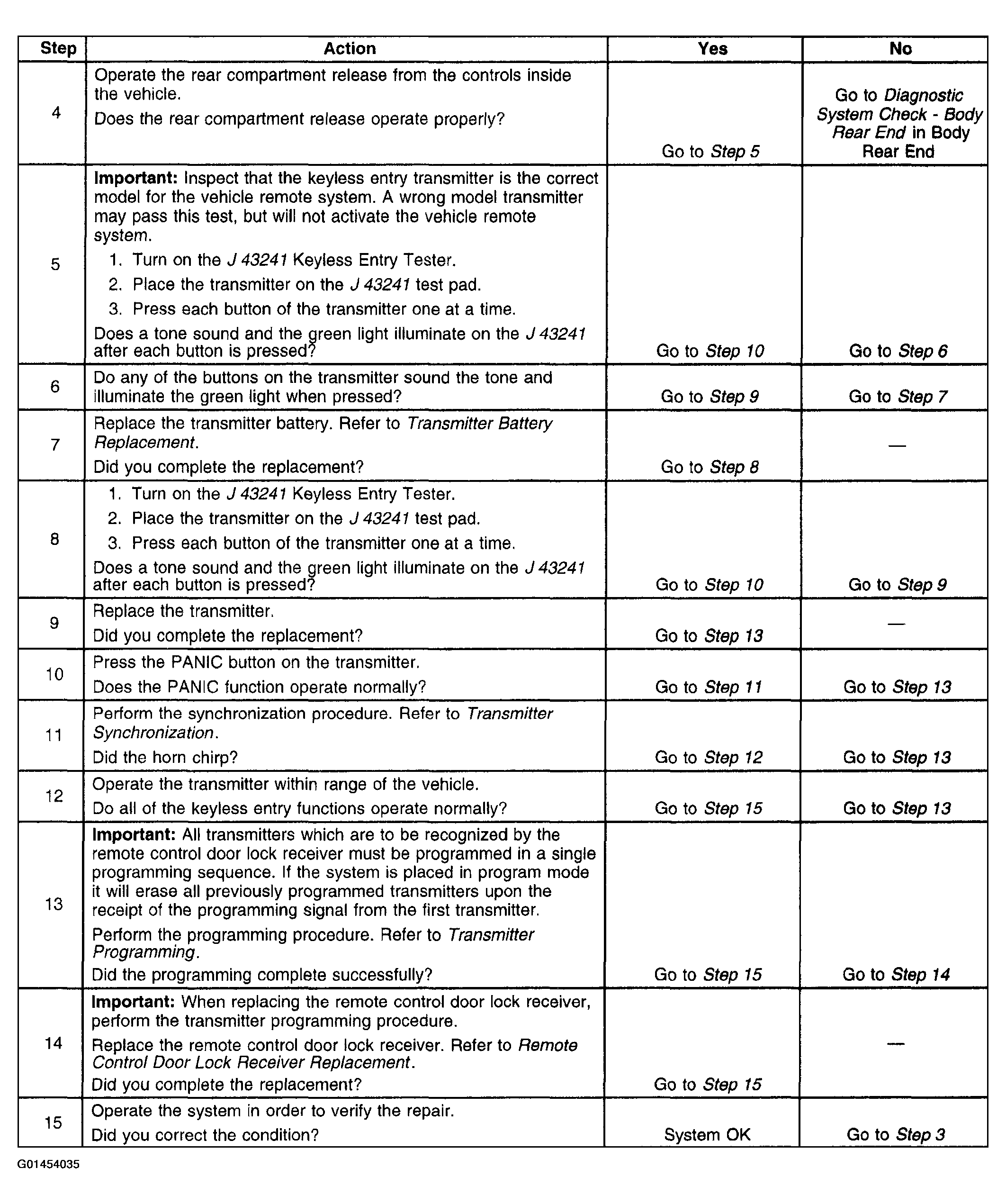

Fig 3: Keyless Entry System Inoperative (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
