Theft Deterrent System Connector End Views

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

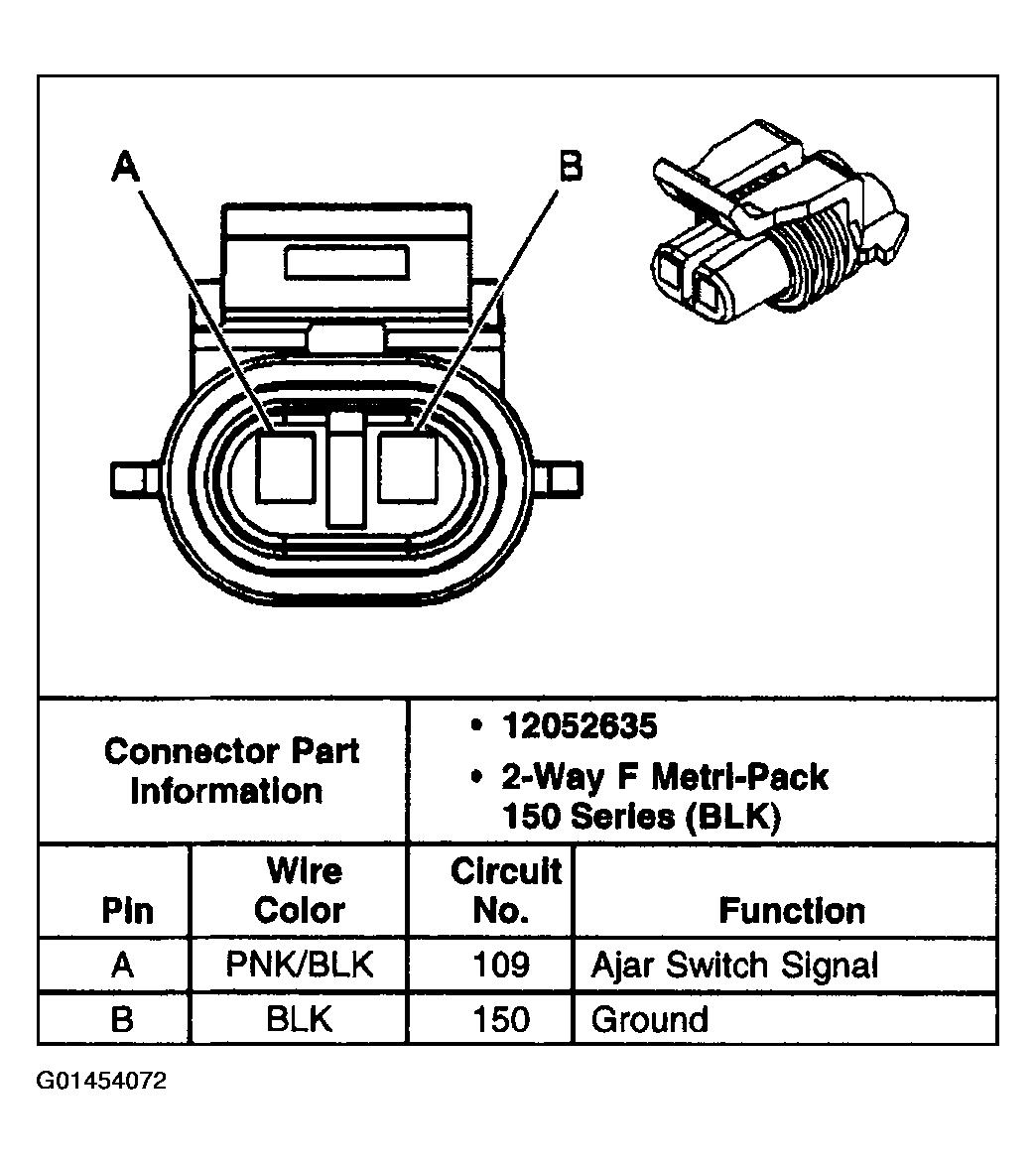

Fig 1: Hood Ajar Switch

Courtesy of GENERAL MOTORS CORP.

Fig 2: Theft Deterrent Relay

Courtesy of GENERAL MOTORS CORP.
