Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front fascia. Refer to FASCIA REPLACEMENT - FRONT BUMPER  .
  2. Remove the energy absorber bolts and spacers.
  3. Remove the energy absorber.

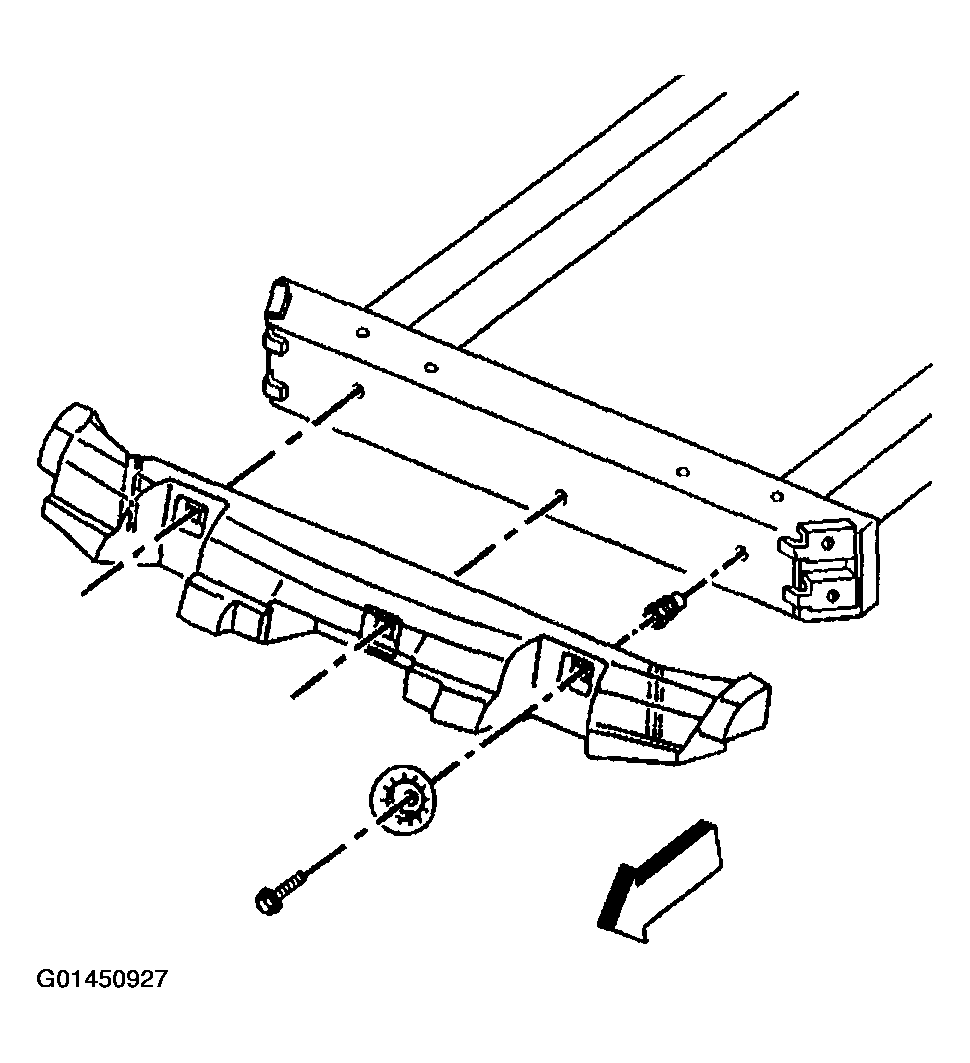

    Fig 1: Front Energy Absorber
    G01450927Courtesy of GENERAL MOTORS CORP.
