Installation Procedure
WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

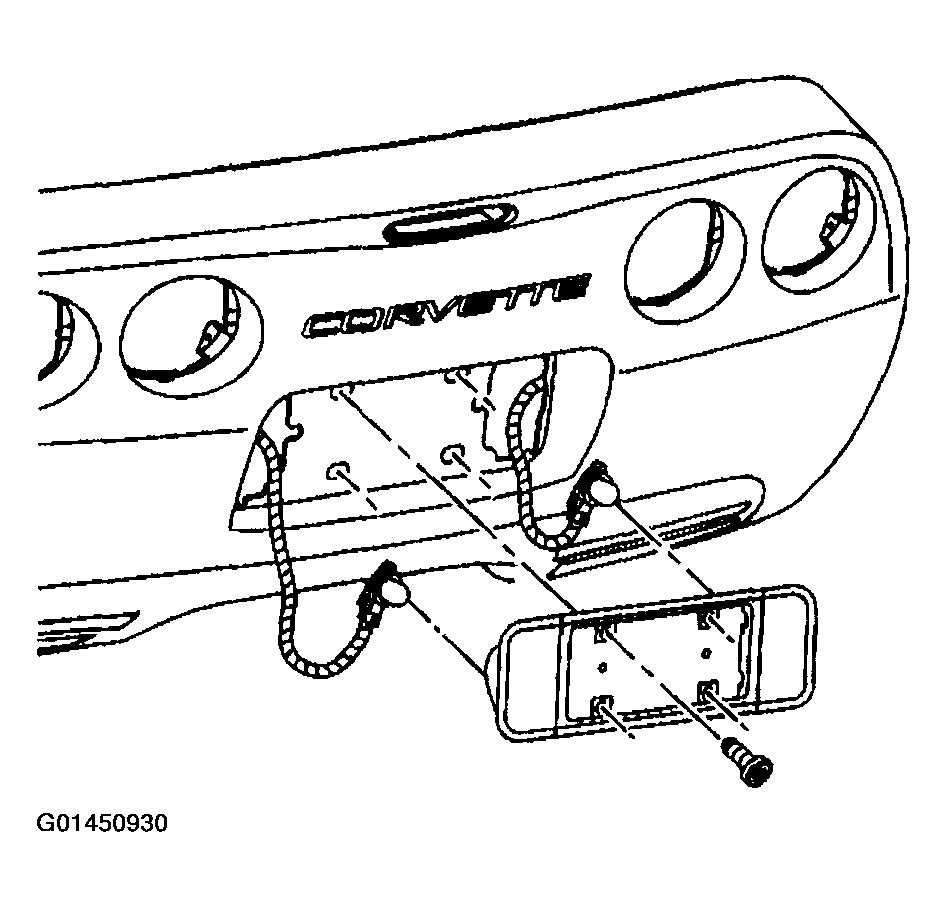

- Align the license bracket with the center locating tab in the slot in the fascia.
- Install the back-up lamp sockets.NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
- Install the license bracket screws.
Tighten
Tighten the license bracket screws to 2 N.m (18 lb in).
- Install the license plate.
- Install the license plate screws
Tighten
Tighten the license bracket screws to 2 N.m (18 lb in).
- Install the license plate frame.
