Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Install the adjuster(s) to the seat.
Tighten
- Tighten the seat to the adjuster bolts (design 1) to 24 N.m (18 lb ft).
- Tighten the seat to the adjuster nuts (design 2) to 24 N.m (18 lb ft).

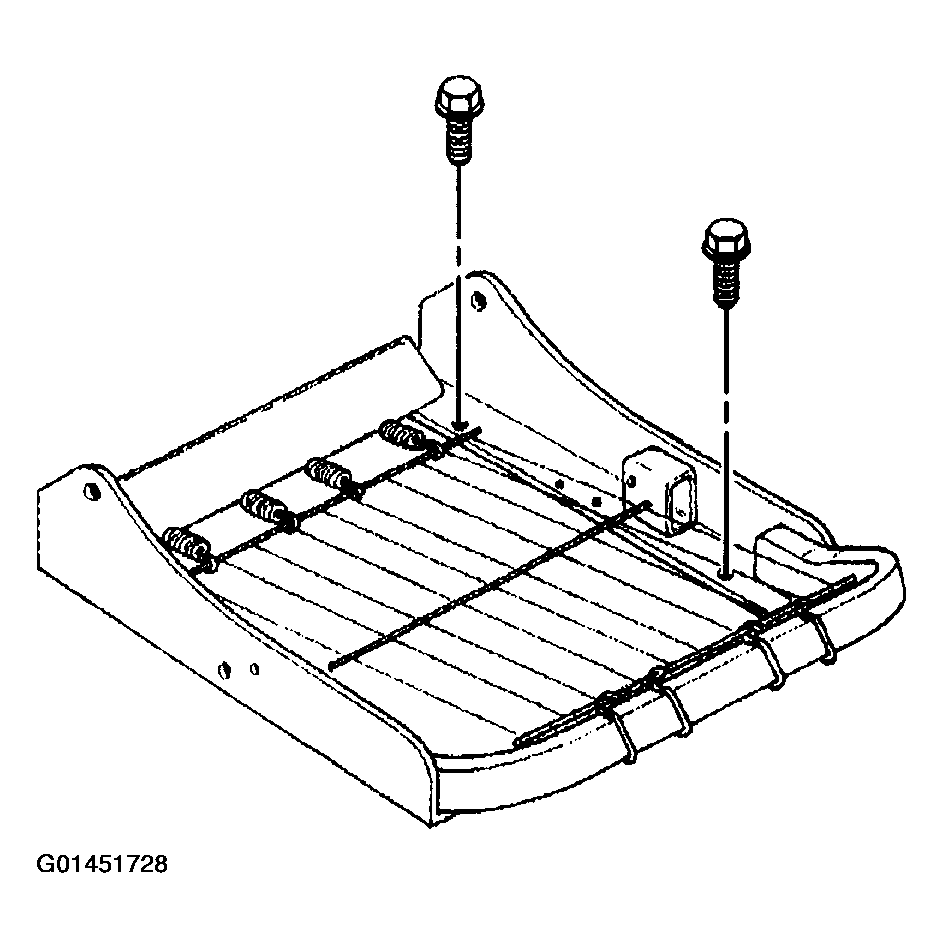

  Fig 1: Adjuster(s) To Seat
  Courtesy of GENERAL MOTORS CORP.
Align the adjusters with their locking pawls engaged in the same slots side to side (non power seat).
Install the seat adjuster adjustment bar (non power seat).

Fig 2: Seat Adjuster Adjustment Bar (Non Power Seat)
Courtesy of GENERAL MOTORS CORP.
Install the lumbar pump, if equipped. Tie strap the pump to the torque tube.
Connect the seat belt harness to the seat (left seat only).

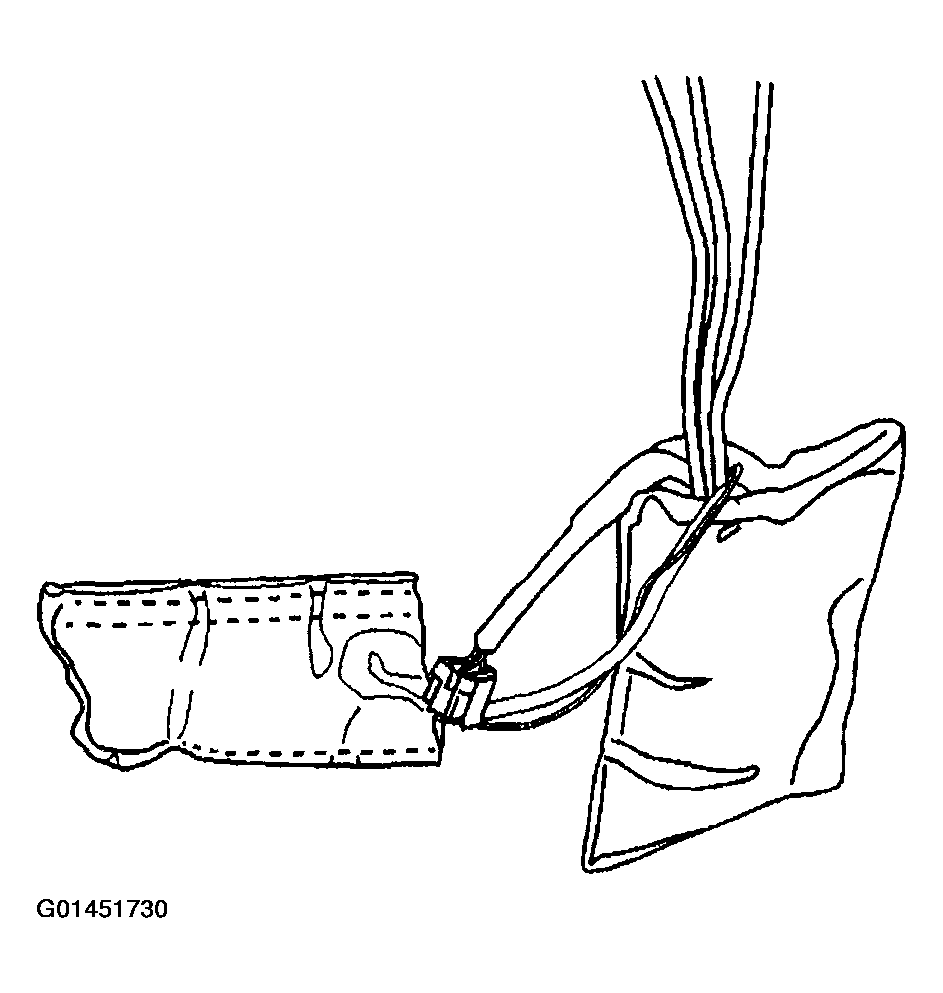

Fig 3: Connecting Seat Belt Harness To Seat (Left Seat Only)
Courtesy of GENERAL MOTORS CORP.
Install the memory seat control module to the seat spring wire, if equipped.

Fig 4: Installing Memory Seat Control Module To Seat Spring Wire
Courtesy of GENERAL MOTORS CORP.
Install the foam to the seat frame.
Install the seat cushion cover. Refer to SEAT CUSHION TRIM COVER AND PAD REPLACEMENT .

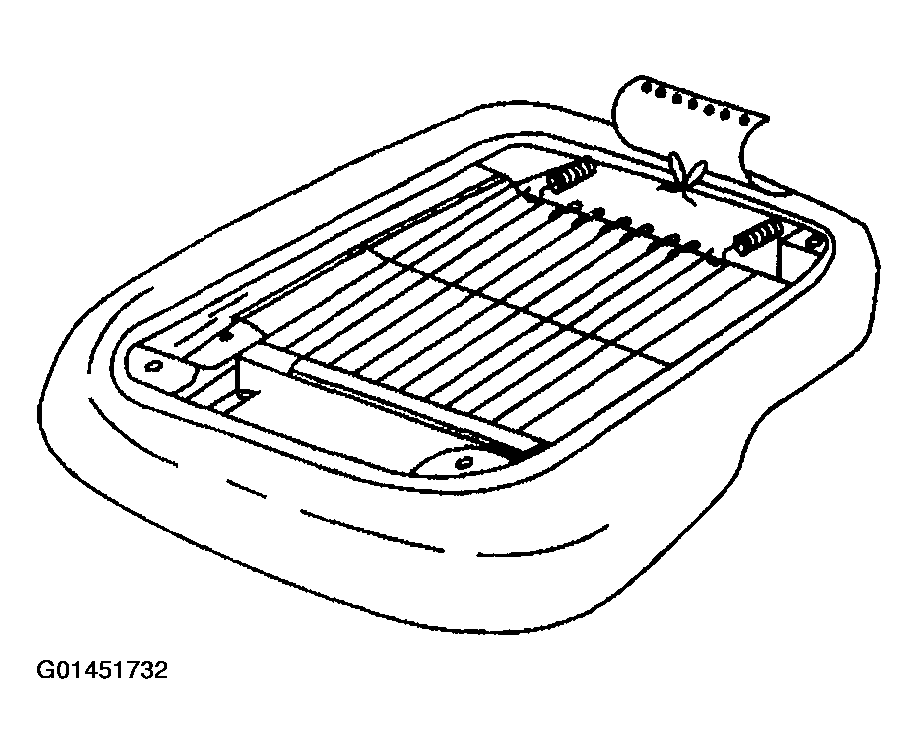

Fig 5: Foam To Seat Frame
Courtesy of GENERAL MOTORS CORP.
Install the buckle side of the seat belt.
Tighten

Tighten the seat belt buckle side mounting nut to 50 N.m (37 lb ft).

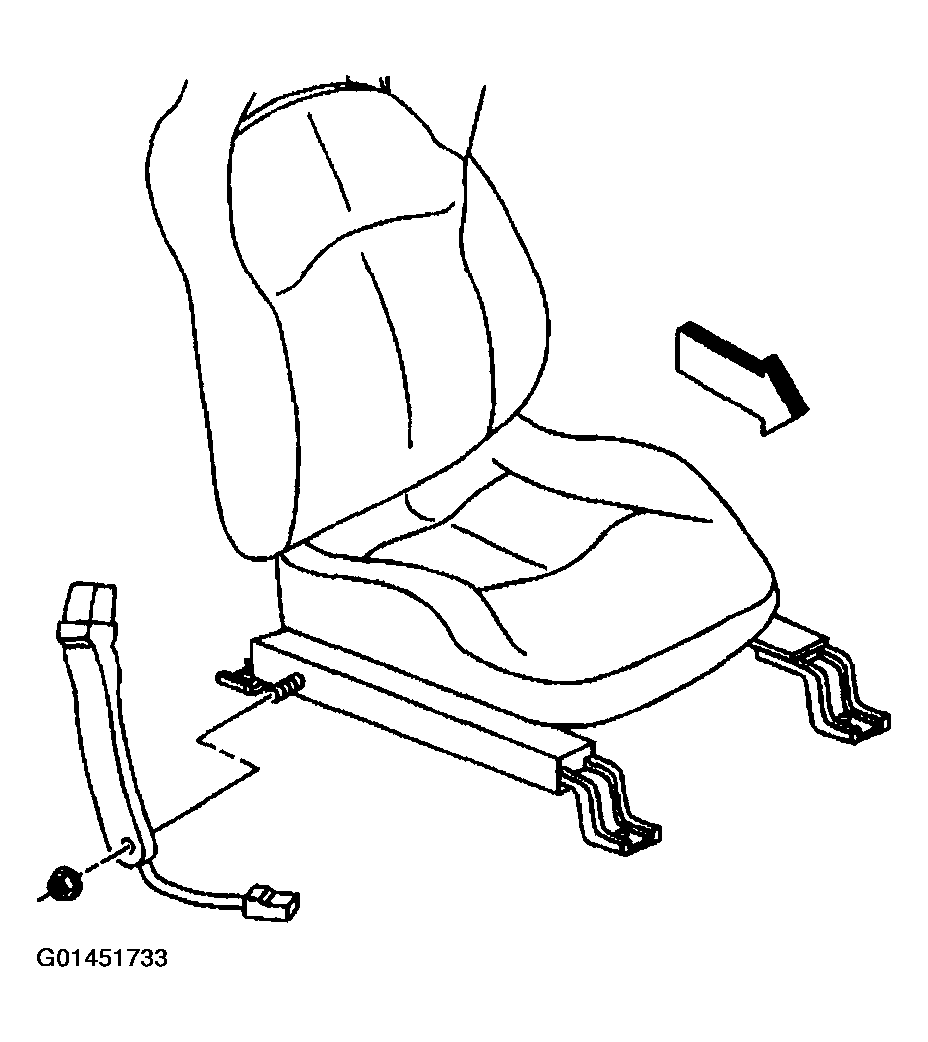

Fig 6: Buckle Side Of Seat Belt
Courtesy of GENERAL MOTORS CORP.
Install the seat. Refer to SEAT REPLACEMENT (POWER) or SEAT REPLACEMENT (MANUAL) .

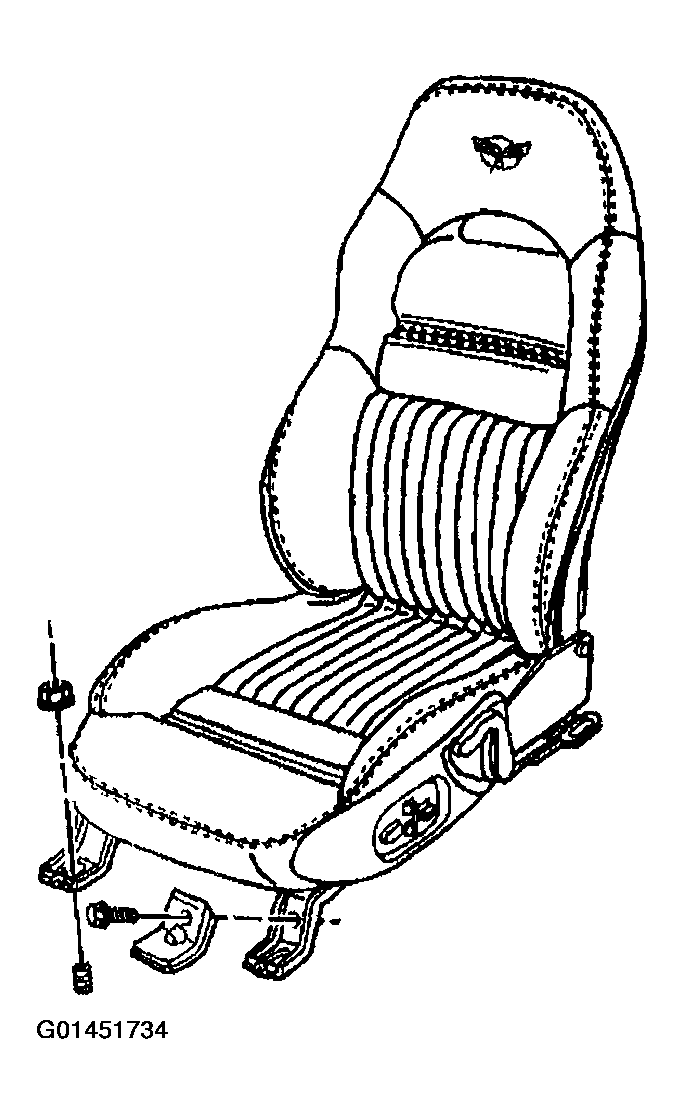

Fig 7: Seat
