Installation Procedure
WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

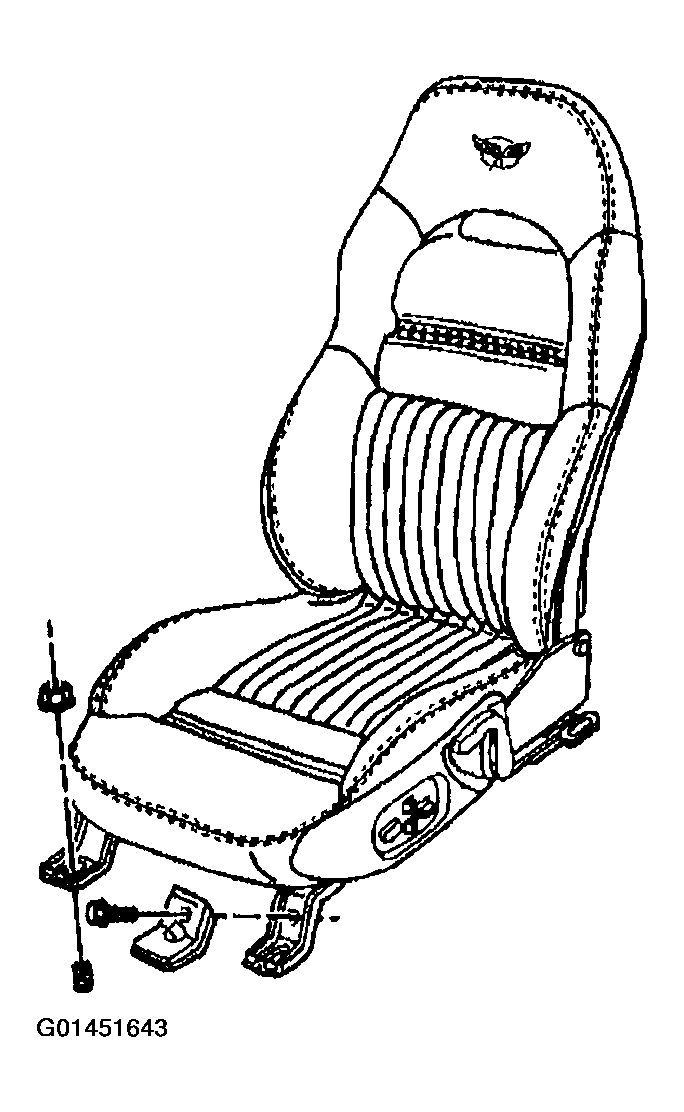

- Install the adjuster(s) if removed. Refer to SEAT ADJUSTER REPLACEMENT - FRONT .
- Install the seat cushion cover if removed. Refer to SEAT CUSHION TRIM COVER AND PAD REPLACEMENT .NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
- Install the buckle side of the seat belt to the adjuster, if removed.
Tighten
Tighten the seat belt buckle side mounting nut to 50 N.m (37 lb ft).

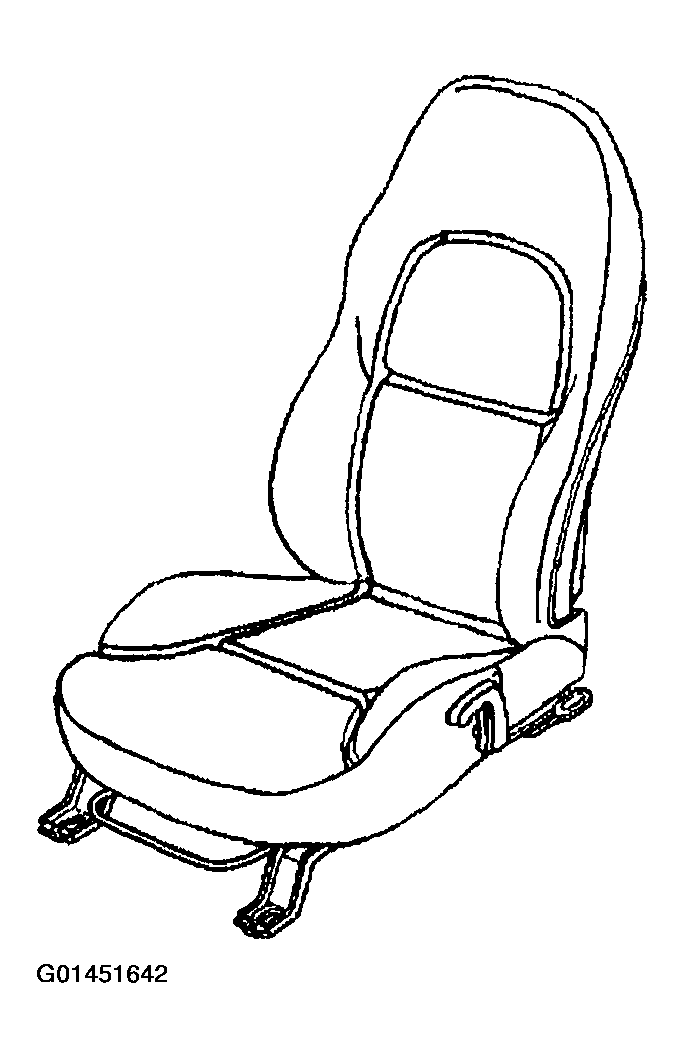

- Align the adjusters with their locking pawls engaged in the same slots side to side.
- Install the seat adjuster adjustment bar.
- Position the seat forward on the seat adjusters.
- Check that the locking pawls are completely engaged in the slots.
- Position the seat adjusters on the rear floor studs.
- Connect the electrical connector (drivers side).
- Install the nut to the rear inboard stud (net locating stud).
- Install the nut to the rear outboard stud.
Tighten
Tighten the adjuster mounting nuts to 50 N.m (37 lb ft).
- Move the seat rearward.
- Install the nuts to the front adjuster legs.
Tighten
Tighten the adjuster mounting nuts to 50 N.m (37 lb ft).
- Install the adjuster leg covers.
- Secure the covers with push pins.
- Install the roof lift off panel if removed, or raise the convertible top if lowered.
- Remove any protective covering.
