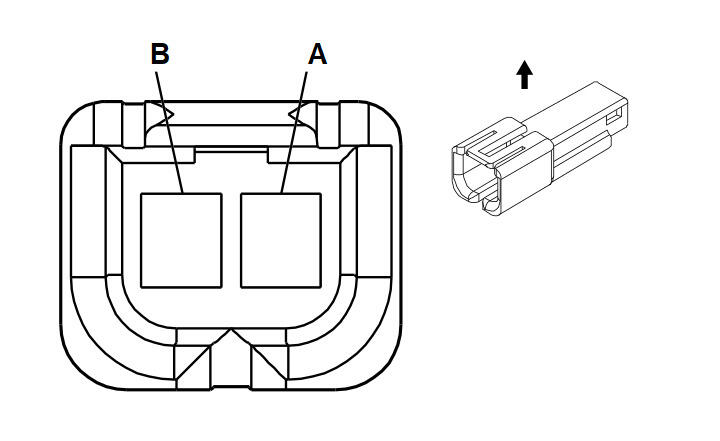

Ignition Key Alarm Switch Connector End View
Ignition Key Alarm Switch Connector End View
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
- 12059254
- 2-Way M Metri-Pack 150 Series (LT GRN)
|
| Pin |
Wire Color |
Circuit No. |
Function |
| A |
LT GRN |
80 |
Key In Ignition Switch Signal |
| B |
BLK |
1550 |
Ground |
