Installation Procedure

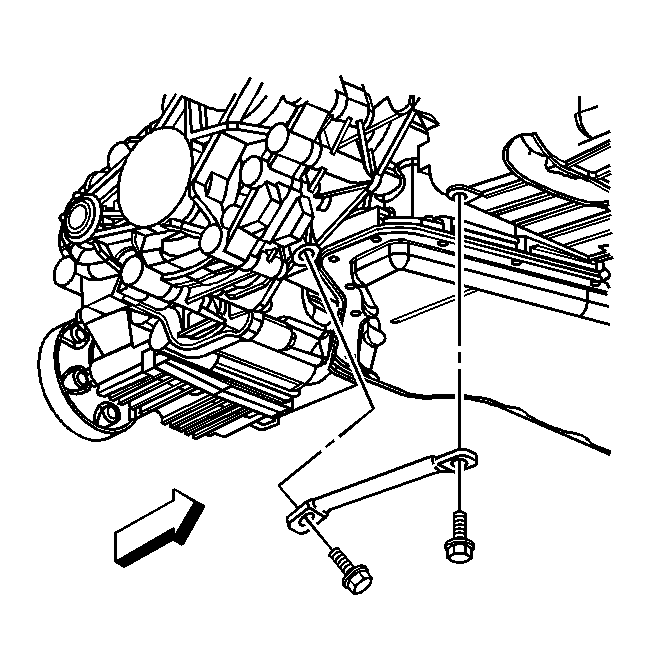

Fig 1: View Of Transaxle Brace Bolts (LA1)

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the transaxle brace bolts.
Tighten: Tighten the bolts to 47 N.m (35 lb ft).
Lower the vehicle.
