Retained Accessory Power (RAP) Schematics
Retained Accessory Power (RAP) Schematics

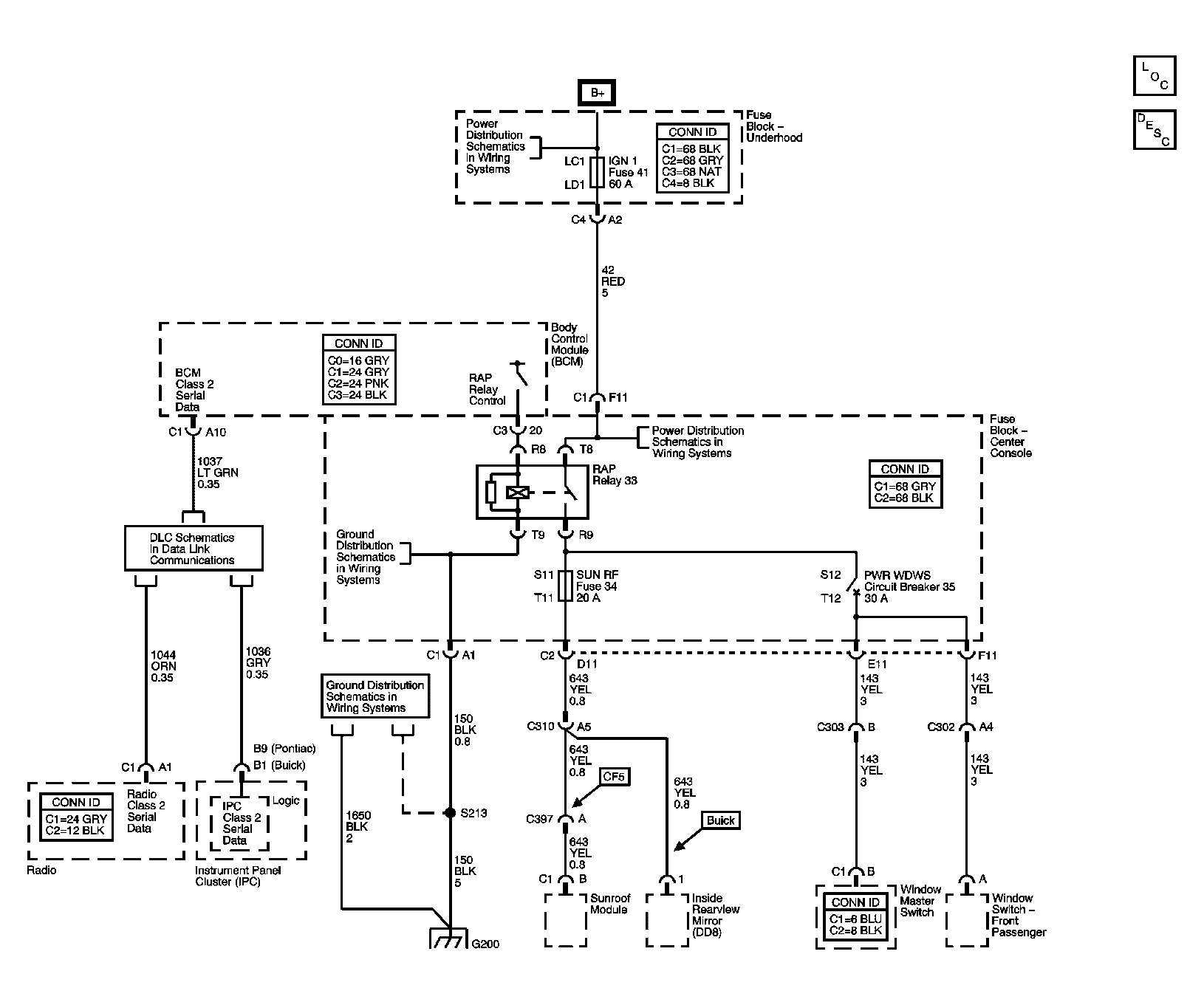

Fig 1: Retained Accessory Power (RAP) Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
