Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

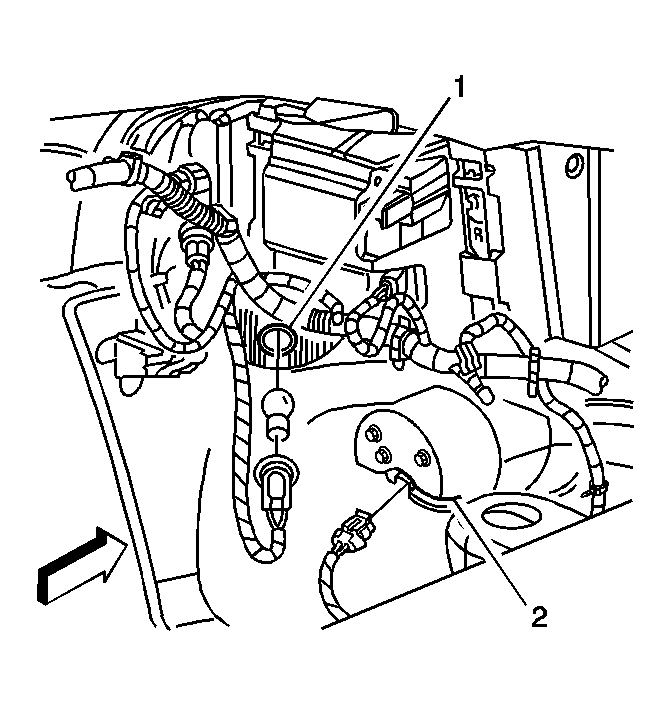

    Fig 1: Removing/Installing Fog Lamp Bulb - Front
    GM742553Courtesy of GENERAL MOTORS CORP.
  1. Install the bulb to the socket.
  2. Index the tabs on the bulb socket to the slots in the fog lamp housing.
  3. Install the socket to the fog lamp housing (2).
  4. Rotate the socket clockwise until fully seated.
