Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the air temperature sensor-lower left (2).

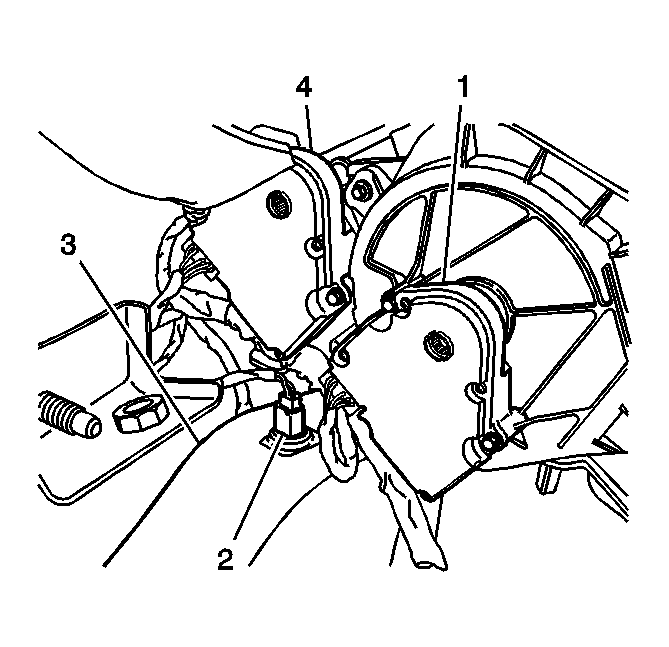

Fig 1: Air Temperature Sensor - Lower Left
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connector to the air temperature sensor-lower left.
Install the I/P assembly. Refer to Instrument Panel (I/P) Assembly Replacement in Instrument Panel, Gages and Console.
