Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the latch/lock assembly to the liftgate.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the screws that retain the latch/lock assembly to the liftgate.

    Tighten:  Tighten the screws to 10 N.m (89 lb in).

  3. Connect the lock cylinder bellcrank rod (1) to the latch/lock assembly.

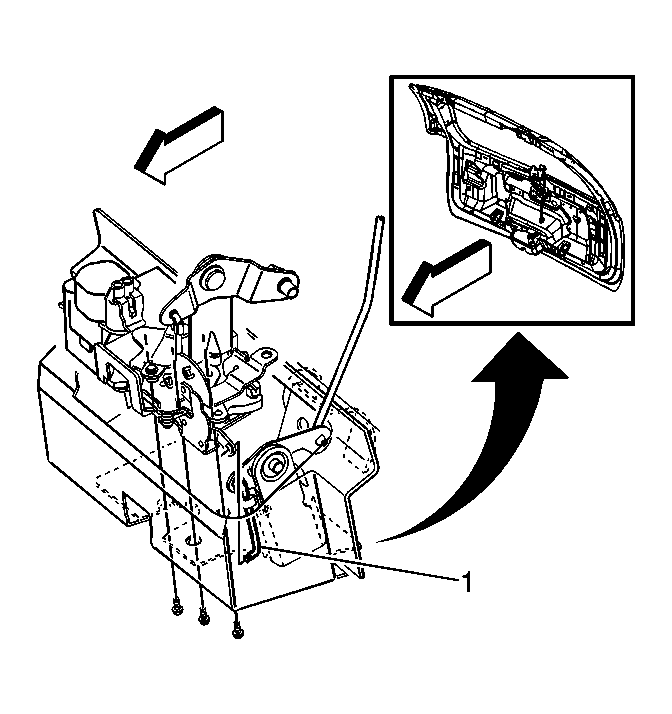

    Fig 1: Connecting Lock Cylinder Bellcrank Rod To Latch/Lock Assembly
    GM721383Courtesy of GENERAL MOTORS CORP.
  4. Connect the electrical connector to the latch/lock assembly.
    5. Fig 2: Installing Bellcrank To Latch/Lock Assembly
    GM721388Courtesy of GENERAL MOTORS CORP.
  5. Position the bellcrank to the latch/lock assembly.
  6. Install the screws that retain the bellcrank to the latch/lock assembly.

    Tighten:  Tighten the screws to 0.7 N.m (6 lb in).

  7. Connect the bellcrank rod to the latch/lock assembly.
  8. Connect the outside handle rod to the bellcrank.
    Fig 3: Connecting Outside Handle Rod To Bellcrank
    GM721381Courtesy of GENERAL MOTORS CORP.
  9. Install the liftgate trim panel. Refer to Trim Panel Replacement - Liftgate (TrailBlazer, Envoy, Bravada)  or Trim Panel Replacement - Liftgate (TrailBlazer EXT, Envoy XL) .
  10. Install the liftgate window garnish molding. Refer to Garnish Molding Replacement - Rear Window in Interior Trim.
