Installation Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

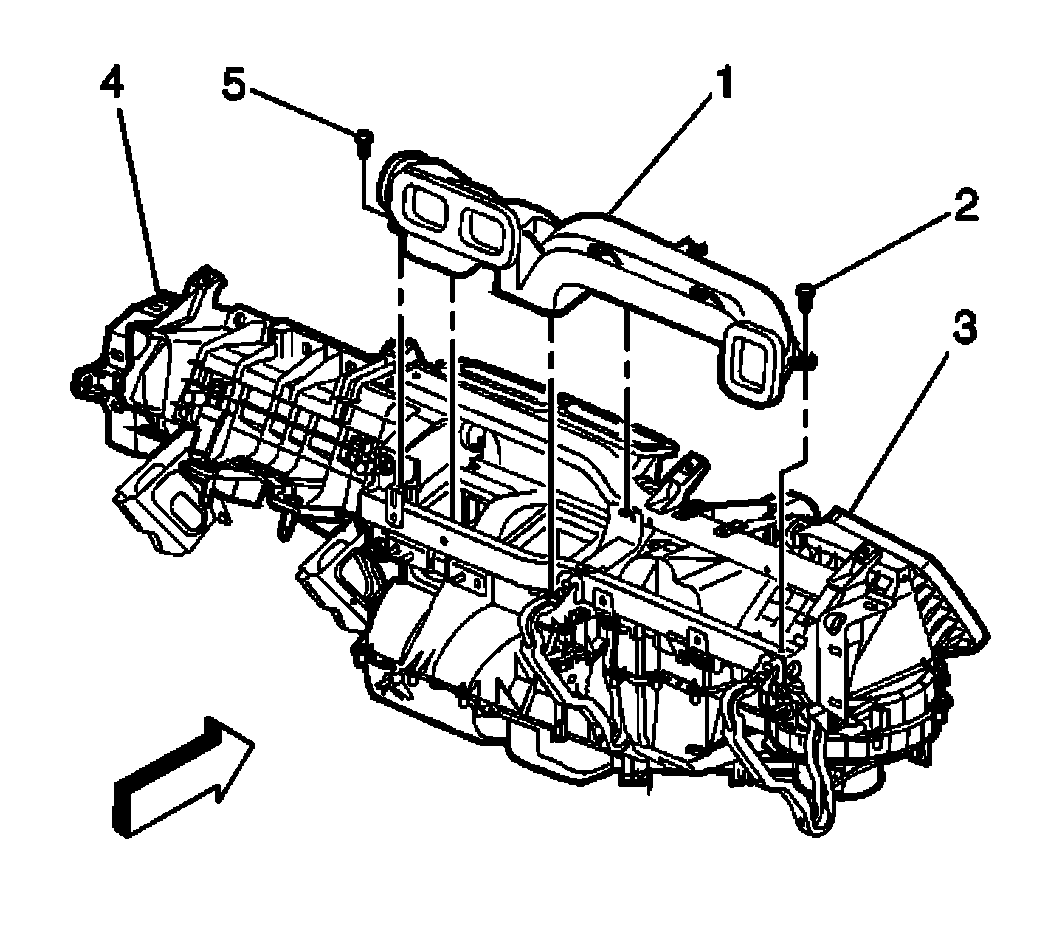

- Install the air distributor duct (1) to I/P.
- Install the retaining screws to the air distributor duct.
Tighten: Tighten the screws to 1.9 N.m (17 lb in).
- Install the air temperature sensor to the air distributor duct.
- Clip the radio antenna wire to the duct.
- Install the I/P assembly. Refer to Instrument Panel (I/P) Assembly Replacement in Instrument Panel, Gages and Console.
NOTE:
Refer to Fastener Notice
in Cautions and Notices.
