Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

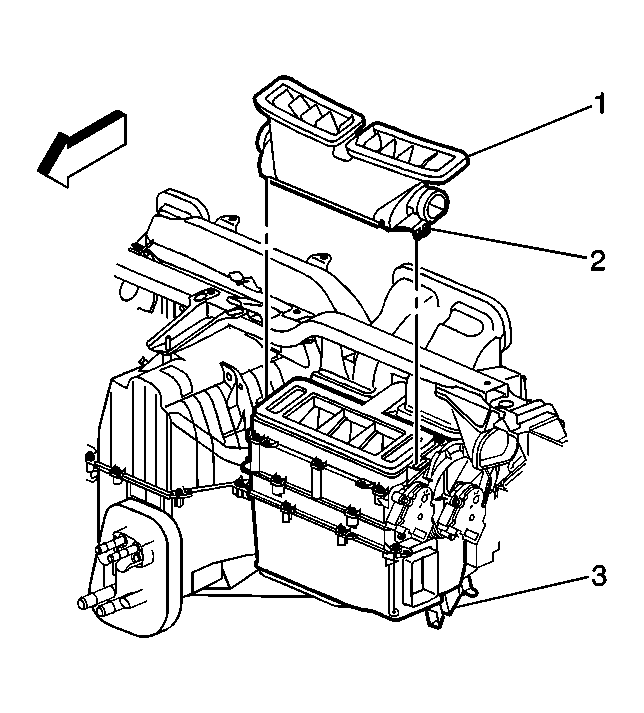

Fig 1: Defroster Duct

Courtesy of GENERAL MOTORS CORP.

Install the defroster duct.
Insert defroster duct into retaining slots.

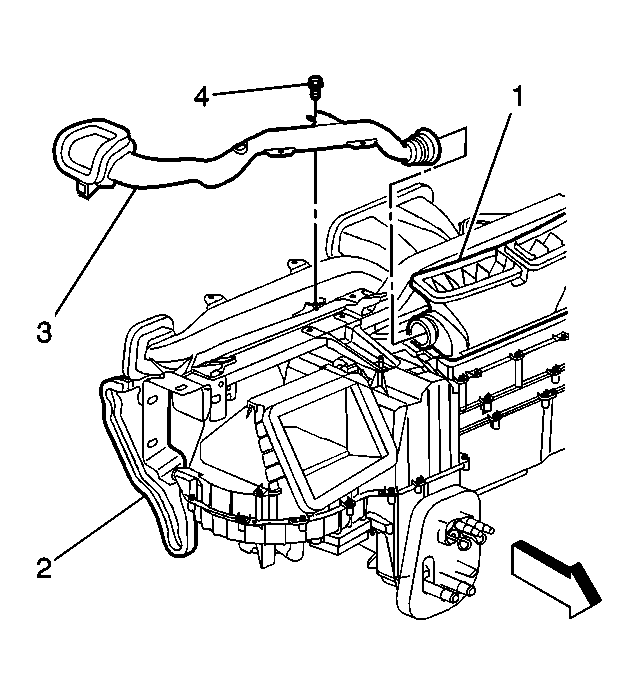

Fig 2: Passenger Side Window Defroster Duct

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the retaining screw (4) to the passenger side window defroster duct (3).
Tighten: Tighten the nut to 2 N.m (18 lb in).
Install the I/P assembly. Refer to Instrument Panel (I/P) Carrier Replacement in Instrument Panel, Gages and Console.
