Body Rear End Component Views

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

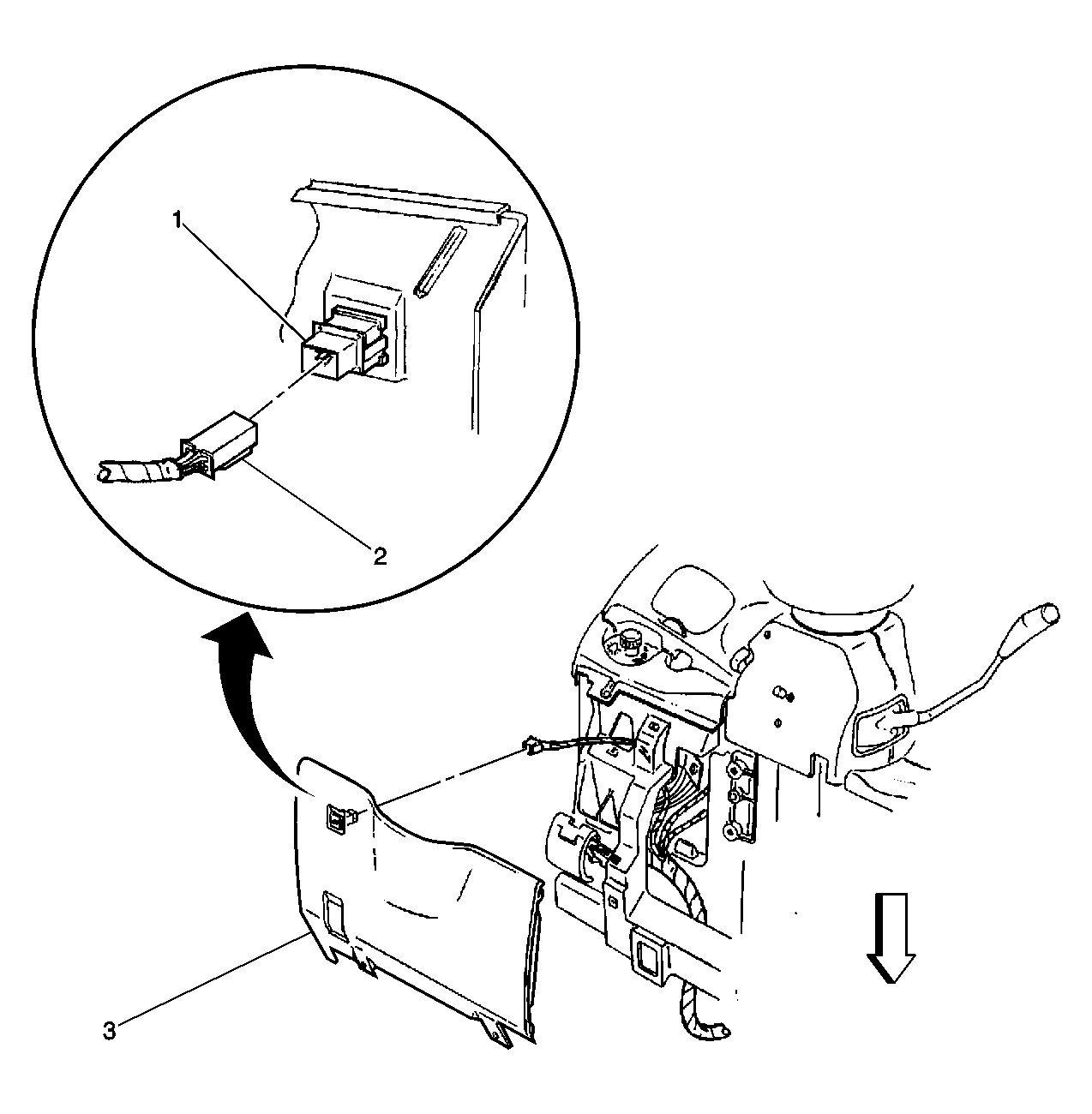

Fig 1: Component Views - Lower Left Center of Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Lid Release Switch
2	Rear Compartment Lid Release Switch Connector
3	Knee Bolster-Left

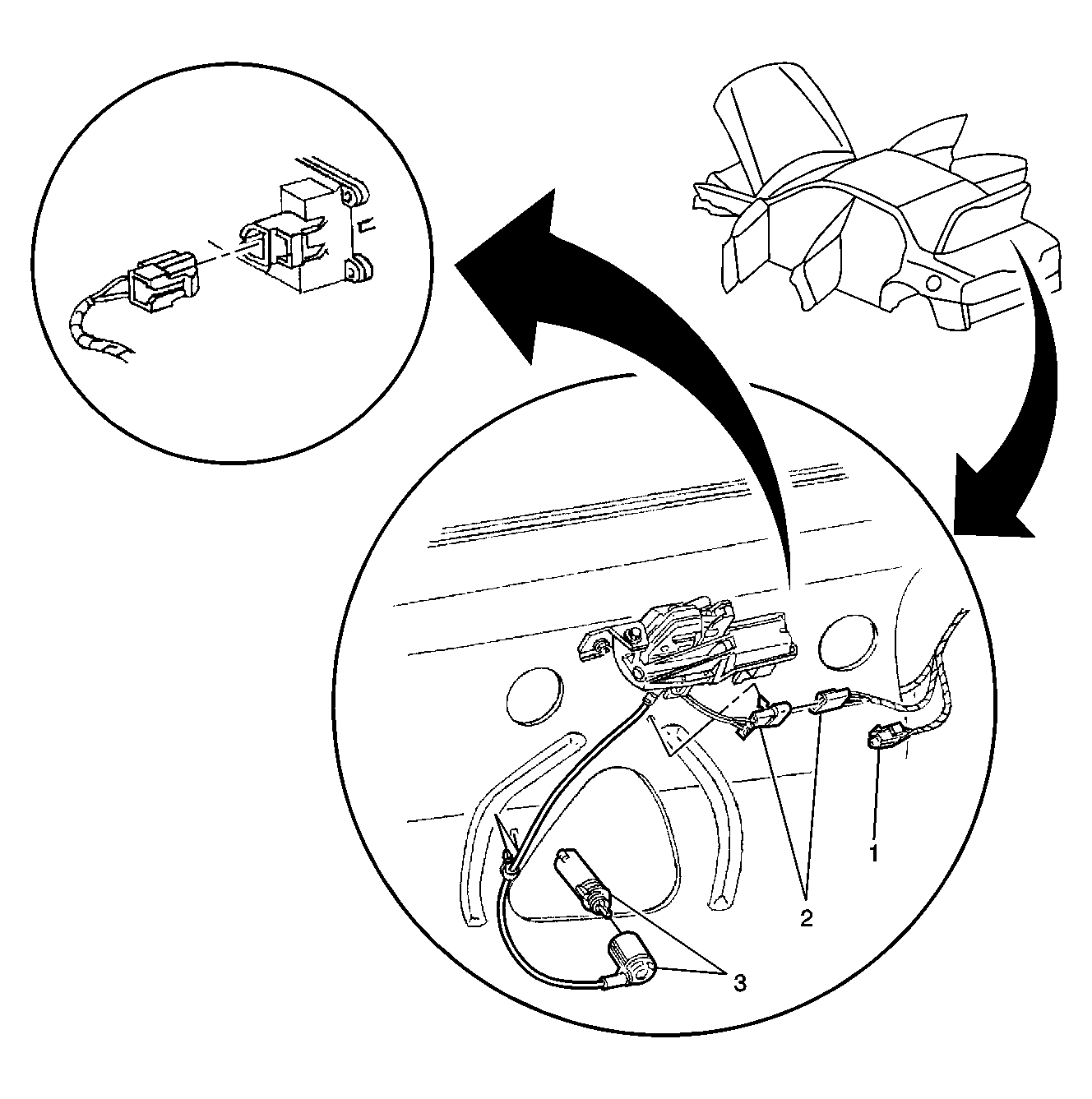

Fig 2: Component Views - Inside Rear Compartment Lid

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Lid Release Actuator Connector
2	Rear Compartment Lid Ajar Switch and Connector
3	Rear Compartment Lid Lock Cylinder
