Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the flexplate to the flexplate spindle so that the side of the flexplate marked CONVERTER SIDE will face the transmission torque converter.

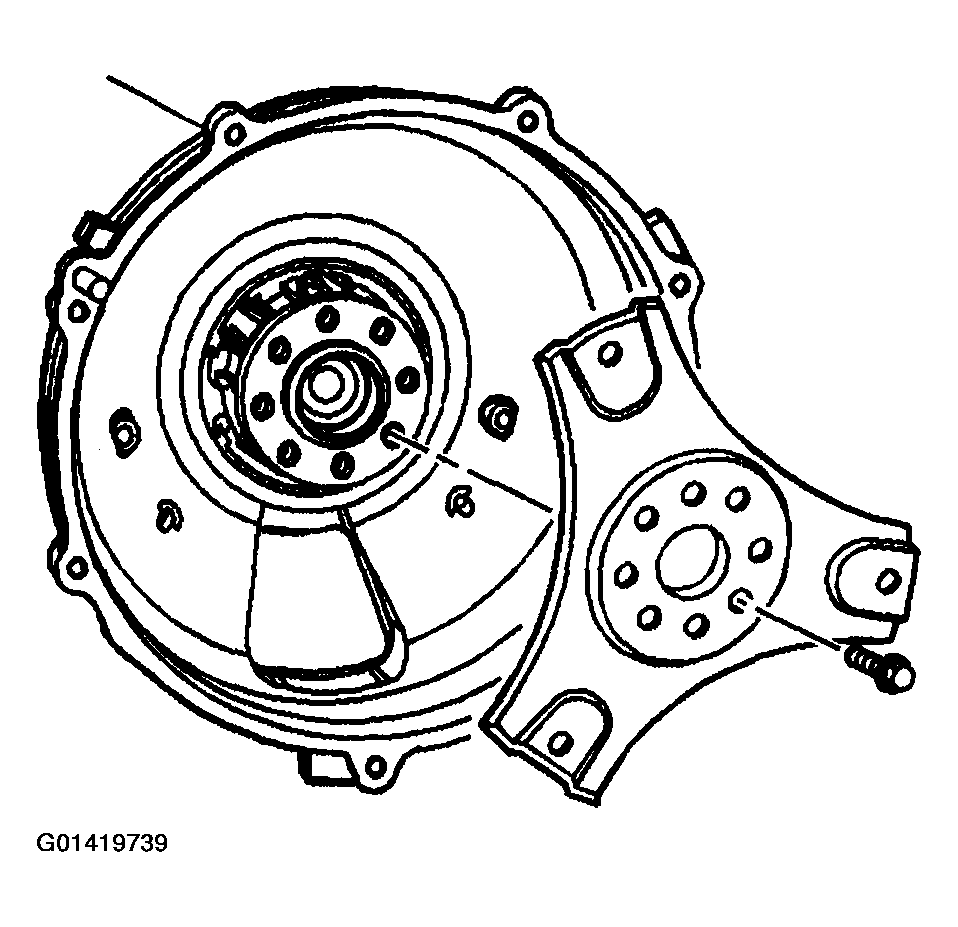

    Fig 1: Installing Flexplate
    G01419739Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the flexplate to flexplate spindle bolts.

    Tighten

    Tighten the flexplate to flexplate spindle bolts to 50 N.m (37 lb ft).

  3. Install the driveline support assembly to the transmission and the vehicle. Refer to DRIVELINE SUPPORT ASSEMBLY REPLACEMENT (AUTOMATIC TRANSMISSION)  or DRIVELINE SUPPORT ASSEMBLY REPLACEMENT (MANUAL TRANSMISSION)   .
