Installation Procedure
WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

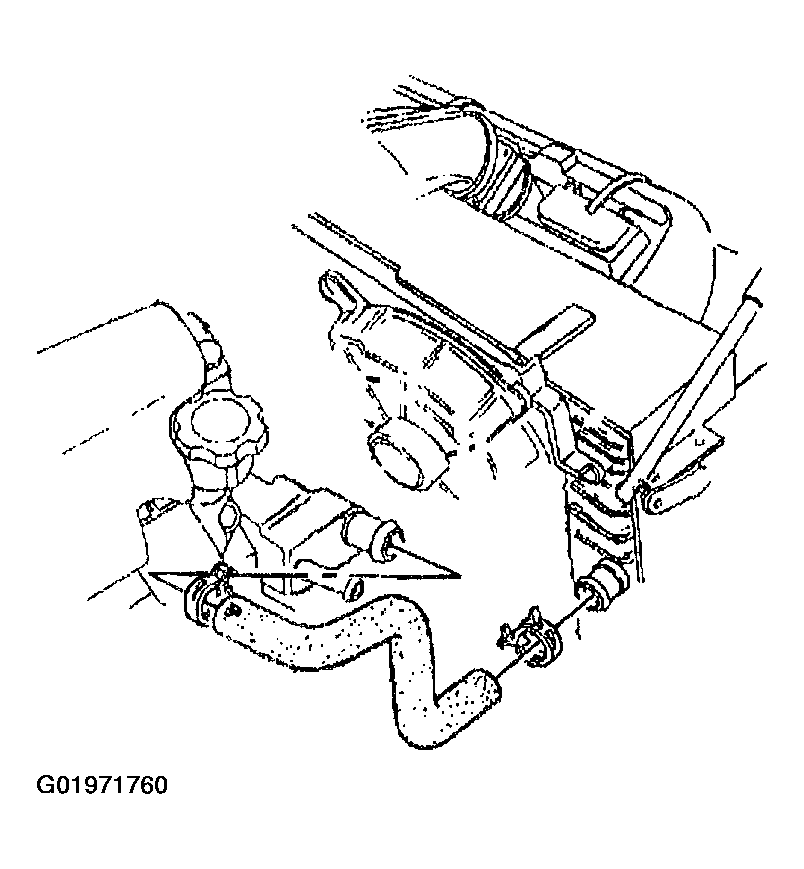

- Install the radiator outlet hose to the radiator.
- Reposition the radiator outlet hose clamp to the radiator using J 38185 .
- Lower the vehicle.
- Install the radiator outlet hose to the water pump.
- Reposition the radiator outlet hose clamp to the water pump using J 38185 .
- Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM .
