Installation Procedure
WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
- Install the cover if removed.

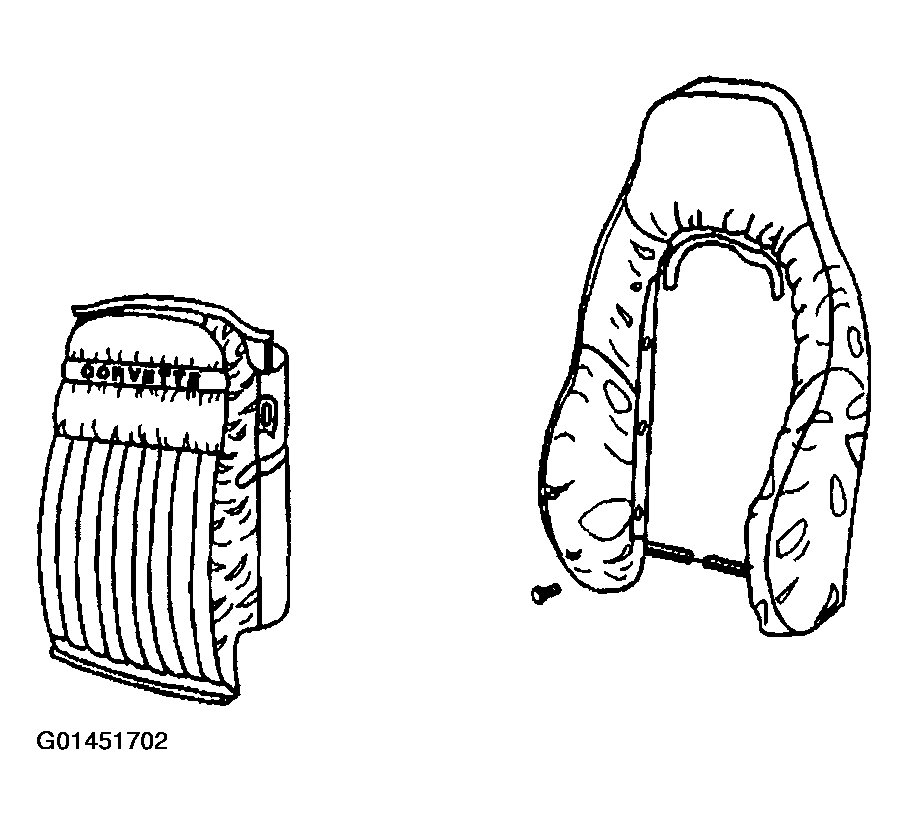

- Position the insert pillow to the seat back.
- Zip the insert pillow upper zipper closed.
Important: To achieve the best appearance install the insert pillow tabs under the seat back cover tabs.
- Attach the insert pillow and seat back cover with fir tree fasteners.
- Slide the insert pillow tabs and the upper seat back cover tabs over the upper fir tree fastener heads and push the fasteners in to secure (design 1)
- Install the fir tree fasteners through the seat back cover tabs and the insert pillow tabs and push the fasteners into the seat back frame (design 2).
- Tuck the zipper ends out of sight into the seat trim.
- Fasten the lower J strips.
- From the back of the seat, ensure the seat back cover is pulled down enough for the J strip at the bottom to rest entirely on the forward side of the seat frame.
