Power Door Systems Component Views

Fig 1: Right Front Door Module Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Passenger Door Module (FPDM) (C3), DDM Similar
2	Front Passenger Door Module (C1), DDM Similar
3	Front Passenger Door Module (C2), DDM Similar
4	Front Passenger Door Module (C4) Outside Power Mirror Pigtail, DDM Similar
5	C503 (LH) C603 (RH)
6	Front Passenger Door Module, DDM Similar
7	S500 (LH) S602 (RH)

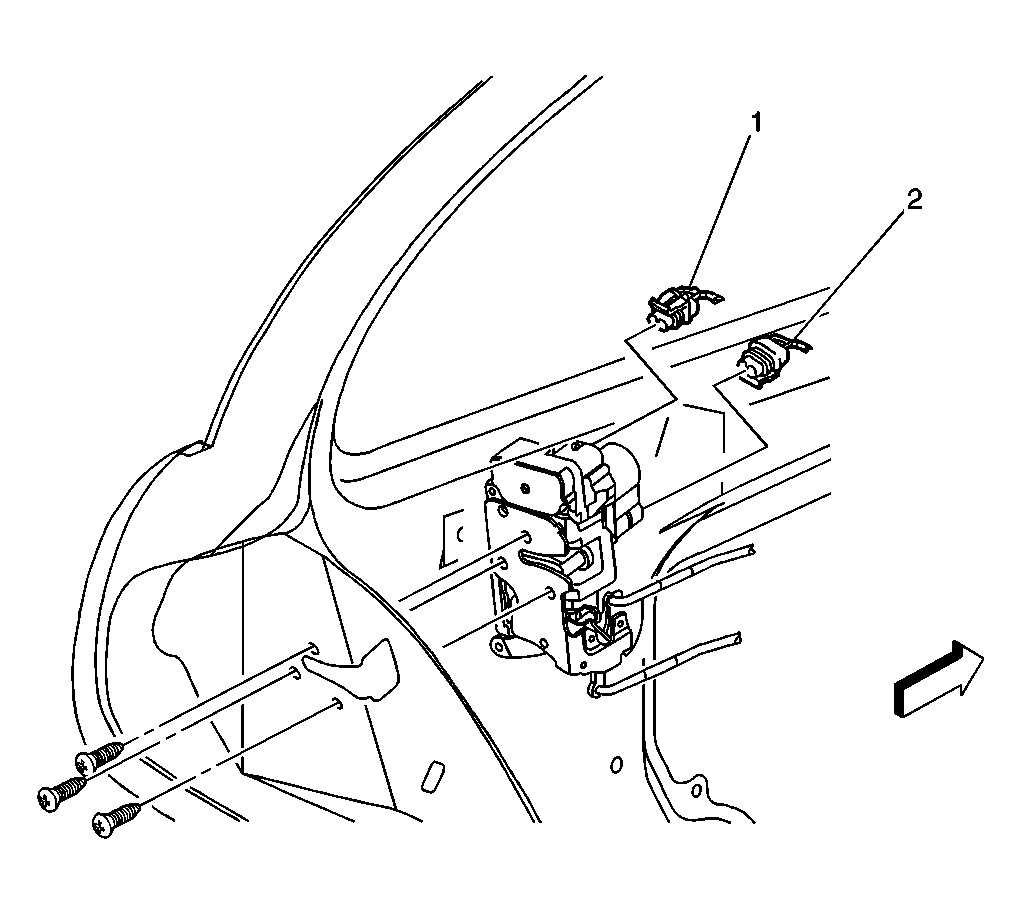

Fig 2: Right Front Door Latch Assembly Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Cylinder Switch - Front Passenger, Driver Similar
2	Door Lock Actuator - Front Passenger (C1), Driver Similar
3	Door Lock Actuator - Front Passenger (C2), Driver Similar

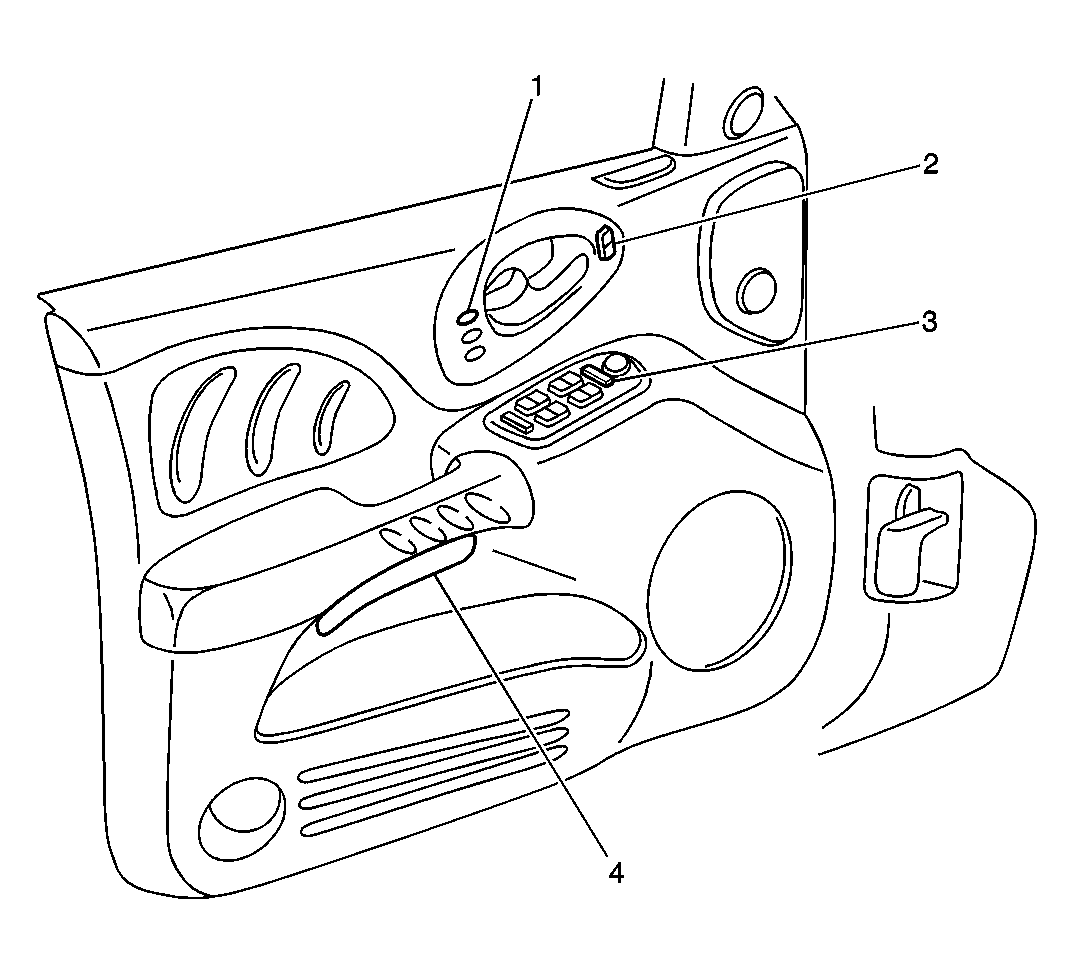

Fig 3: Left Front Door Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Memory/Personalization Function Switch
2	Door Lock Switch - Driver
3	Drivers Door Switch Assembly (DDSA)
4	Driver Door Trim

Fig 4: Right Front Door Window Motor Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Motor - Front Passenger, Driver Similar

Fig 5: Left Rear Power Door Lock Actuator Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Actuator - LR C1, RR Similar
2	Door Lock Actuator - LR C2, RR Similar

Fig 6: Right Rear Door Module (RRDM) Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Right Rear Door Module (RRDM) C1, Left Rear Similar
2	Right Rear Door Module (RRDM) C2, Left Rear Similar

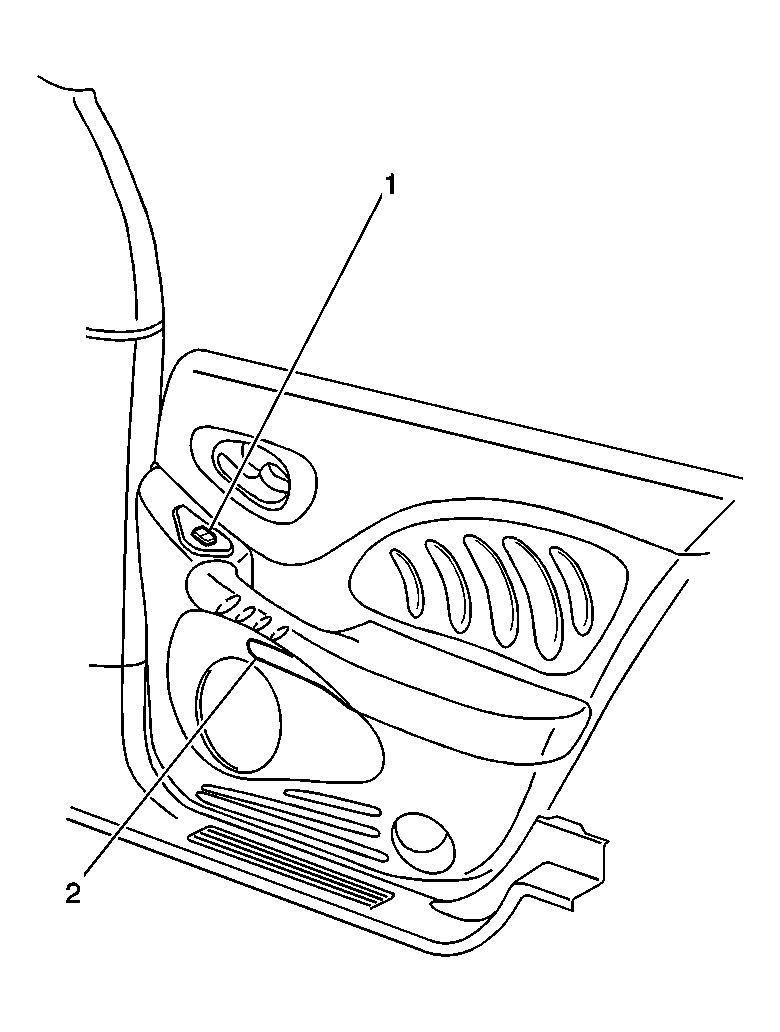

Fig 7: Right Rear Door, Left Rear Similar Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Switch - RR
2	Door Trim

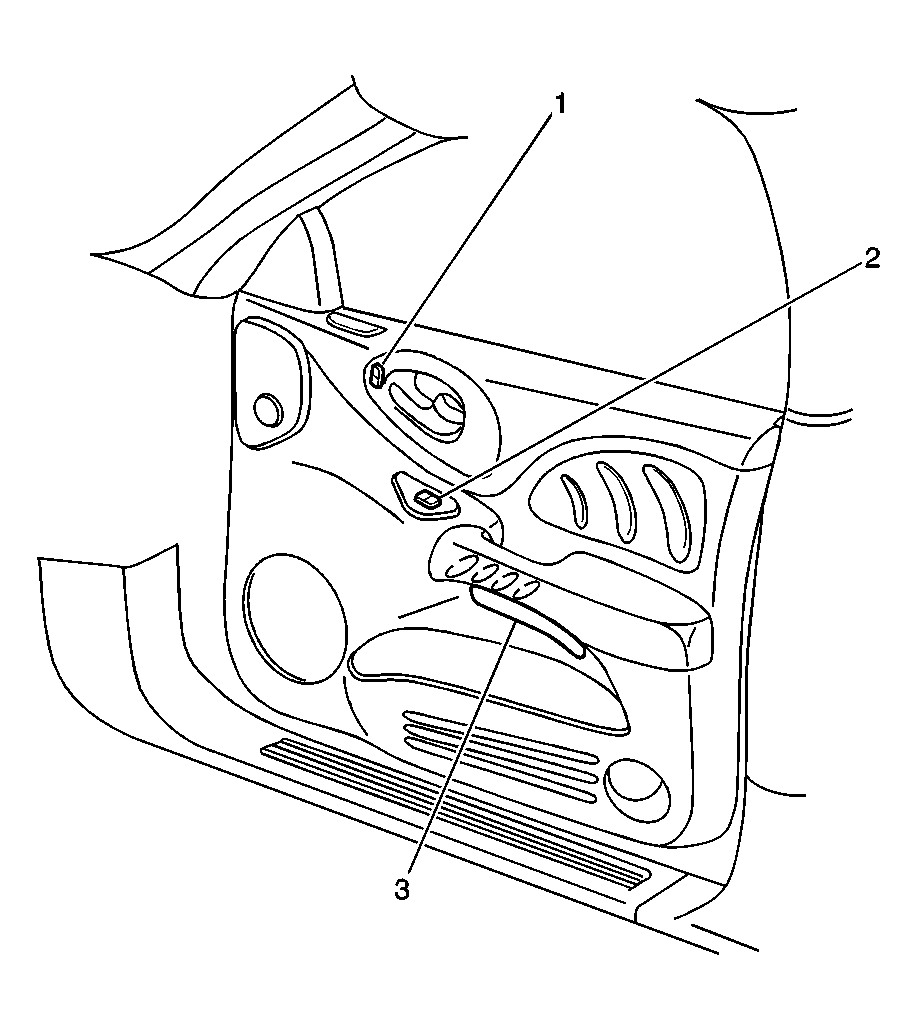

Fig 8: Right Front Door Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Switch - Front Passenger
2	Window Switch - Front Passenger
3	Courtesy Lamp
