Stationary Windows Component Views

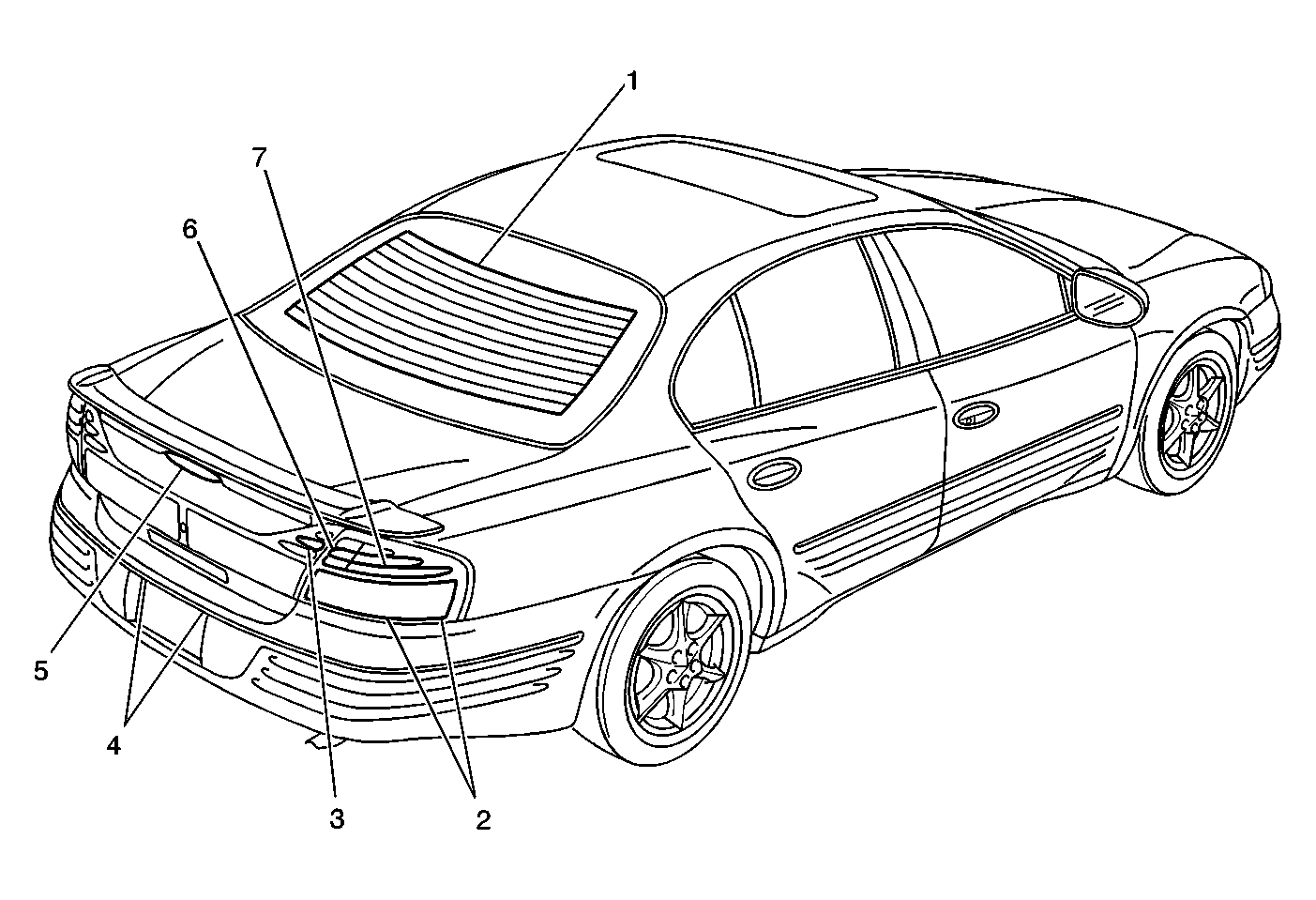

Fig 1: Rear of Vehicle Components
GM535312Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Window Defogger Grid
2 Tail Lamp - Right and Side Marker
3 Turn Signal Lamp - RR
4 Licences Lamps
5 Center High Mounted Stop Lamp (CHMSL)
6 Backup Lamp - Right
7 Turn Signal Lamp
Fig 2: Inside Rearview Mirror Components
GM311417Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inside Rearview Mirror
