ABS Component Views

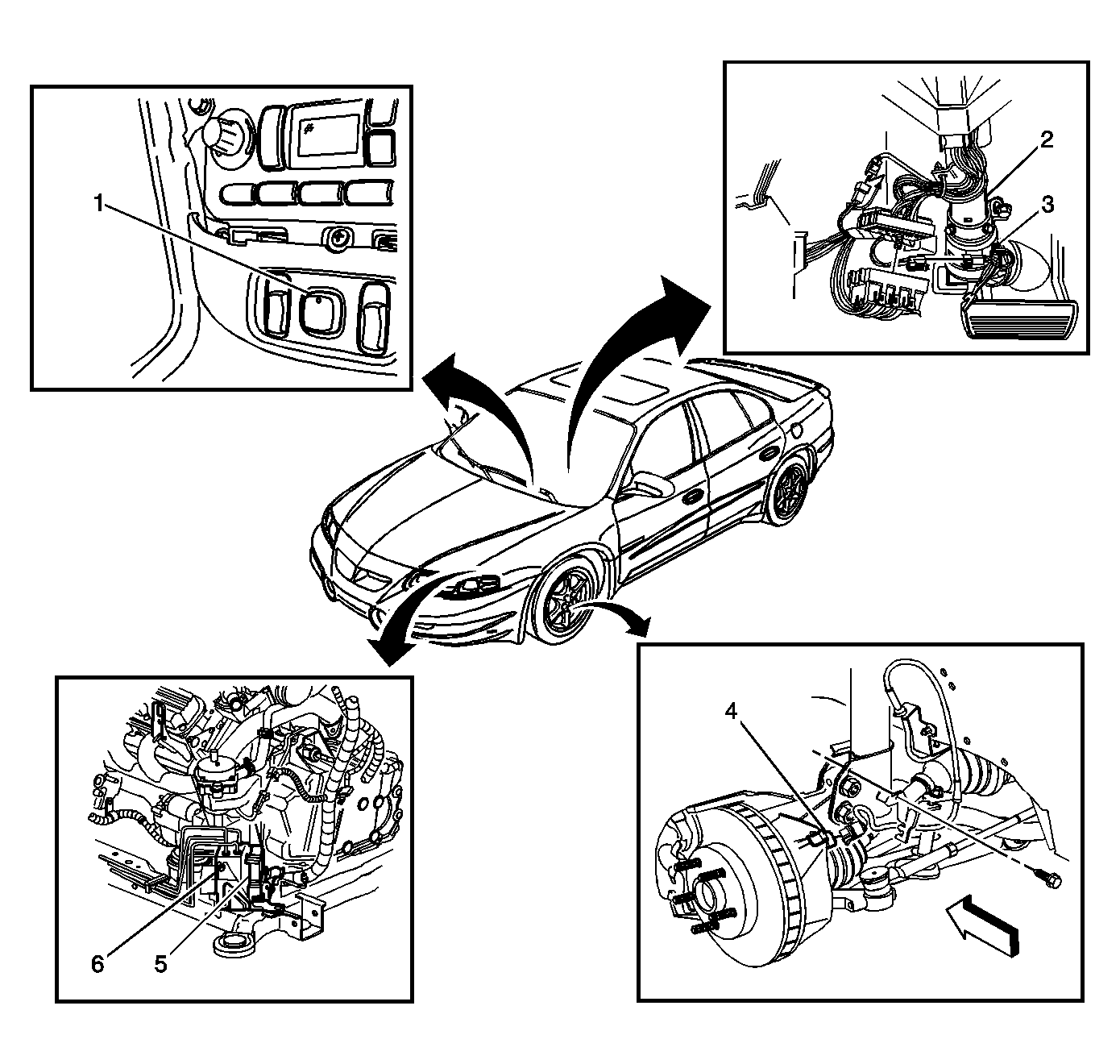

Fig 1: Anti-Lock Brake - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Traction Control Switch (w/NW9)
2	Steering Column
3	Steering Wheel Position Sensor
4	Wheel Speed Sensor (WSS) - LF (RF Similar)
5	Electronic Brake Control Module (EBCM)
6	Brake Pressure Modulator Valve (BPMV)

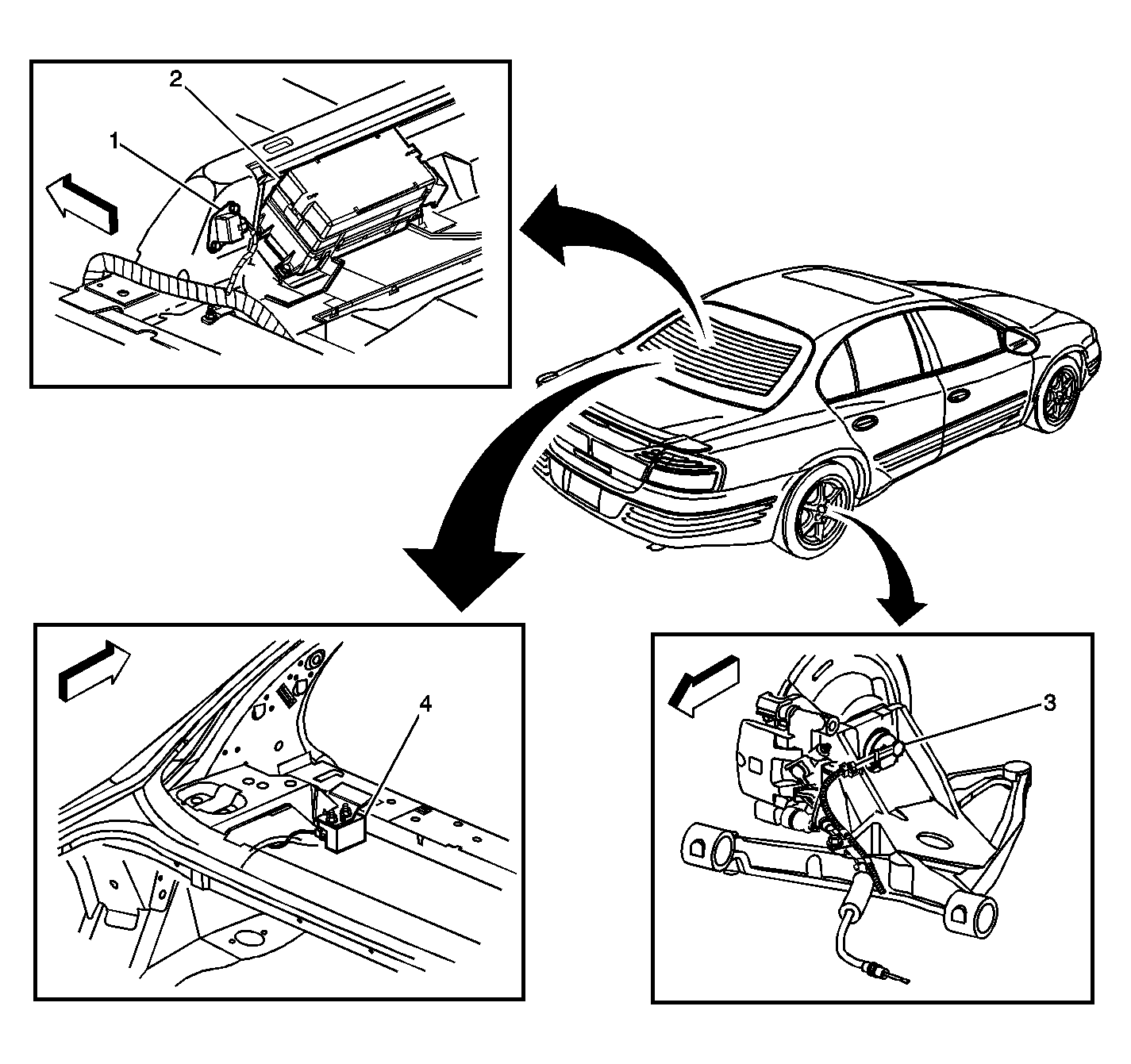

Fig 2: Anti-Lock Brake - Rear

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Lateral Accelerometer Sensor
2	Fuse Block - Rear
3	Wheel Speed Sensor (WSS) - RR (LR Similar)
4	Yaw Rate Sensor
