Power Outlet Component Views

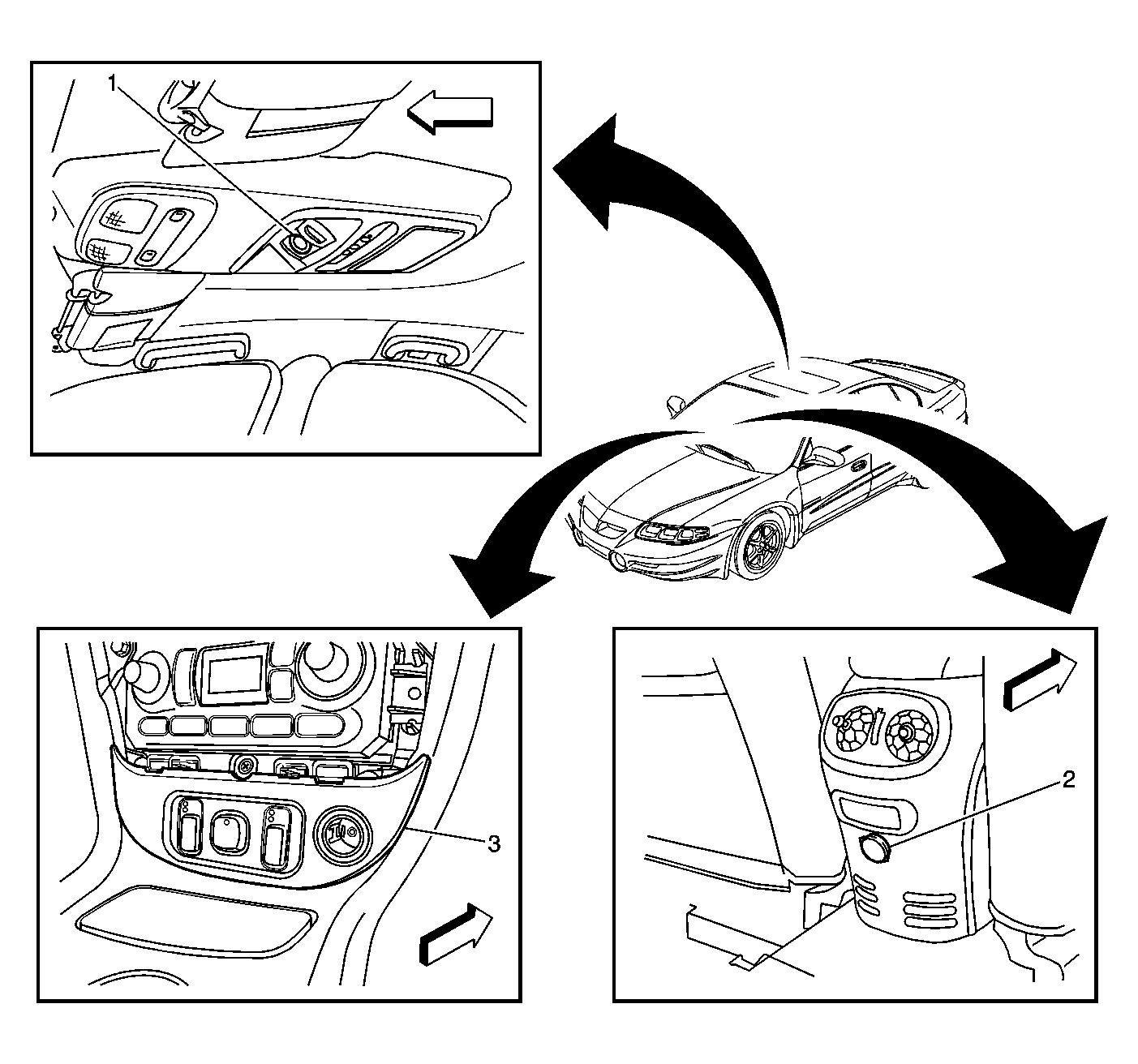

Fig 1: Power Outlet Component Views

GM1230663

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Auxiliary Power Outlet - Front
2	Auxiliary Power Outlet - Rear
3	Cigar Lighter
