Component Locations
›
Electrical Component Locator
›
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

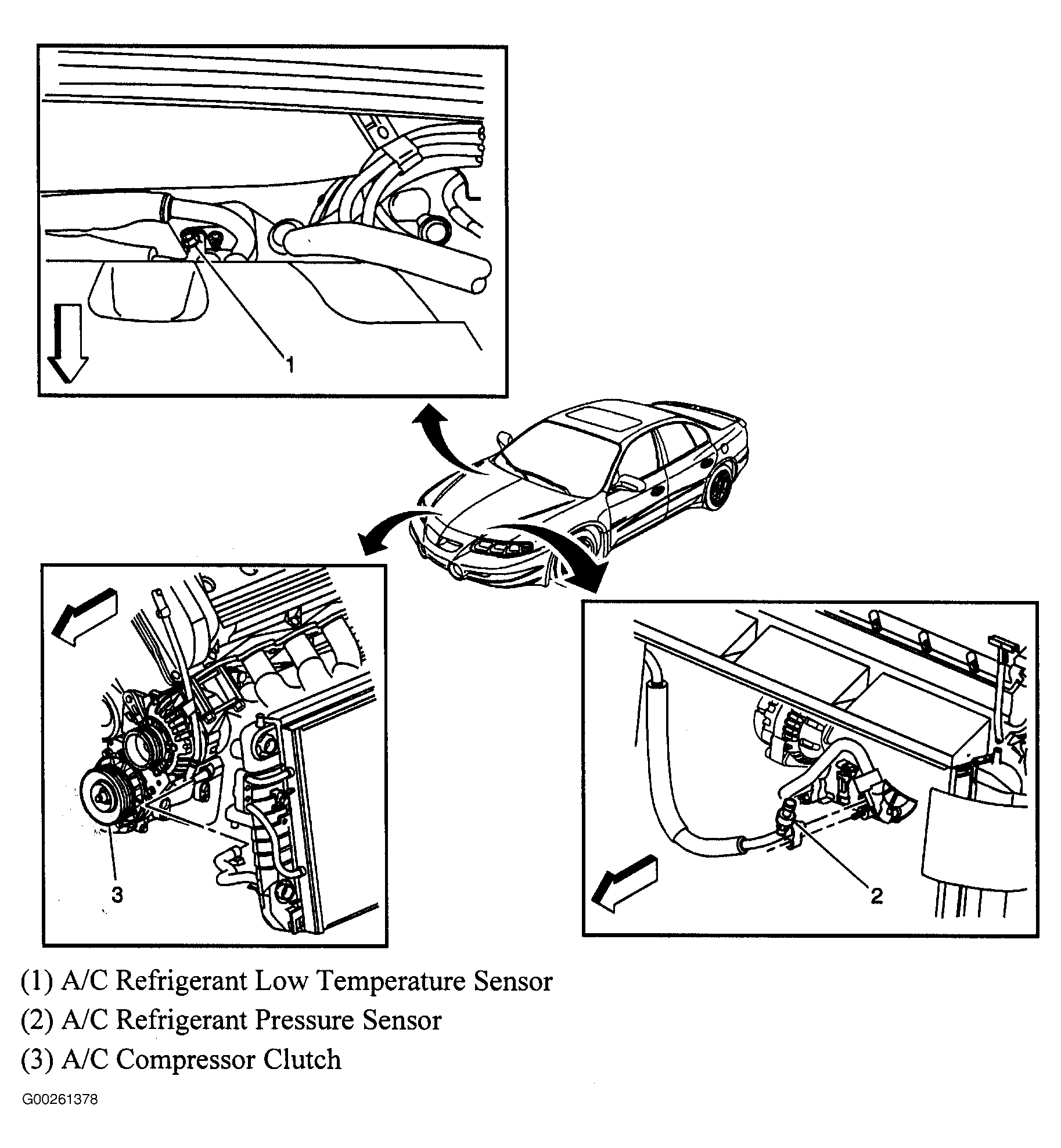

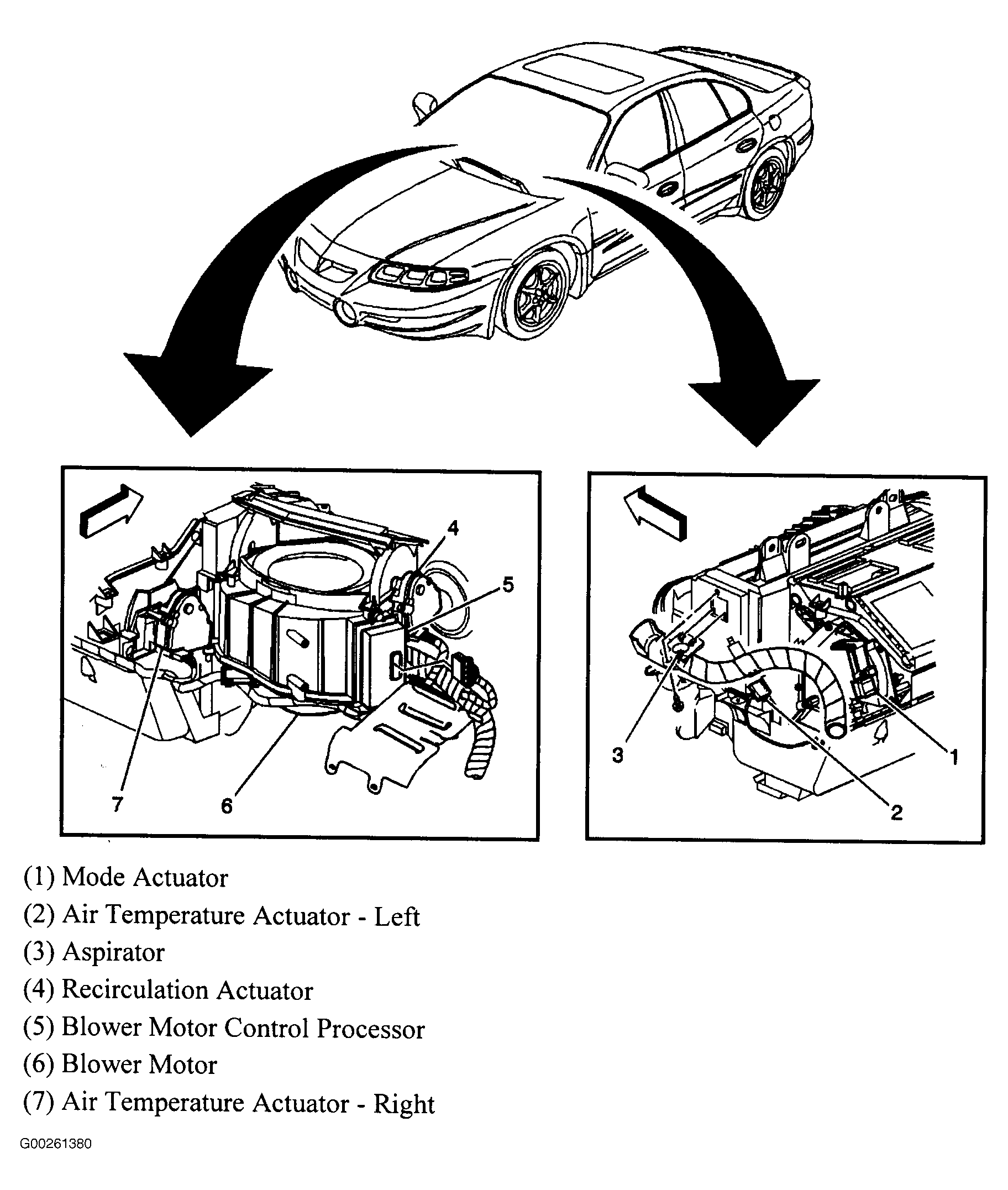

Fig 1: HVAC Component Views
Courtesy of GENERAL MOTORS CORP.

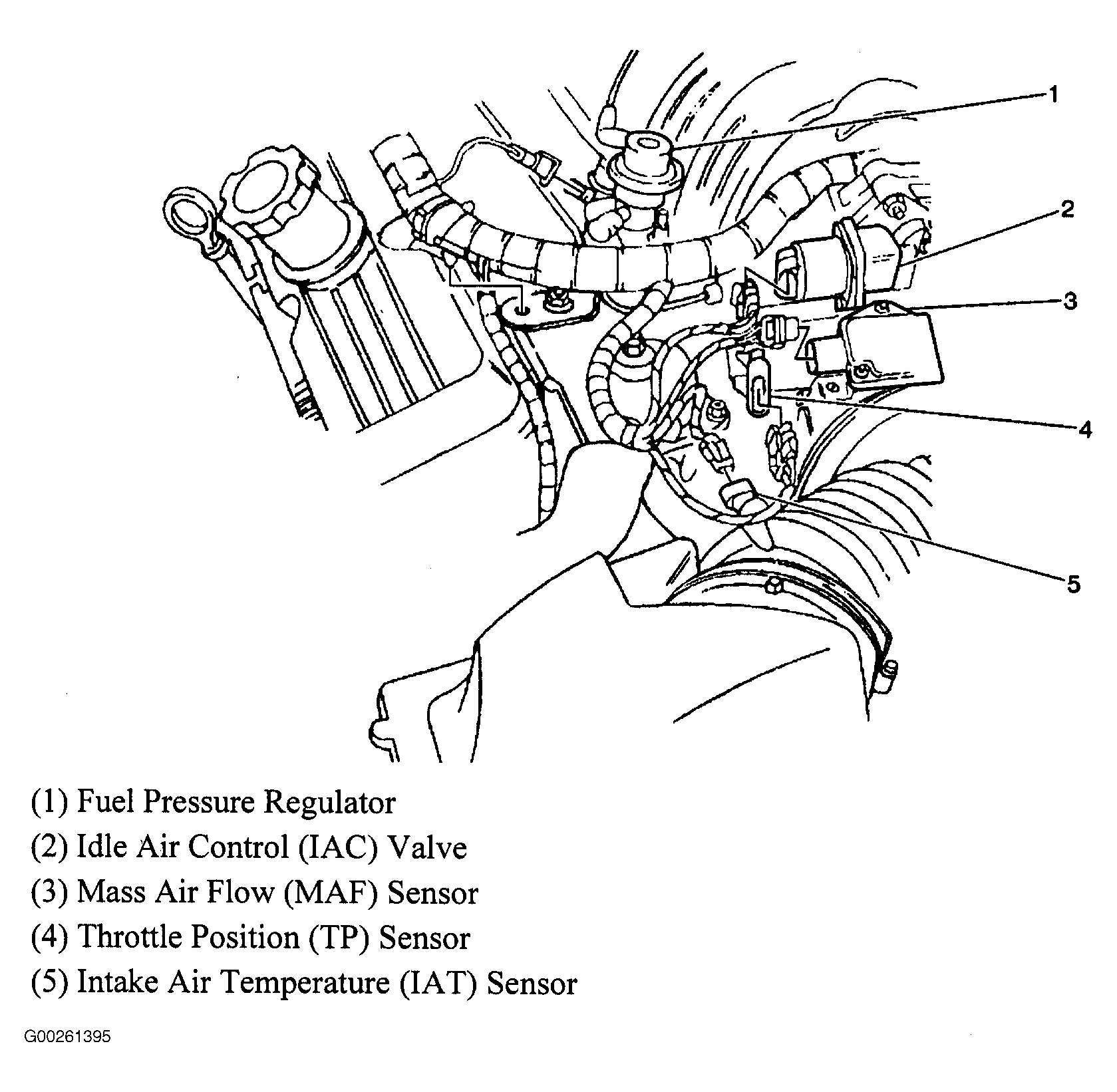

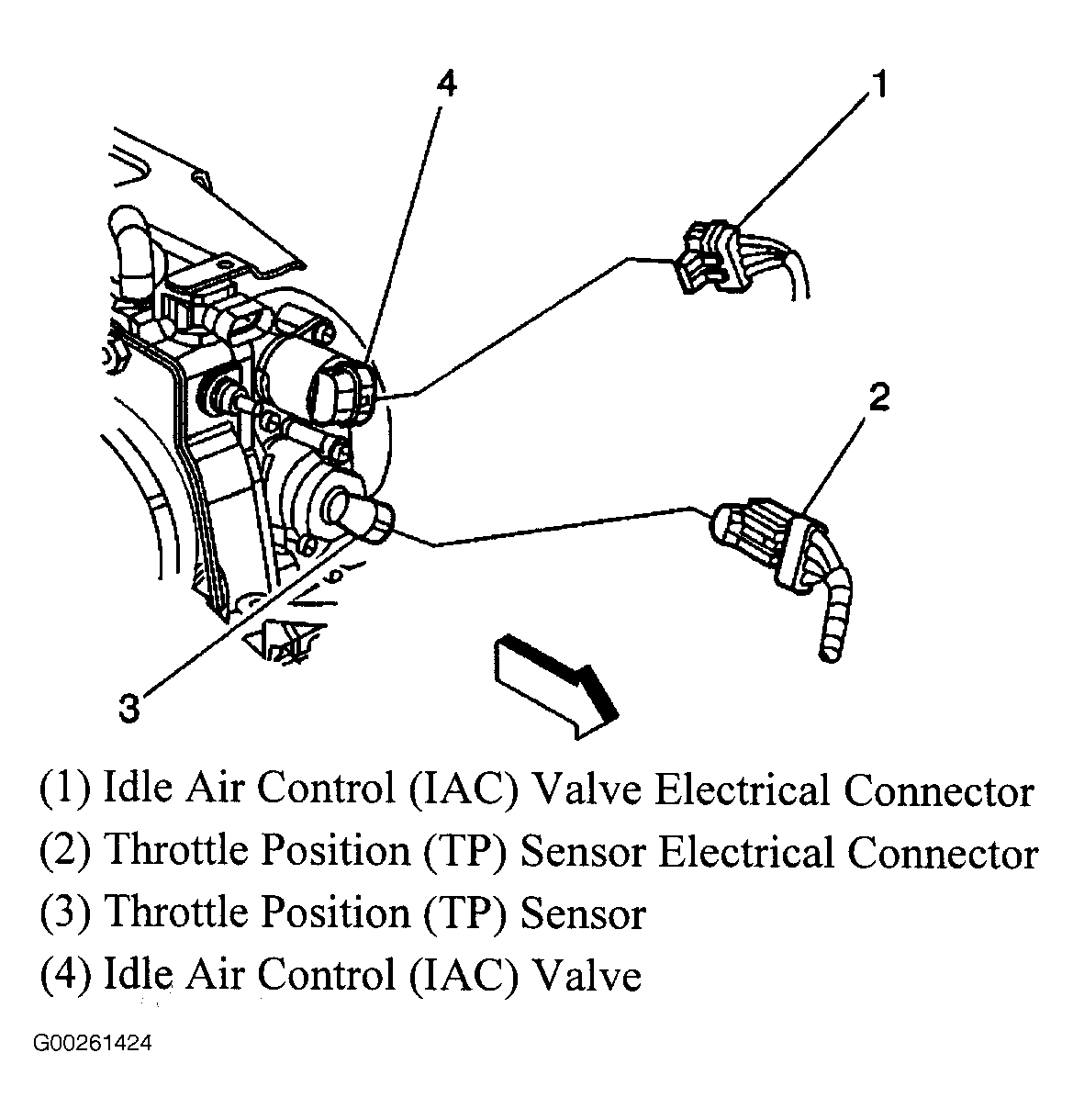

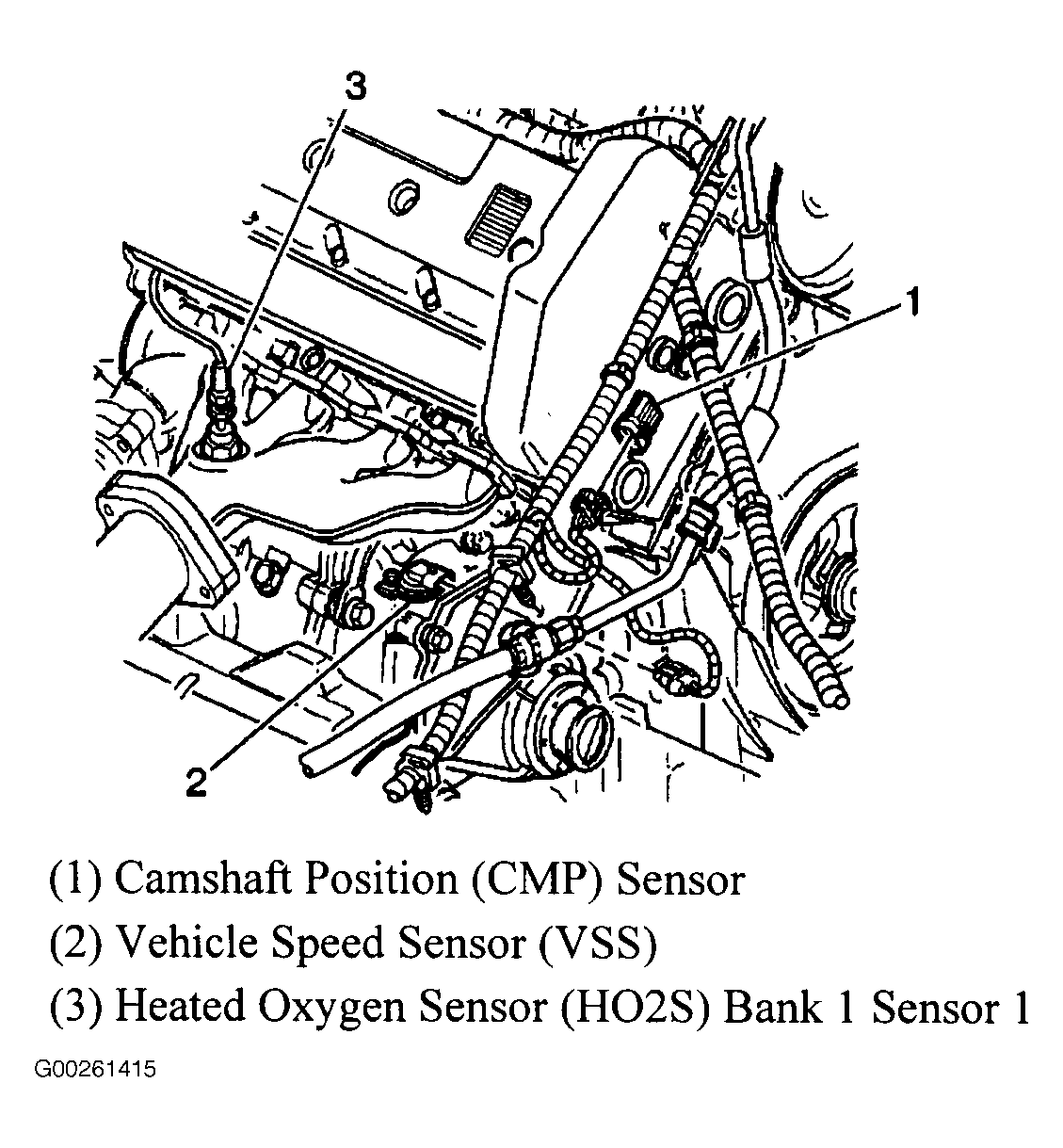

Fig 2: Under Hood Sensors (4.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 3: Interior Sensors & Components
Courtesy of GENERAL MOTORS CORP.
Fig 4: HVAC Actuators
Courtesy of GENERAL MOTORS CORP.
Fig 5: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

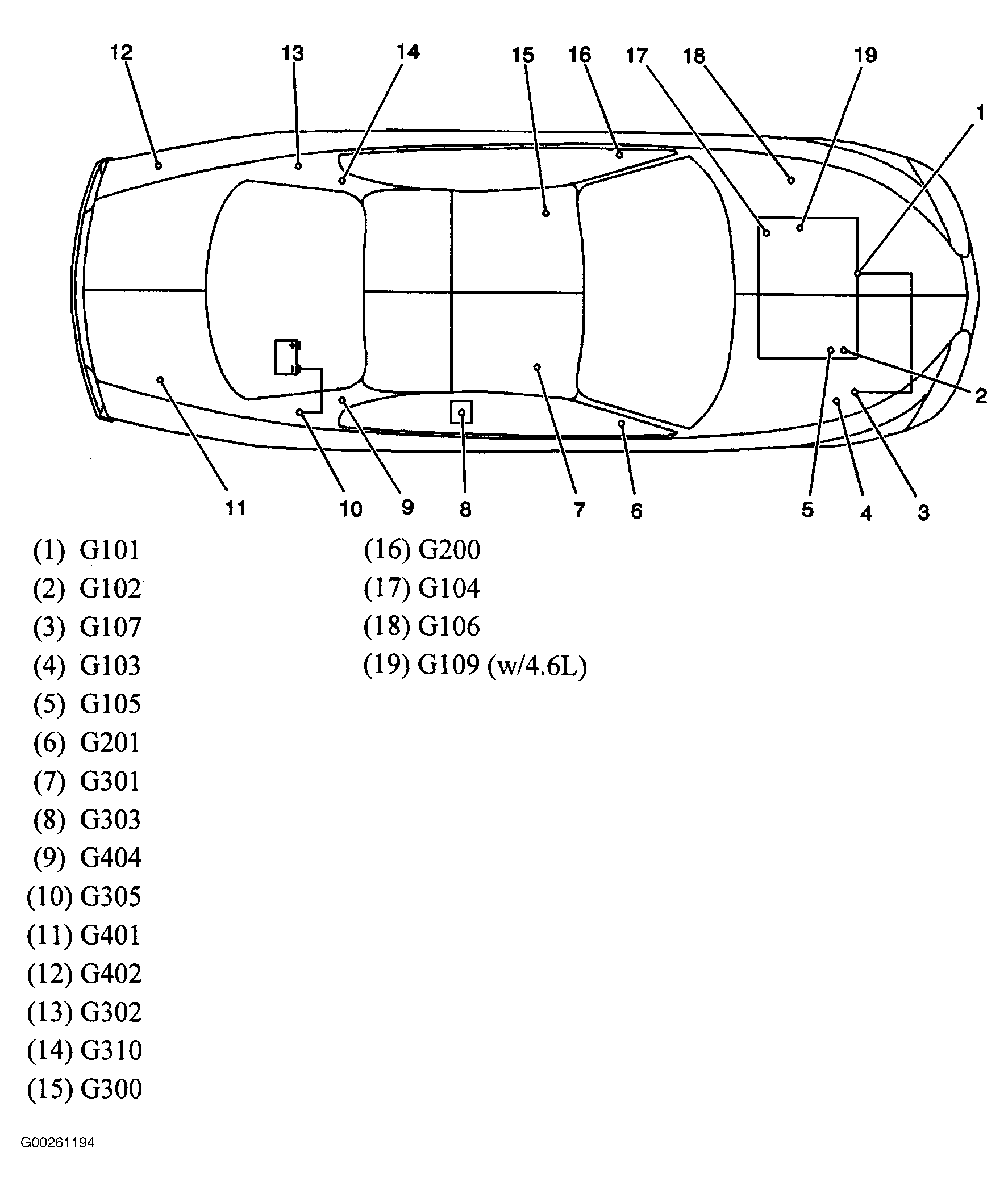

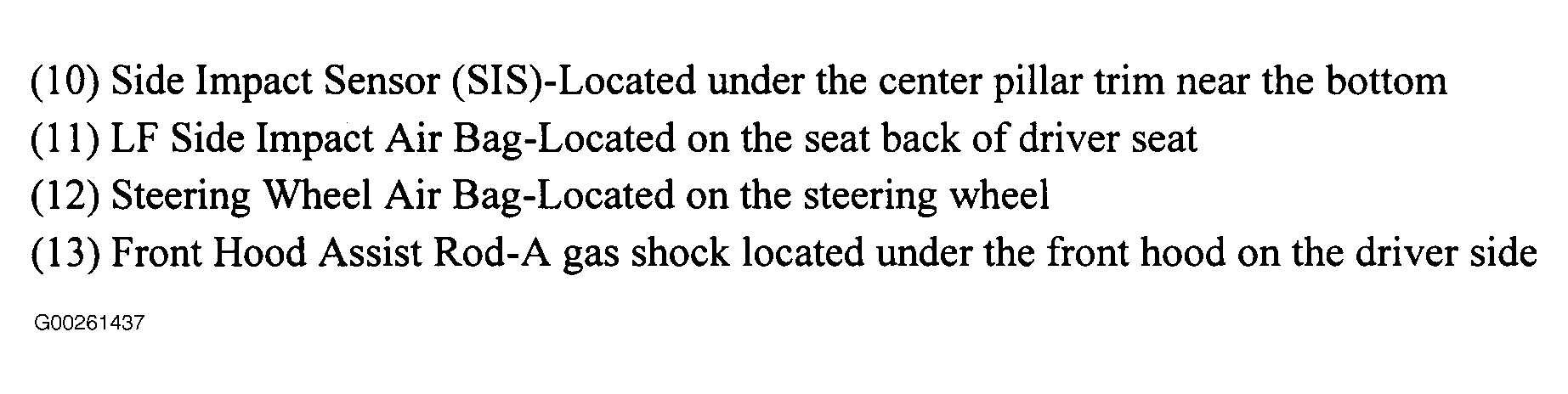

Fig 6: Vehicle Overview
Courtesy of GENERAL MOTORS CORP.
Fig 7: Rear Of Vehicle Body
Courtesy of GENERAL MOTORS CORP.

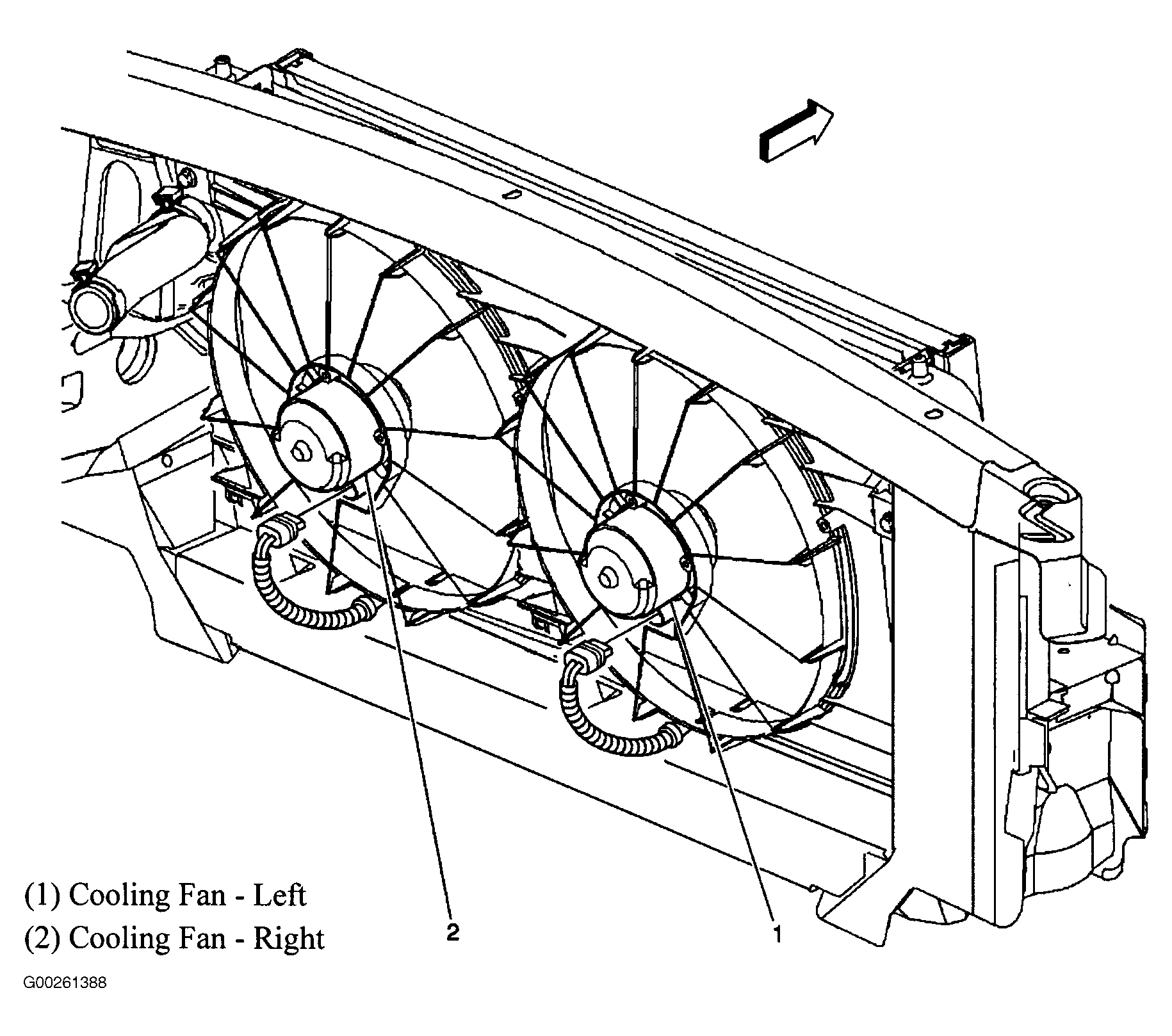

Fig 8: Cooling Fans
Courtesy of GENERAL MOTORS CORP.
Fig 9: Right Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 10: Front Of Engine
Courtesy of GENERAL MOTORS CORP.

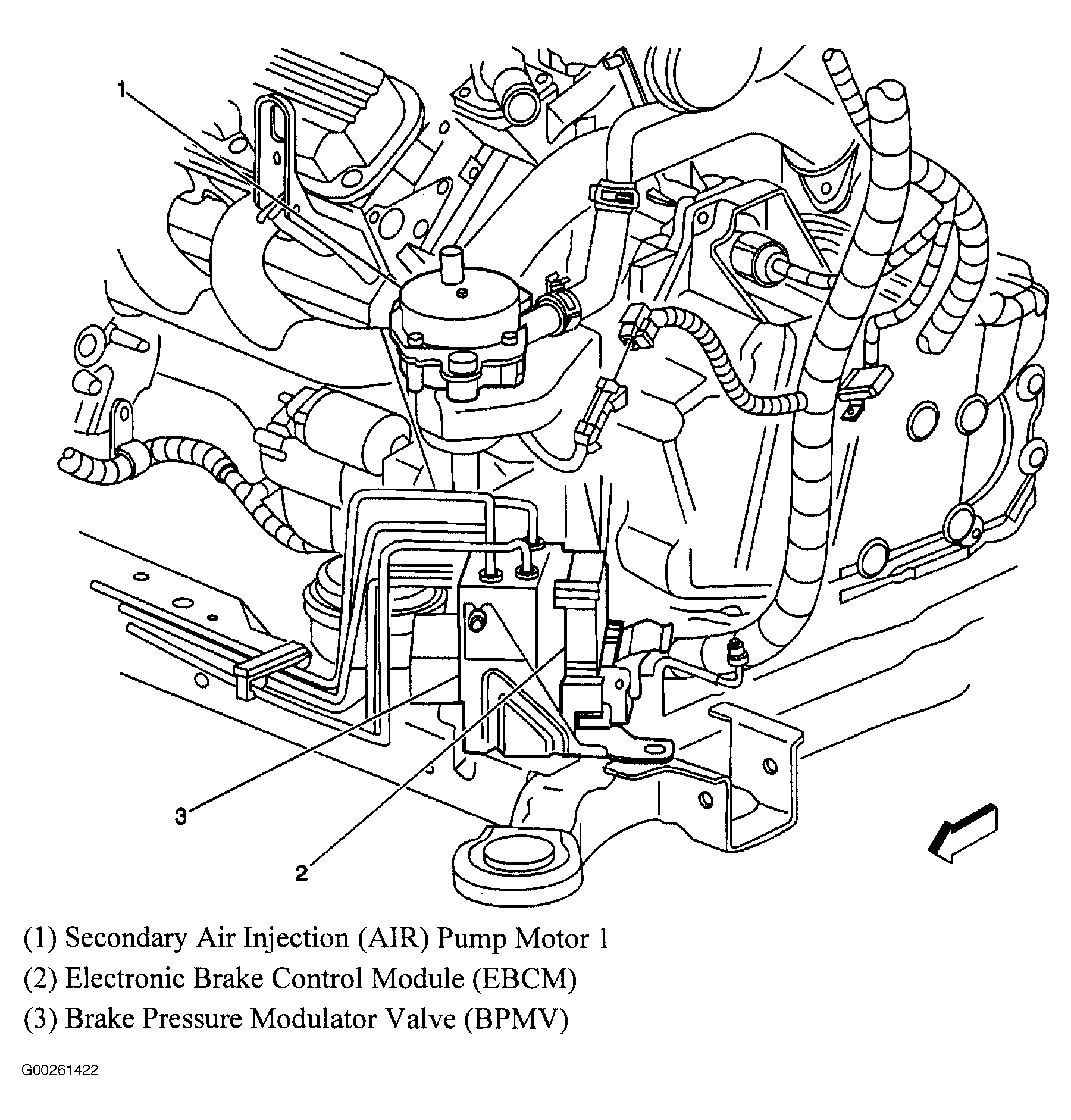

Fig 11: Lower Front Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.

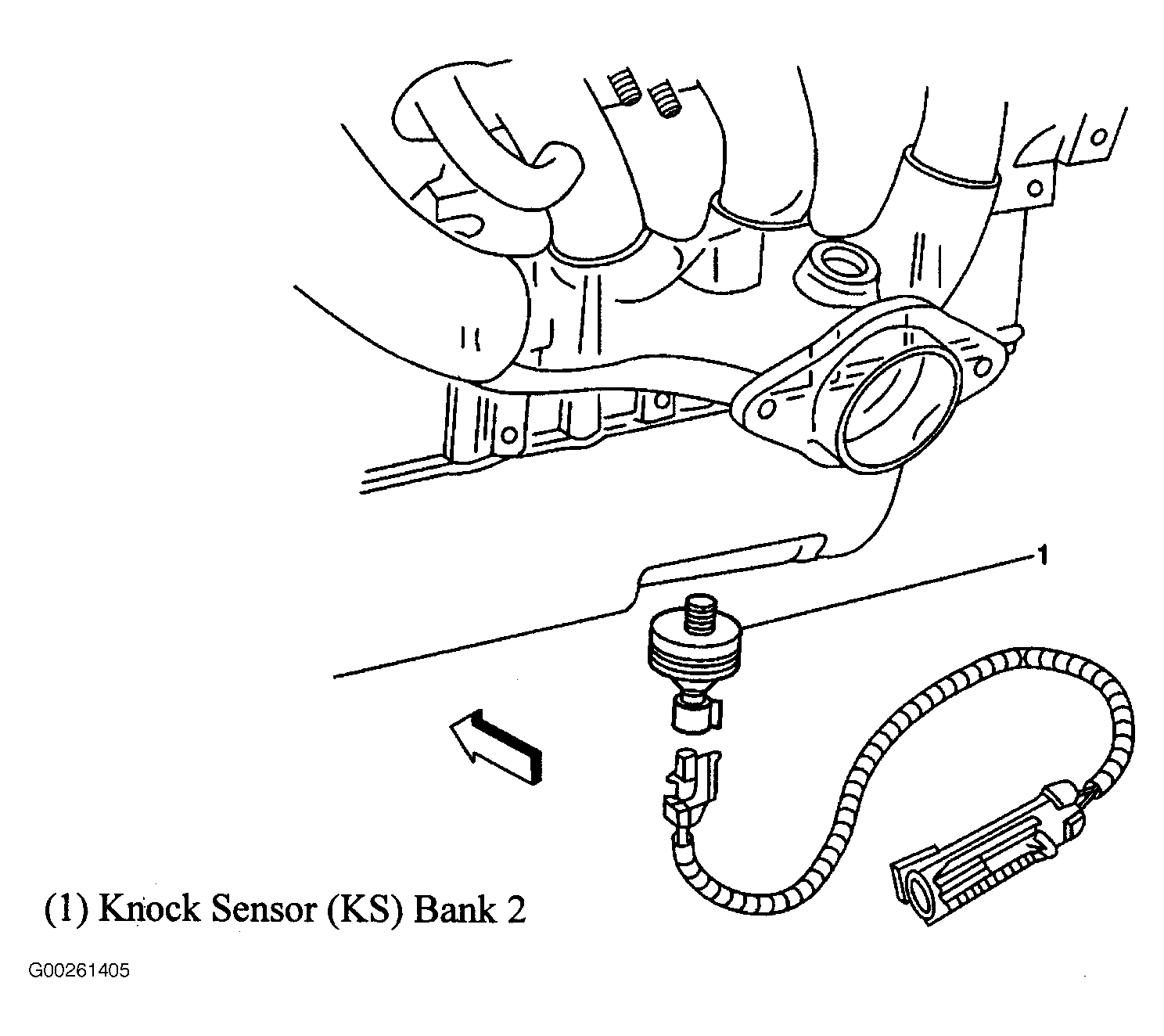

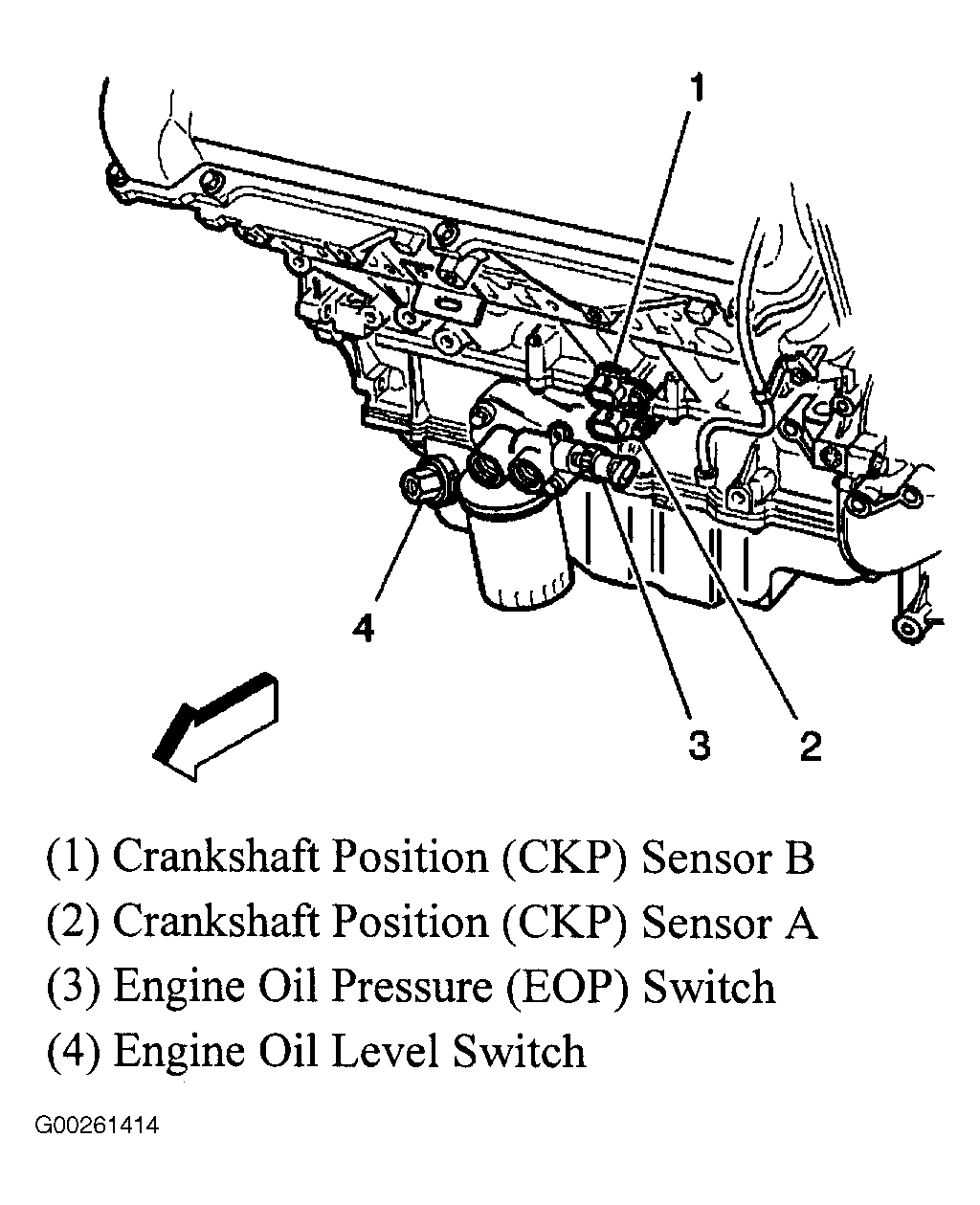

Fig 12: Lower Left Side Of Engine (4.6L)
Courtesy of GENERAL MOTORS CORP.

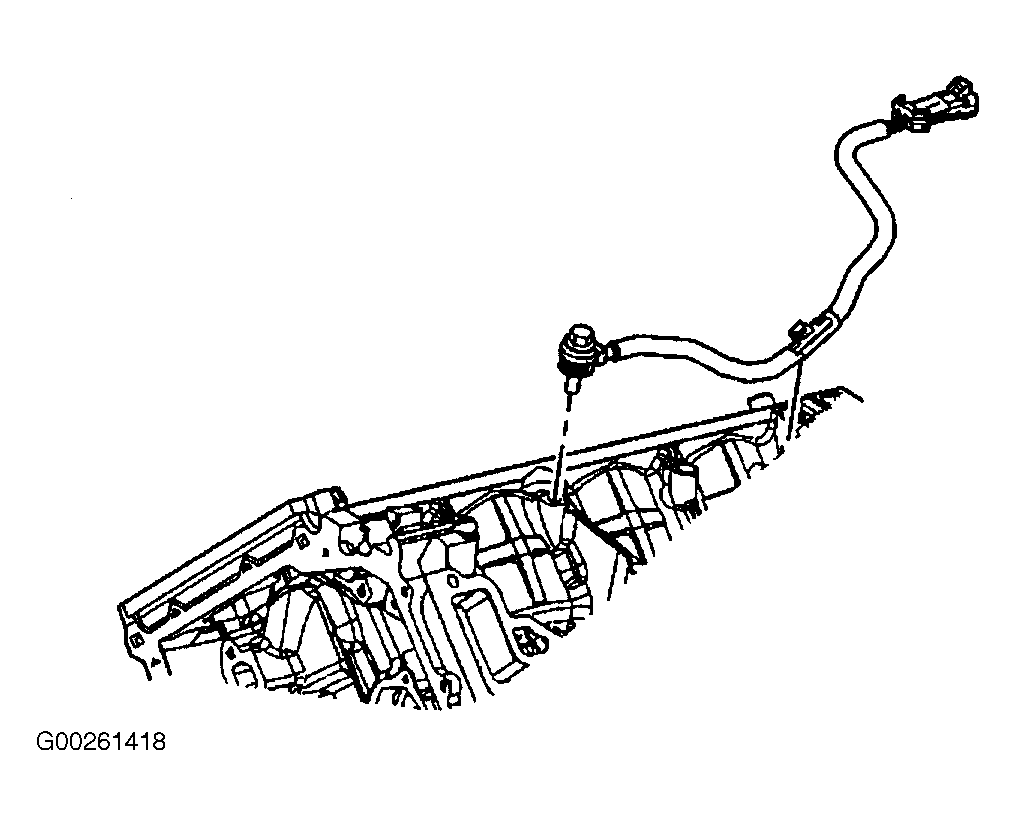

Fig 13: Engine Block Assembly (4.6L)
Courtesy of GENERAL MOTORS CORP.

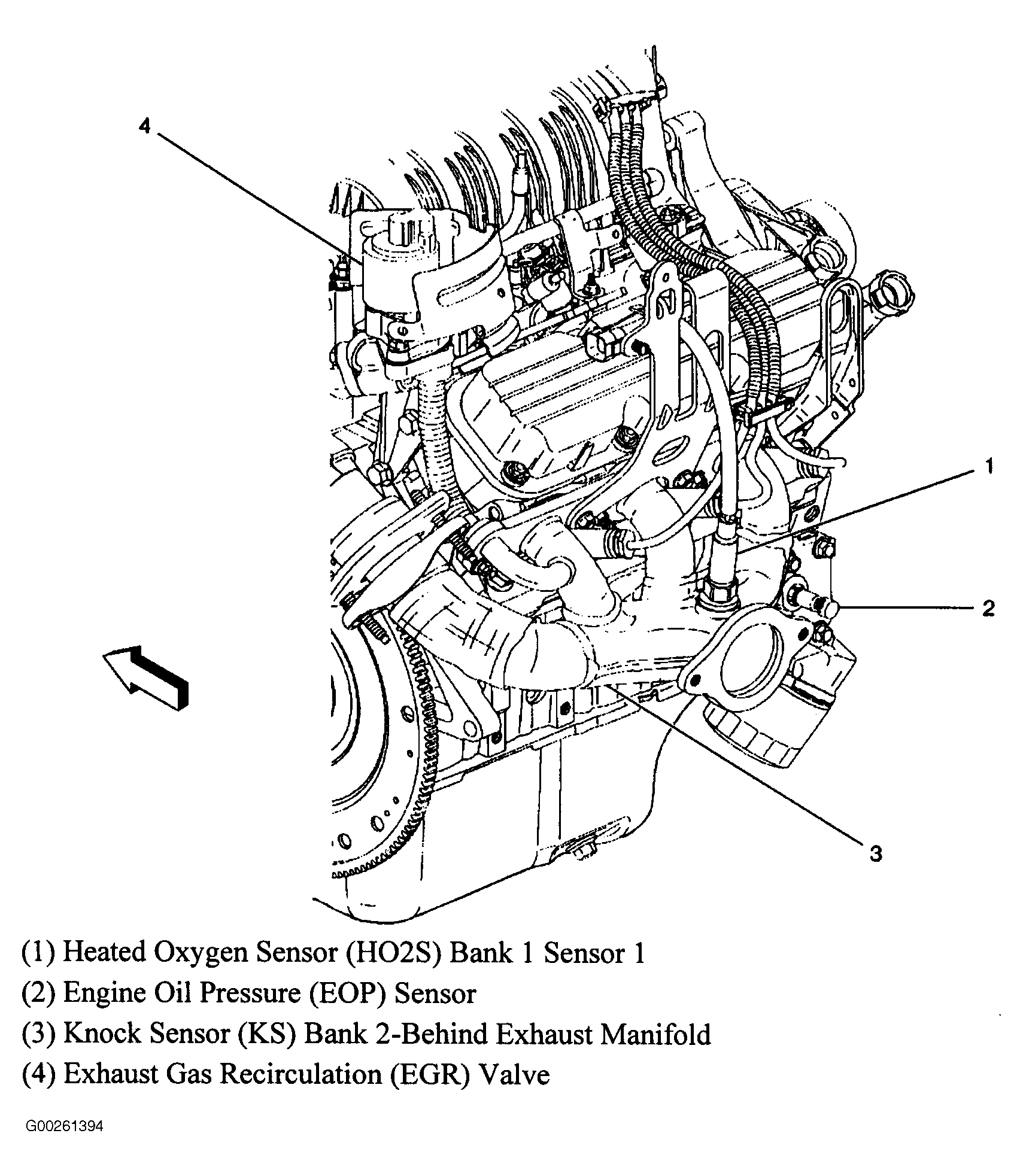

Fig 14: Left Side Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.
Fig 15: Right Side Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.

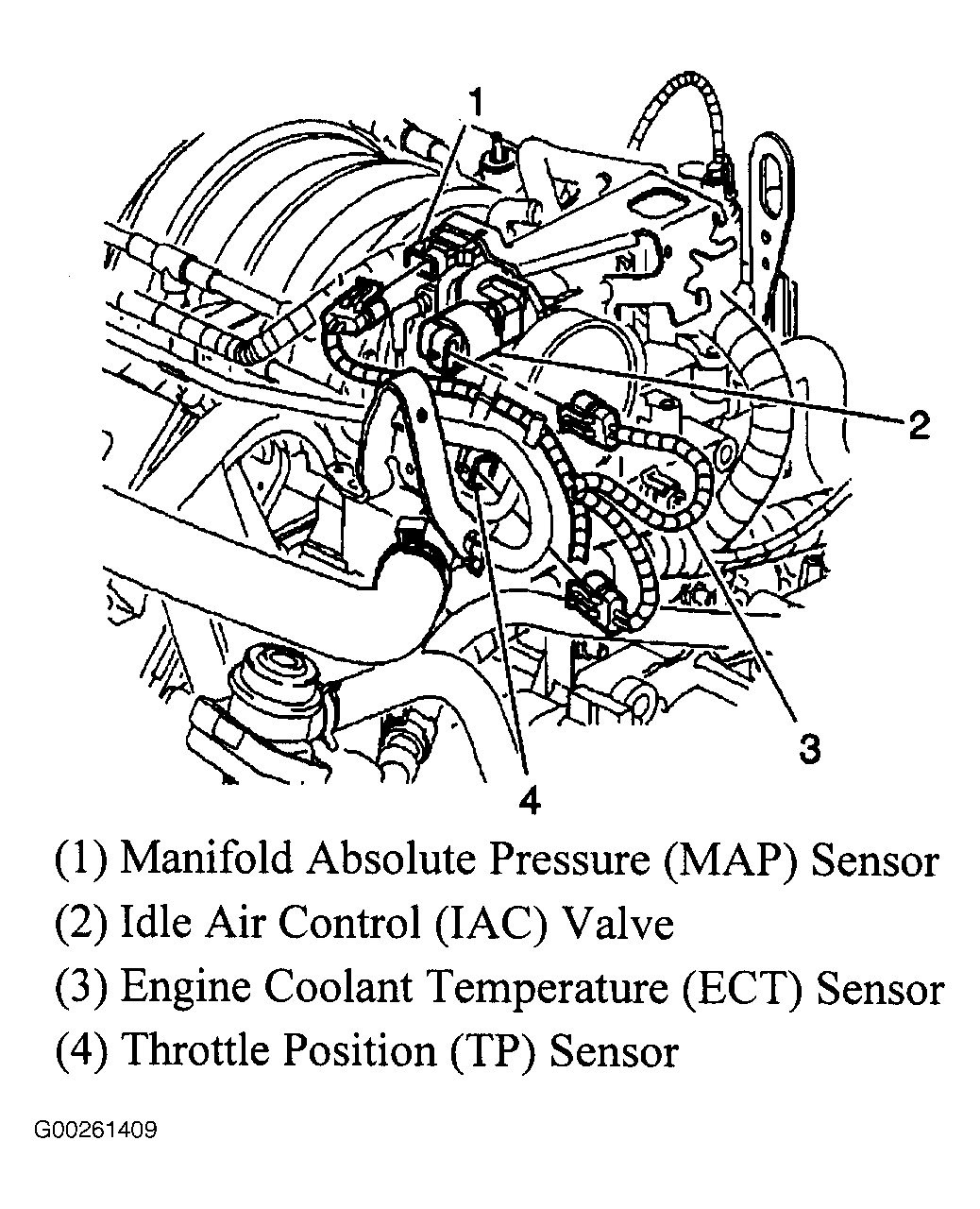

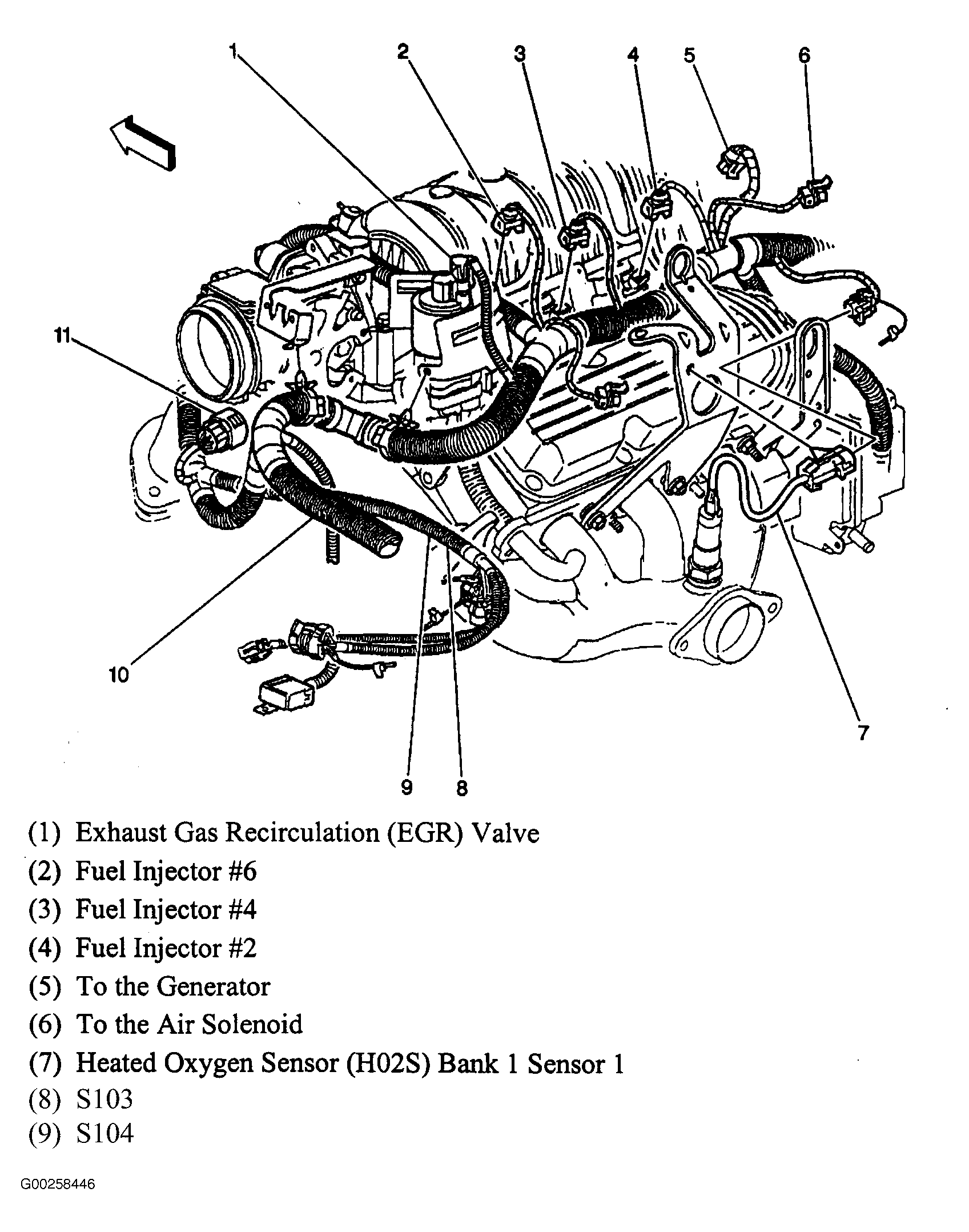

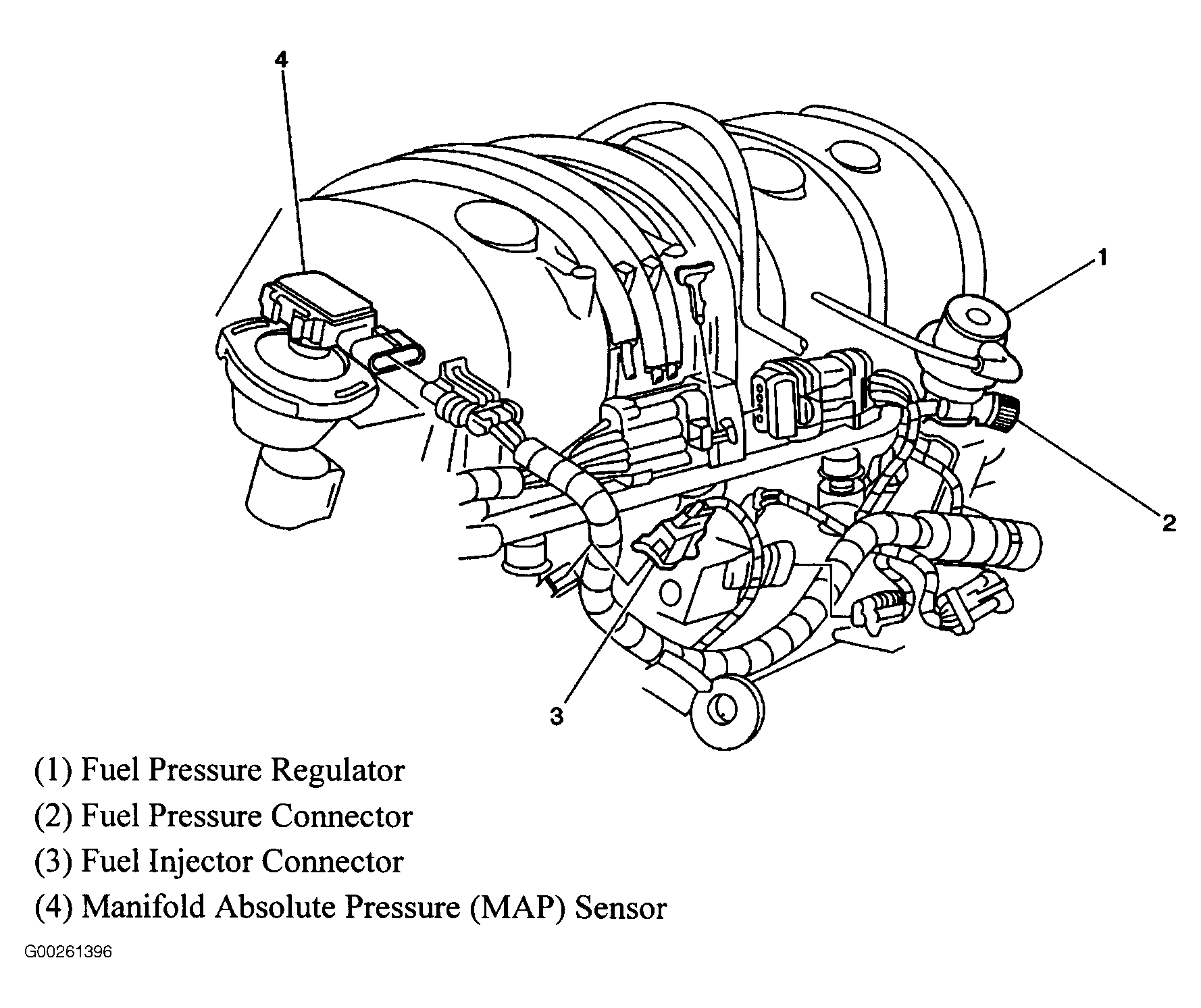

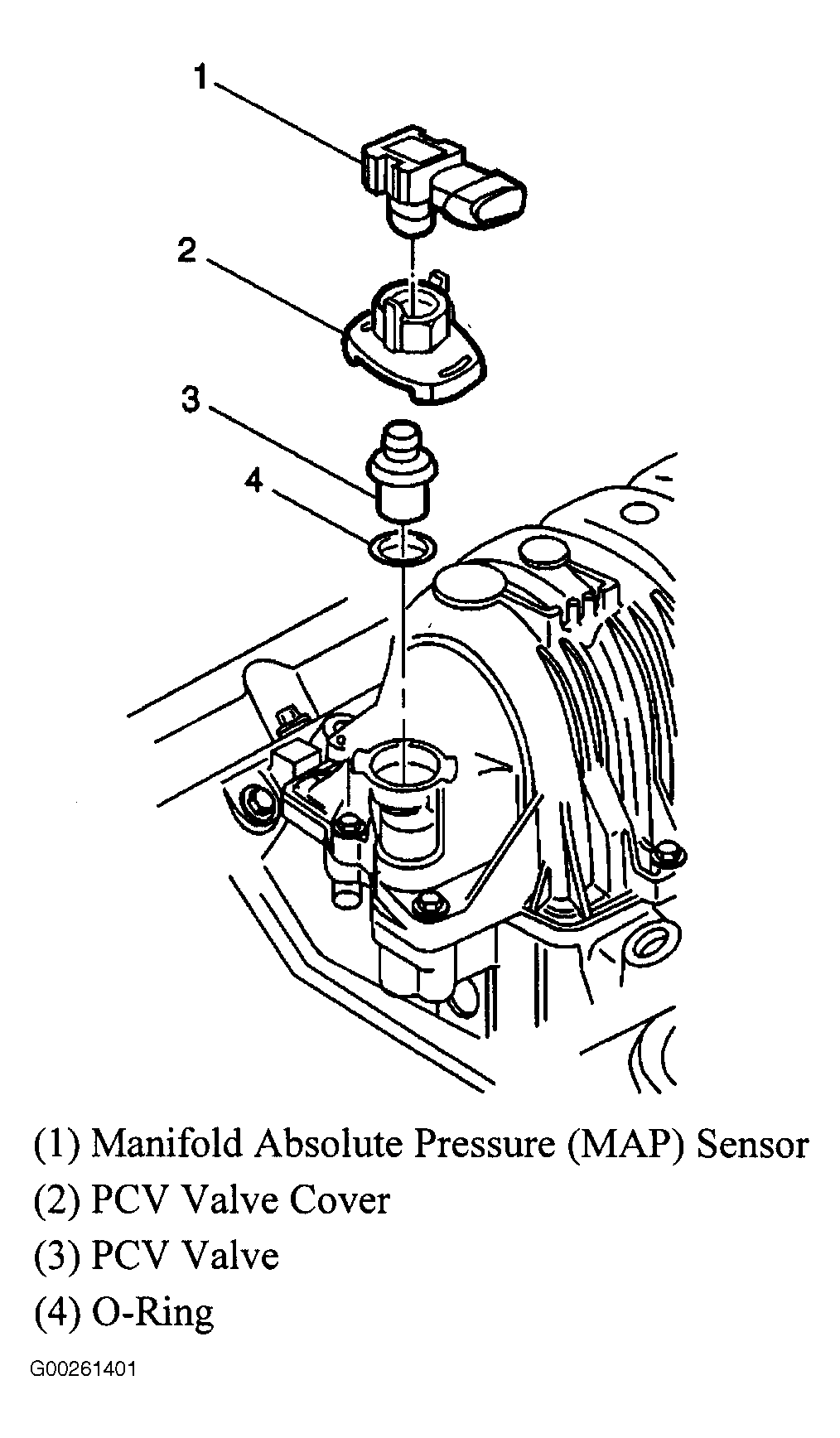

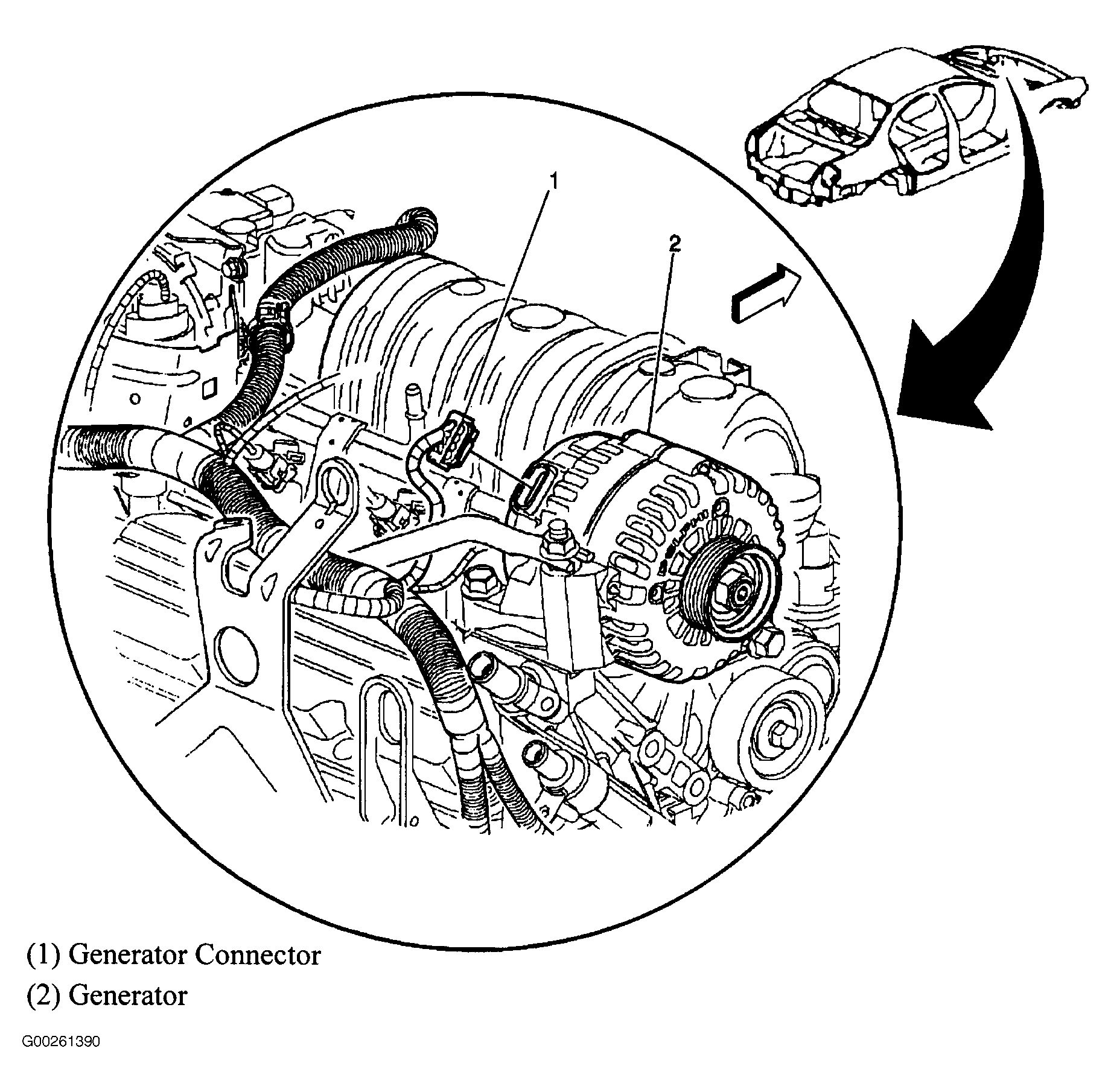

Fig 16: Top Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.
Fig 17: Top Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.
Fig 18: Left Rear Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.
Fig 19: Left Front Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.

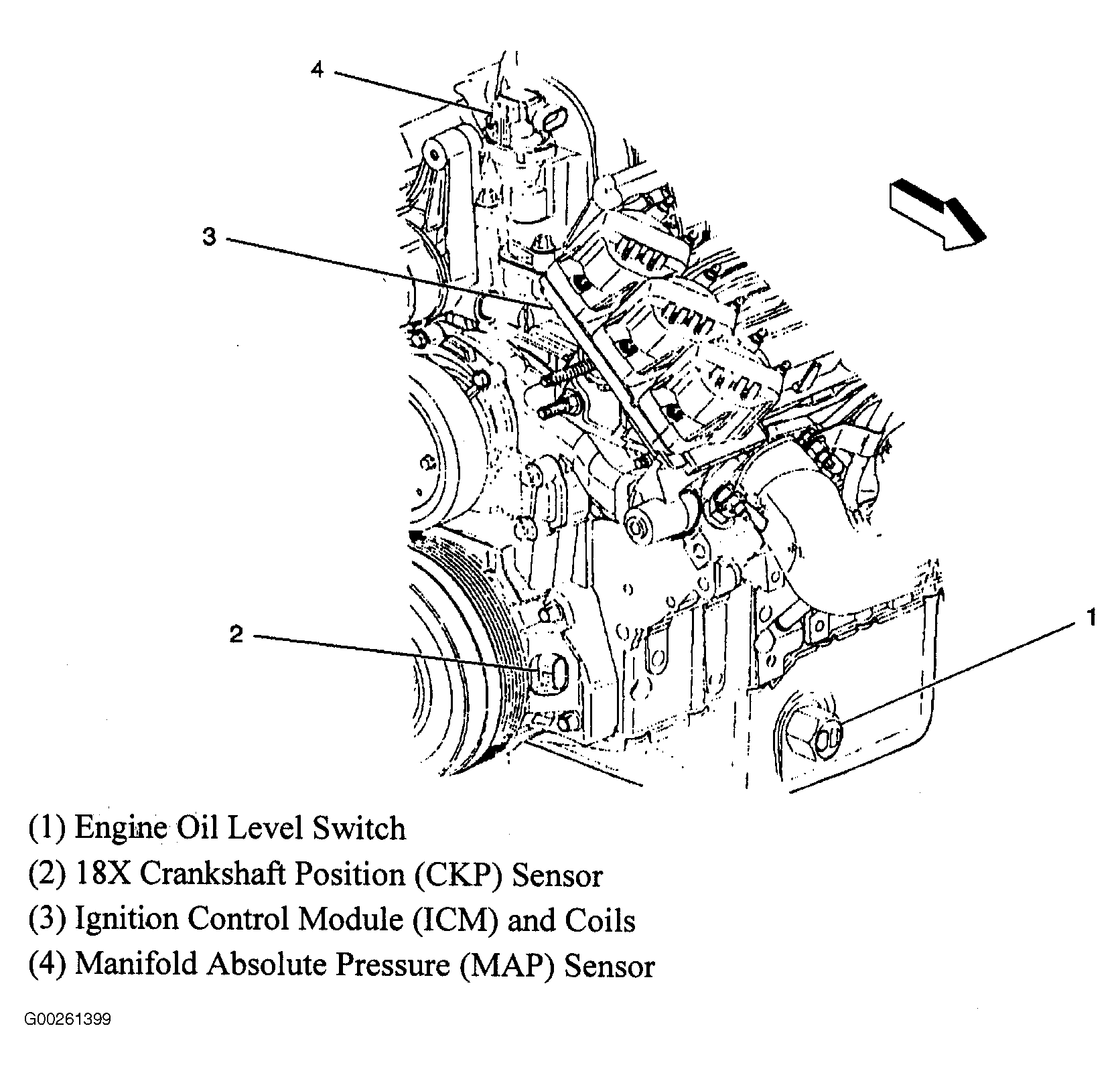

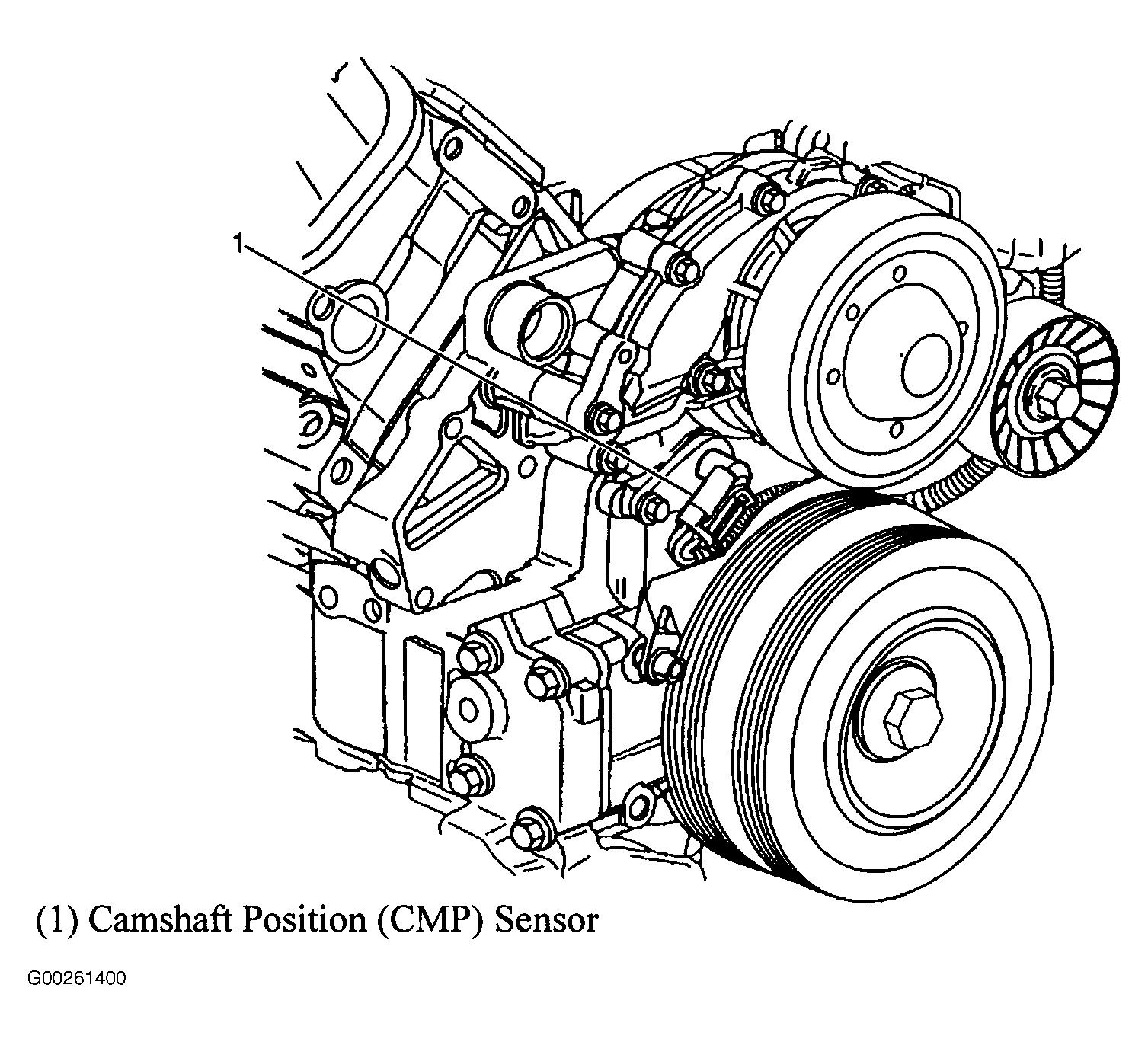

Fig 20: Front Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.

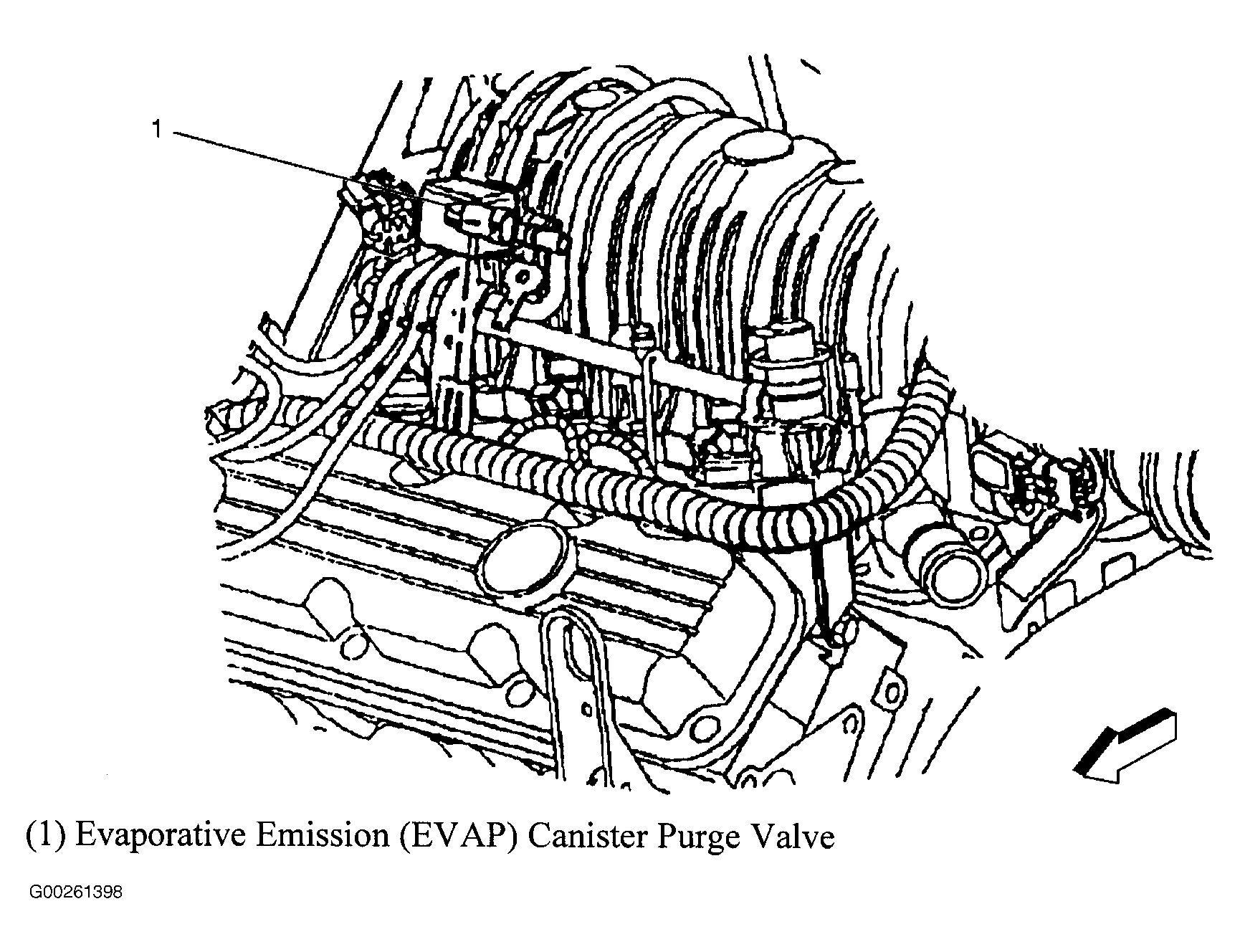

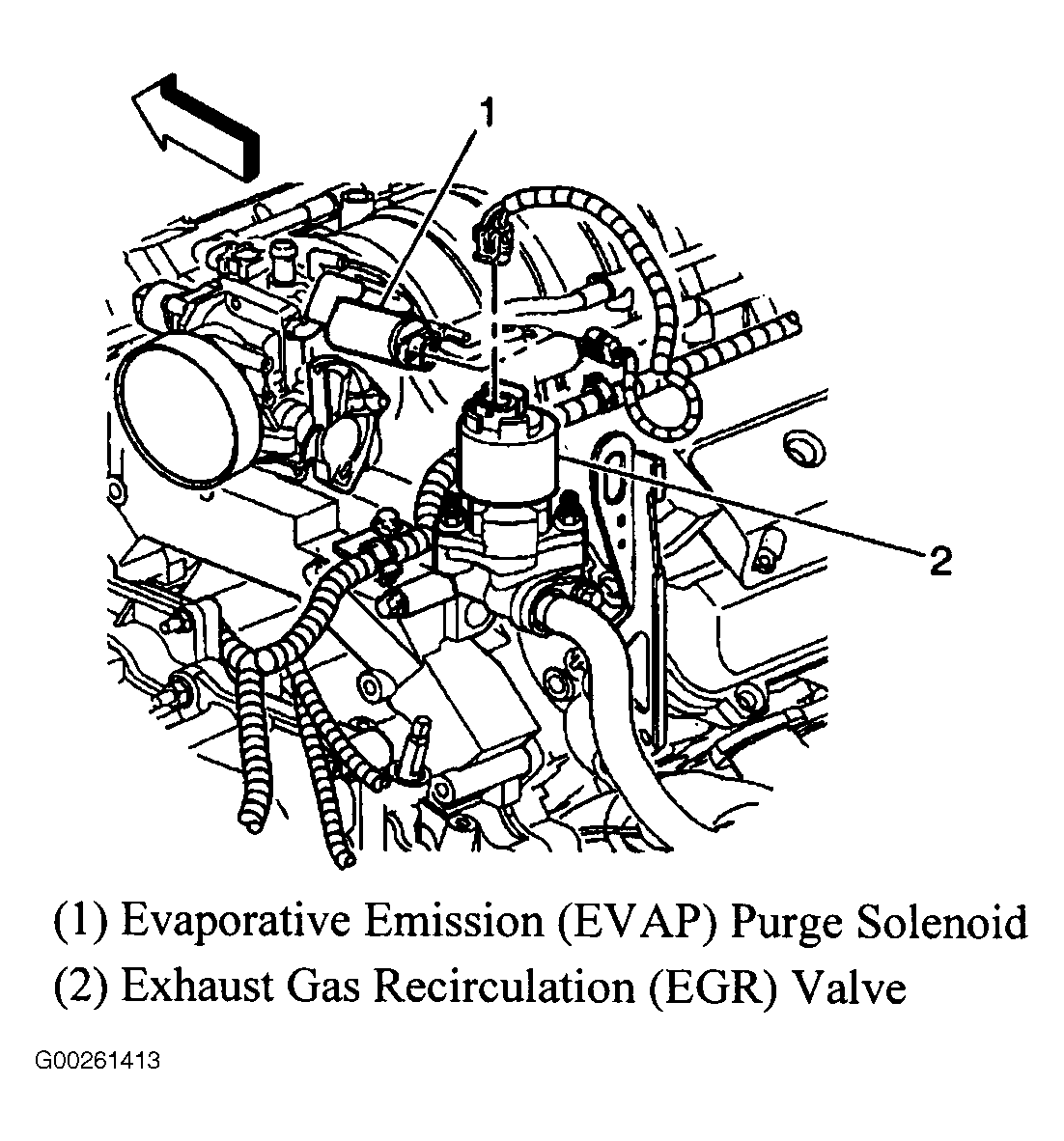

Fig 21: Top Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.

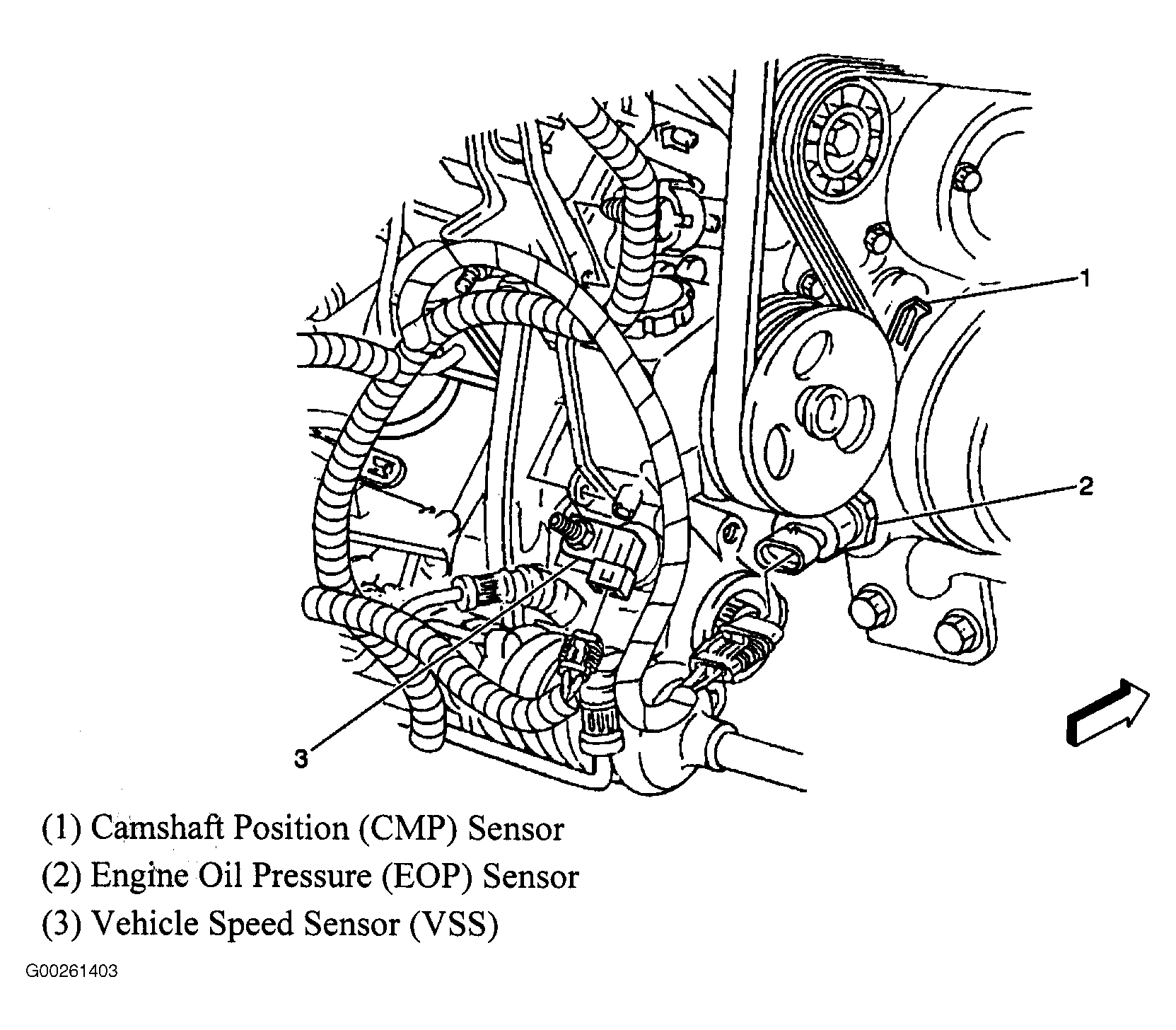

Fig 22: Right Front Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.

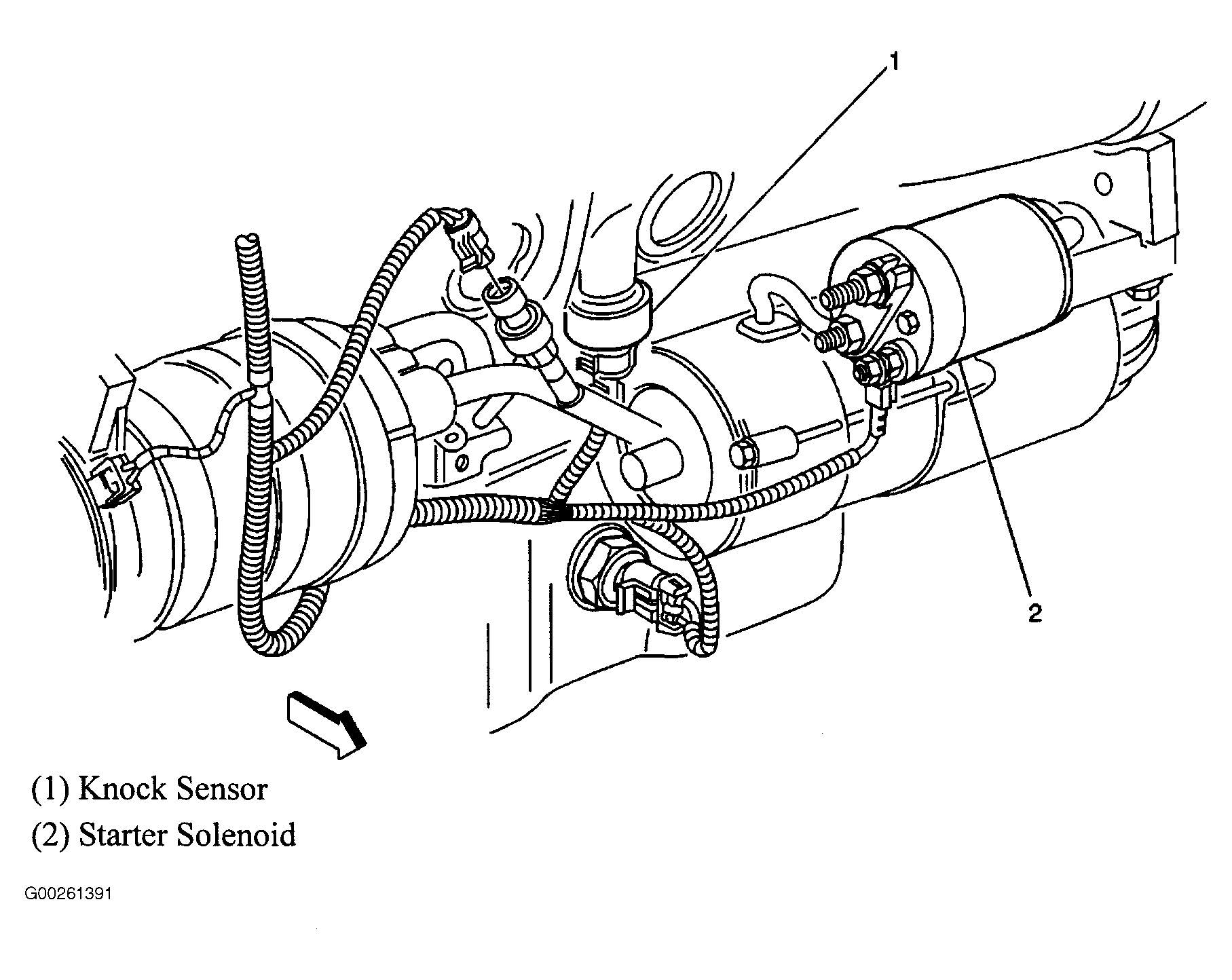

Fig 23: Lower Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.

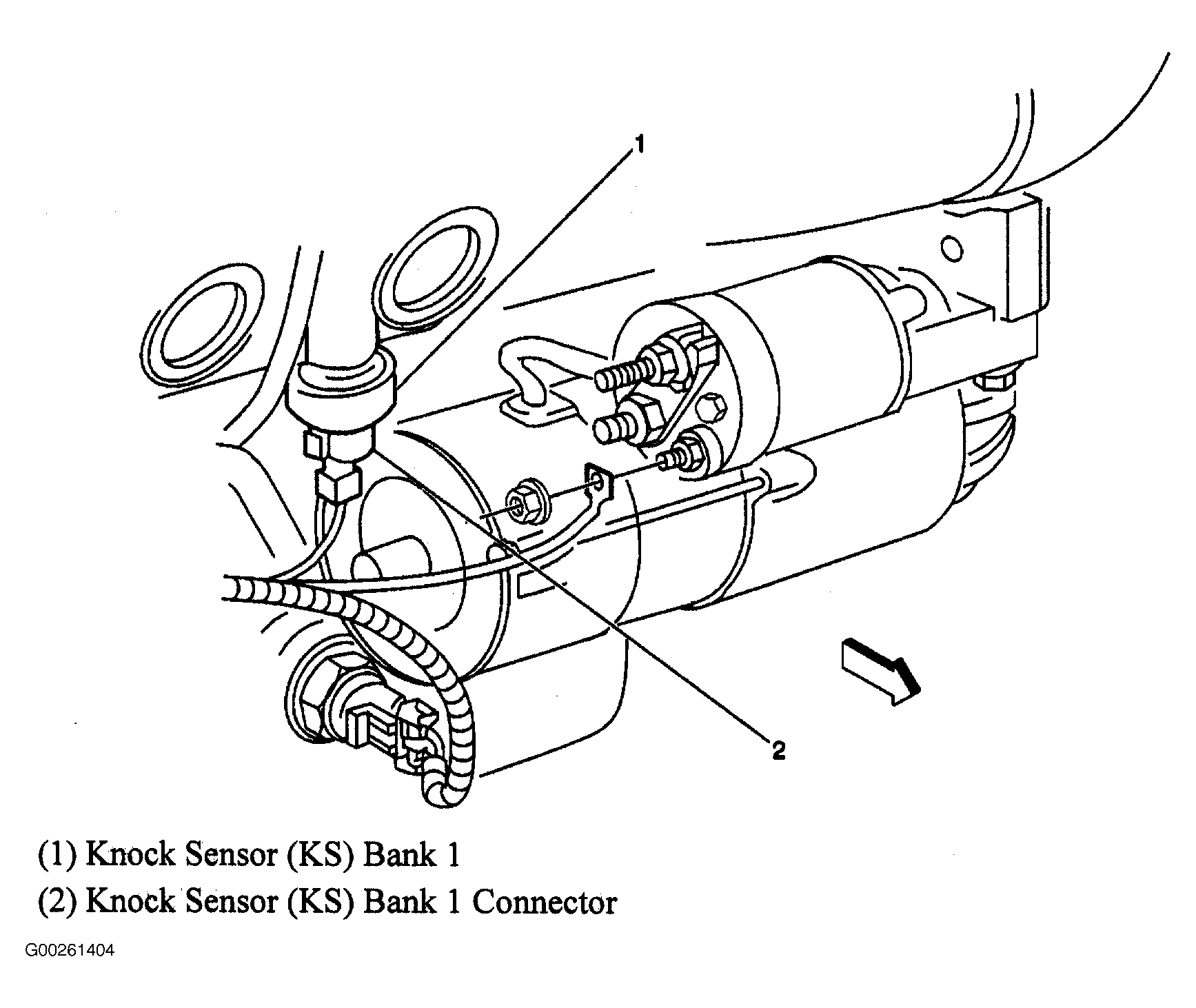

Fig 24: Lower Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.

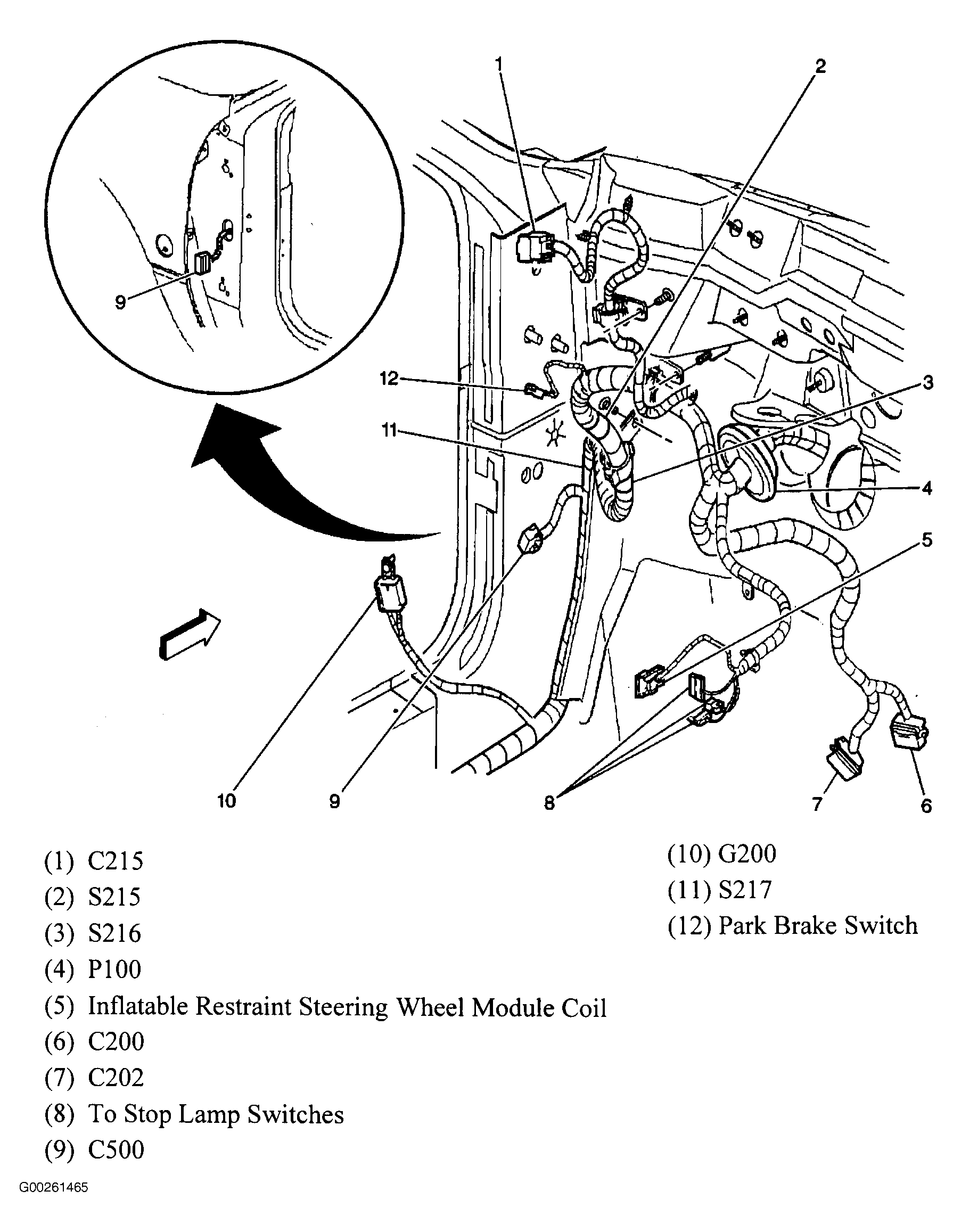

Fig 25: Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 26: Left Underside Of Vehicle Chassis
Courtesy of GENERAL MOTORS CORP.

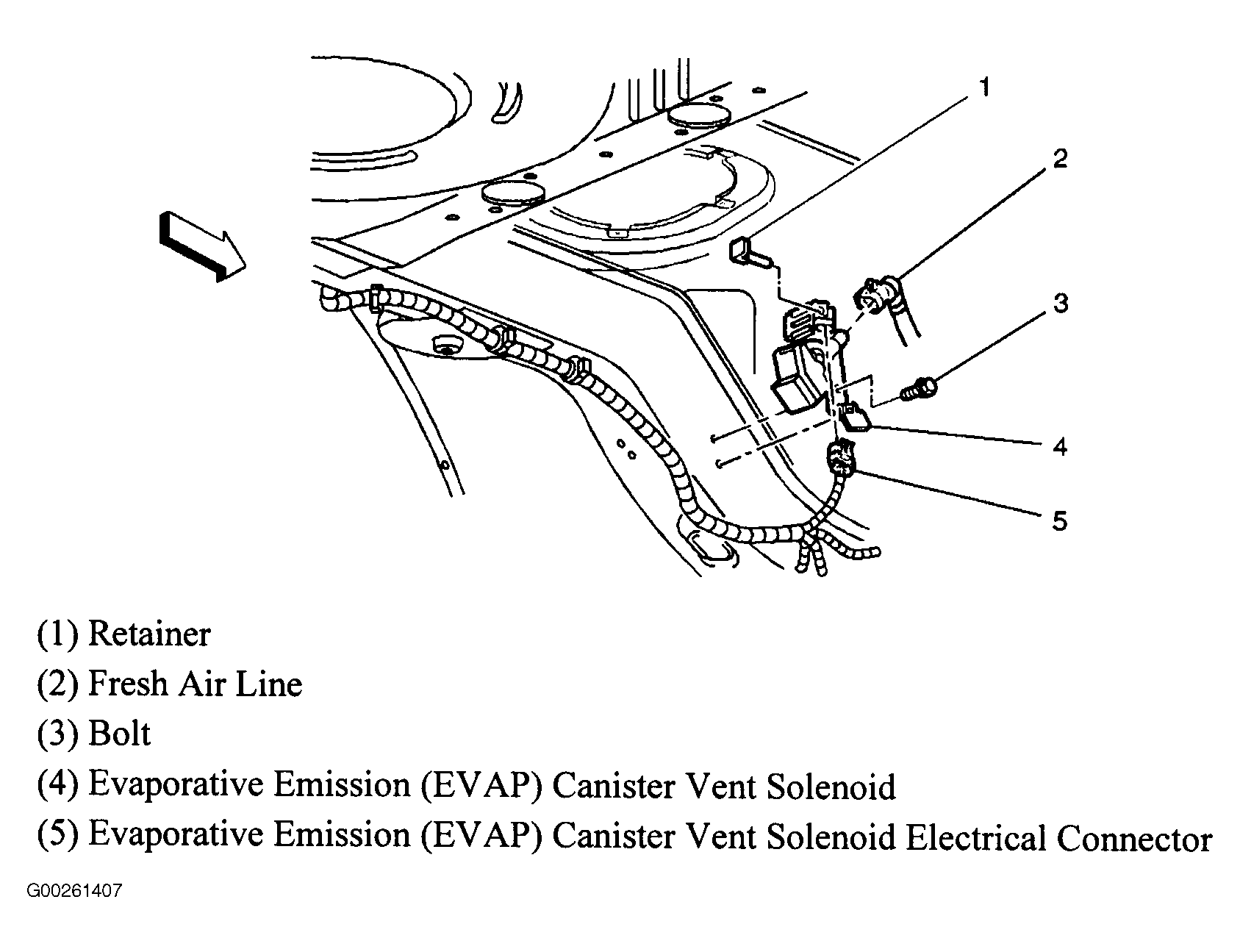

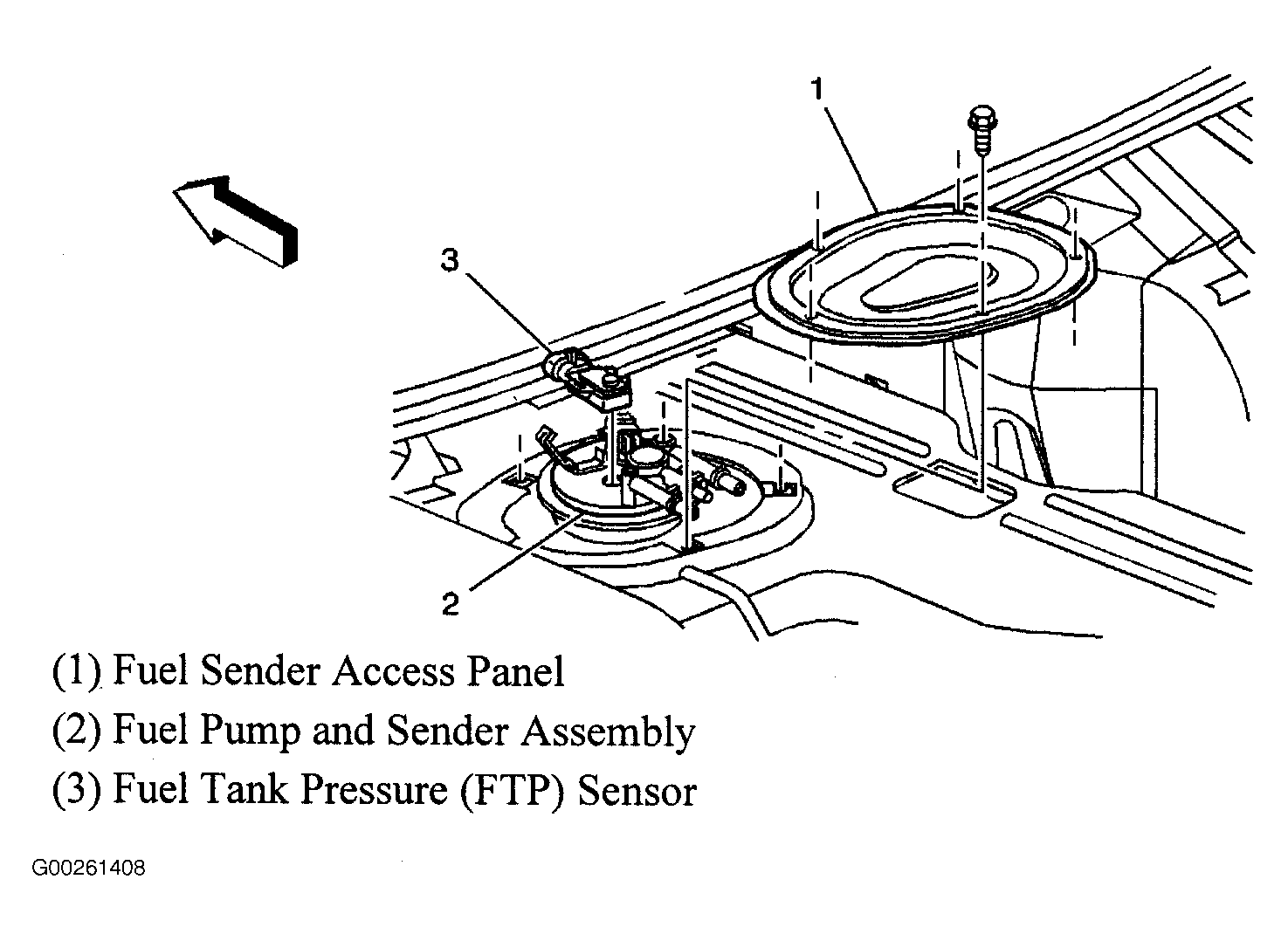

Fig 27: Fuel Tank
Courtesy of GENERAL MOTORS CORP.

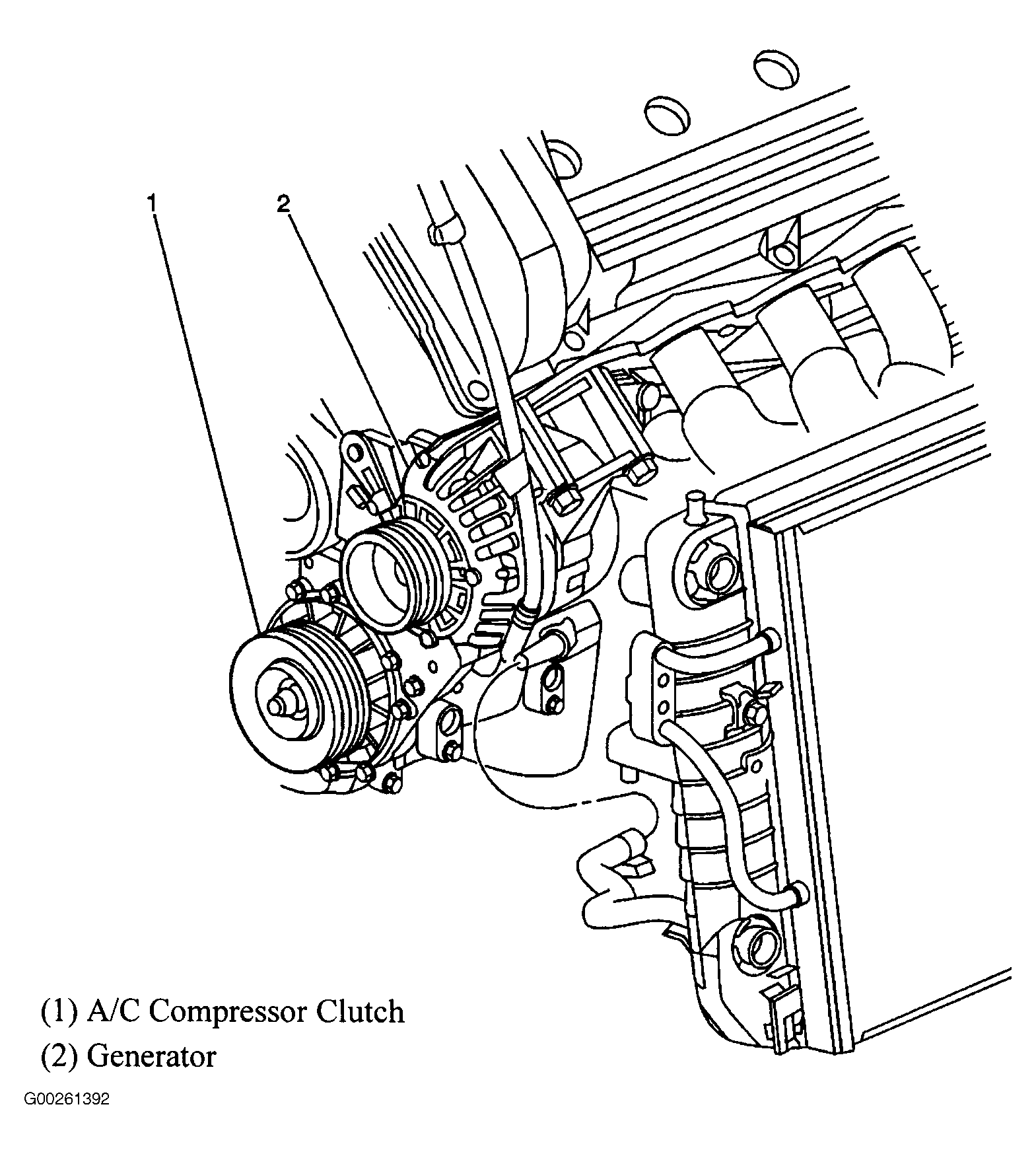

Fig 28: Front Of Engine
Courtesy of GENERAL MOTORS CORP.

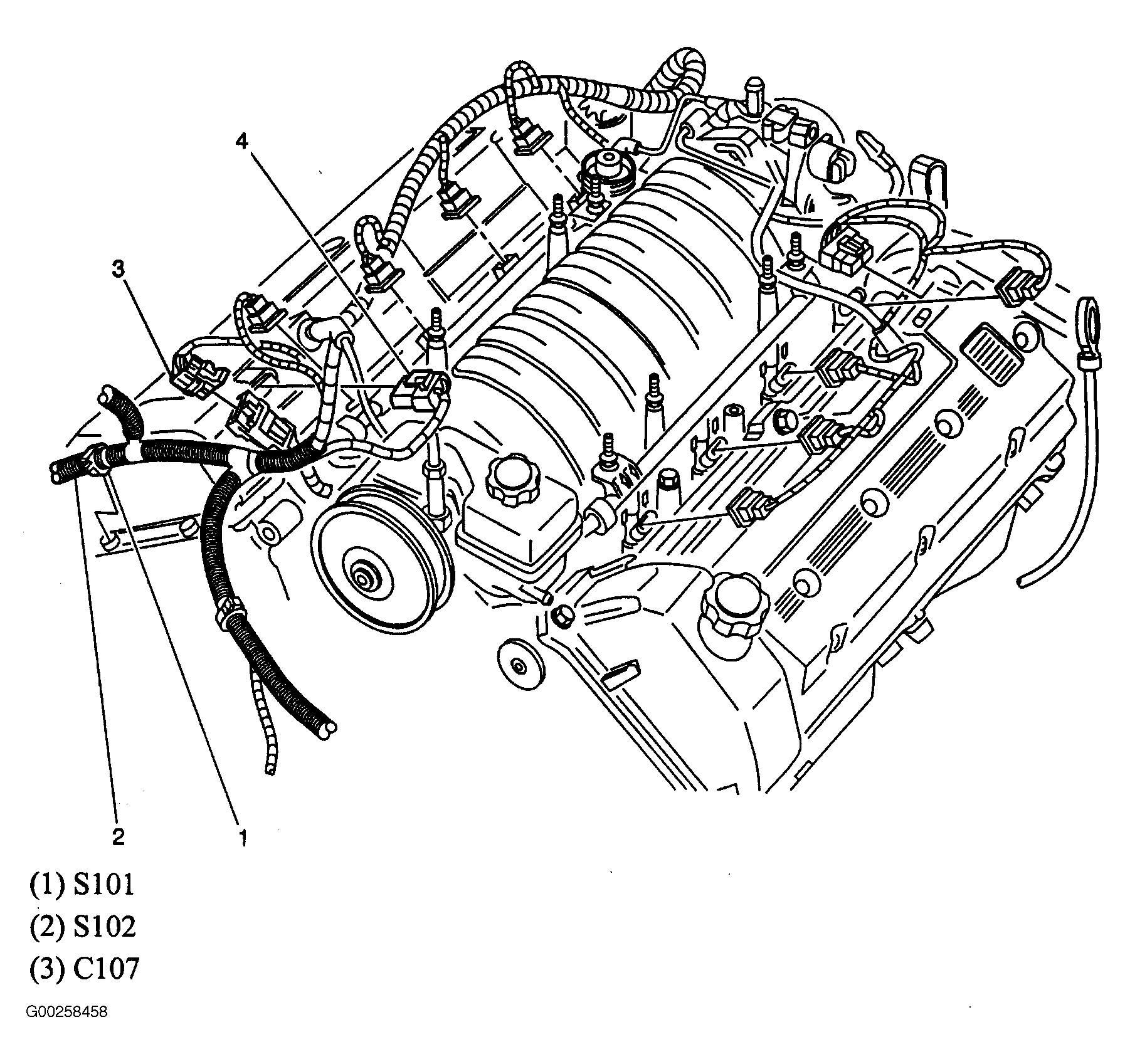

Fig 29: Top Of Engine (4.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 30: Top Rear Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 31: Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 32: Left Side Of Engine (4.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 33: Right Front Of Engine (4.6L)
Courtesy of GENERAL MOTORS CORP.

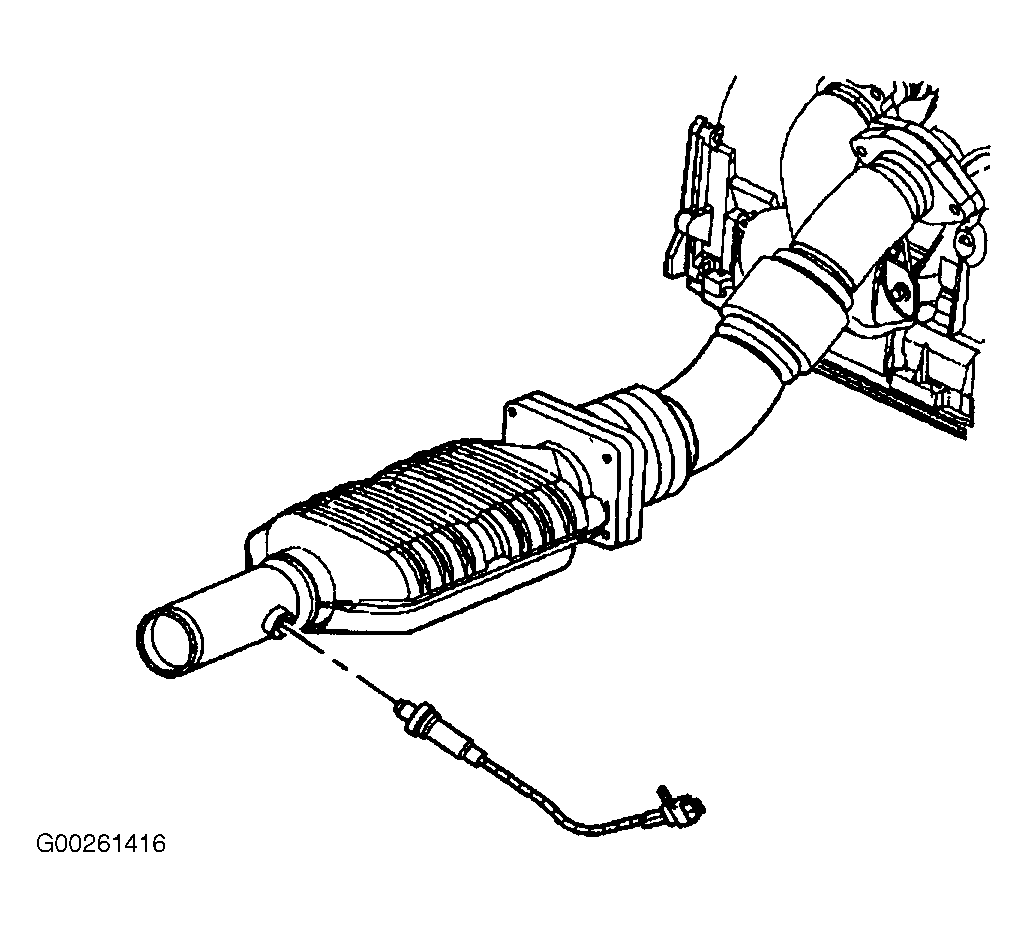

Fig 34: Exhaust (4.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 35: Exhaust (4.6L)
Courtesy of GENERAL MOTORS CORP.

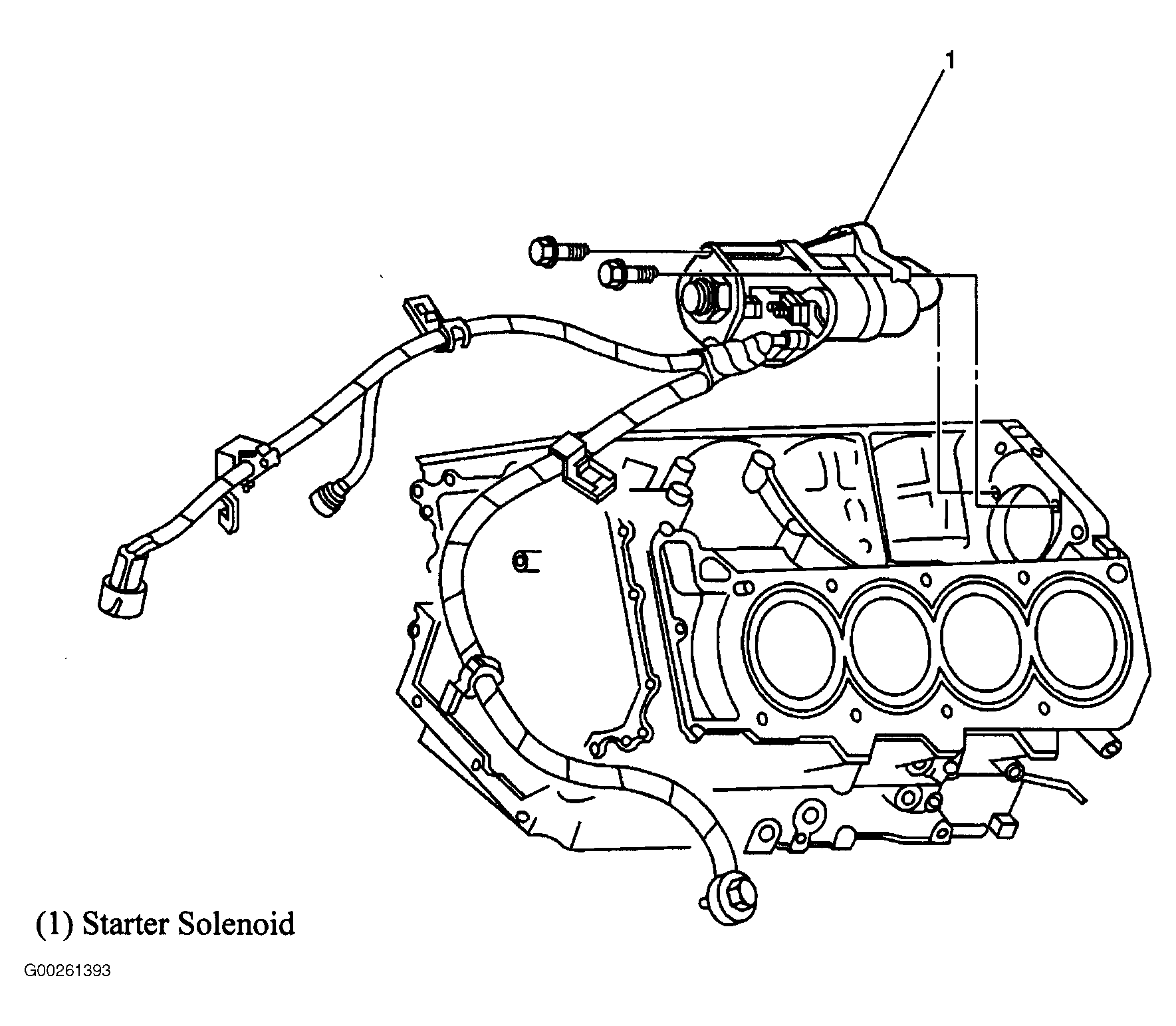

Fig 36: Engine Block (4.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 37: Top Of Engine
Courtesy of GENERAL MOTORS CORP.

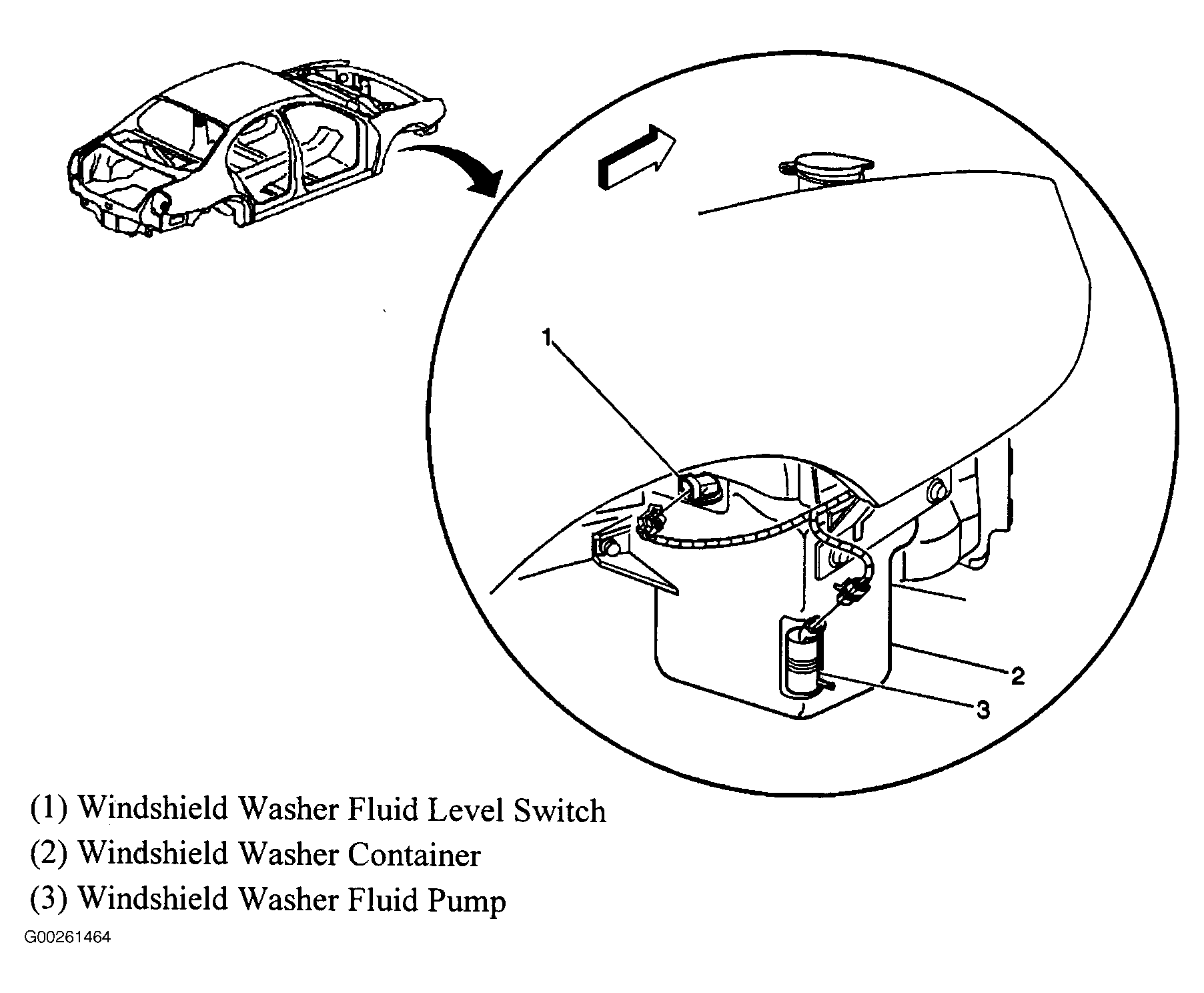

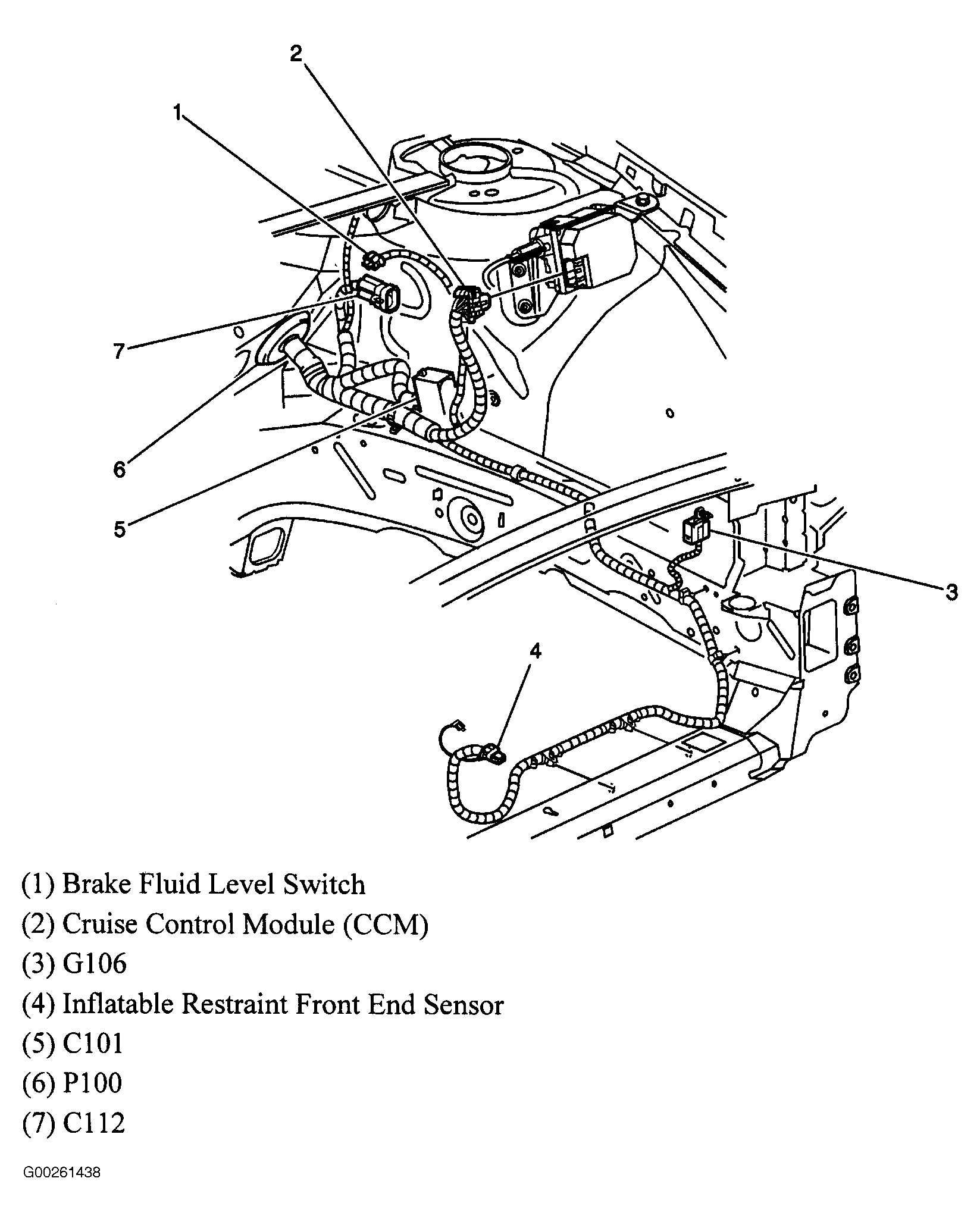

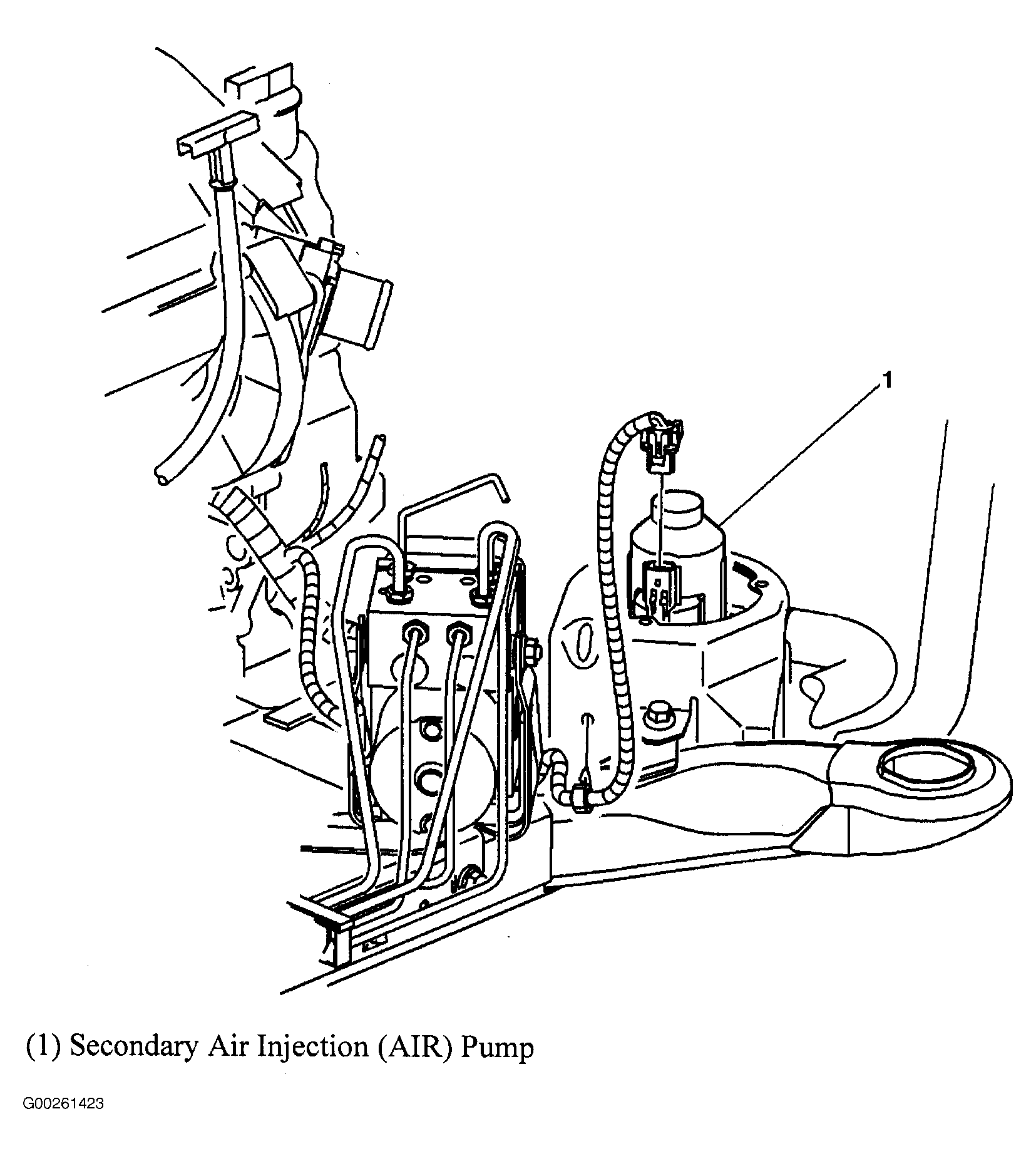

Fig 38: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 39: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

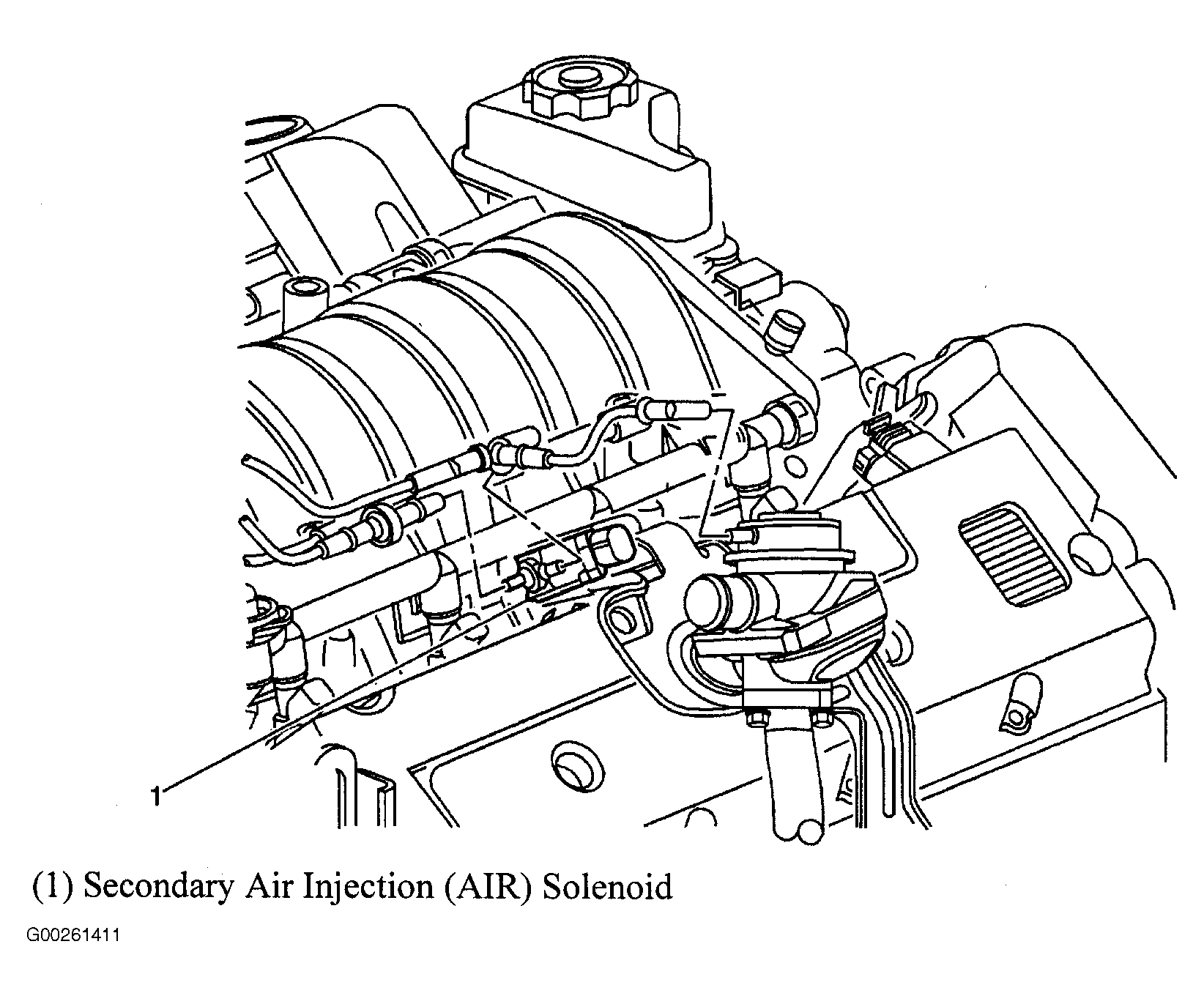

Fig 40: Top Of Engine (4.6L)
Courtesy of GENERAL MOTORS CORP.

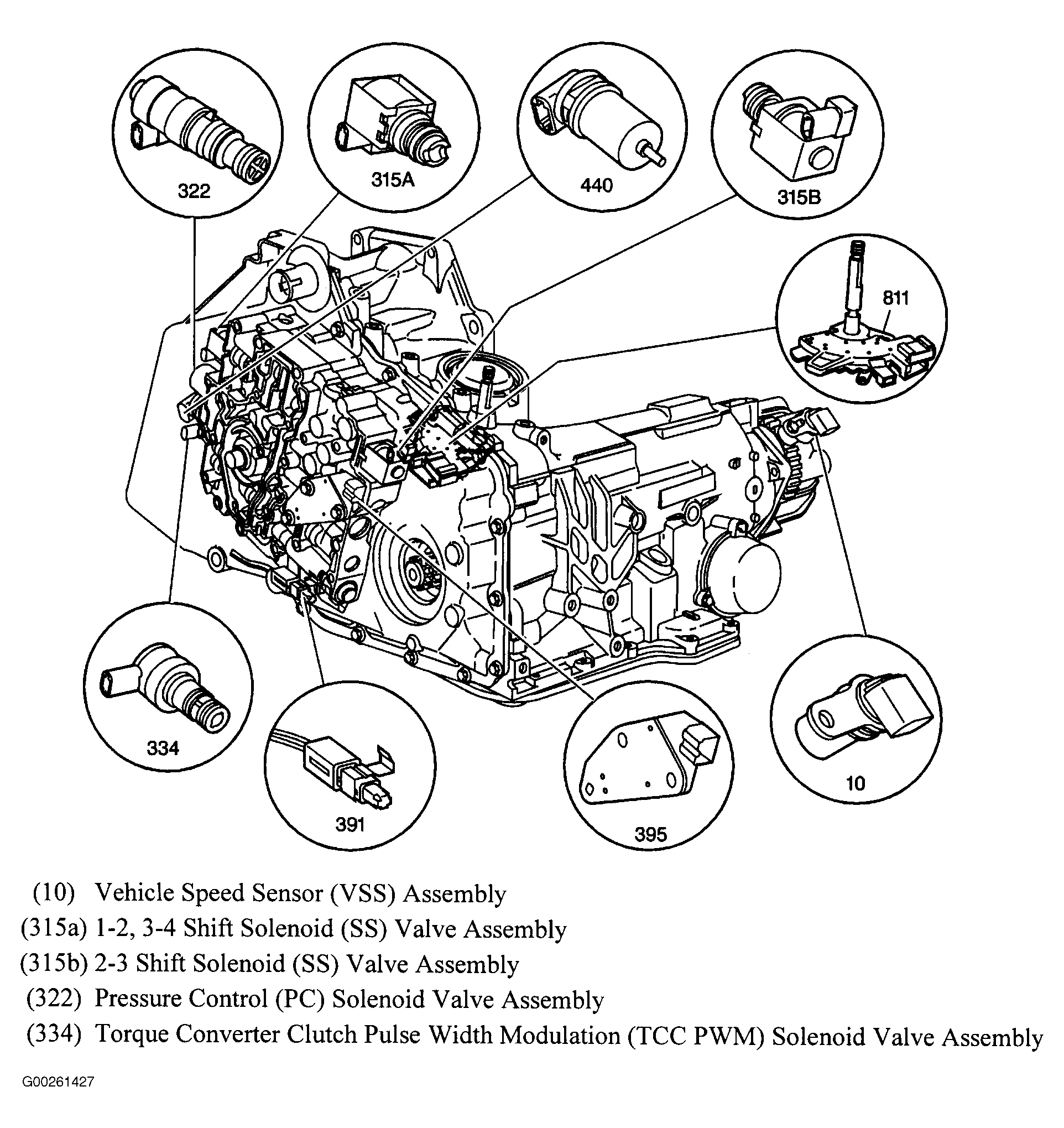

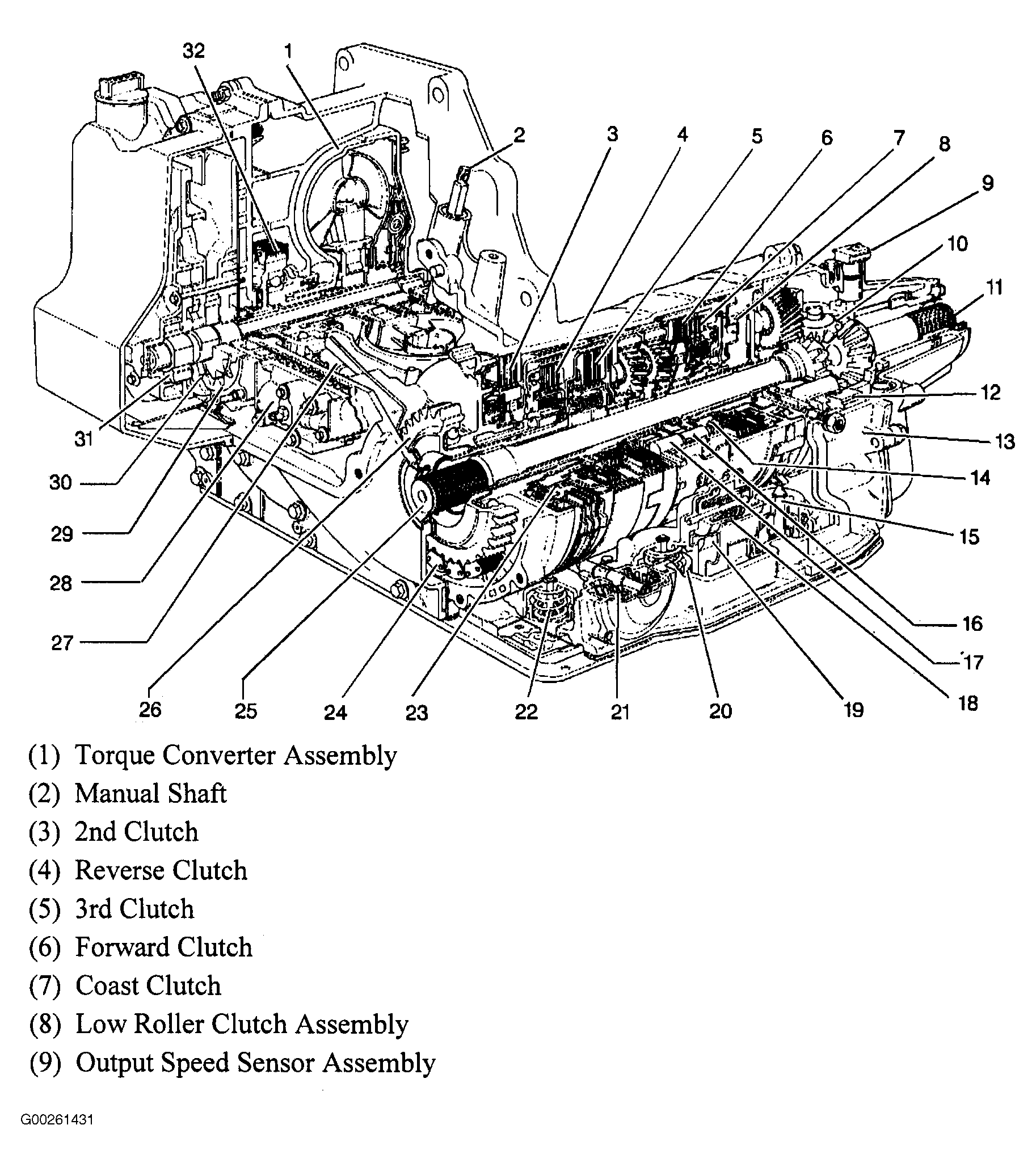

Fig 41: Automatic Transmission
Courtesy of GENERAL MOTORS CORP.

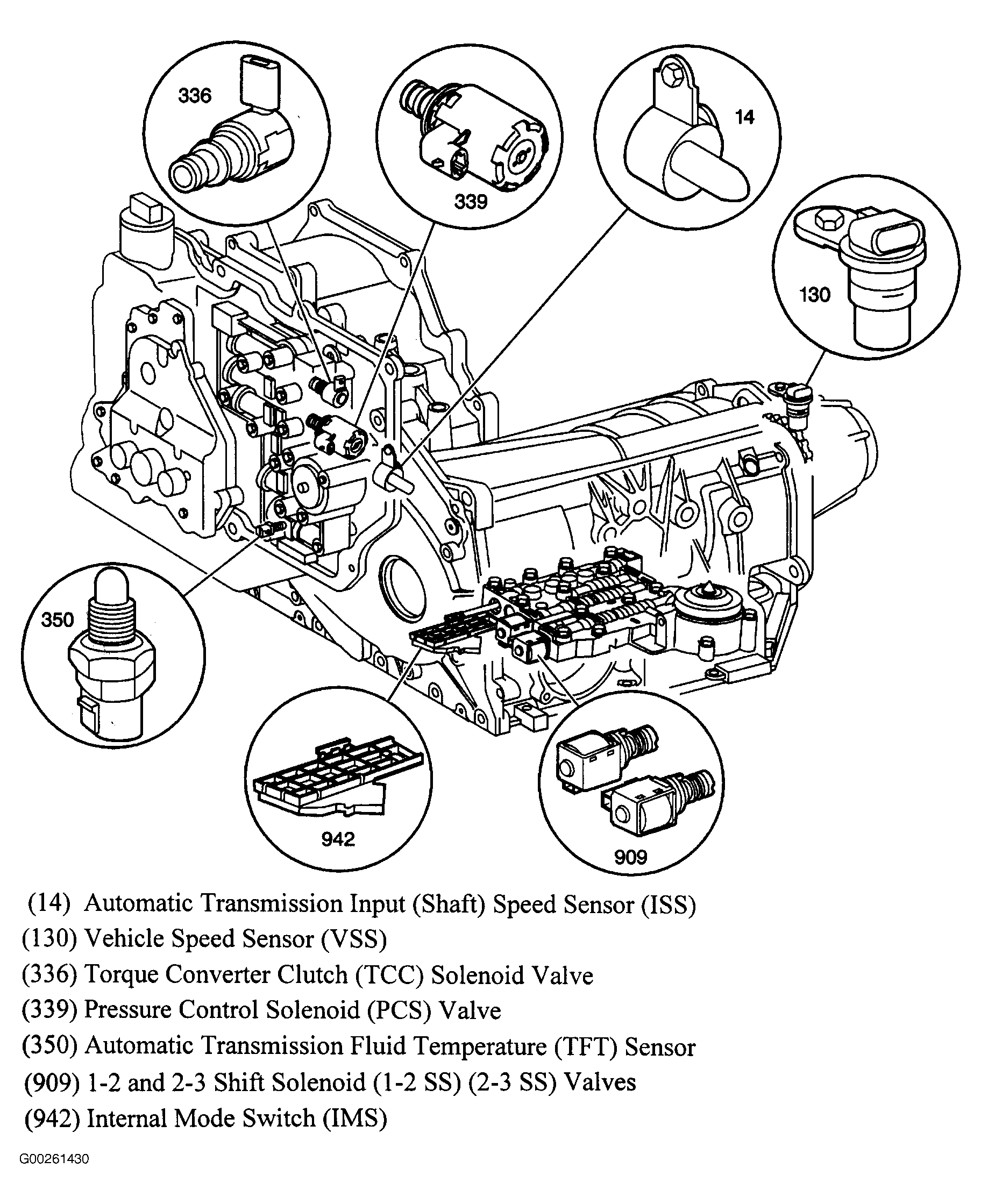

Fig 42: Automatic Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 43: Automatic Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 44: Passenger's Seat
Courtesy of GENERAL MOTORS CORP.

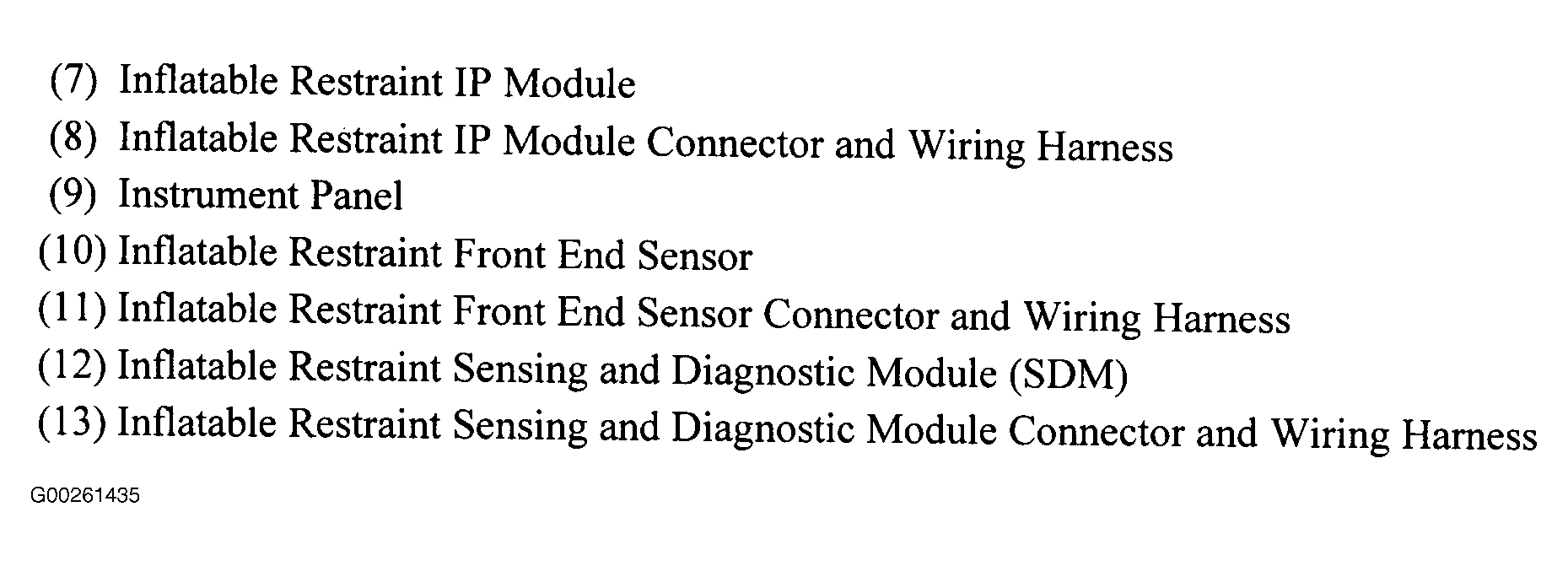

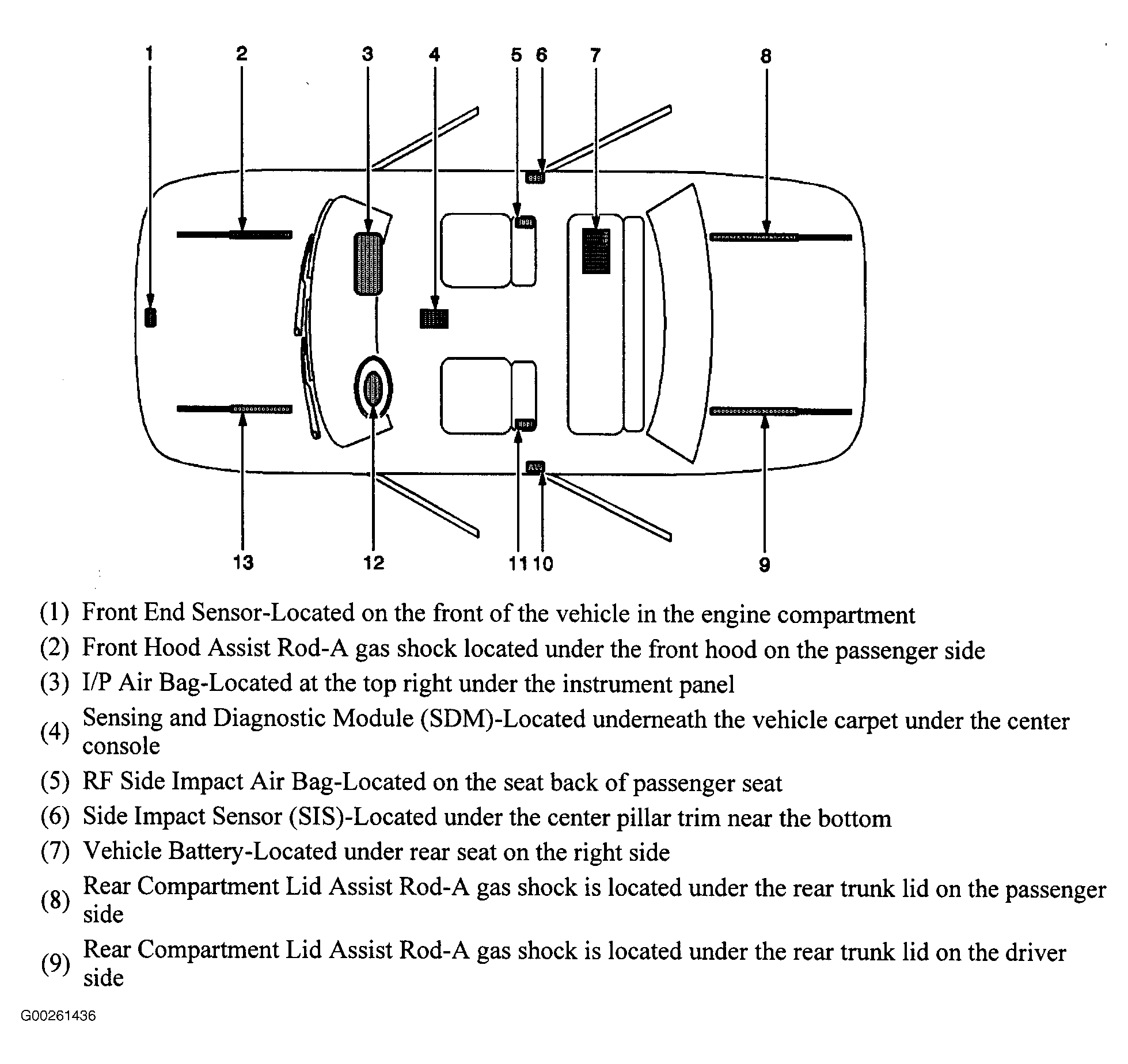

Fig 45: SIR Components (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 46: SIR Components (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 47: SIR Component Views (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 48: SIR Component Views (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 49: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 50: Cellular Communication Component Views
Courtesy of GENERAL MOTORS CORP.
Fig 51: Entertainment Sub-System
Courtesy of GENERAL MOTORS CORP.
Fig 52: Left Side Of Luggage Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 53: Below Rear Shelf
Courtesy of GENERAL MOTORS CORP.

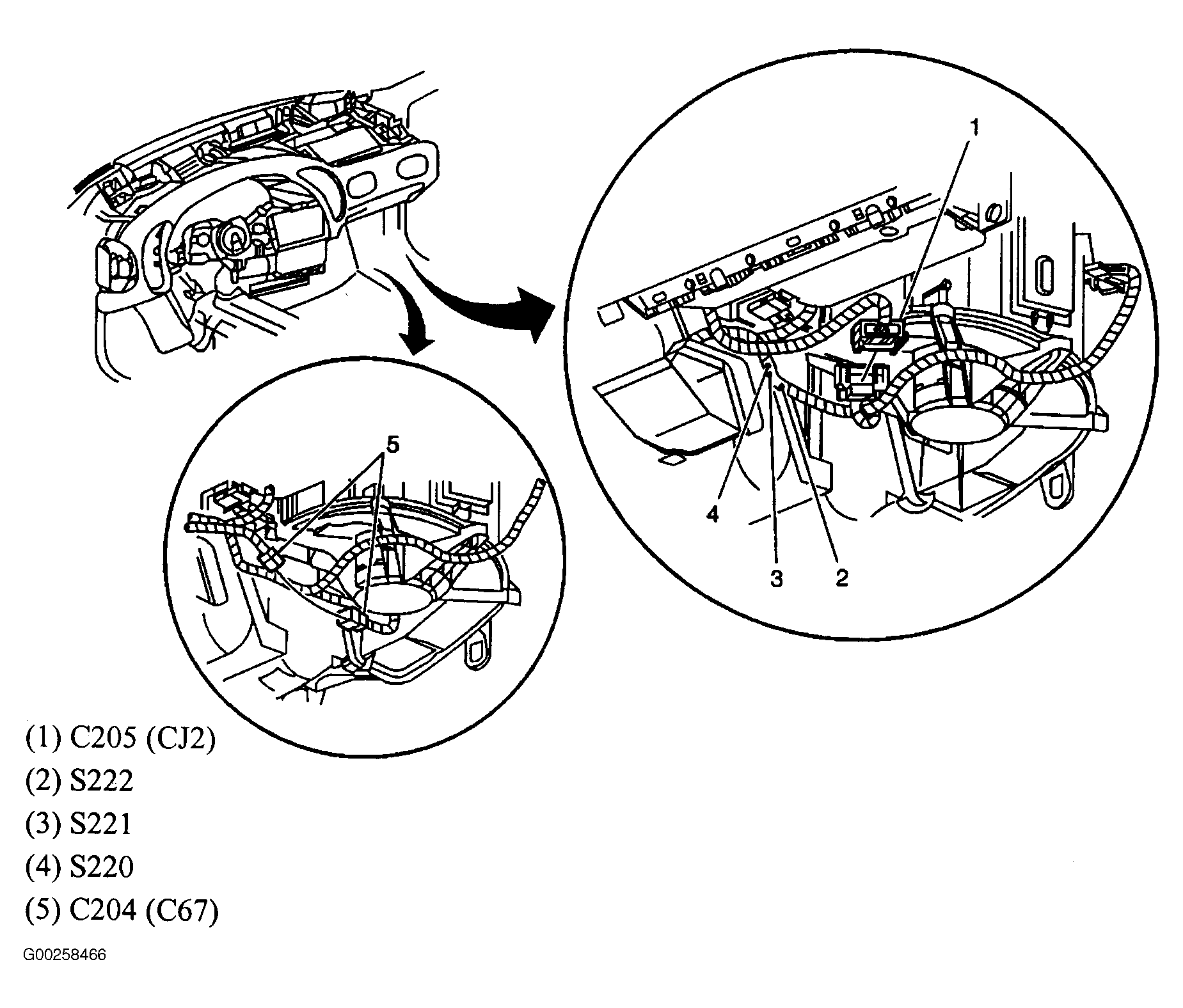

Fig 54: Center Of Dash
Courtesy of GENERAL MOTORS CORP.

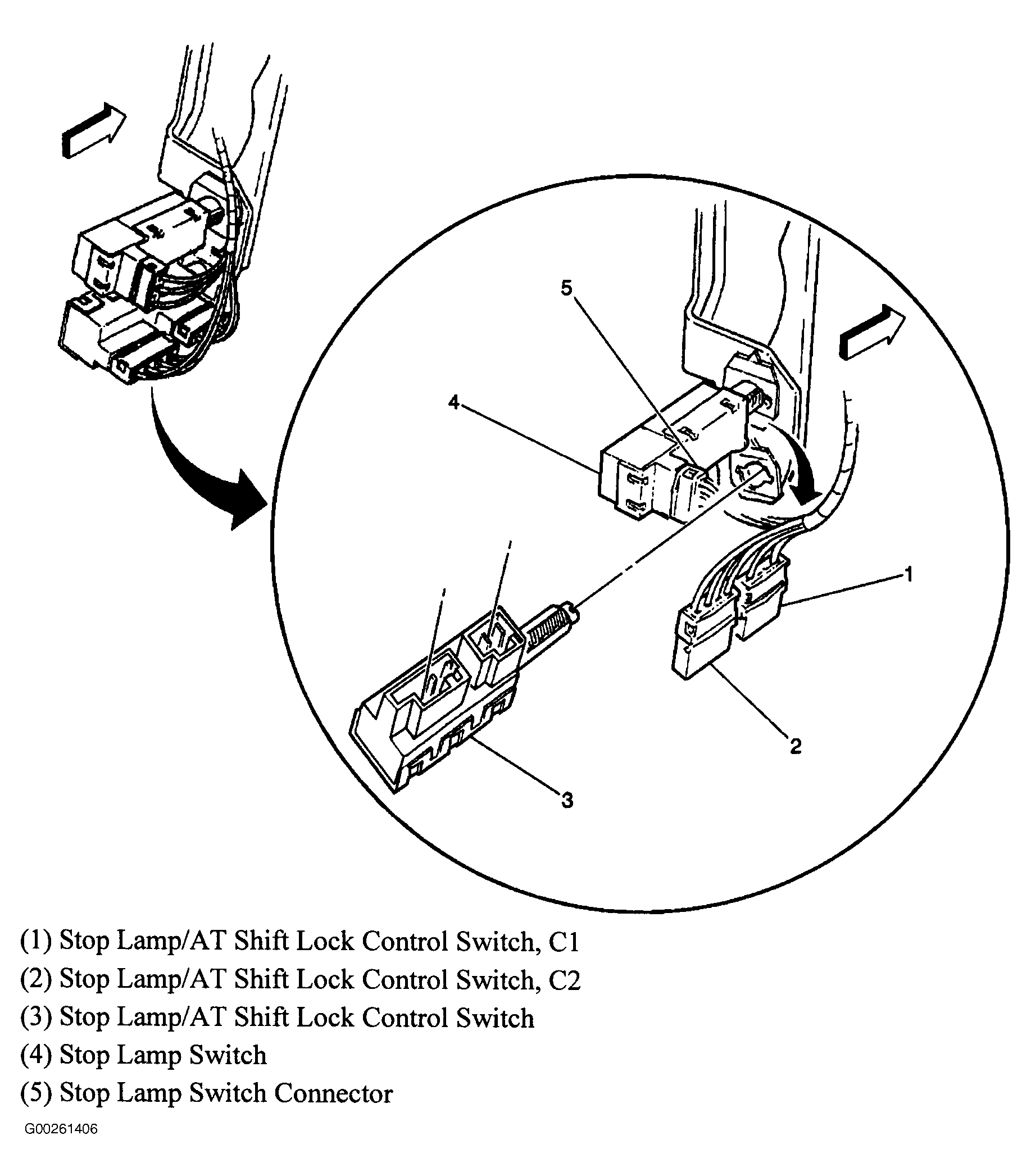

Fig 55: Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 56: Left "C" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 57: Body Control System Components
Courtesy of GENERAL MOTORS CORP.

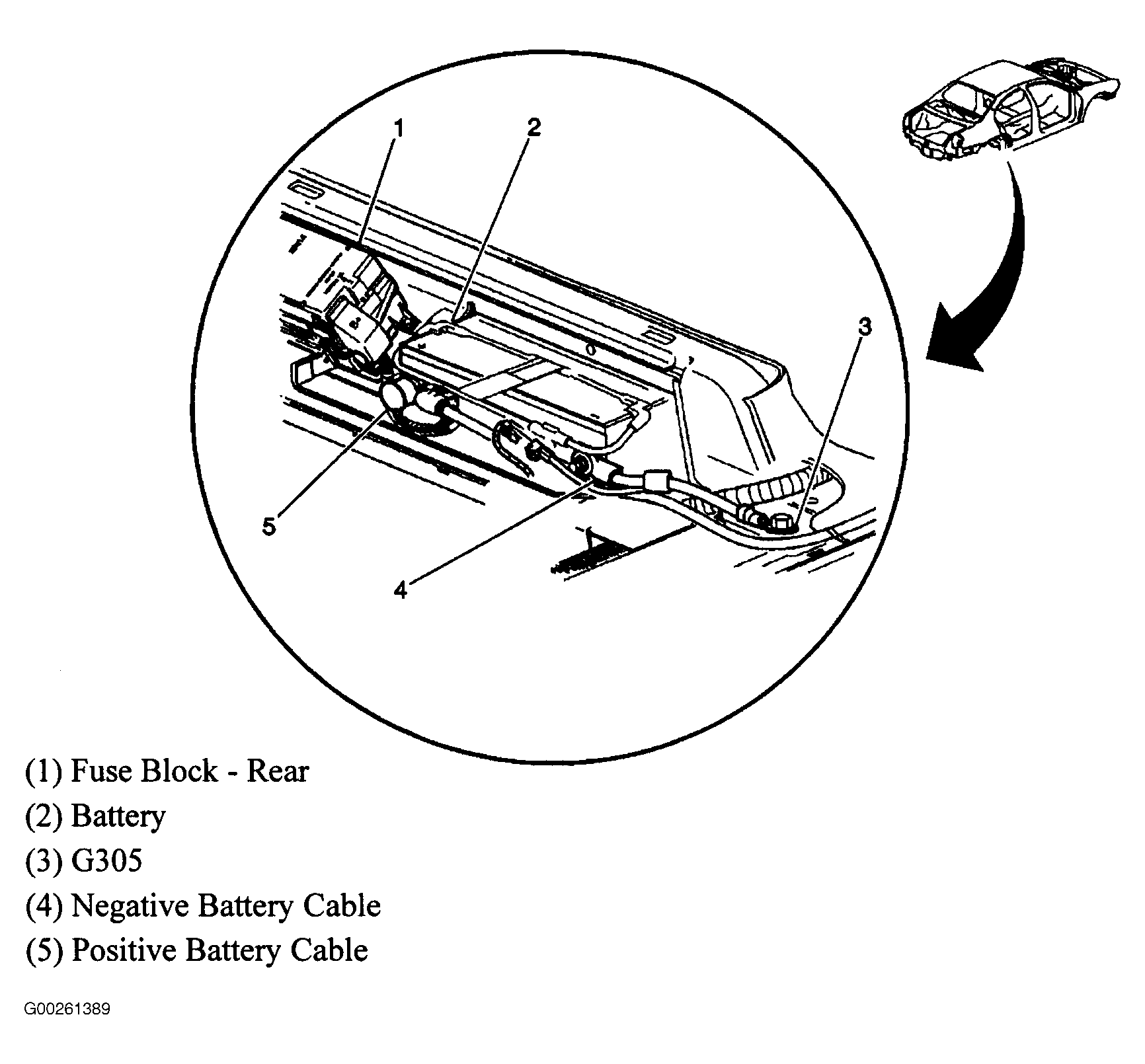

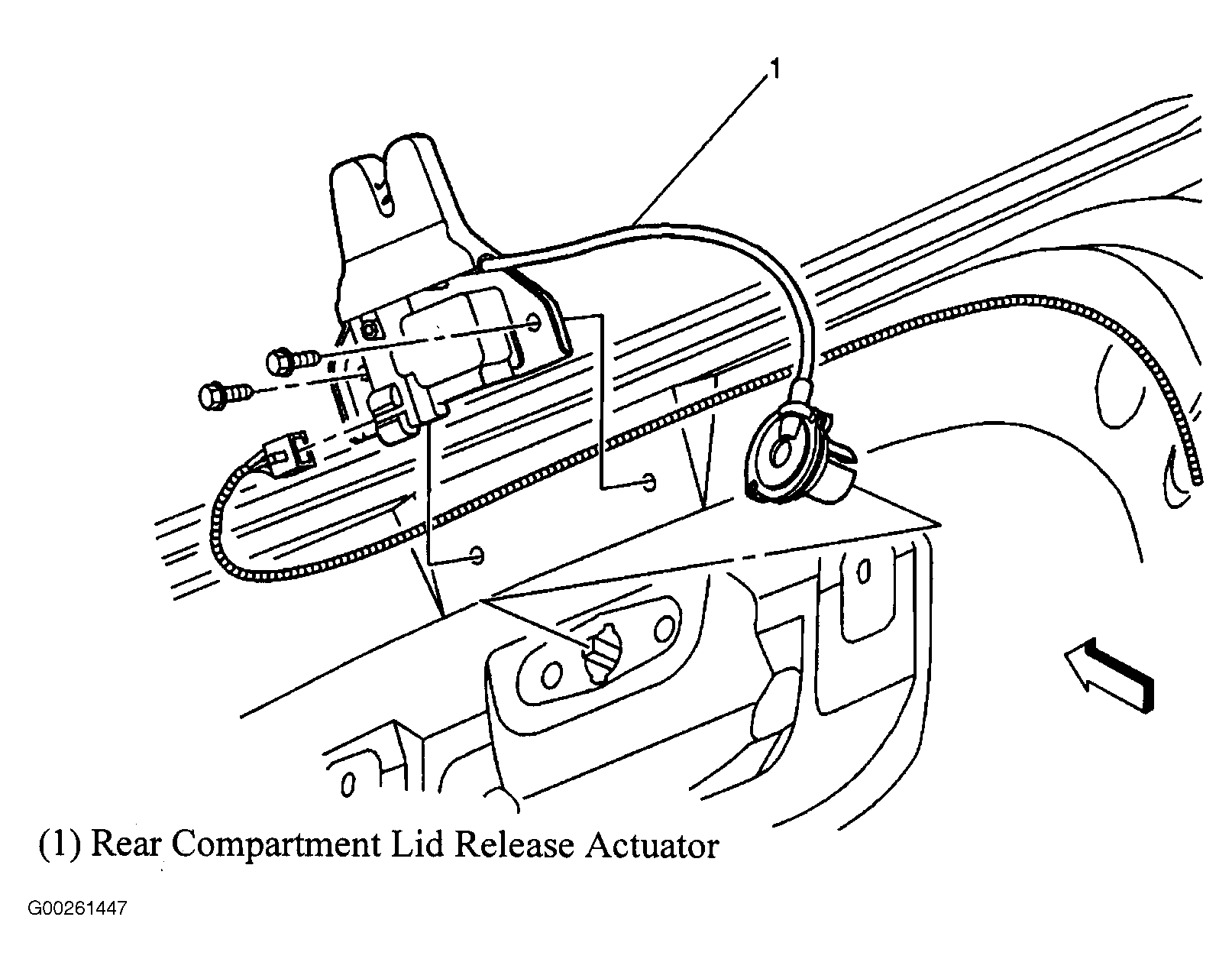

Fig 58: Luggage Compartment
Courtesy of GENERAL MOTORS CORP.

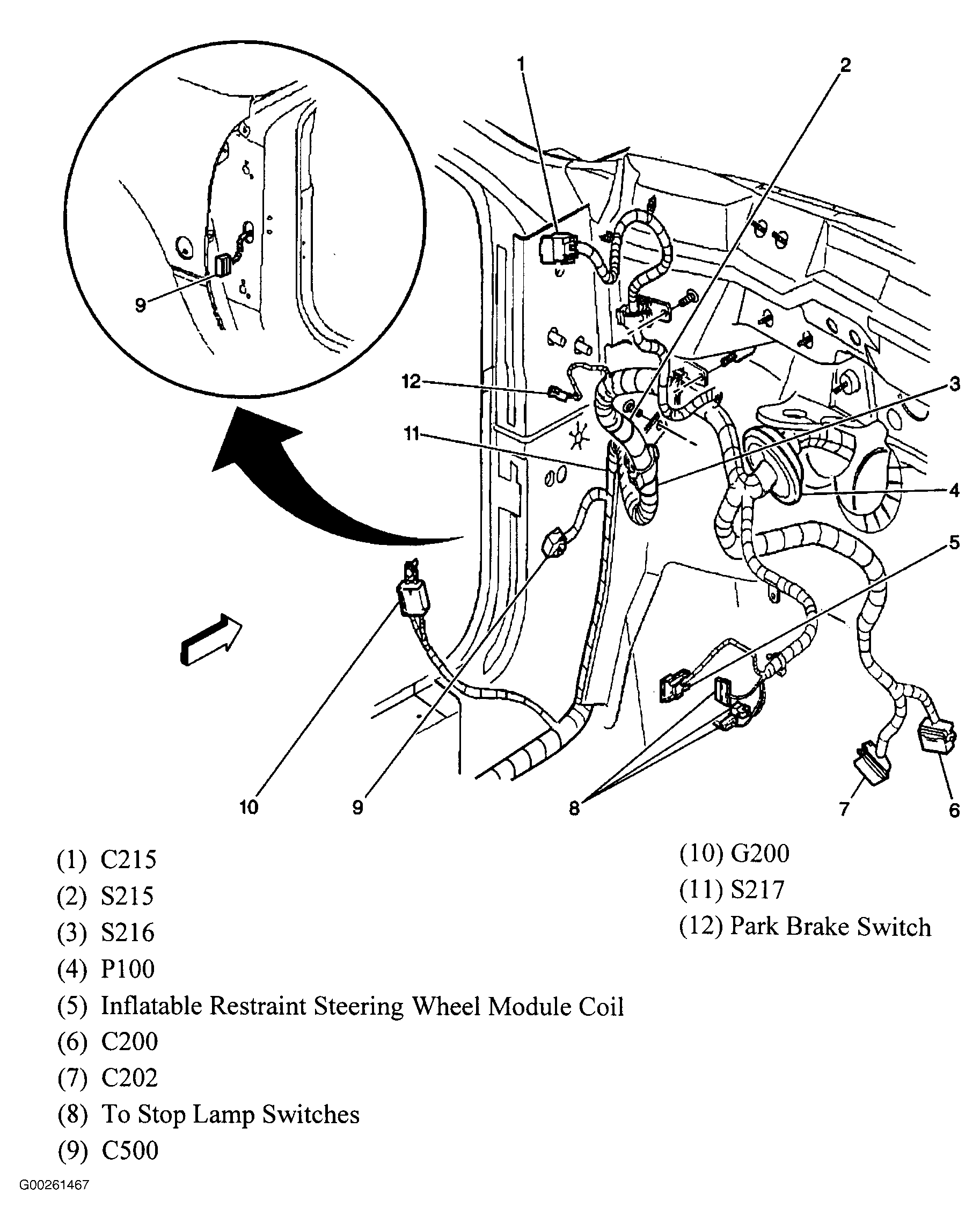

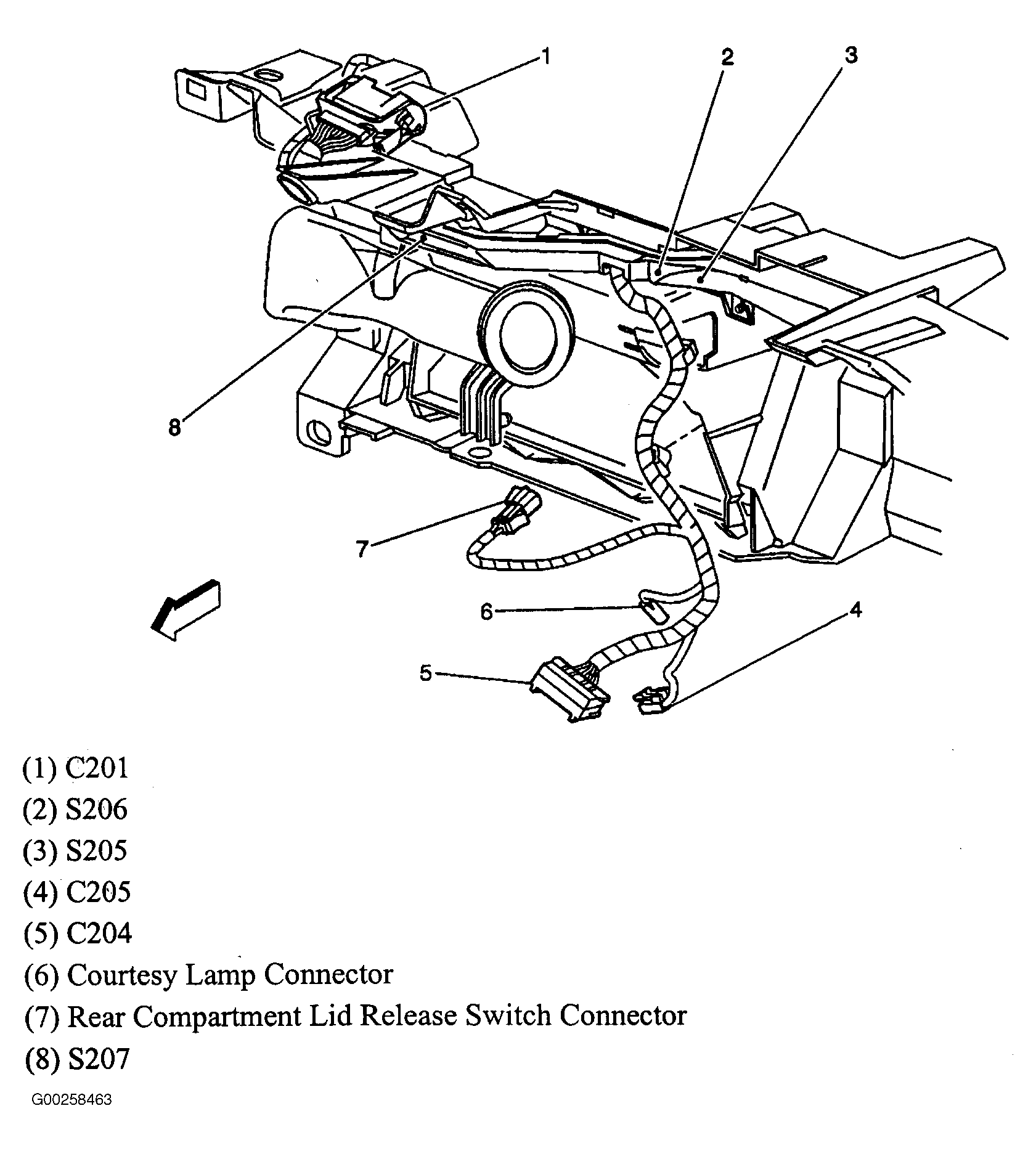

Fig 59: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

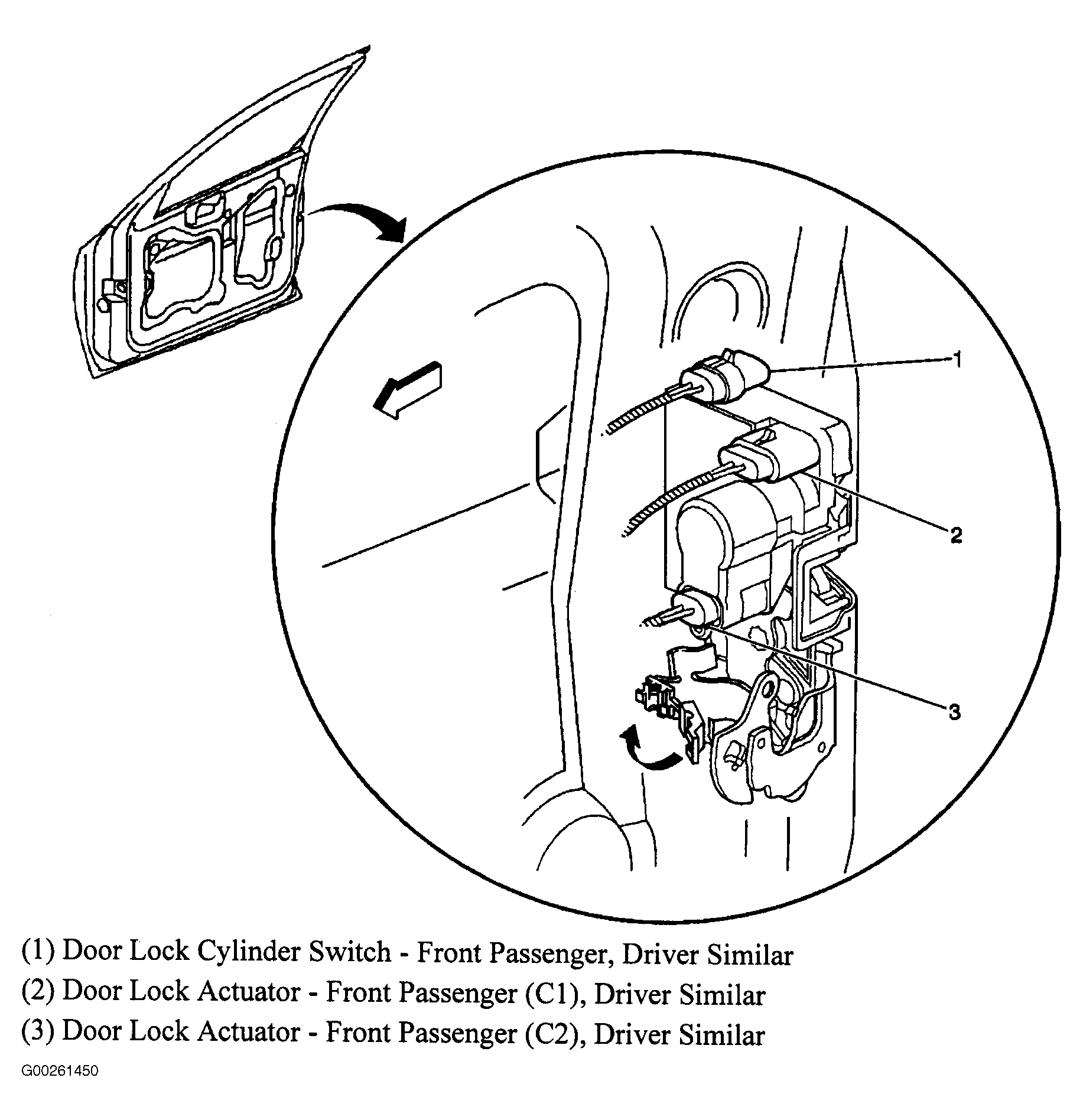

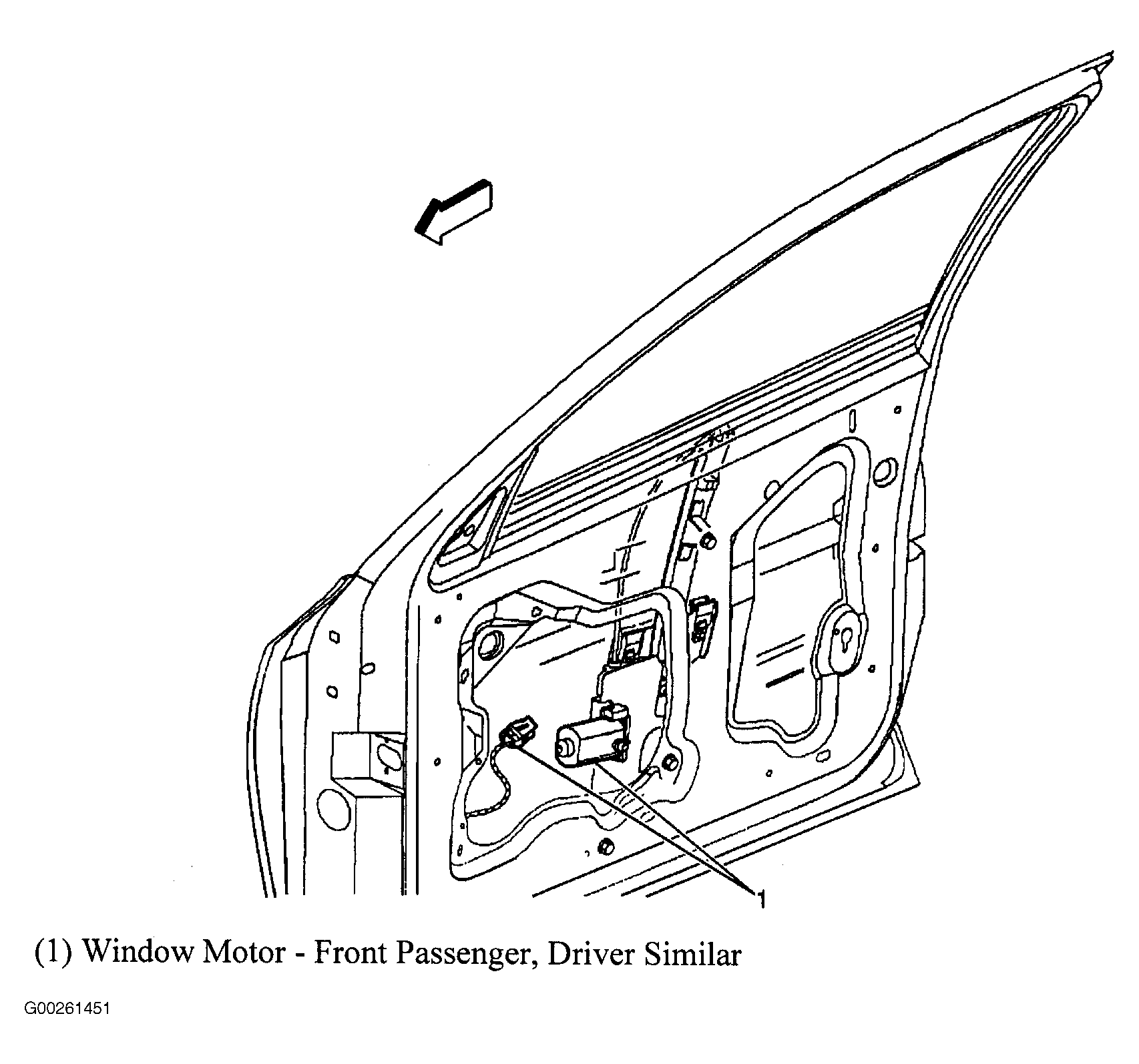

Fig 60: Right Front Door
Courtesy of GENERAL MOTORS CORP.
Fig 61: Right Front Door
Courtesy of GENERAL MOTORS CORP.
Fig 62: Right Front Door
Courtesy of GENERAL MOTORS CORP.

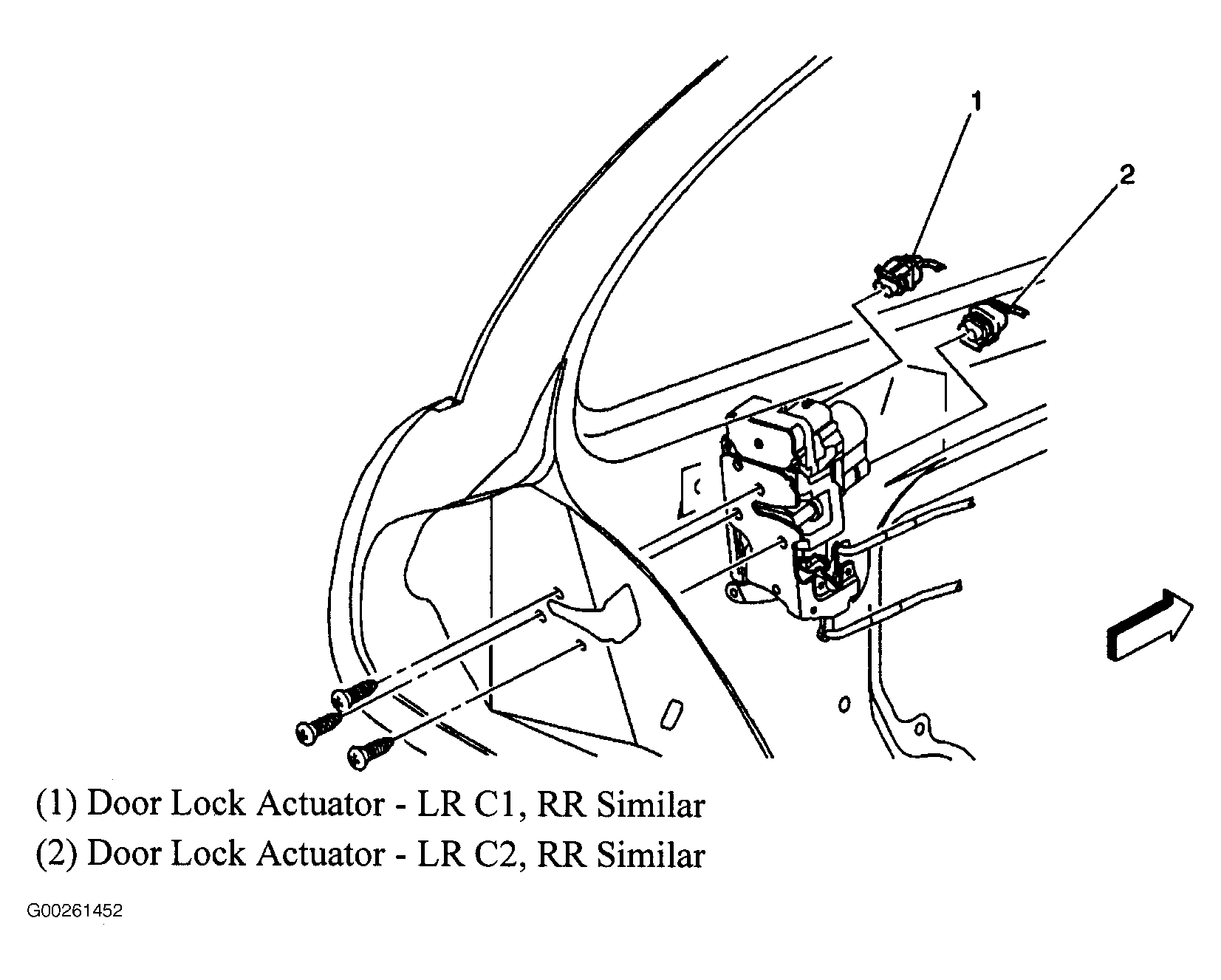

Fig 63: Left Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 64: Left Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 65: Right Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 66: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

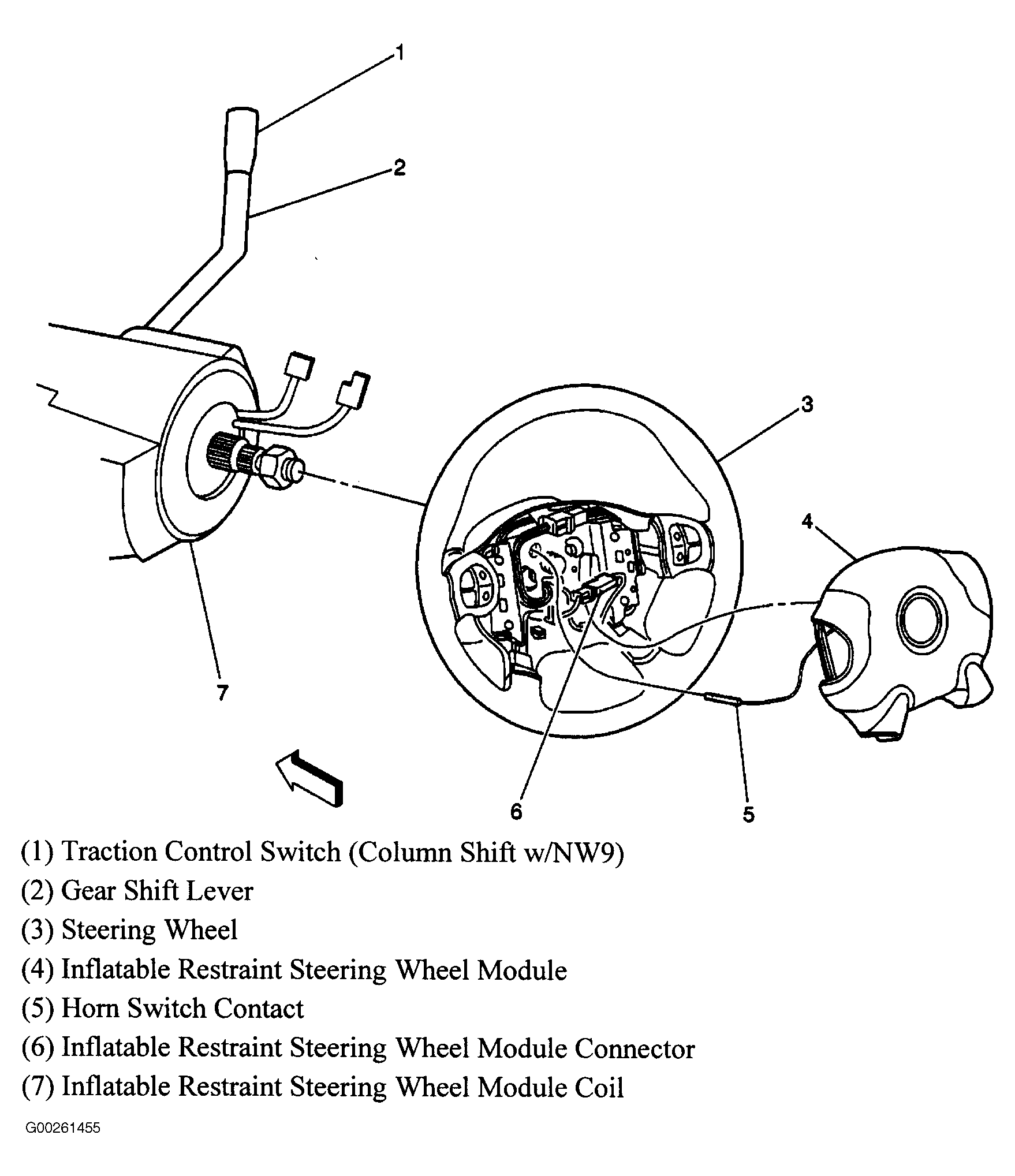

Fig 67: Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 68: Underside Of Rear Package Shelf
Courtesy of GENERAL MOTORS CORP.
Fig 69: Vehicle Roof
Courtesy of GENERAL MOTORS CORP.
Fig 70: Left Front Seat Back
Courtesy of GENERAL MOTORS CORP.

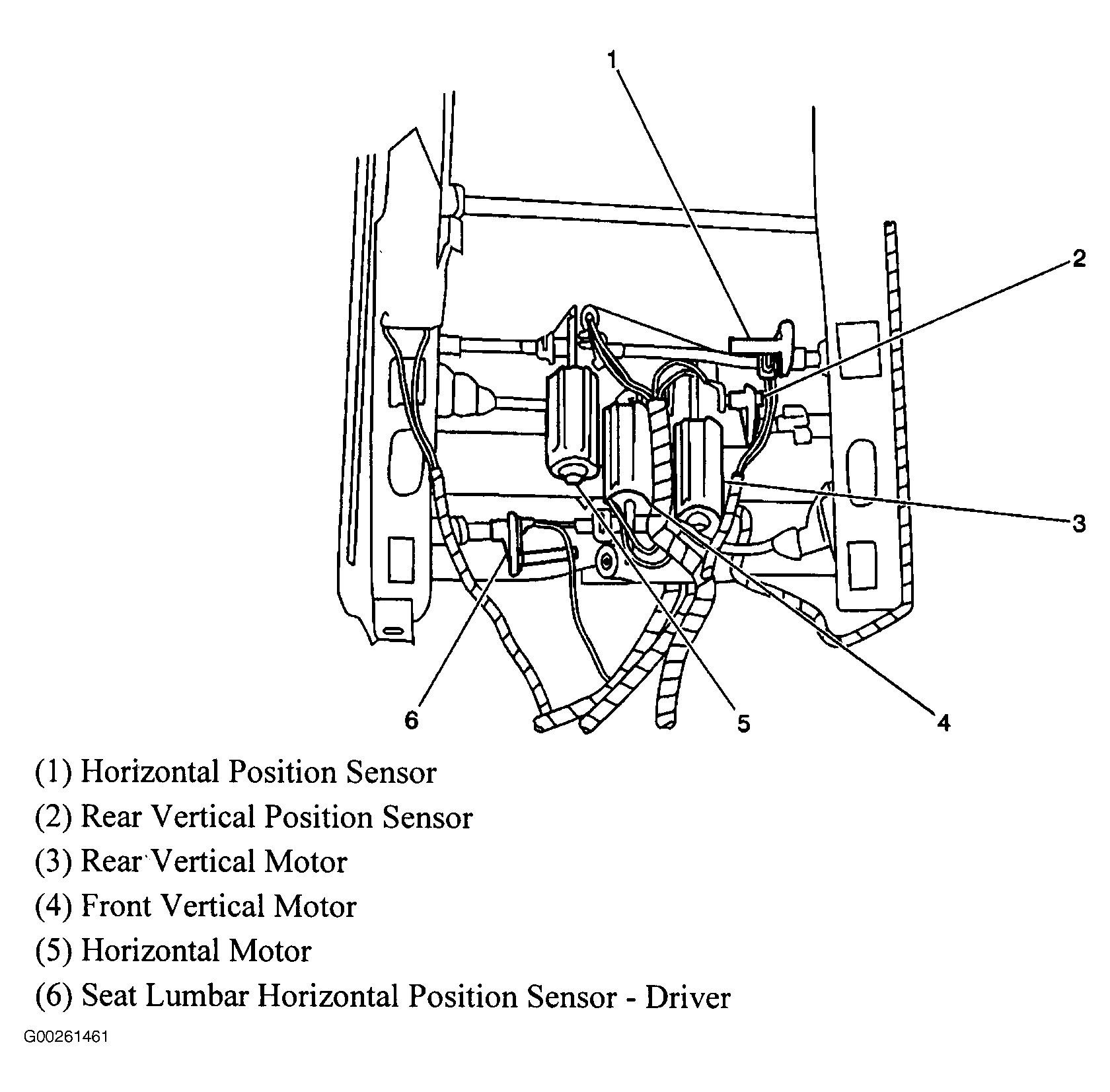

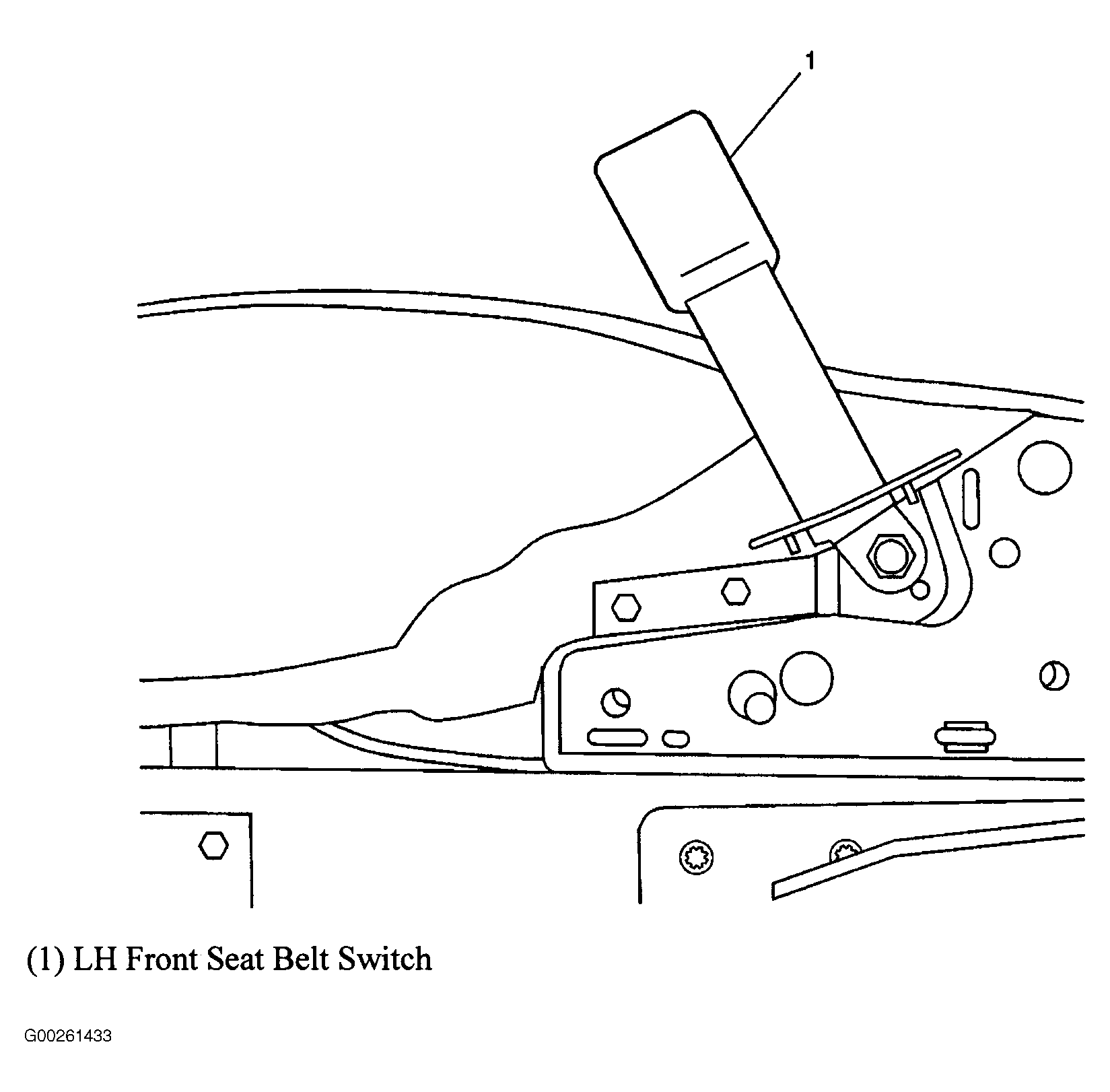

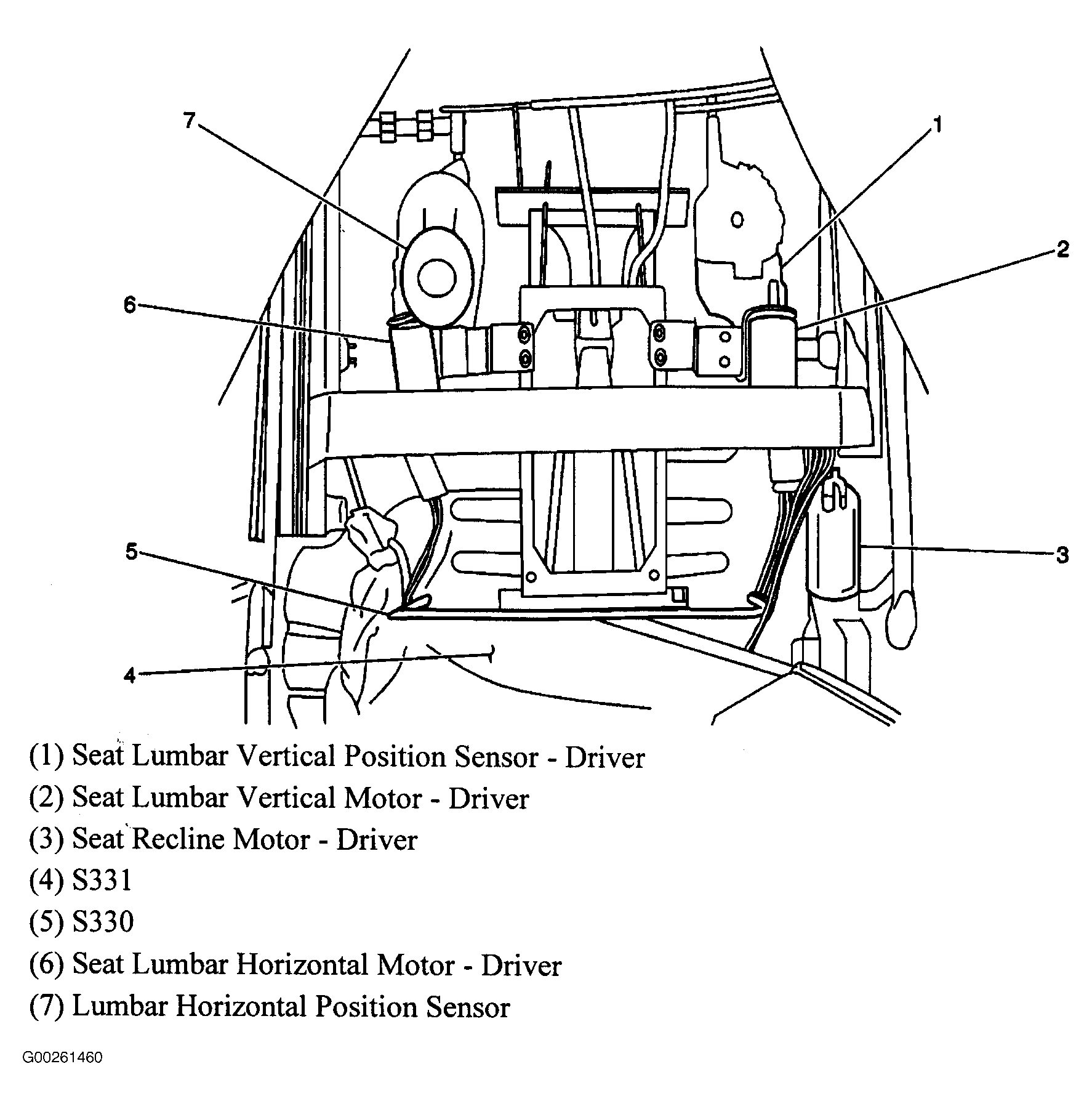

Fig 71: Left Front Seat
Courtesy of GENERAL MOTORS CORP.

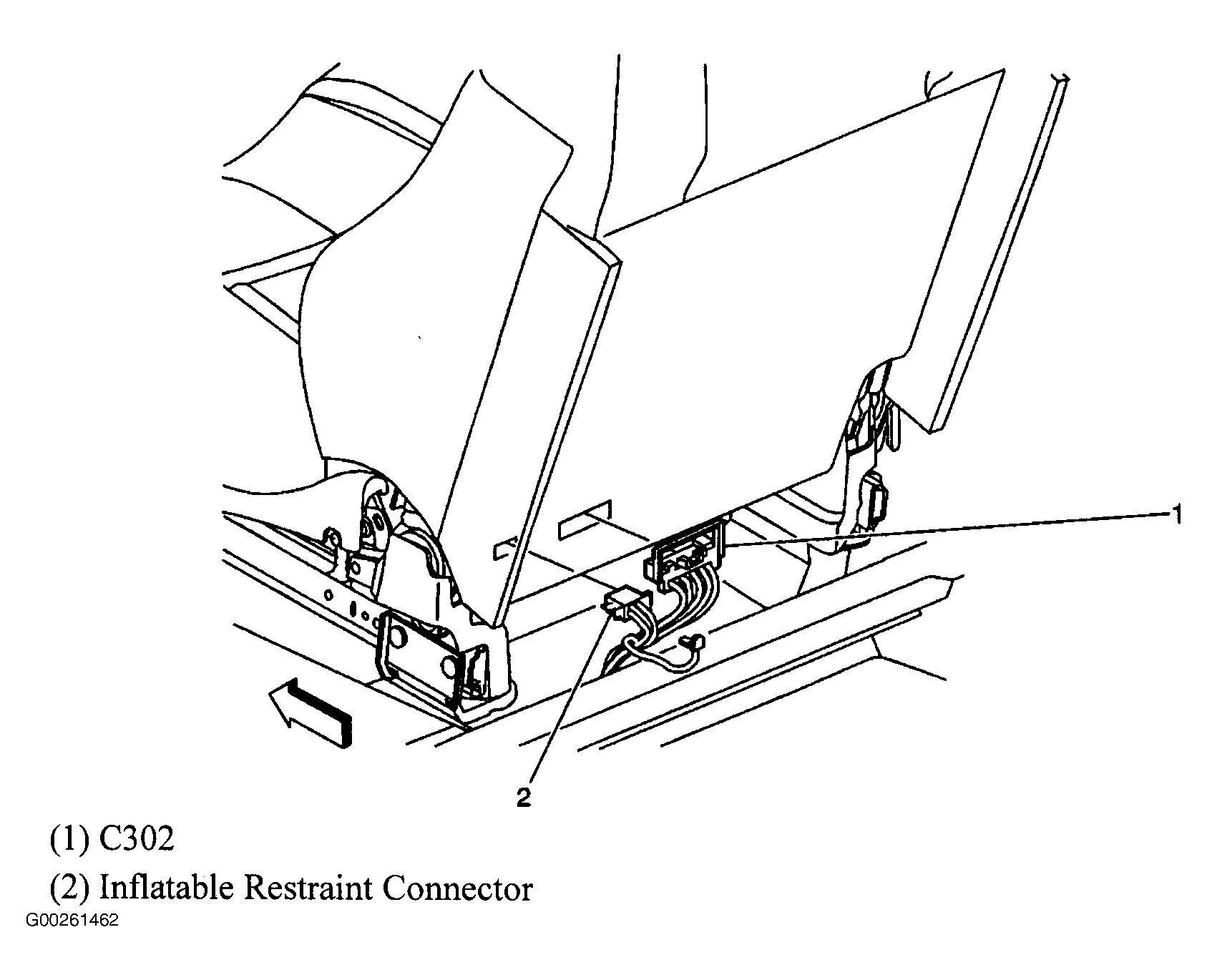

Fig 72: Left Seat
Courtesy of GENERAL MOTORS CORP.

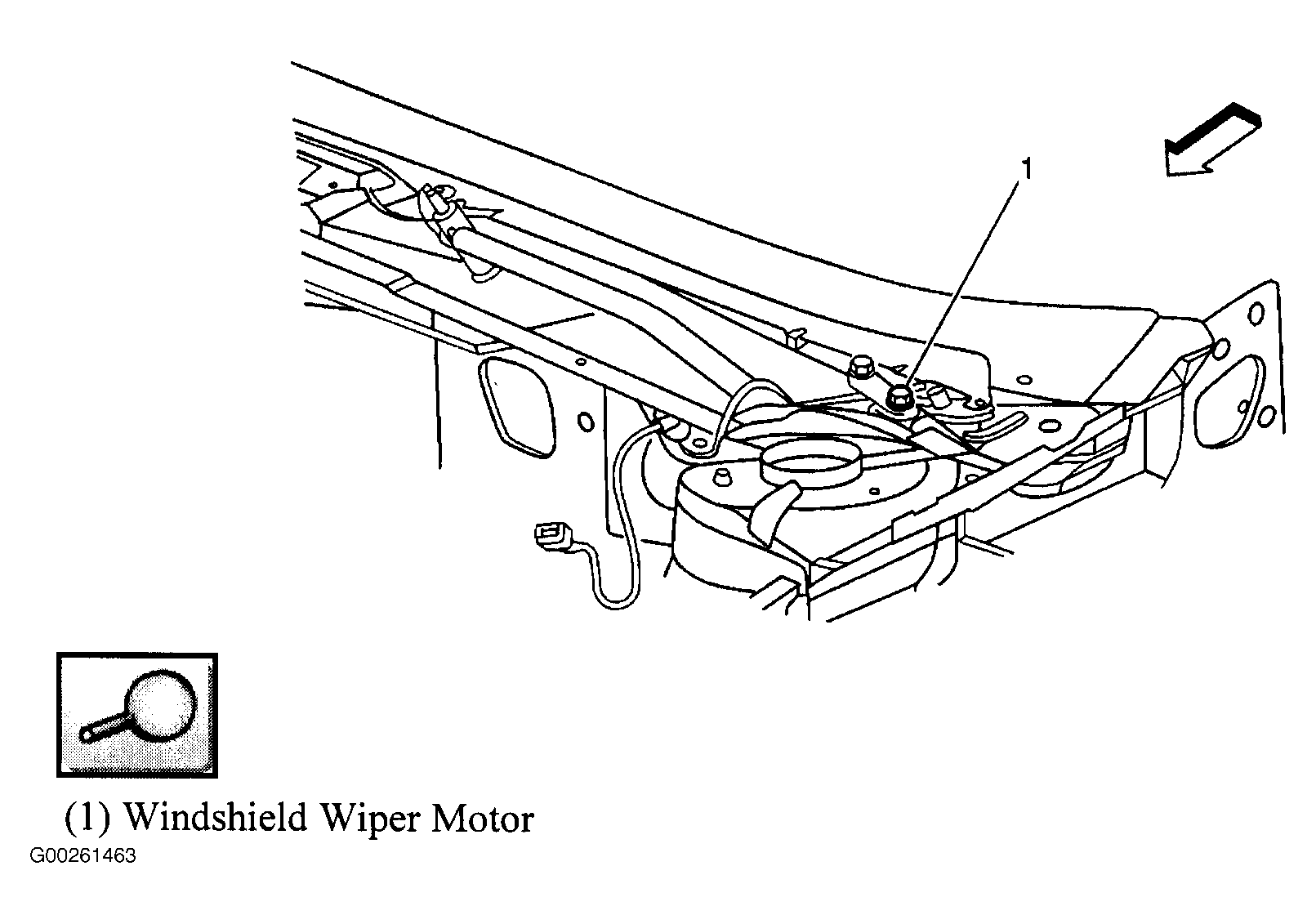

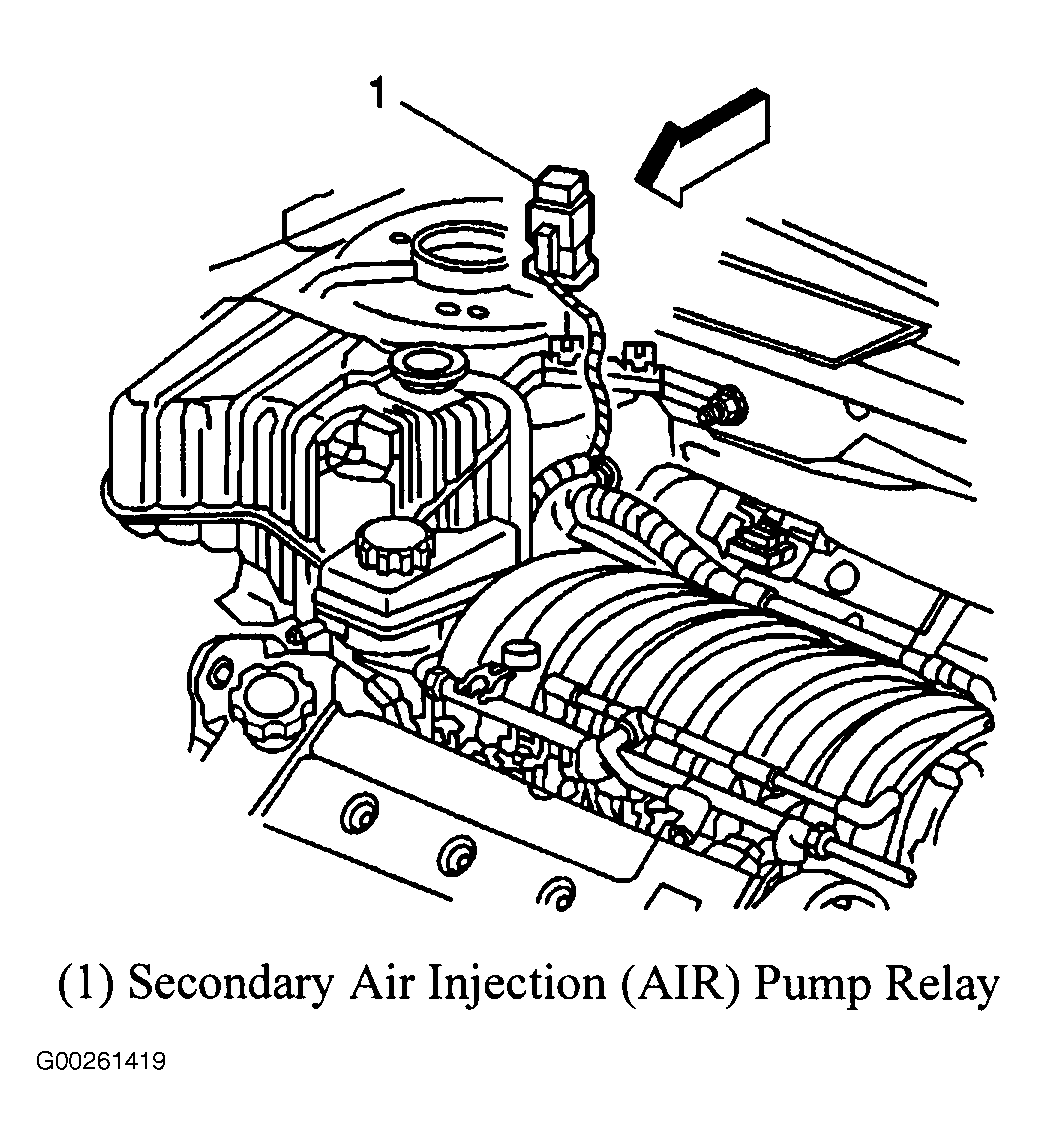

Fig 73: Left Rear Corner Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

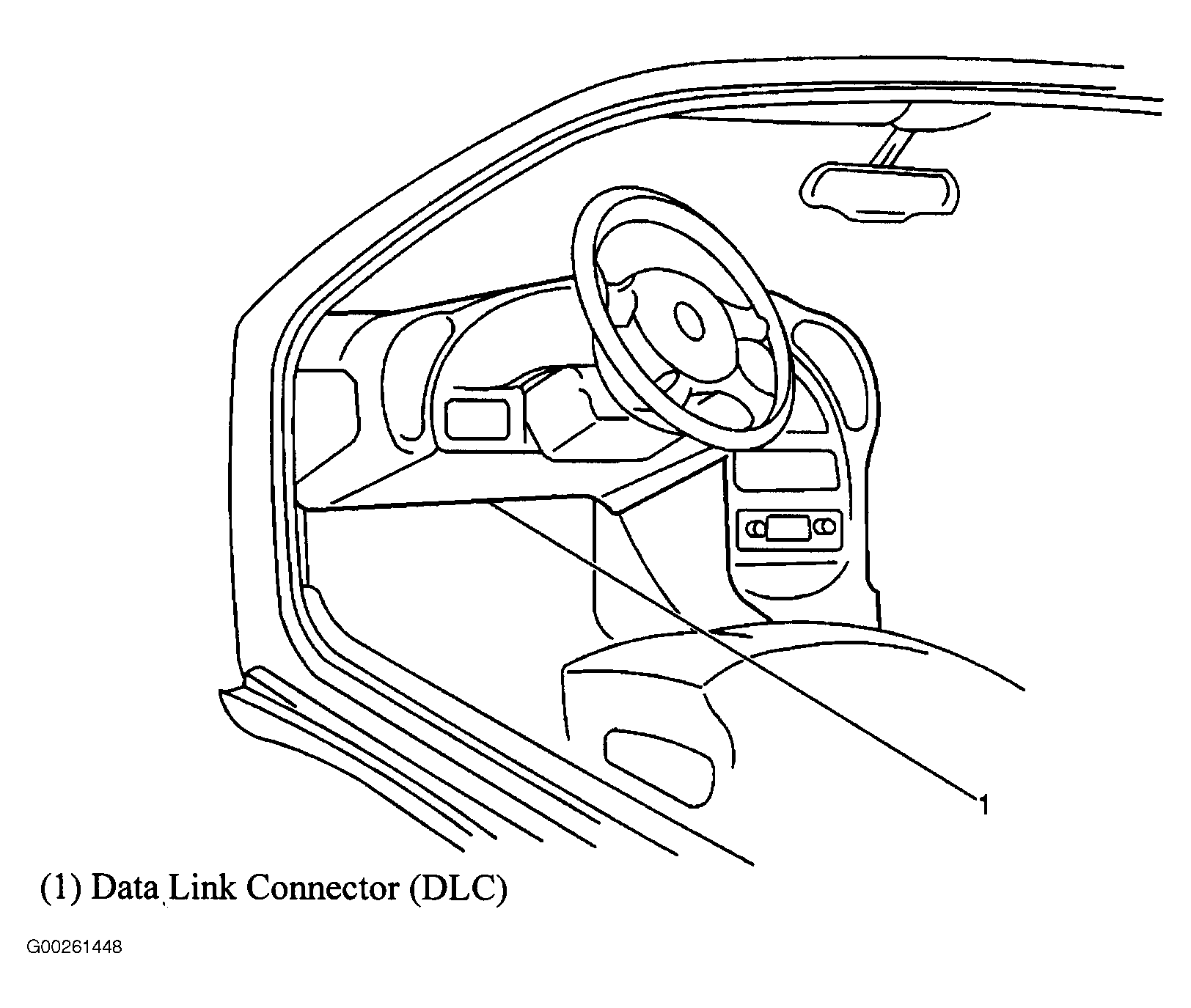

Fig 74: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

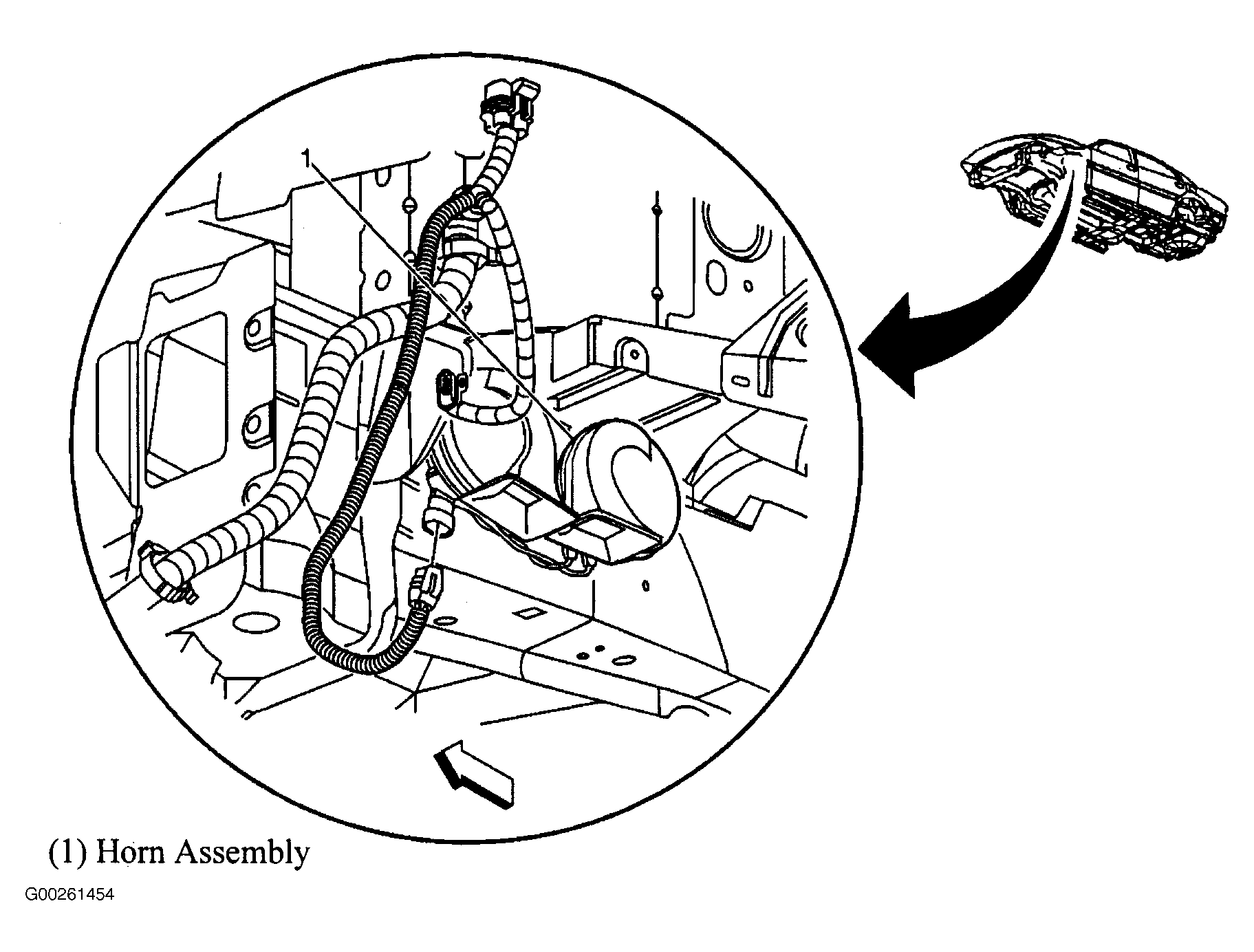

Fig 75: Lower Right Front Wheel Well
Courtesy of GENERAL MOTORS CORP.
Fig 76: Upper Side Of Engine (3.8L) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 77: Upper Side Of Engine (3.8L) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 78: Left Side Of Engine (3.8L) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 79: Left Side Of Engine (3.8L) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 80: Top Of Engine (4.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 81: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 82: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.

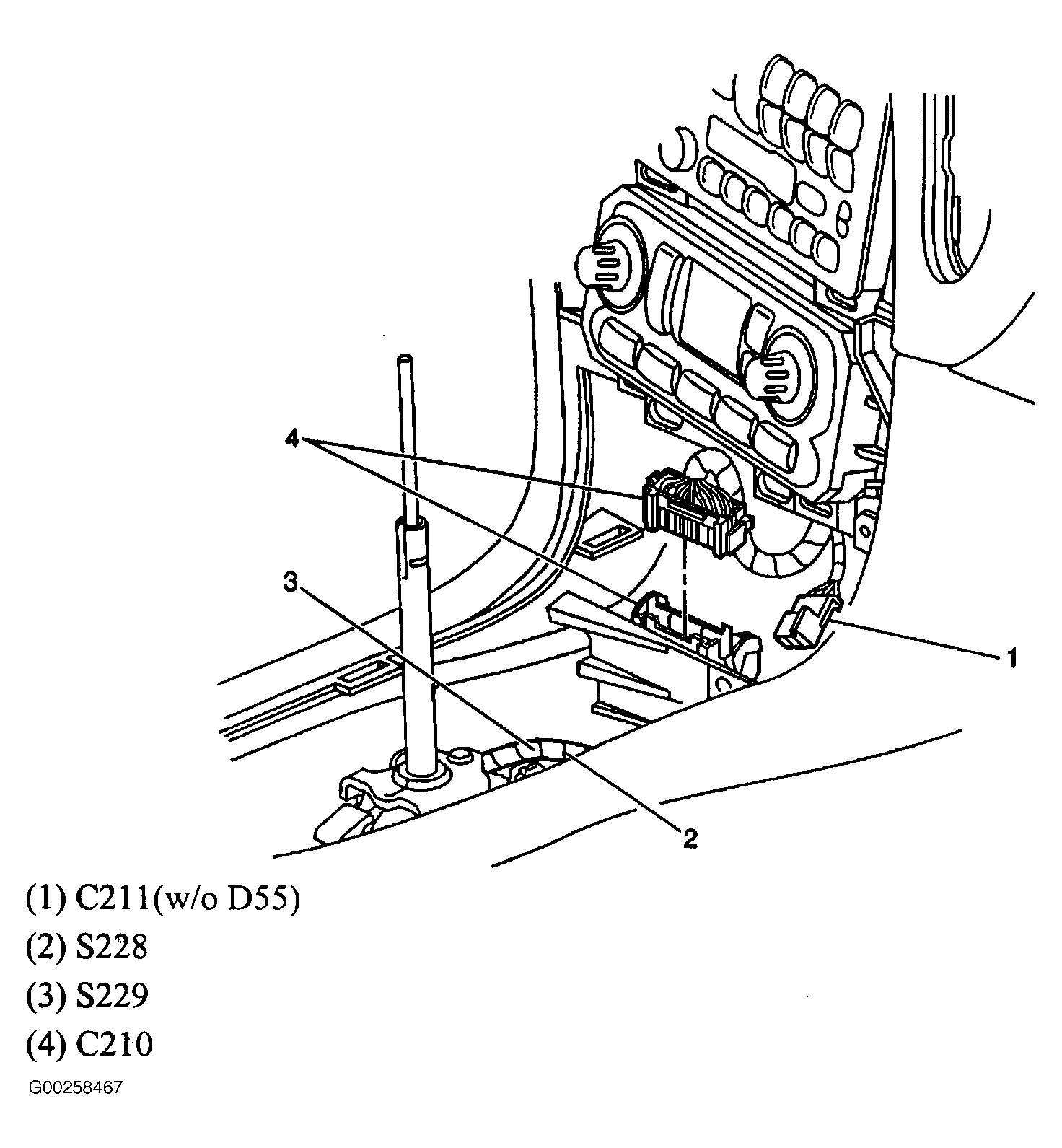

Fig 83: Center Console
Courtesy of GENERAL MOTORS CORP.

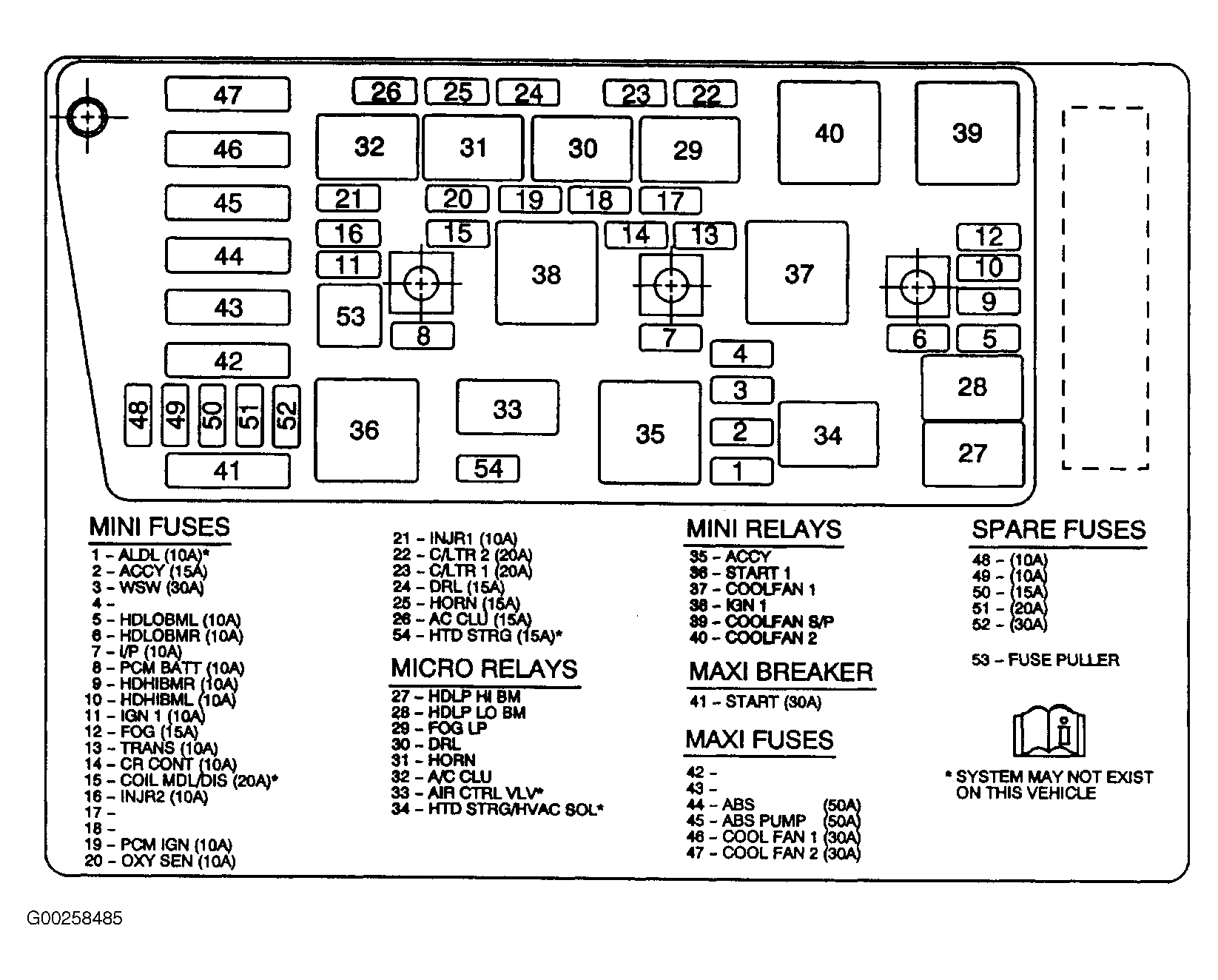

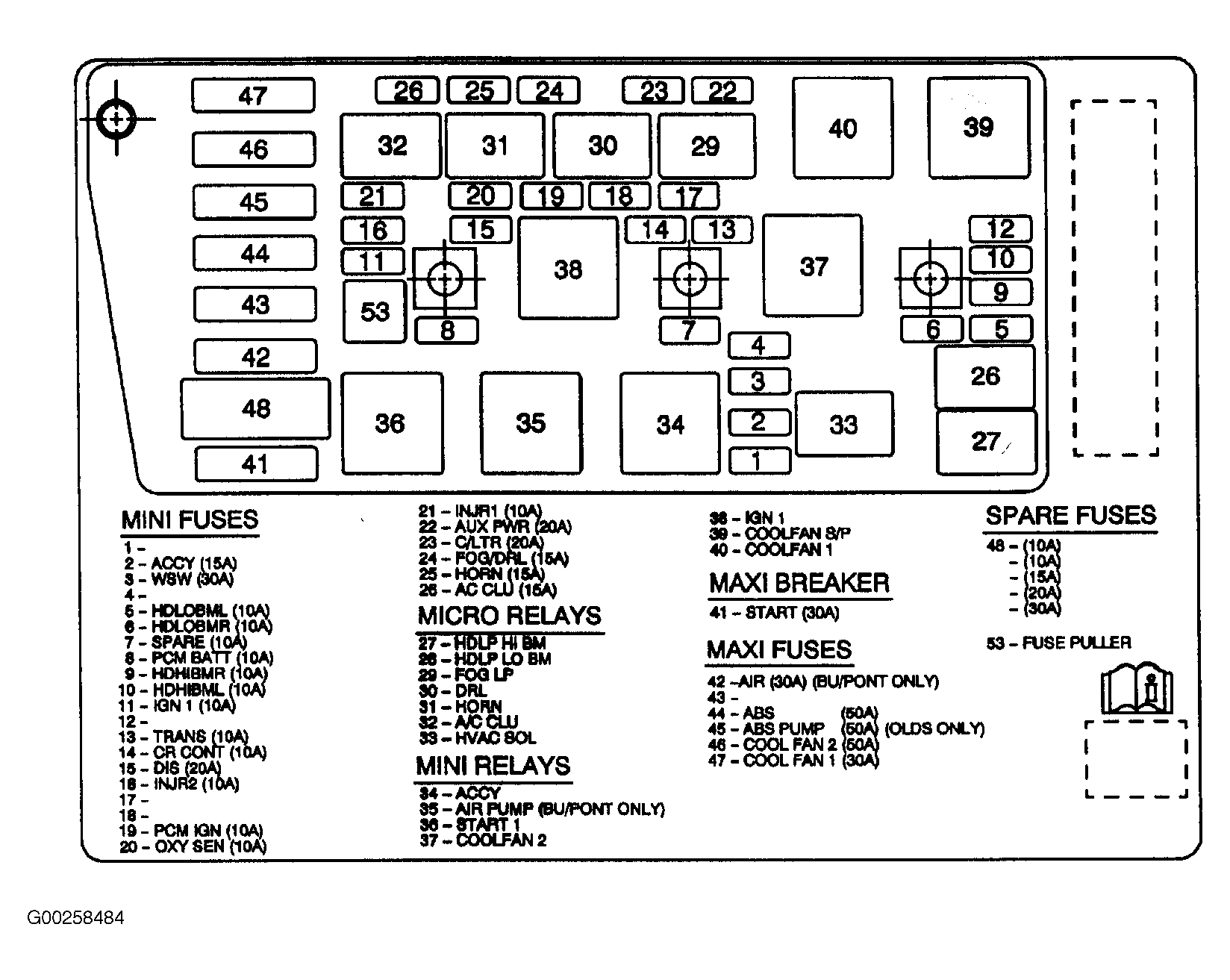

Fig 84: Underhood Fuse Block (3.8L)
Courtesy of GENERAL MOTORS CORP.
Fig 85: Underhood Fuse Block (4.6L)
Courtesy of GENERAL MOTORS CORP.

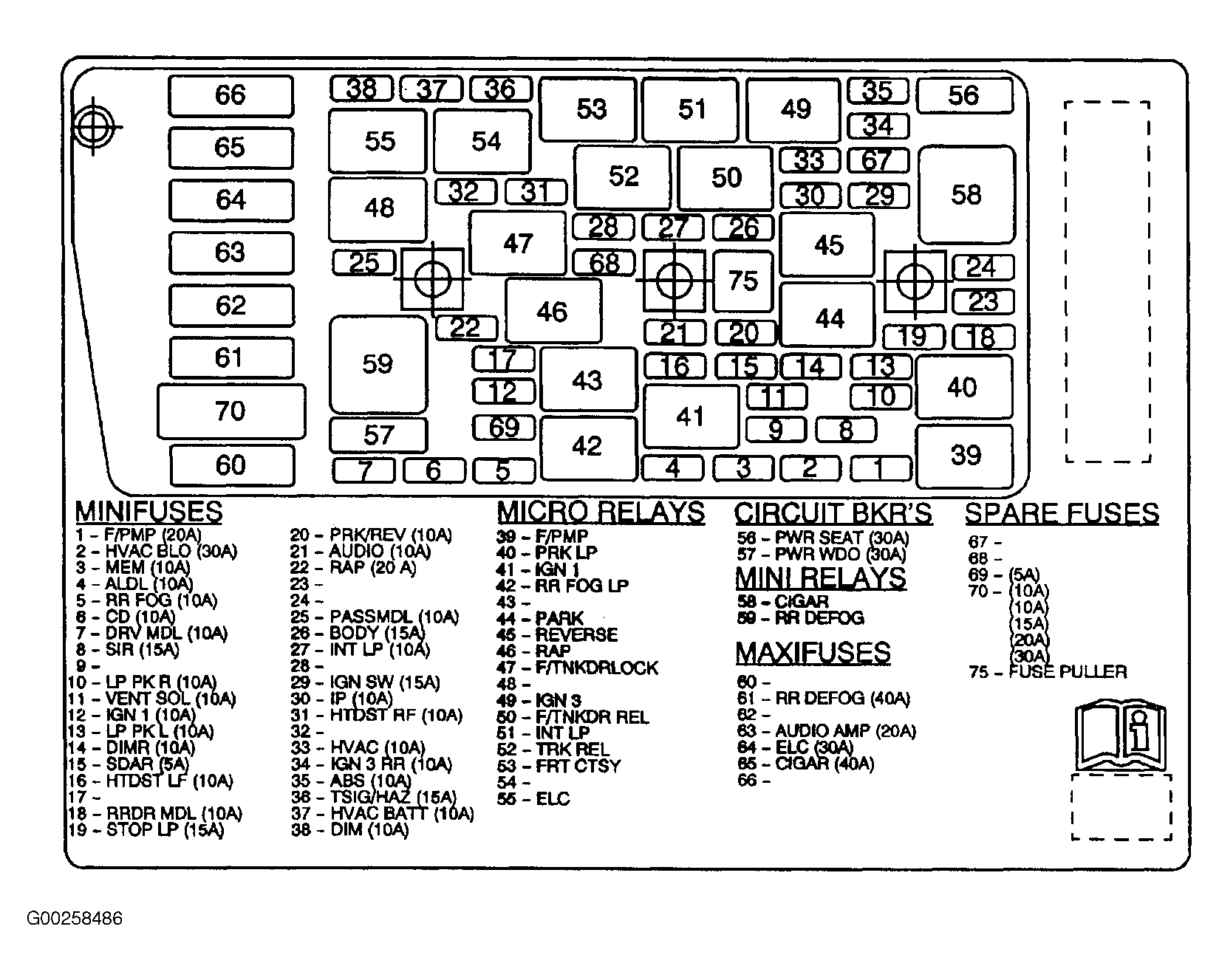

Fig 86: Rear Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 87: Vehicle Overview
Courtesy of GENERAL MOTORS CORP.
