Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| A/T Shift Lock Control Solenoid | On floor shifter assembly. |

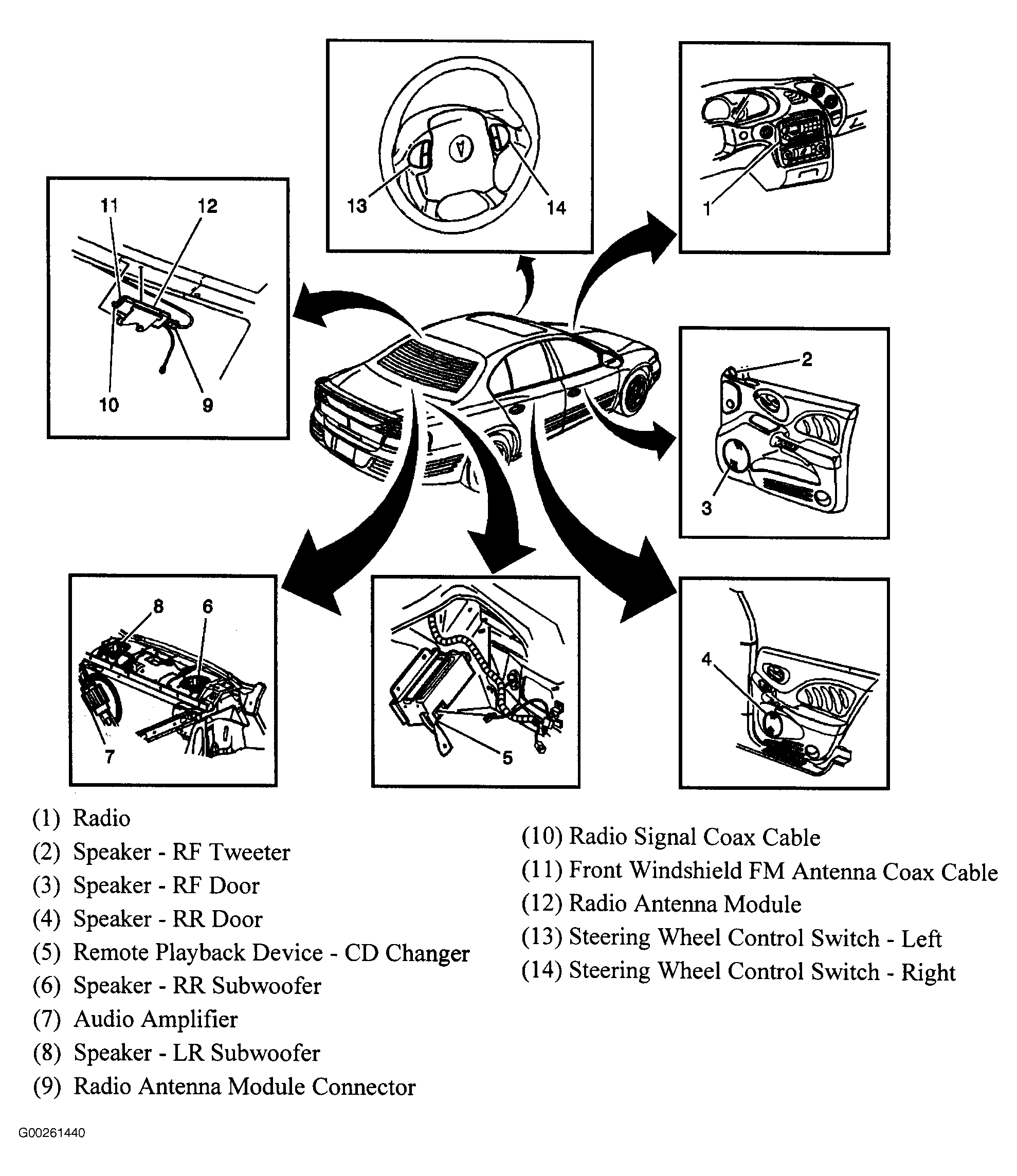

| Audio Amplifier | Under right side of rear package shelf. See Figure . |

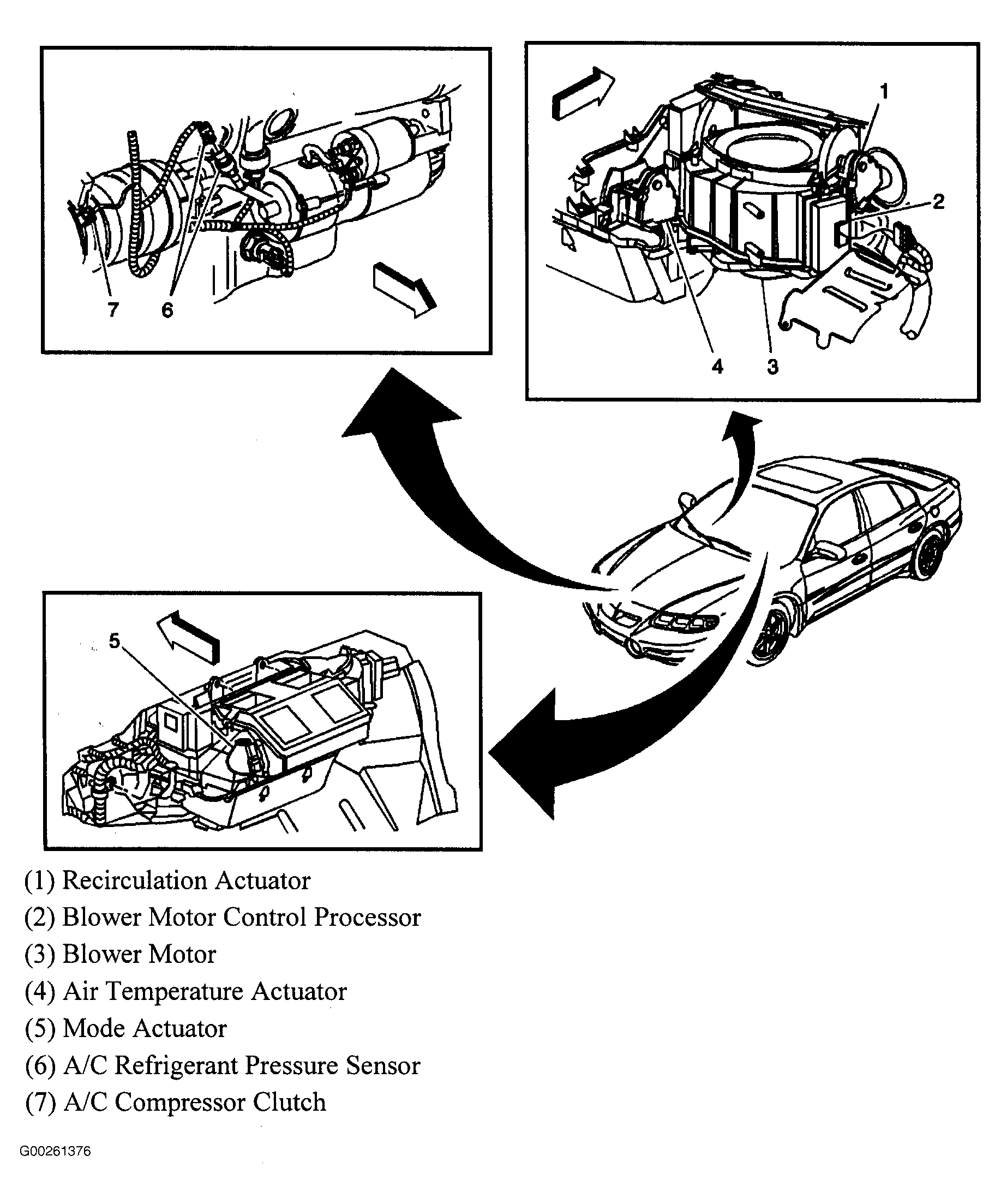

| Blower Motor Control Processor | Mounted on right front of blower motor. See Figure . |

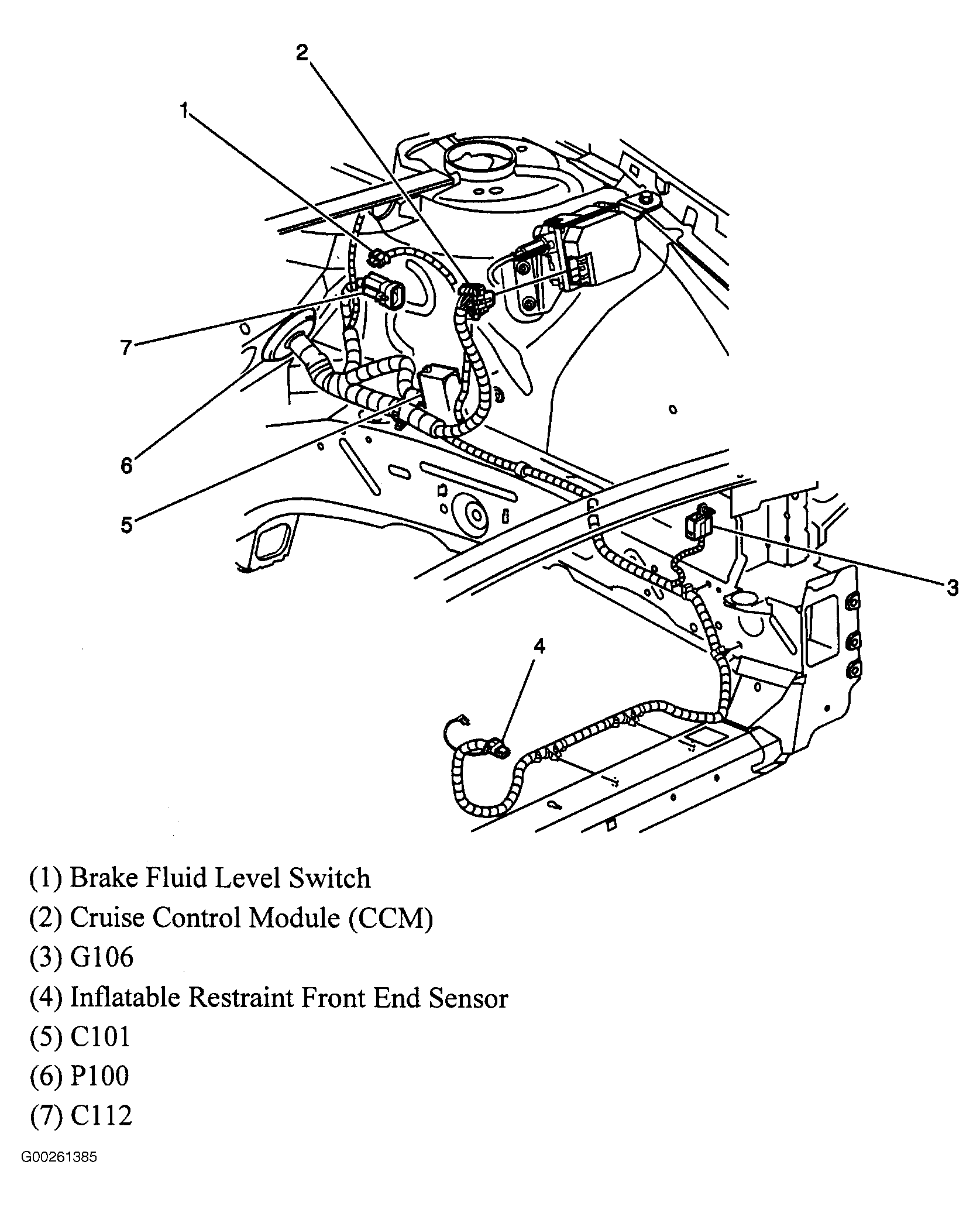

| Cruise Control Module (CCM) | On left side of engine compartment, on strut tower. See Figure . |

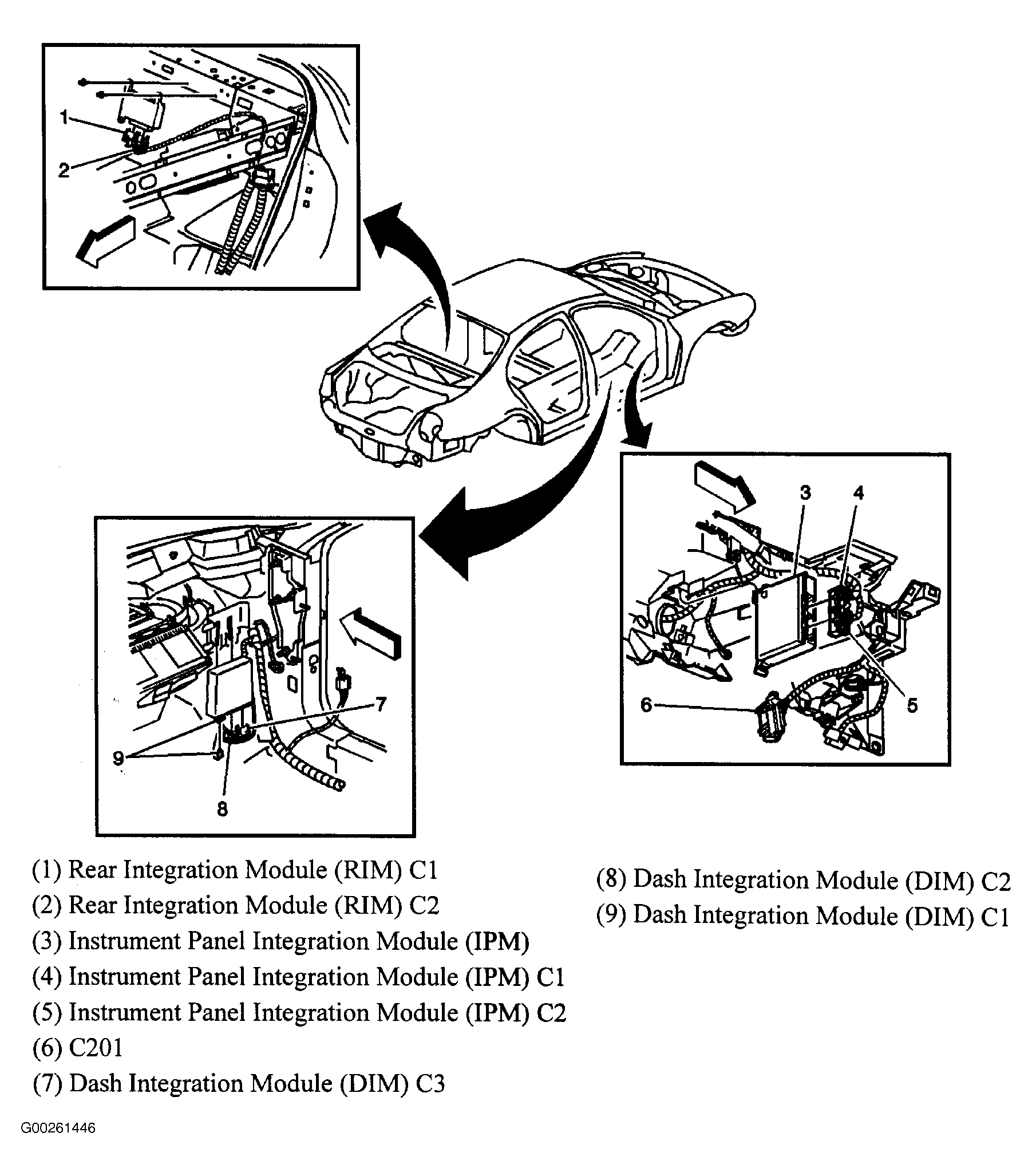

| Dash Integration Module (DIM) | Behind right side of dash, under sound insulator. See Figure . |

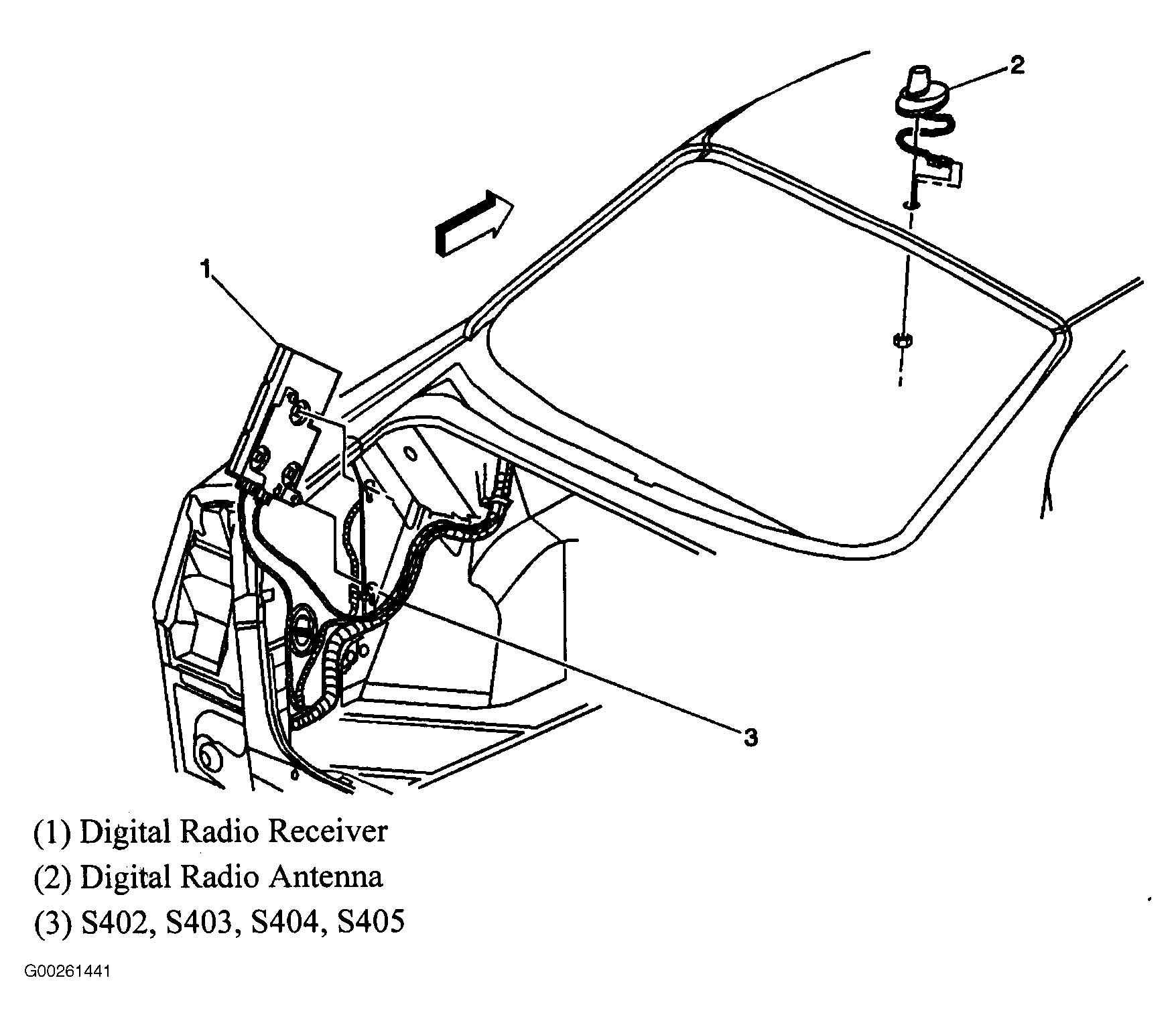

| Digital Radio Antenna | Rear of vehicle roof. See Figure . |

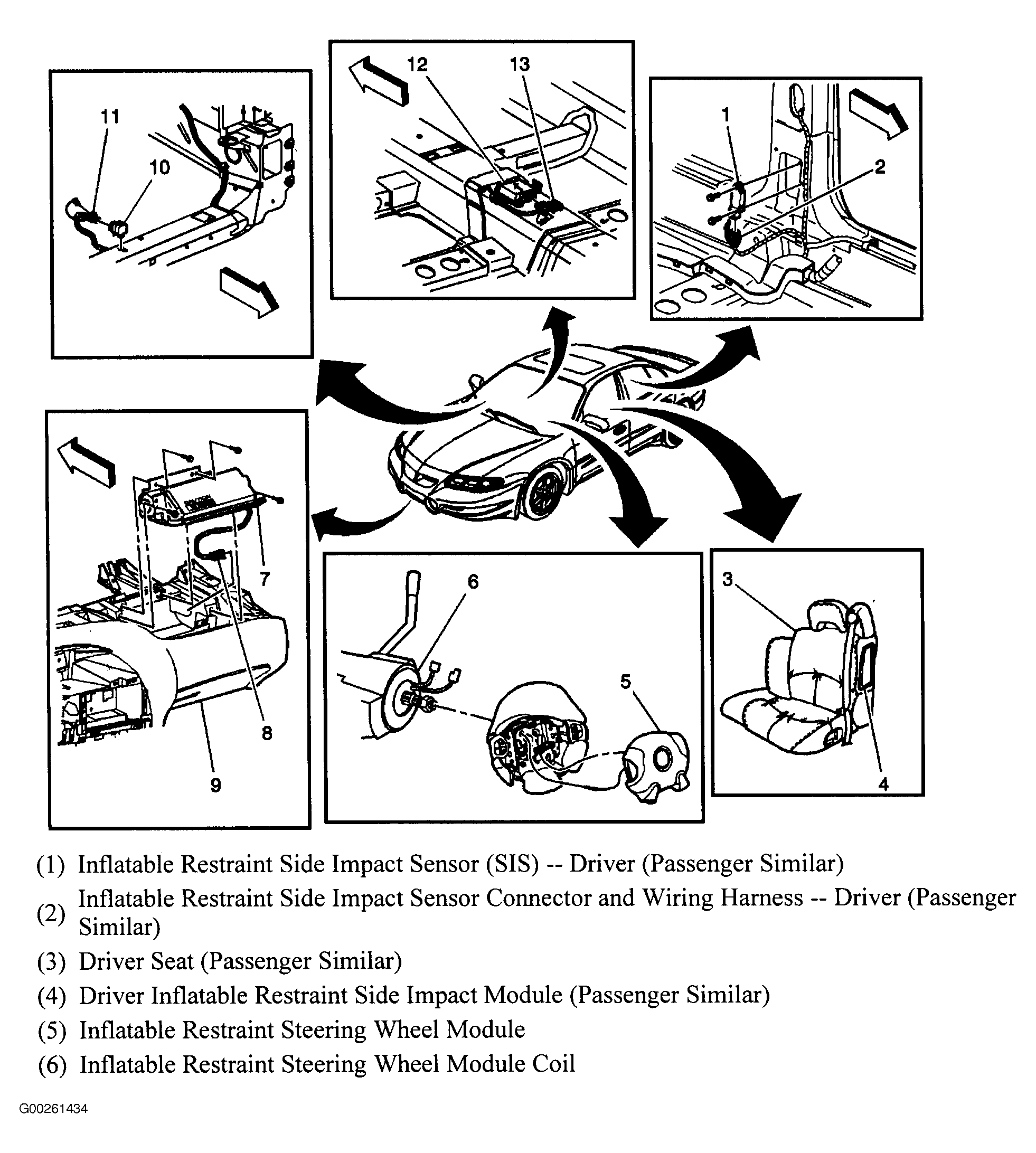

| Driver Inflatable Restraint Side Impact Module | In driver's seat. See Figure . |

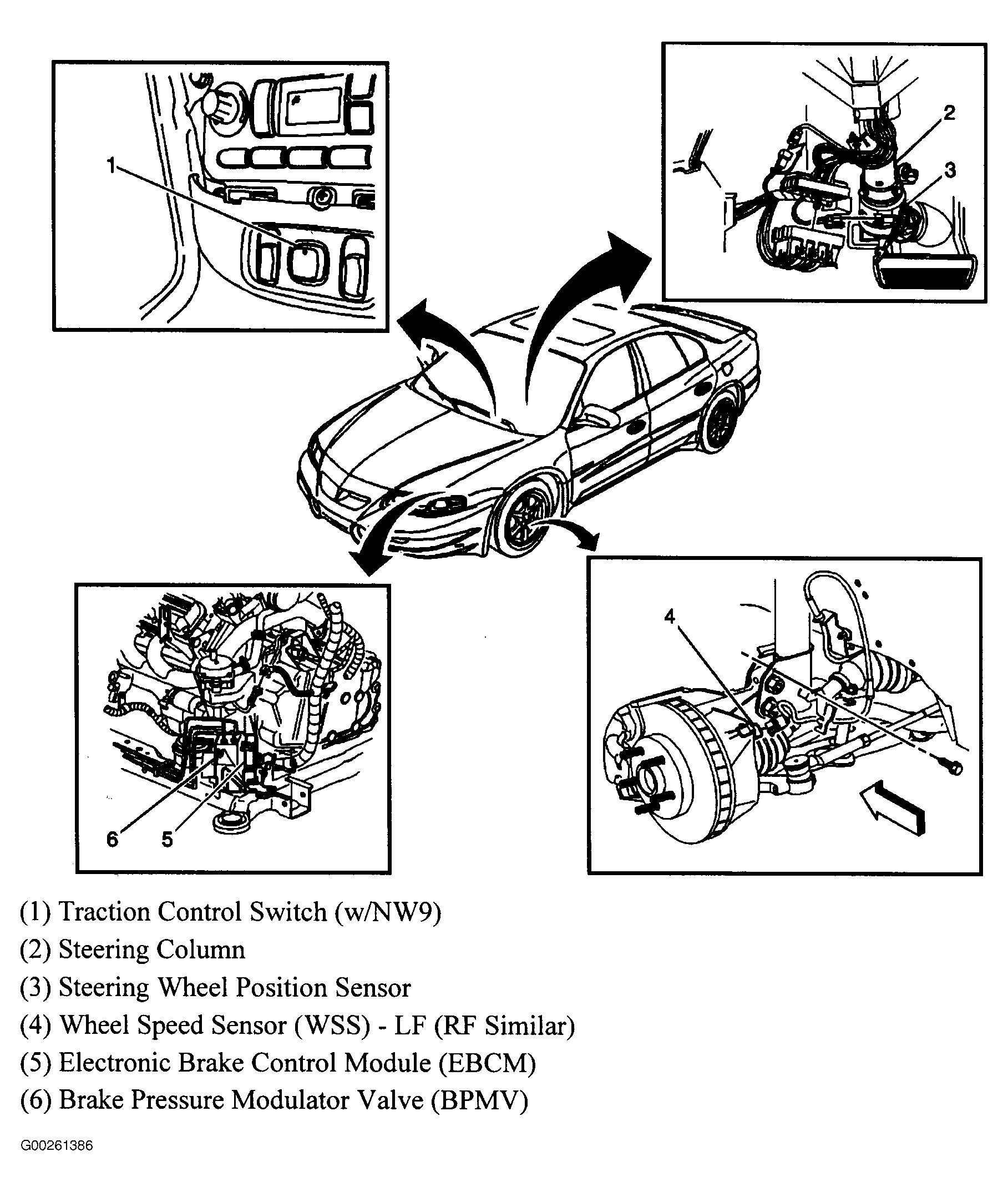

| Electronic Brake Control Module (EBCM) | On left front of engine compartment. See Figure . |

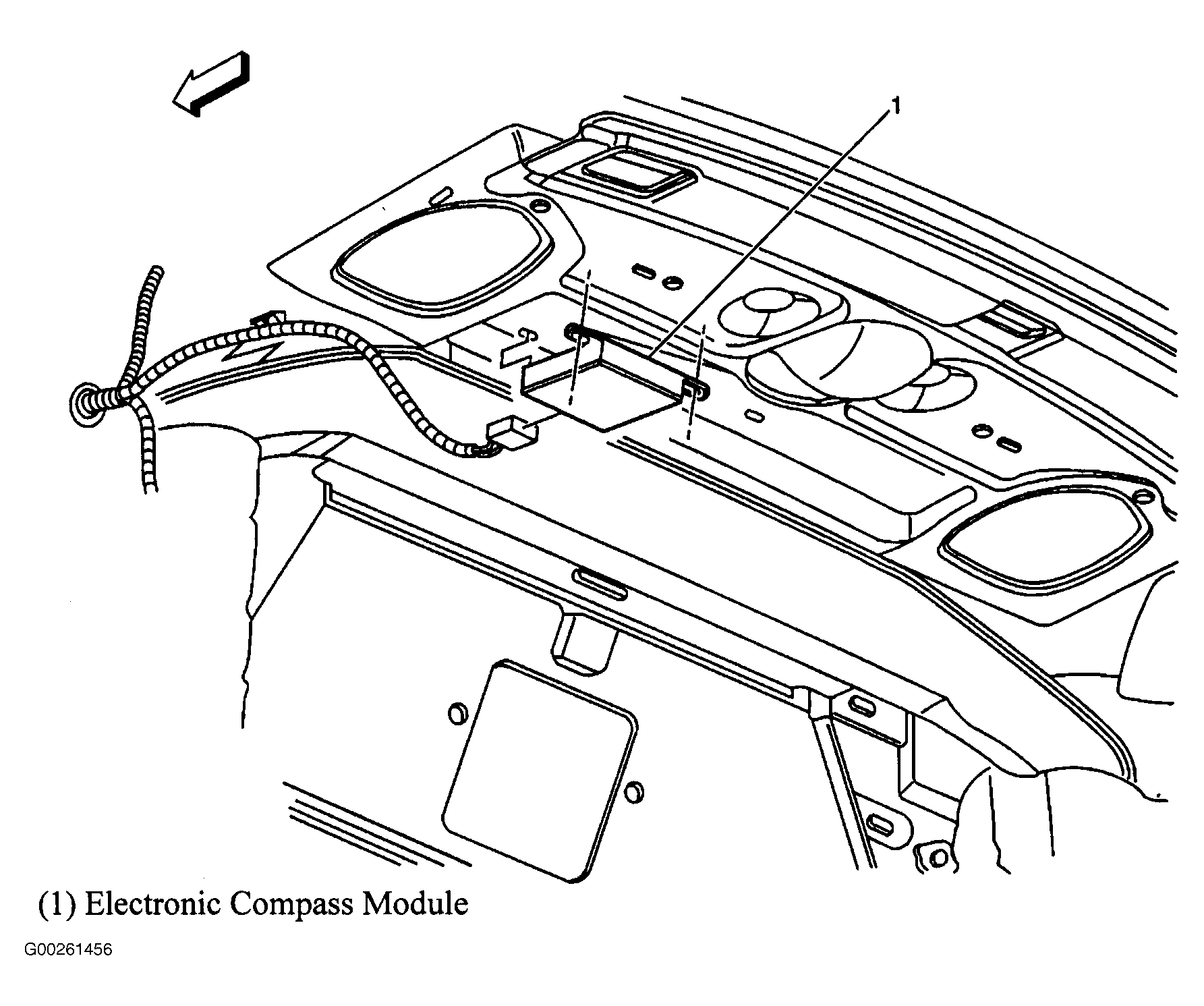

| Electronic Compass Module | Under left side of rear shelf. See Figure . |

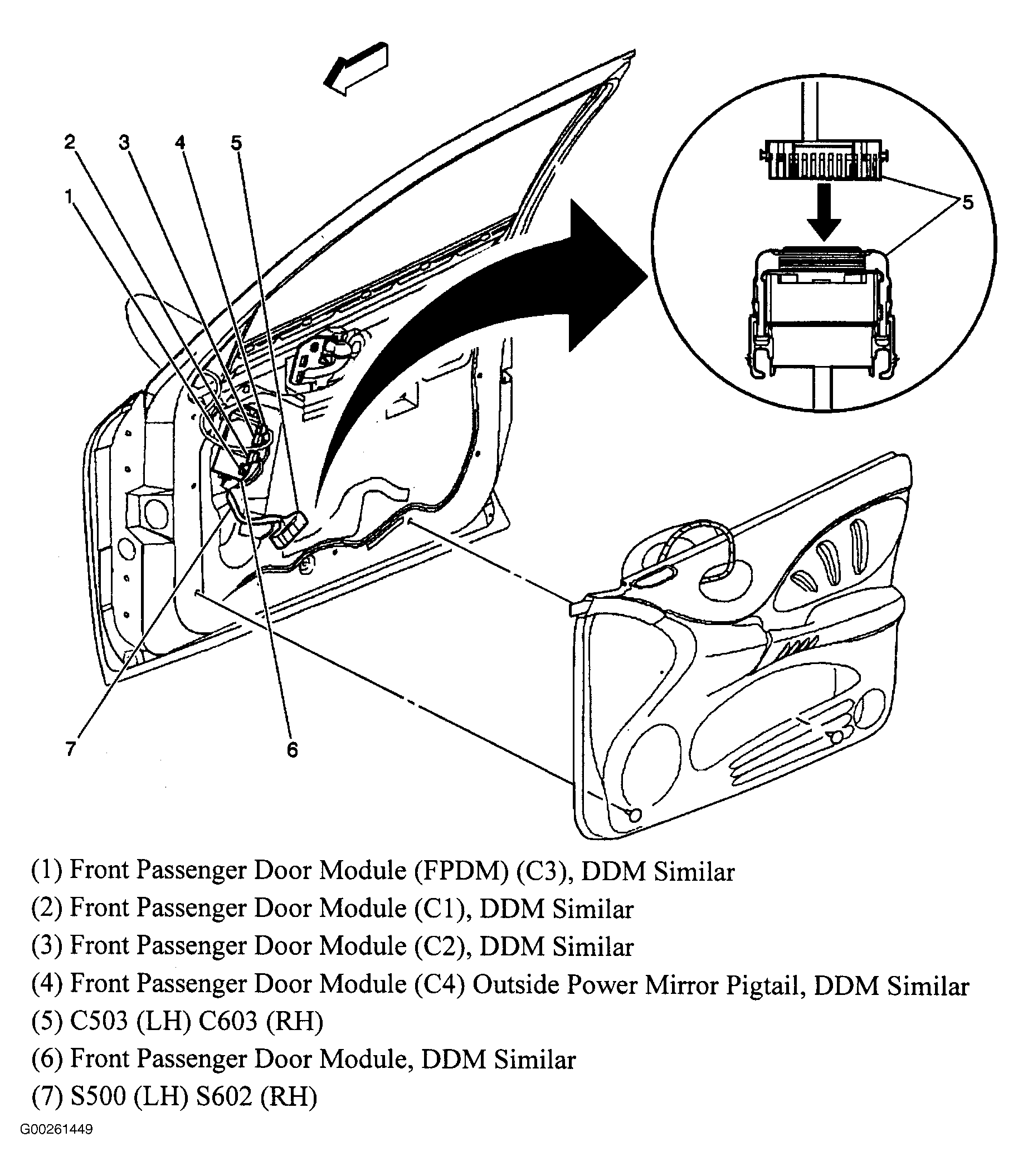

| Front Passenger Door Module (FPDM) | In front passenger's door. See Figure . |
| Head-Up Display (HUD) Module | On top left side of dash. |

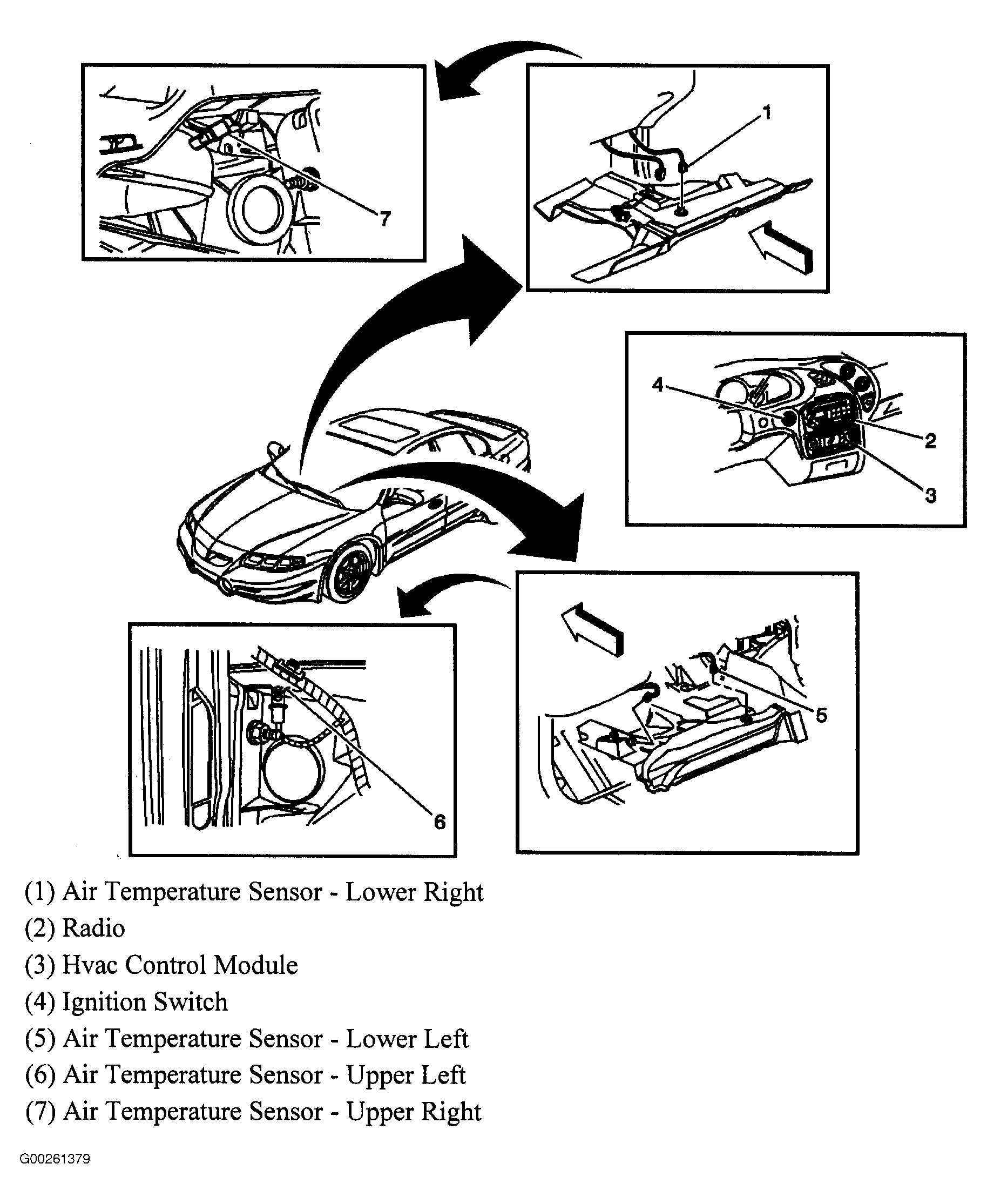

| HVAC Control Module | Located in center of dash. See Figure . |

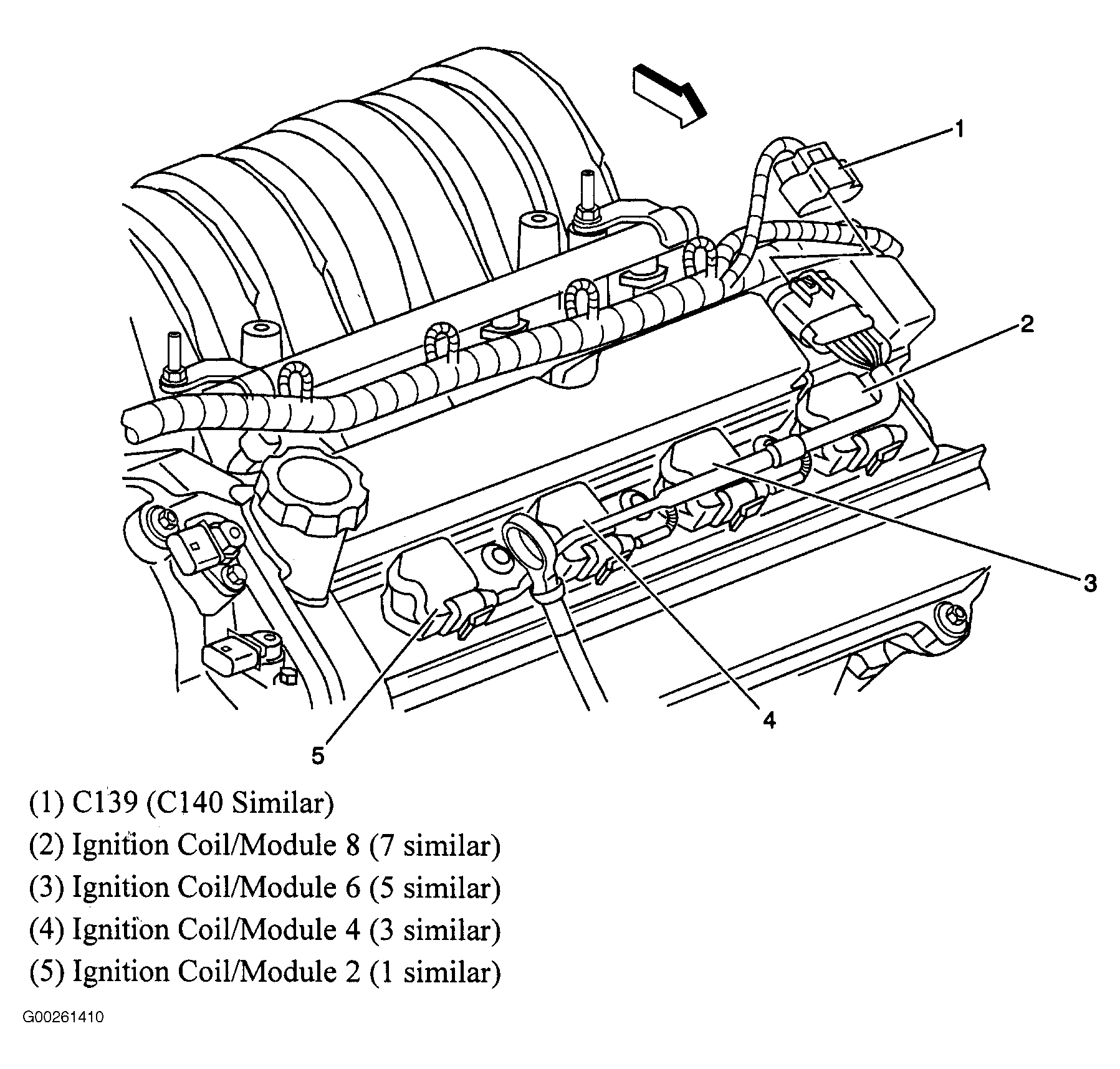

| Ignition Coil/Module 2 (4.6L) | On top of valve cover. See Figure . |
| Ignition Coil/Module 4 (4.6L) | On top of valve cover. See Figure . |
| Ignition Coil/Module 6 (4.6L) | On top of valve cover. See Figure . |
| Ignition Coil/Module 8 (4.6L) | On top of valve cover. See Figure . |

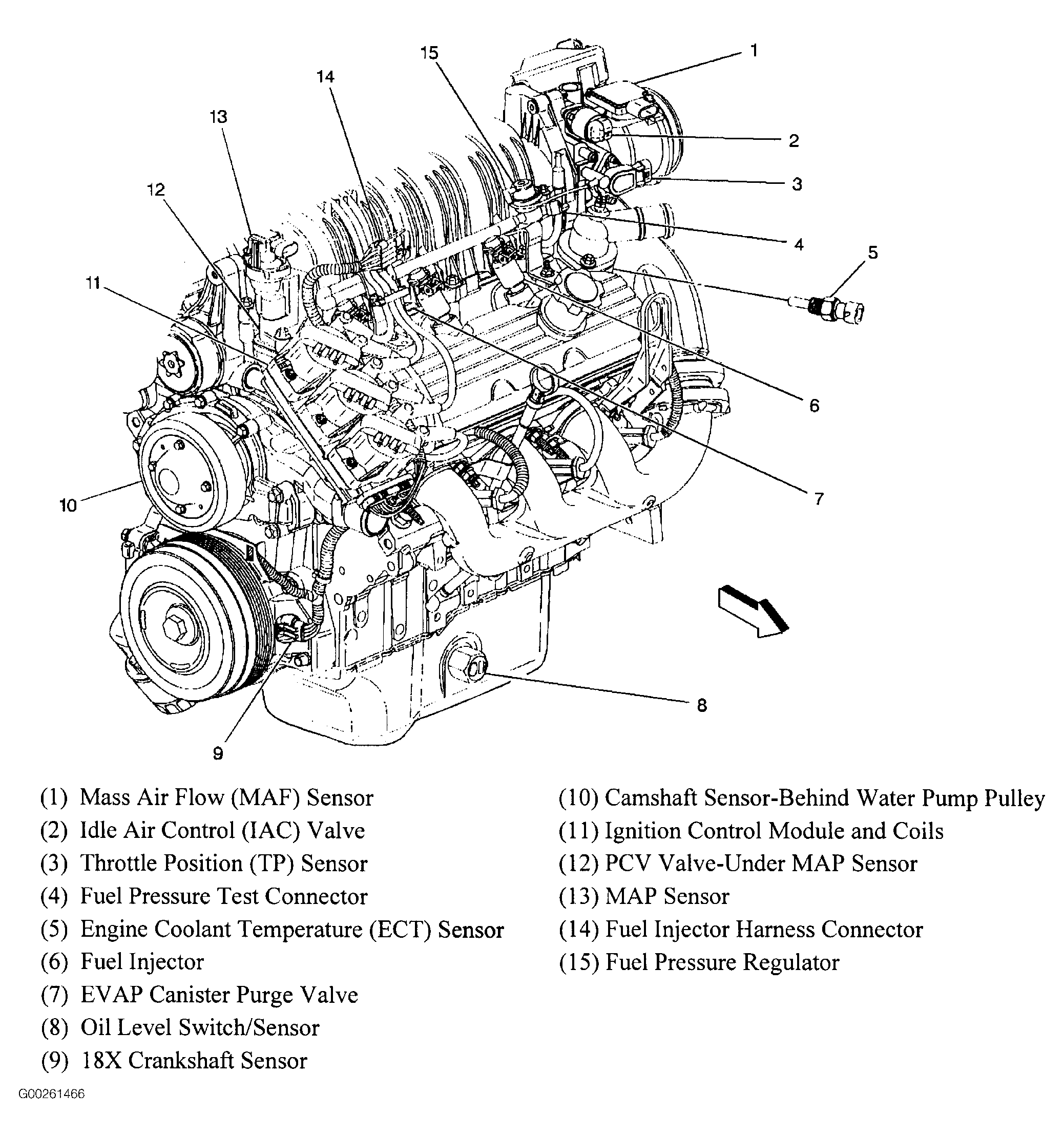

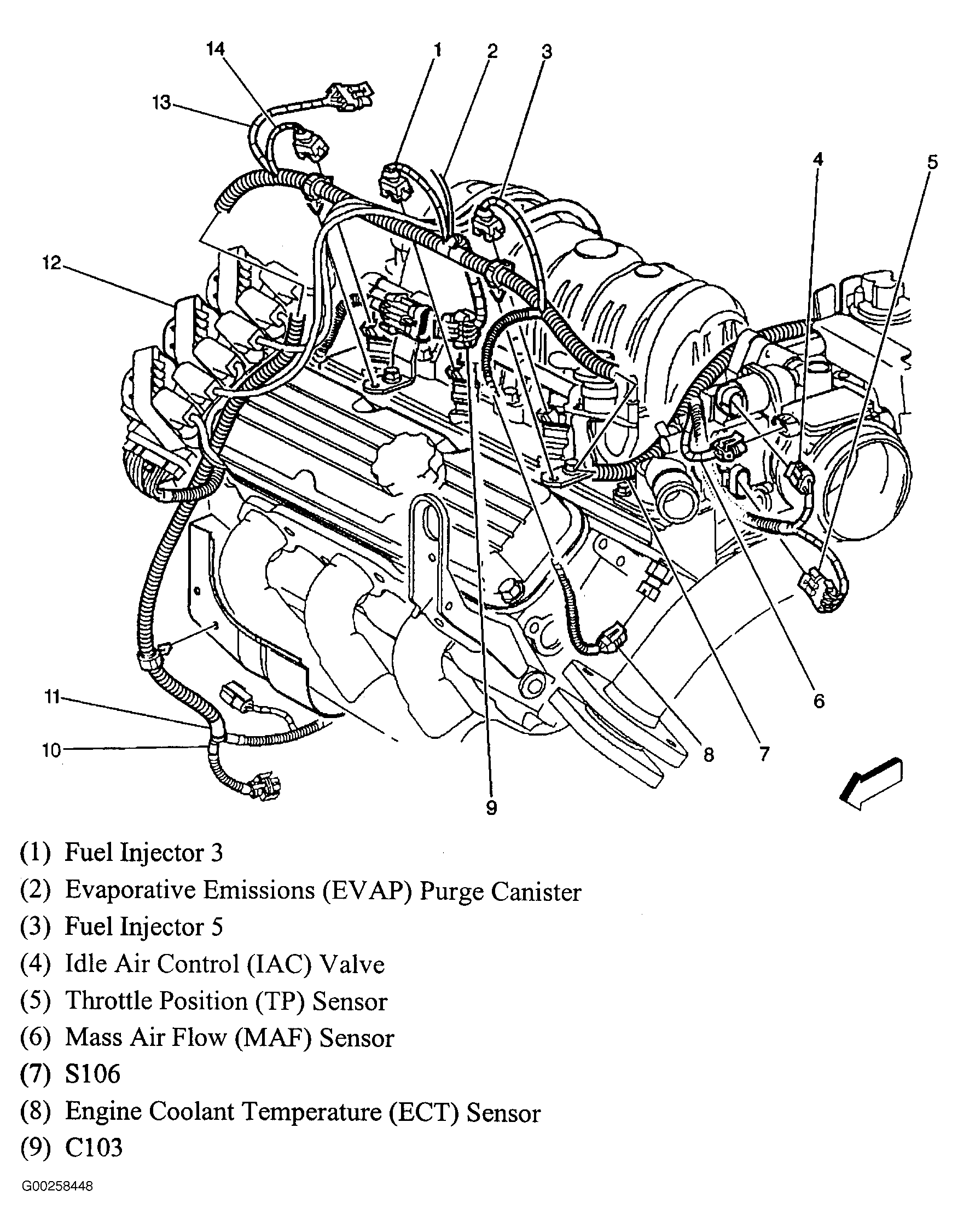

| Ignition Control Module & Coils (3.8L) | On top left front of engine. See Figure . |
| Ignition Control Module (ICM) | Left side of engine. See Figure . |
| Inflatable Restraint IP Module | In top right side of dash. See Figure . |
| Inflatable Restraint IP Module Connector & Wiring Harness | In top right side of dash. See Figure . |
| Inflatable Restraint Sensing & Diagnostic Module Connector & Wiring Harness | Under rear of center console, mounted to floorpan. See Figure . |
| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Under rear of center console, mounted to floorpan. See Figure . |
| Inflatable Restraint Steering Wheel Module | In steering wheel. See Figure . |
| Inflatable Restraint Steering Wheel Module Coil | In steering column. See Figure . |
| Instrument Panel Integration Module | Behind left side of dash. See Figure . |
| Memory Seat Module | Under driver's seat. |
| Powertrain Control Module | In air cleaner housing. |
| Radio Antenna Module | On center rear of headliner. See Figure . |
| Radio Antenna Module Connector | On rear window. See Figure . |
| Rear Integration Module | Behind upper left rear seat cushion. |

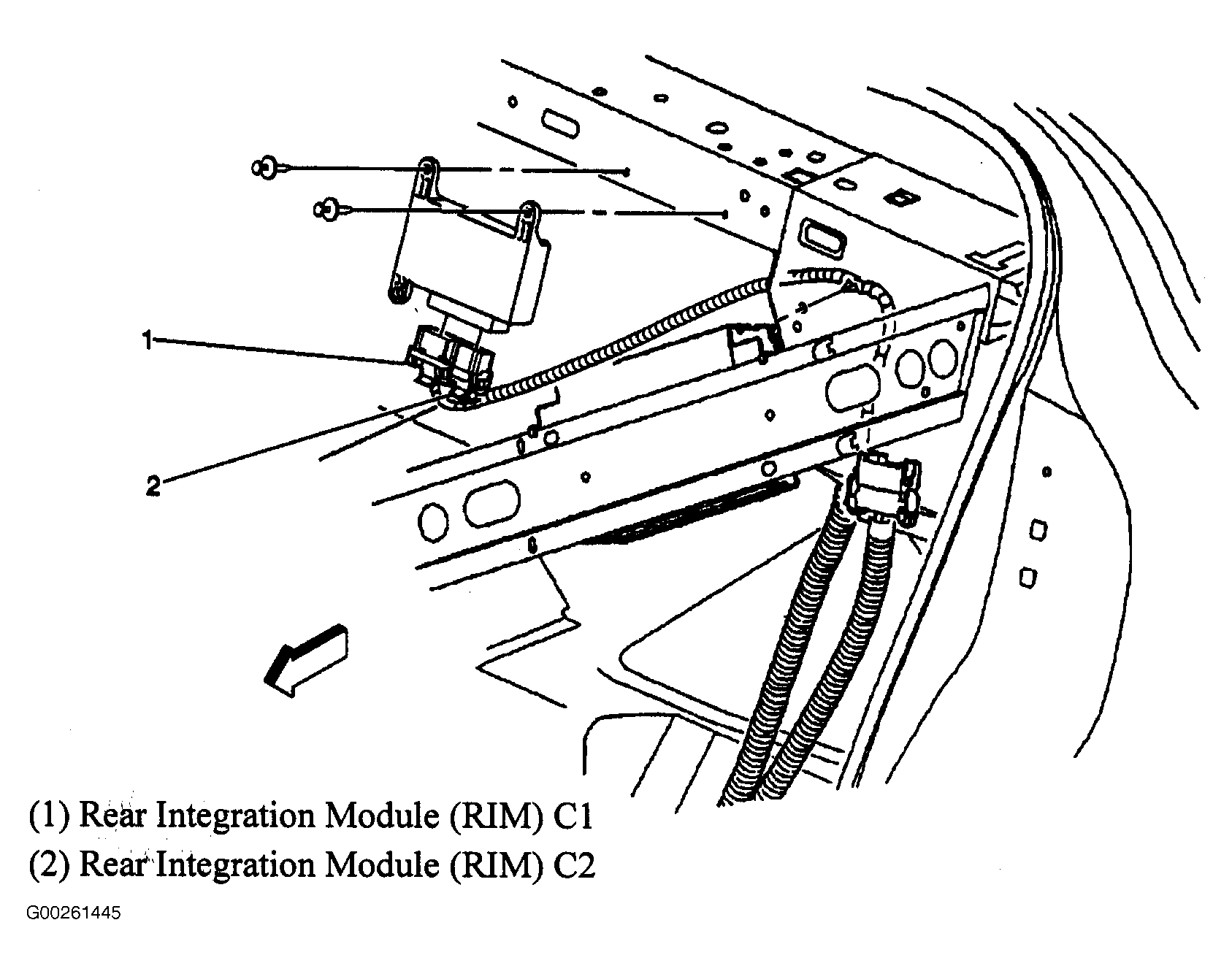

| Rear Integration Module (RIM) | Behind back seat cushion. See Figure . |

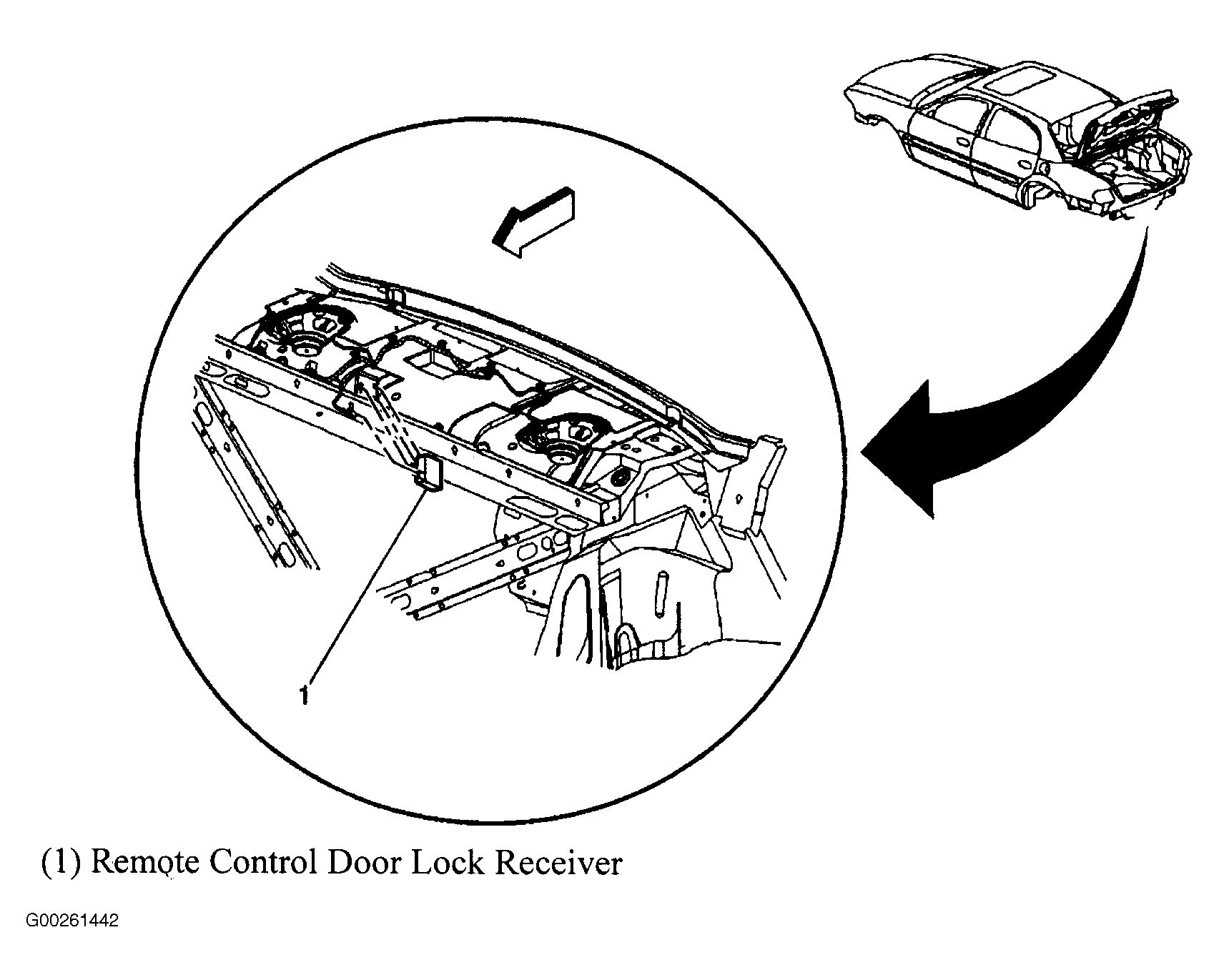

| Remote Control Door Lock Receiver | Under rear package shelf. See Figure . |

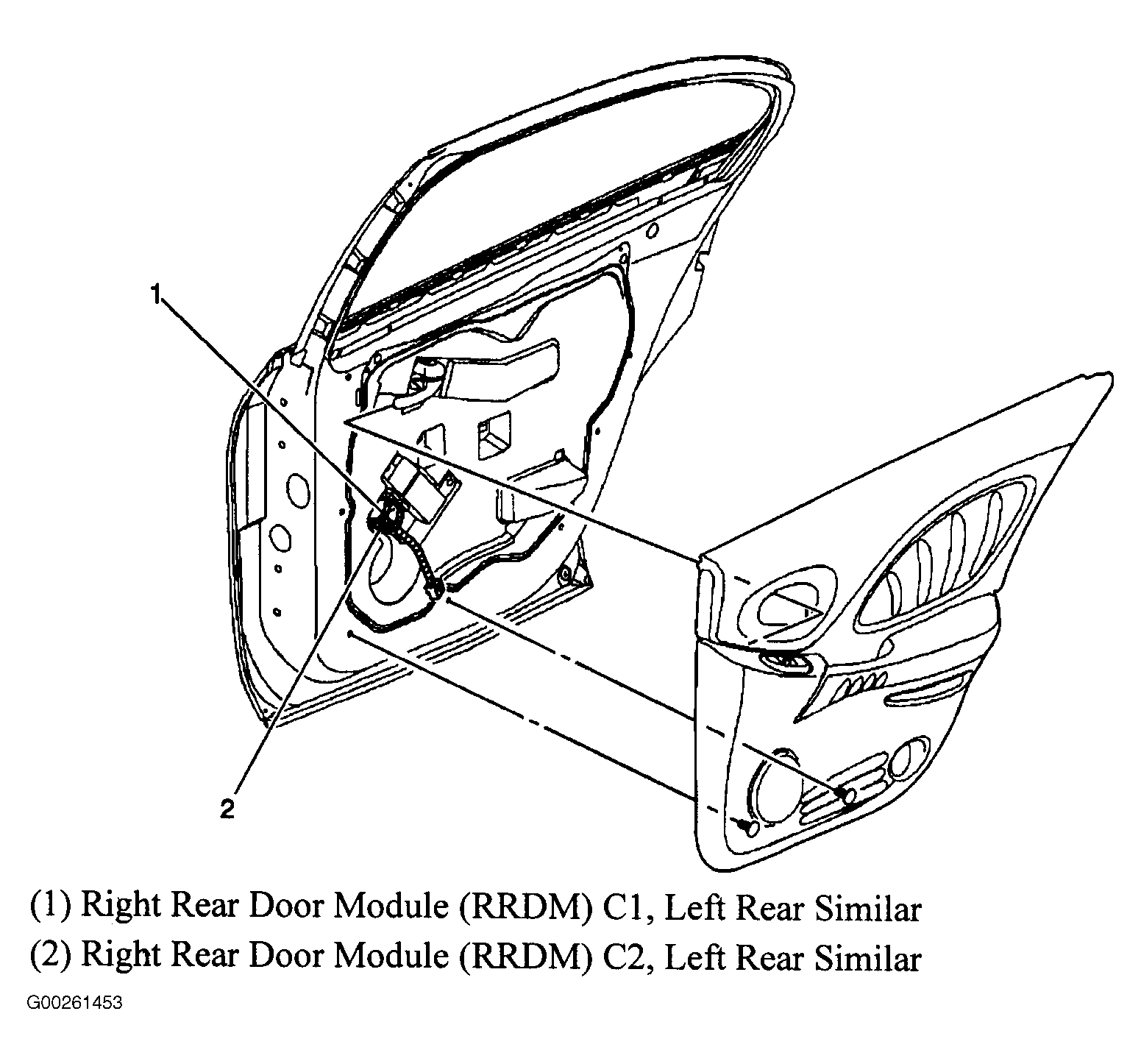

| Right Rear Door Module (RRDM) | In right rear door. See Figure . |

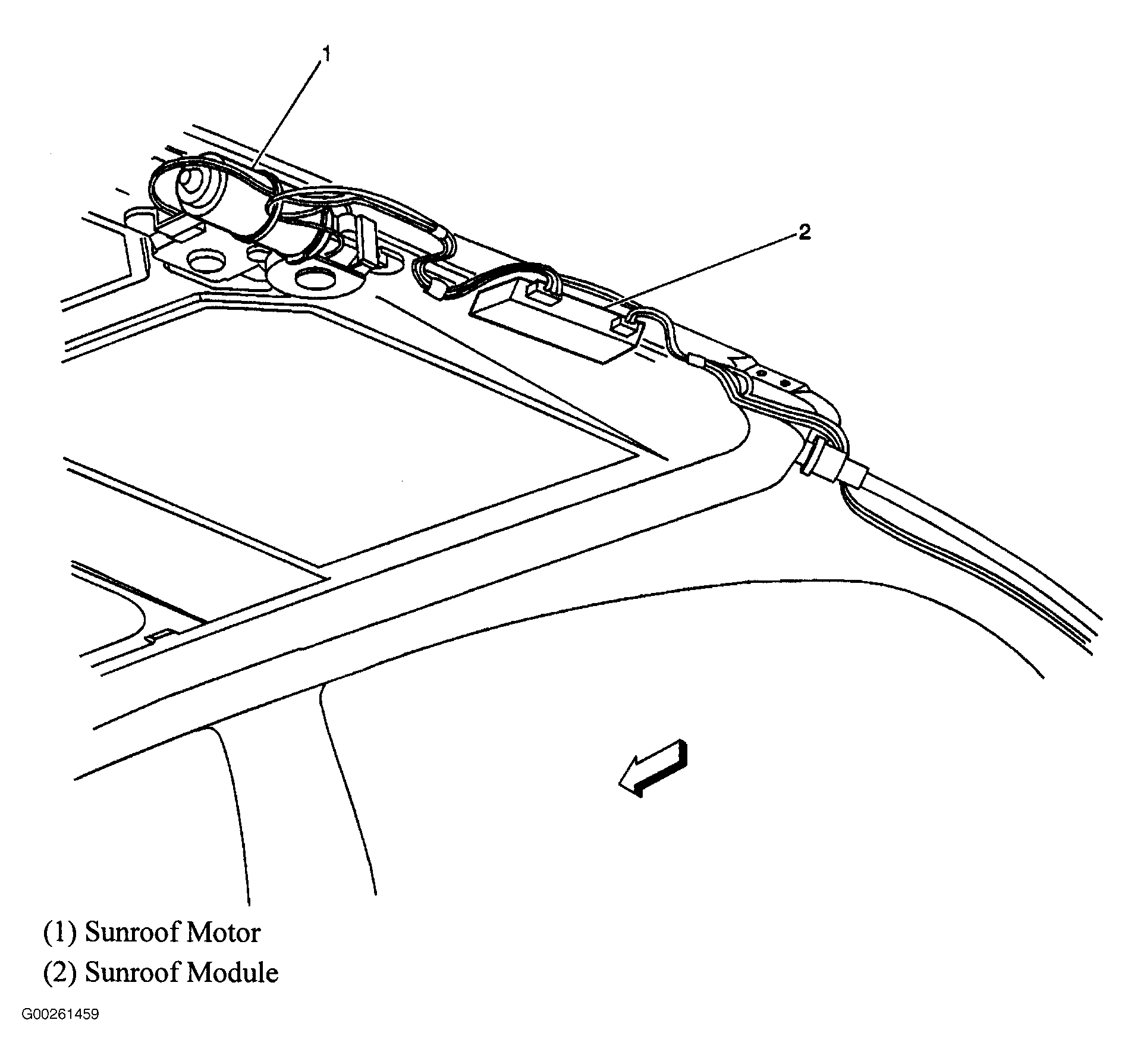

| Sun Roof Module | Rear of glass assembly, above headliner. See Figure . |

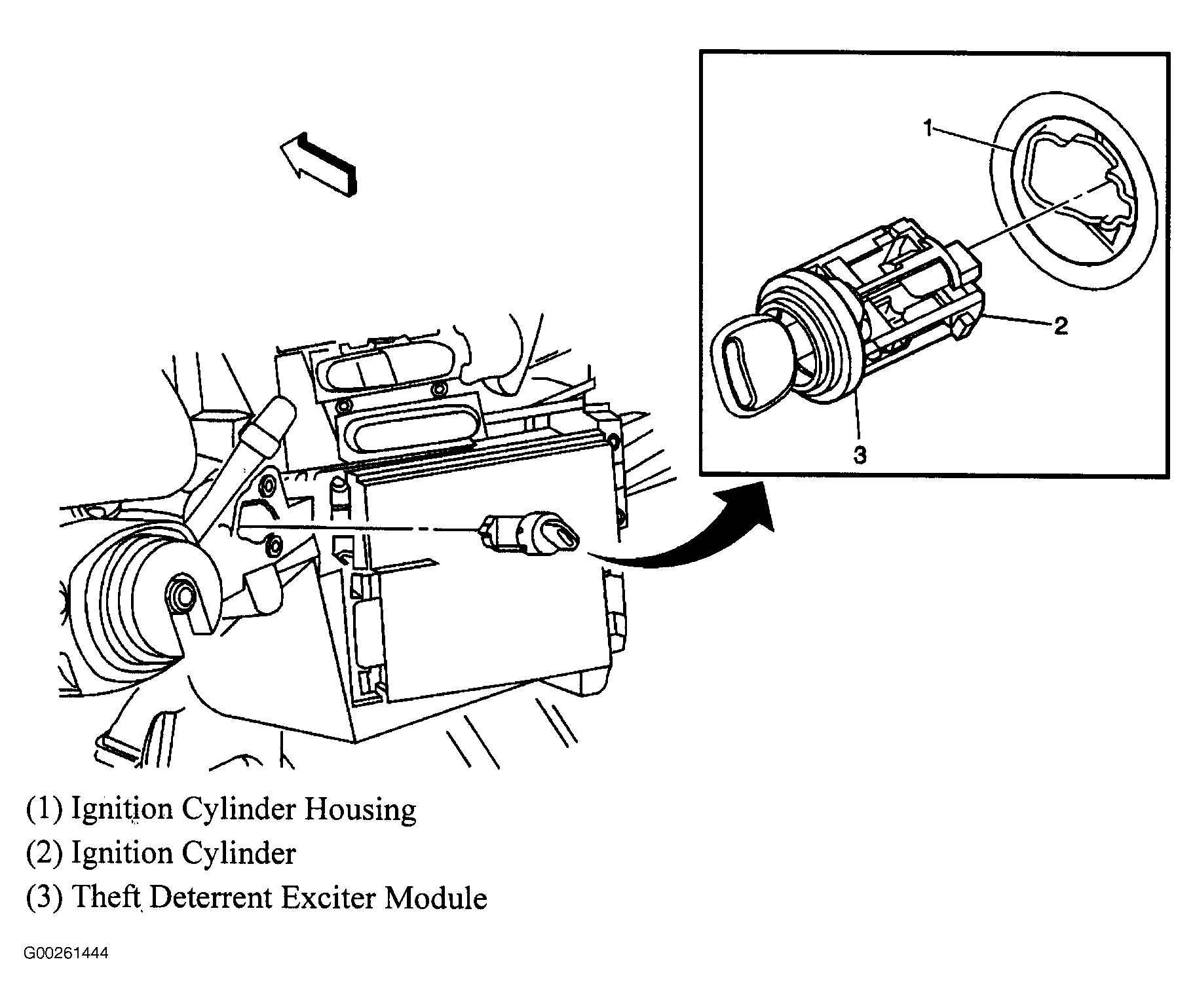

| Theft Deterrent Exciter Module | In steering column. See Figure . |

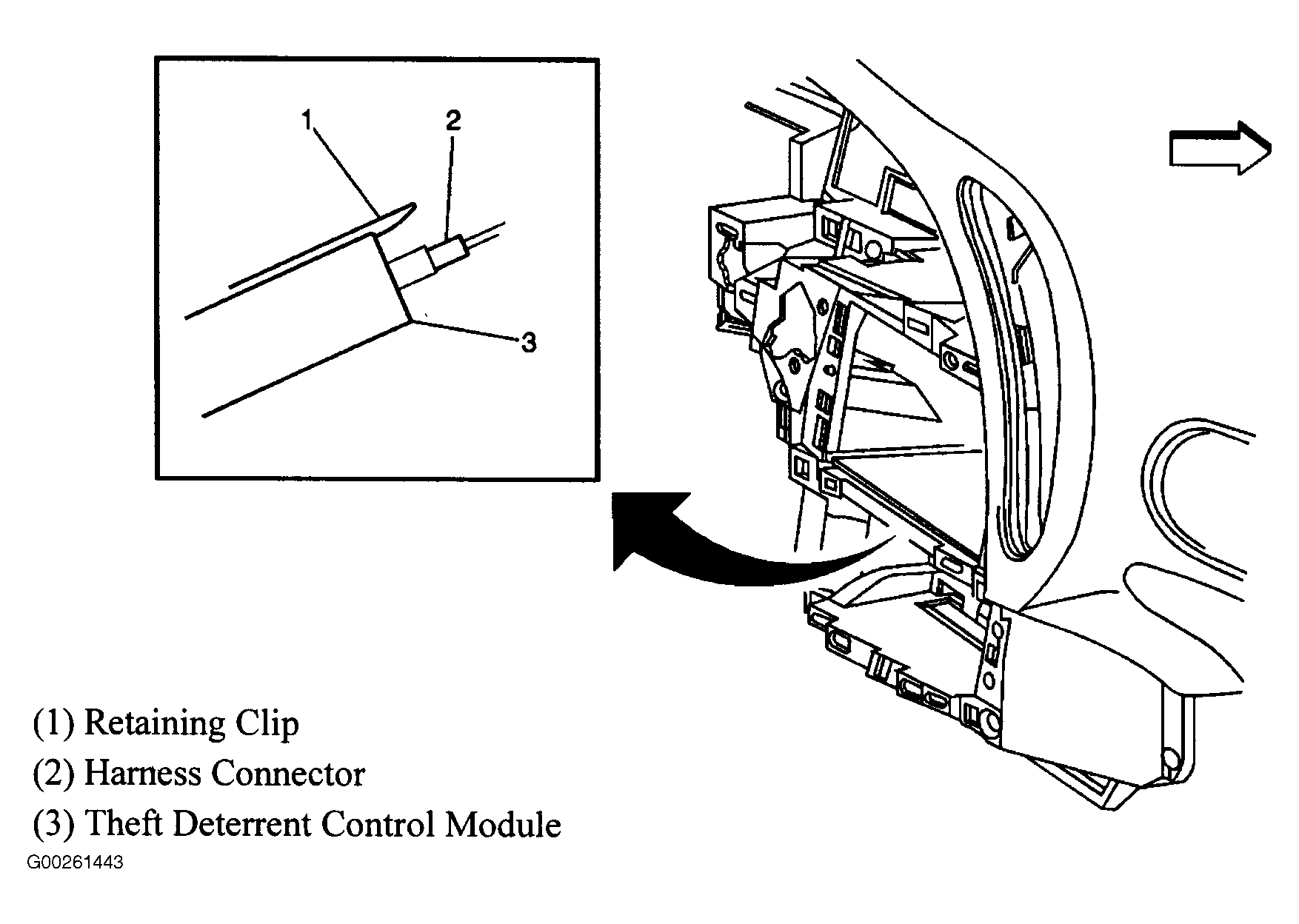

| Theft Deterrent Module | On right side of steering column, behind shroud at ignition switch. See Figure . |
| Turn Signal/Hazard Flasher Module | Behind center of dash, integral to hazard flasher switch. |

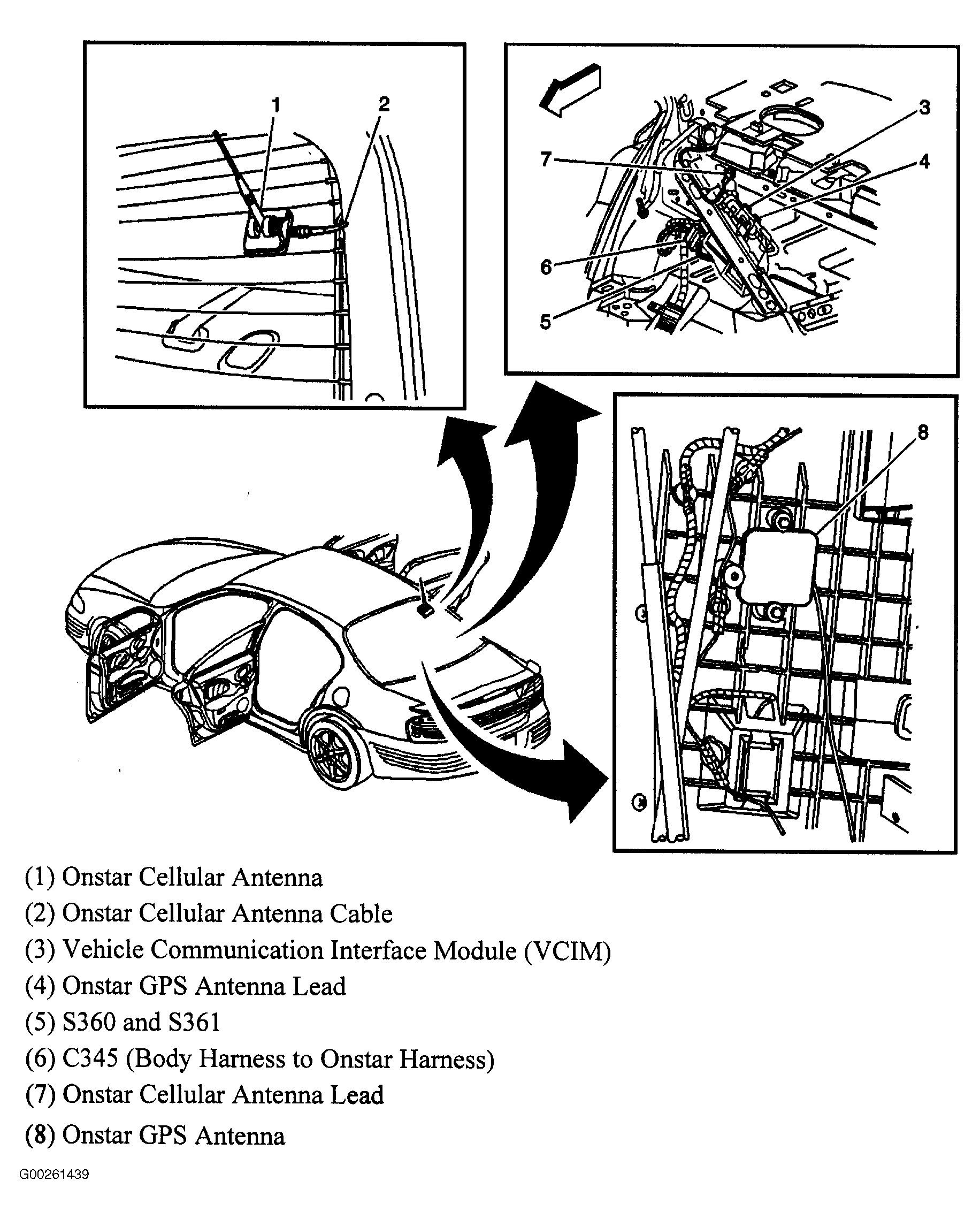

| Vehicle Communication Interface Module (VCIM) | Behind right rear seat back. See Figure . |
| Vehicle Interface Unit | Behind right rear seat back. |
