Data Link Communications Component Views

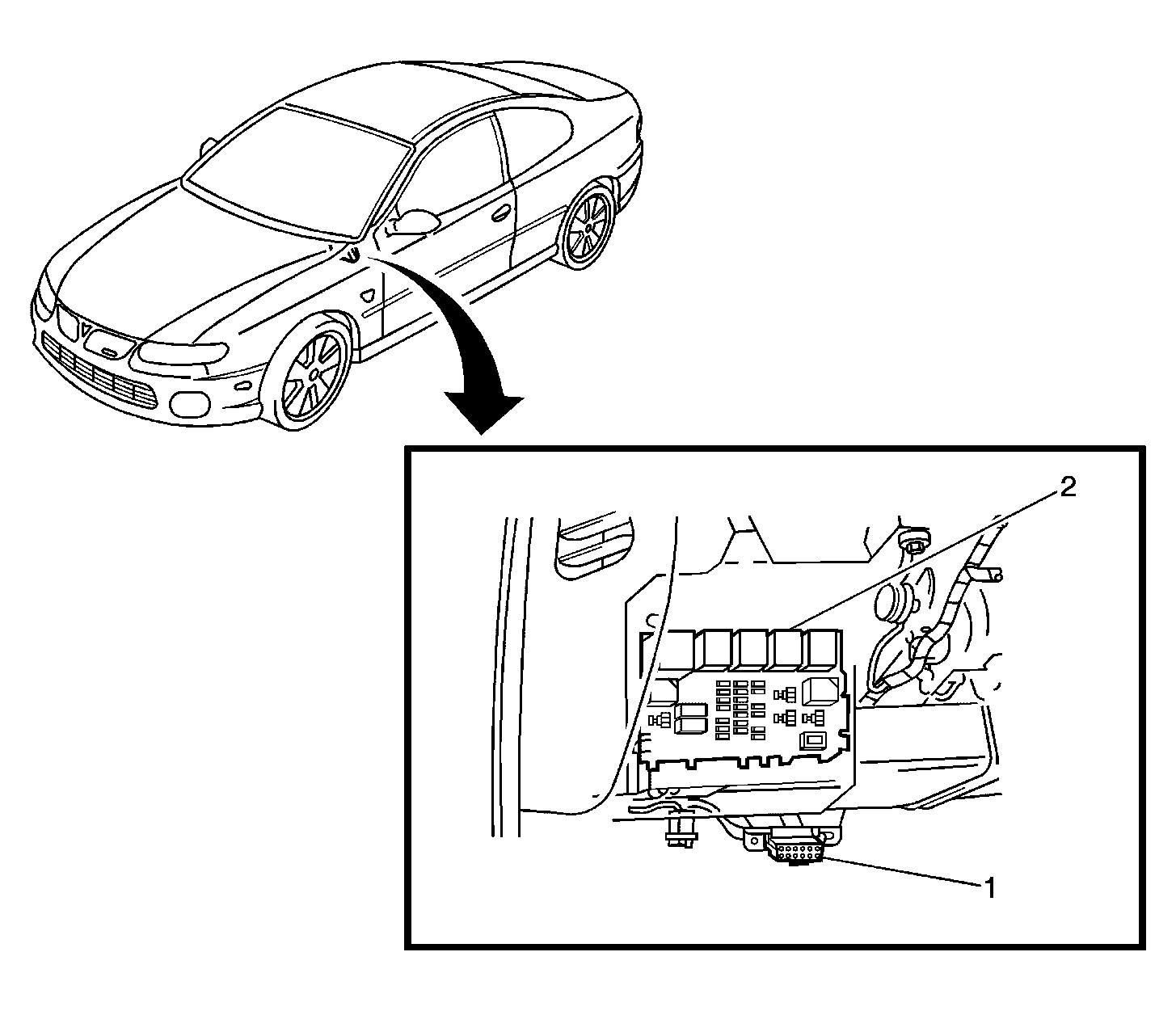

Fig 1: Data Link Connector (DLC) Location

GM1353554

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Data Link Connector (DLC)
2	Instrument Panel Fuse Block
