Removal Procedure

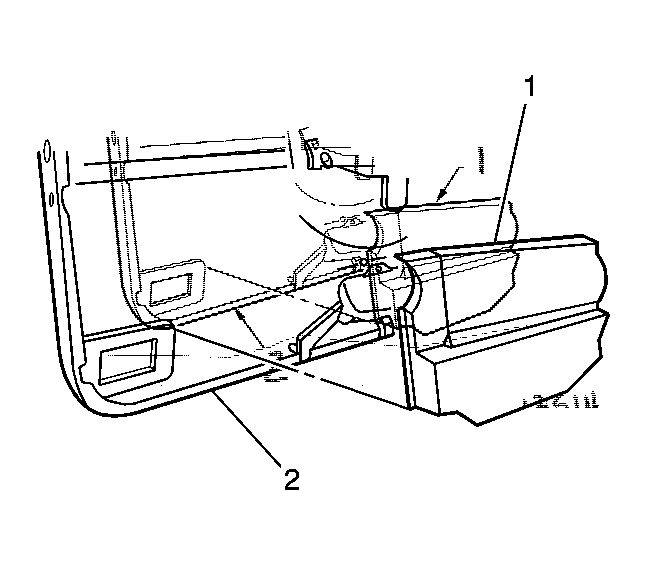

Fig 1: View Of Energy Absorber Pad & Door Trim Panel

GM1351453

Courtesy of GENERAL MOTORS CORP.

Remove the door sound insulator. Refer to Sound Insulator Replacement - Front Door .
Remove the energy absorber pad (1) from the back of the door trim panel (2), by pulling the energy absorber pad (1) slowly away from the trim panel (2).
