Ground Distribution Schematics

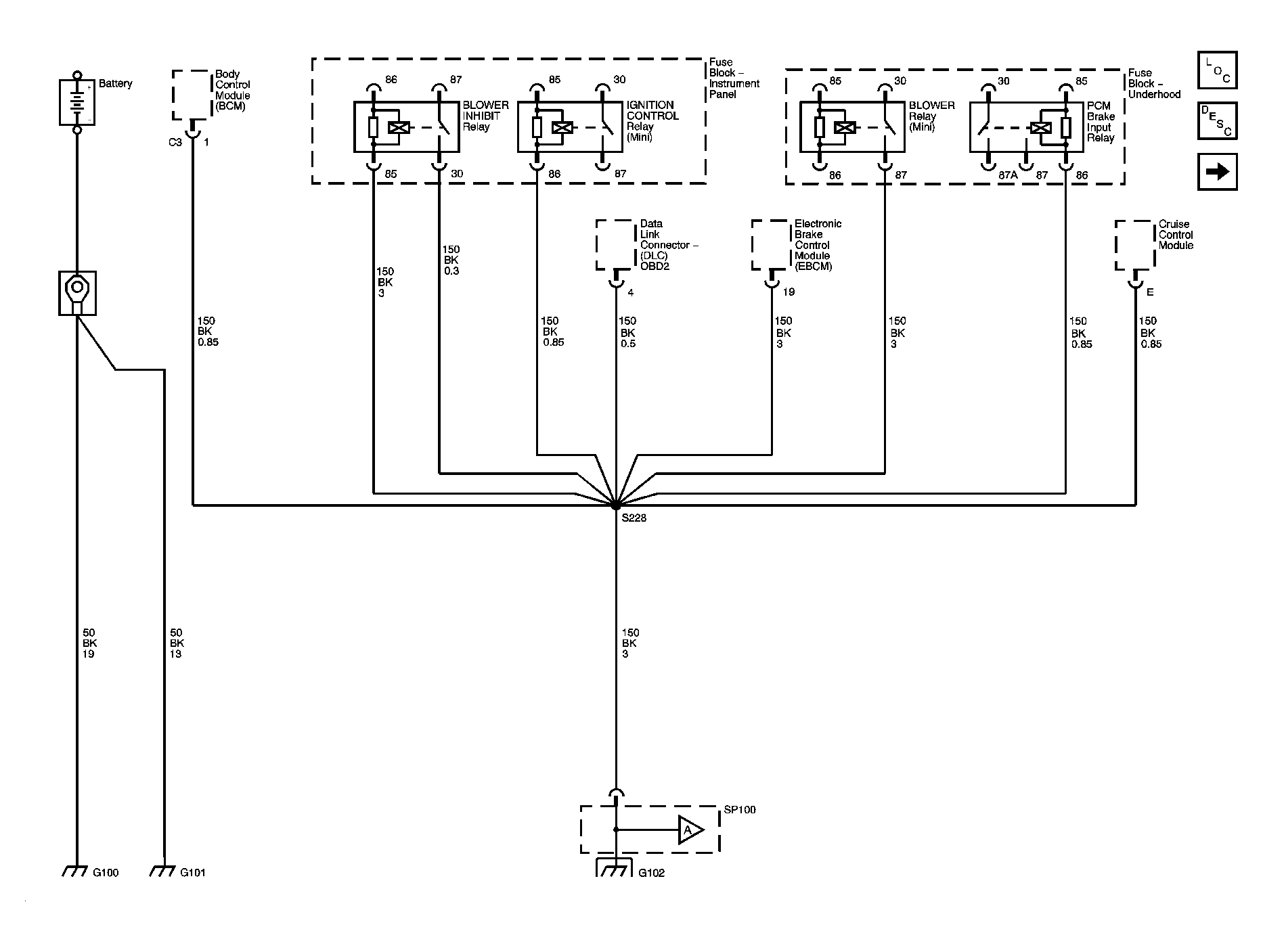

Fig 1: G100, G101, SP100 and G102

Courtesy of GENERAL MOTORS CORP.

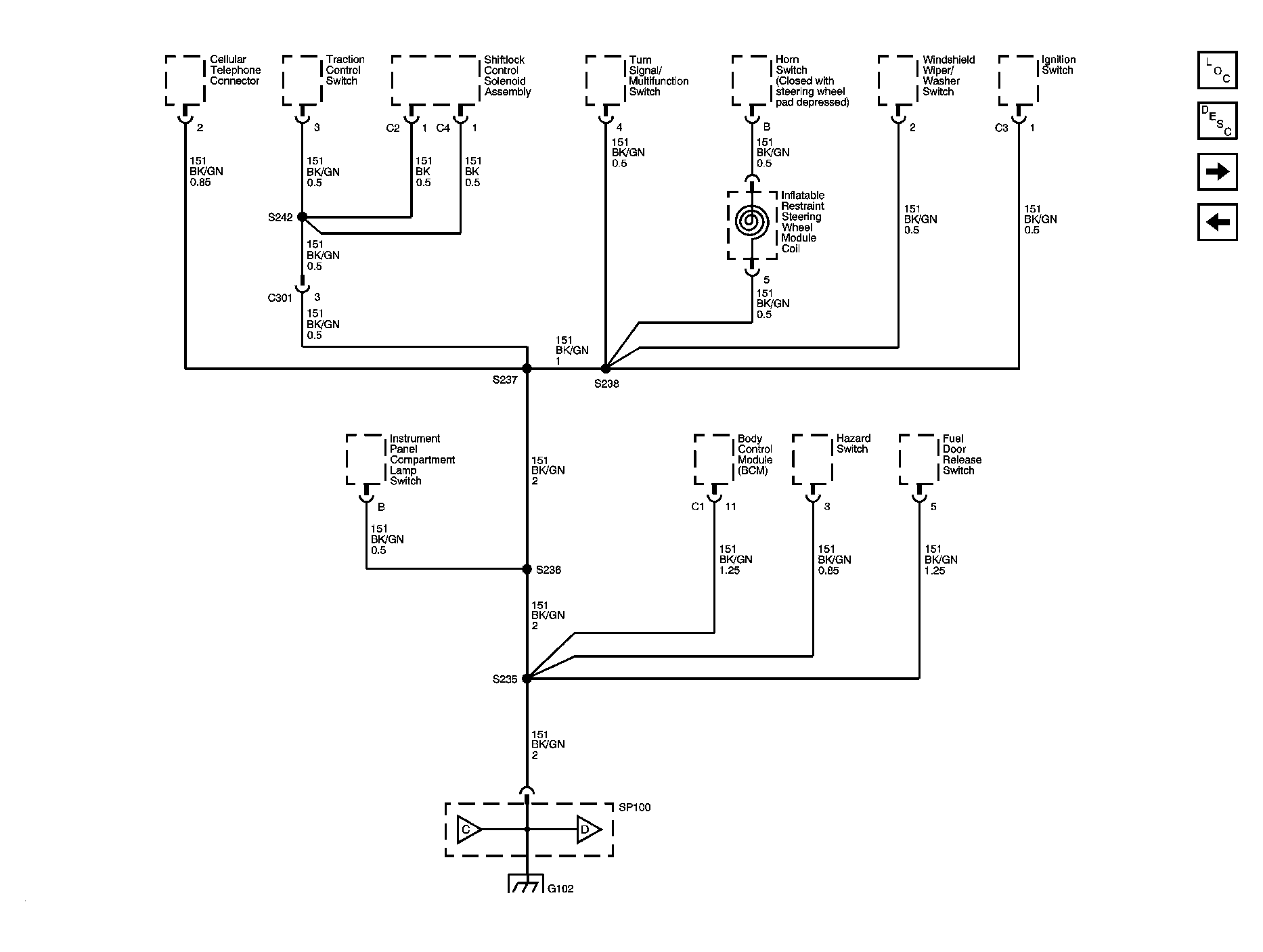

Fig 2: SP100 and G102

Courtesy of GENERAL MOTORS CORP.

Fig 3: SP100 and G102

Courtesy of GENERAL MOTORS CORP.

Fig 4: SP100 and G102

Courtesy of GENERAL MOTORS CORP.

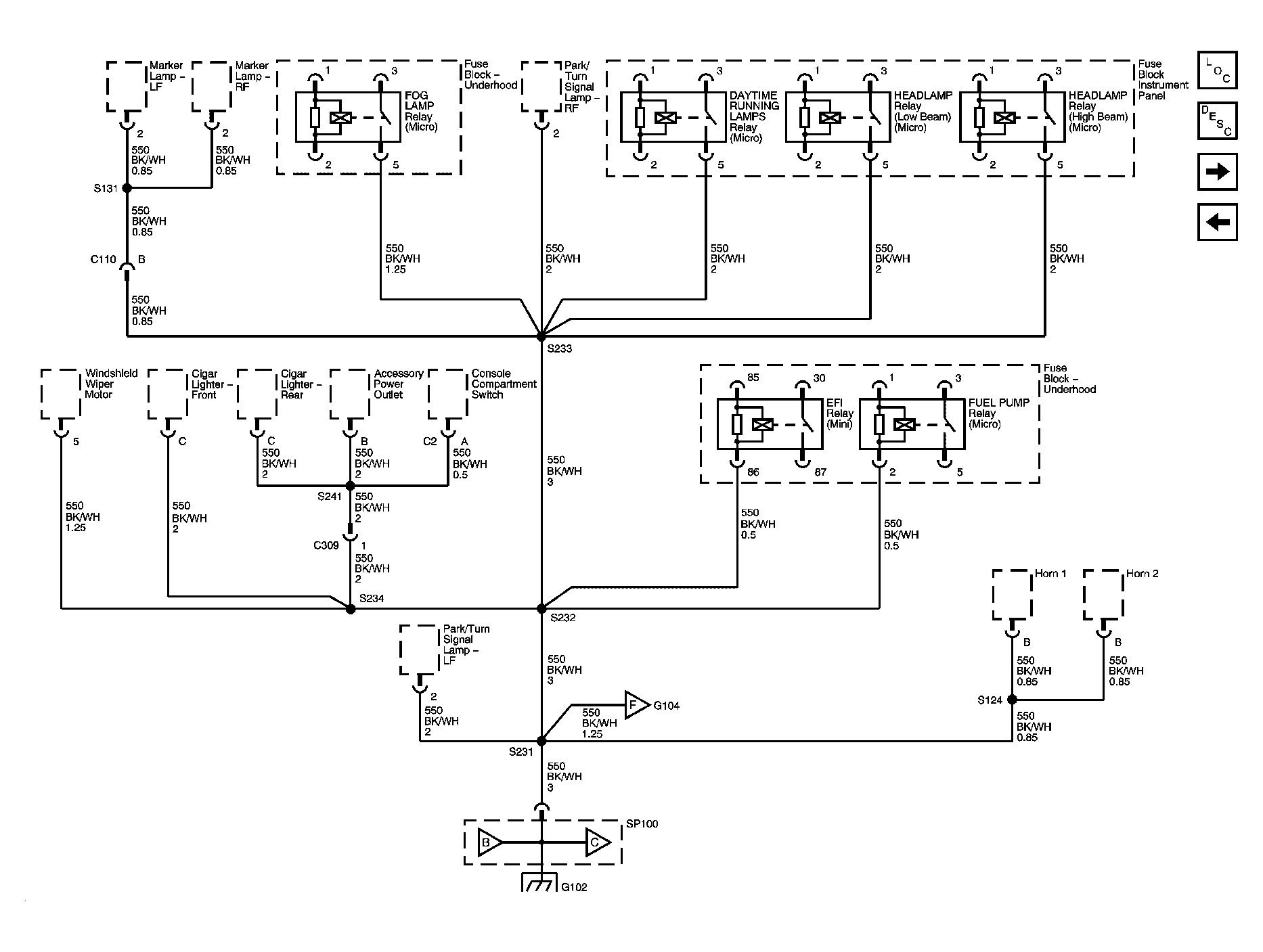

Fig 5: SP100 and G102, G103, G200

Courtesy of GENERAL MOTORS CORP.

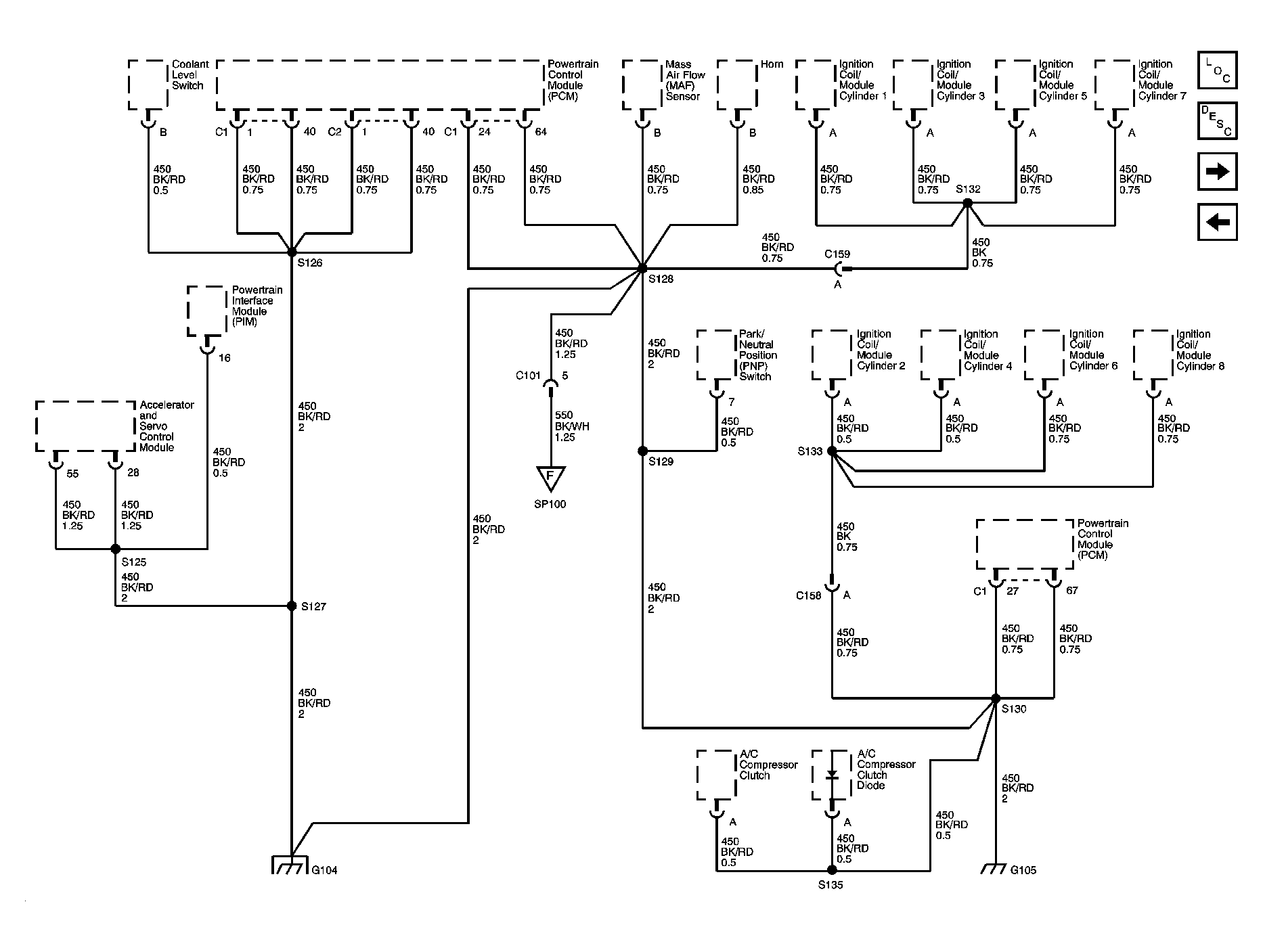

Fig 6: G104 and G105

Courtesy of GENERAL MOTORS CORP.

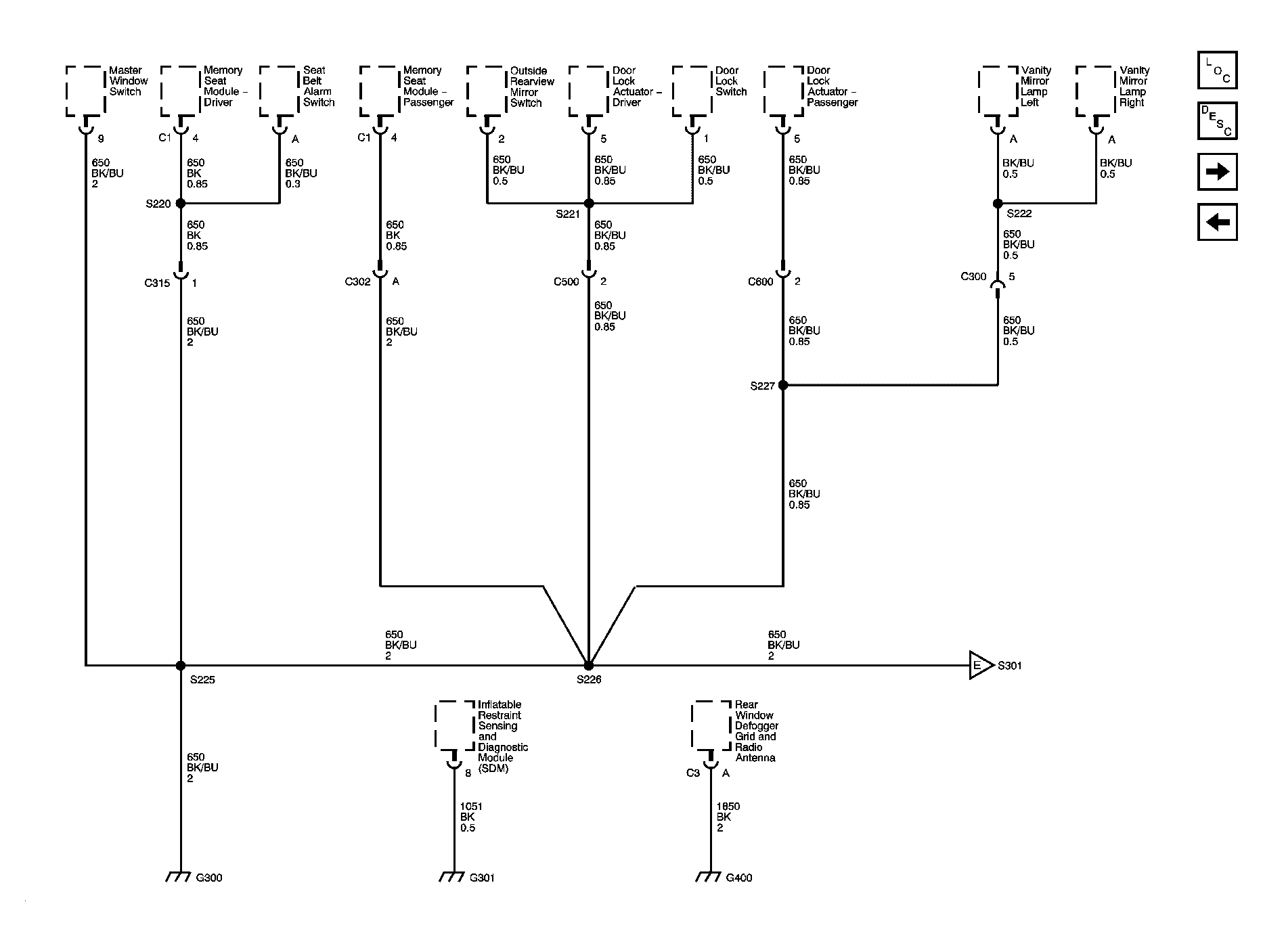

Fig 7: G300, G301 and G400

Courtesy of GENERAL MOTORS CORP.

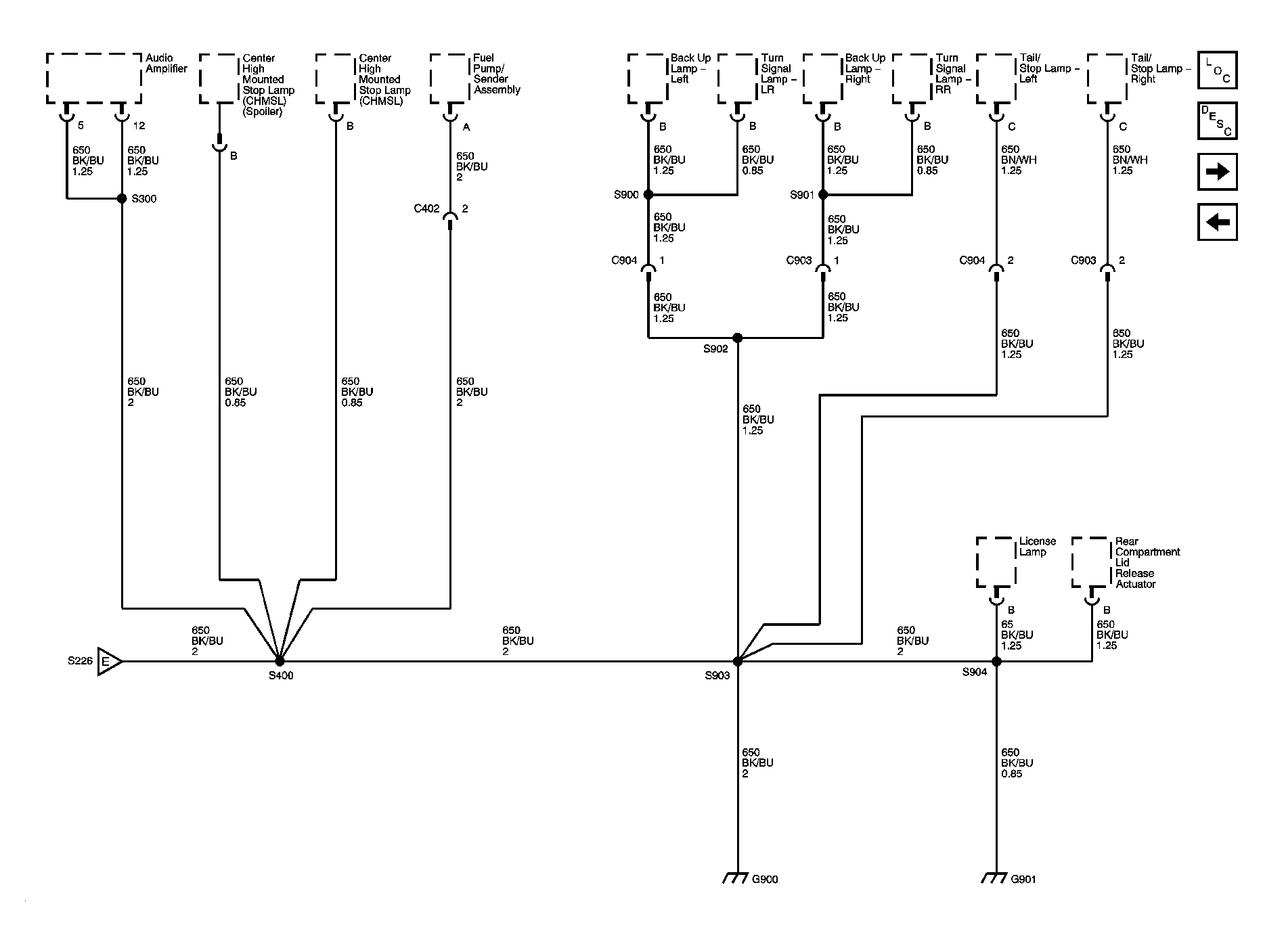

Fig 8: G900 and G901

Courtesy of GENERAL MOTORS CORP.
