Cooling System Component Views

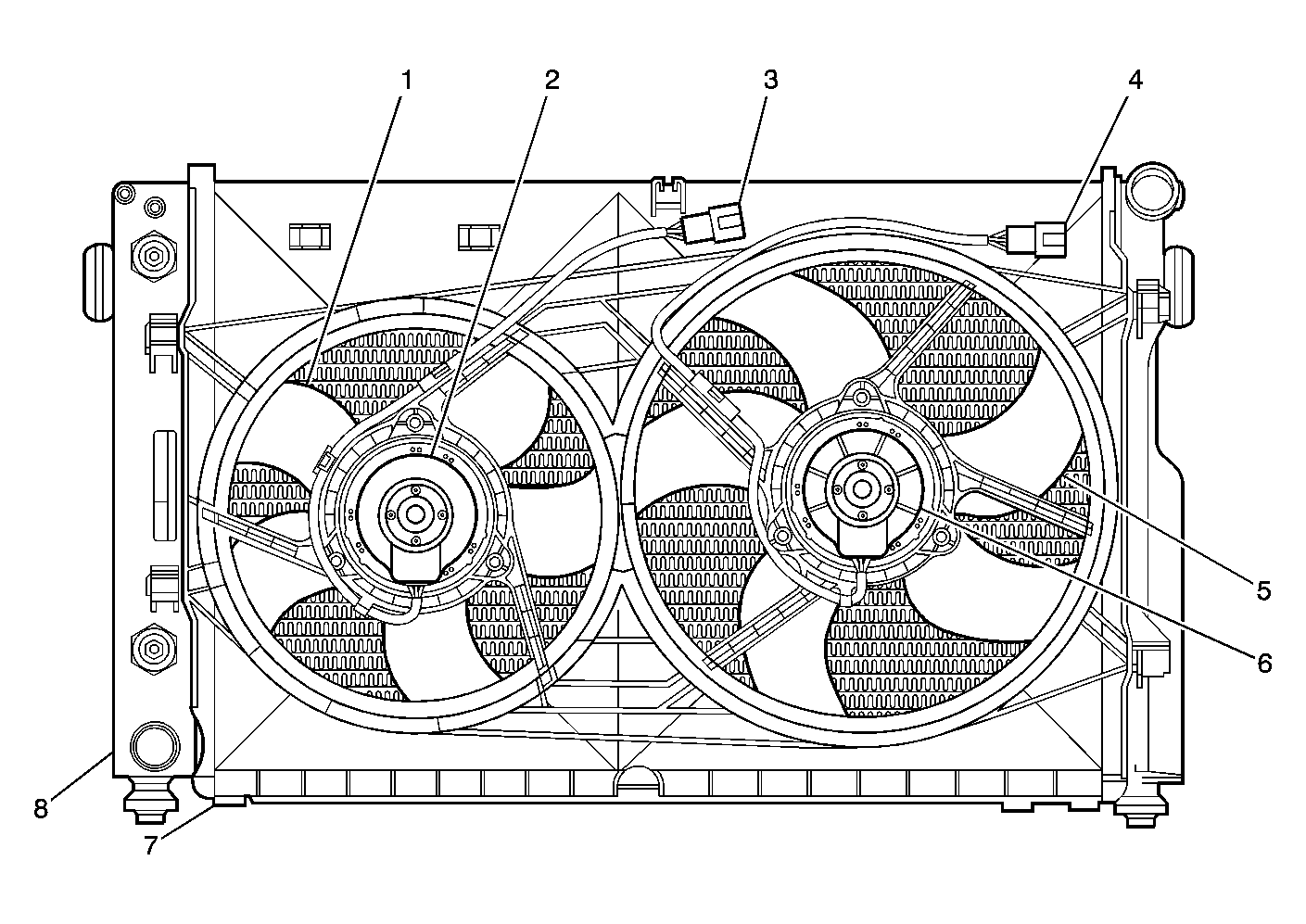

Fig 1: Cooling Fan Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Left Fan
2	Left Fan Motor
3	Left Fan Motor Electrical Connector
4	Left And Right Fan Motor Electrical Connector
5	Right Fan
6	Right Fan Motor
7	Fan Shroud
8	Radiator

Fig 2: Cooling Fan Relay Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cooling Fan Relay No. 1
2	Cooling Fan Relay No. 2
