Installation Procedure

    NOTE: Refer to Fastener Notice in Cautions and Notices.

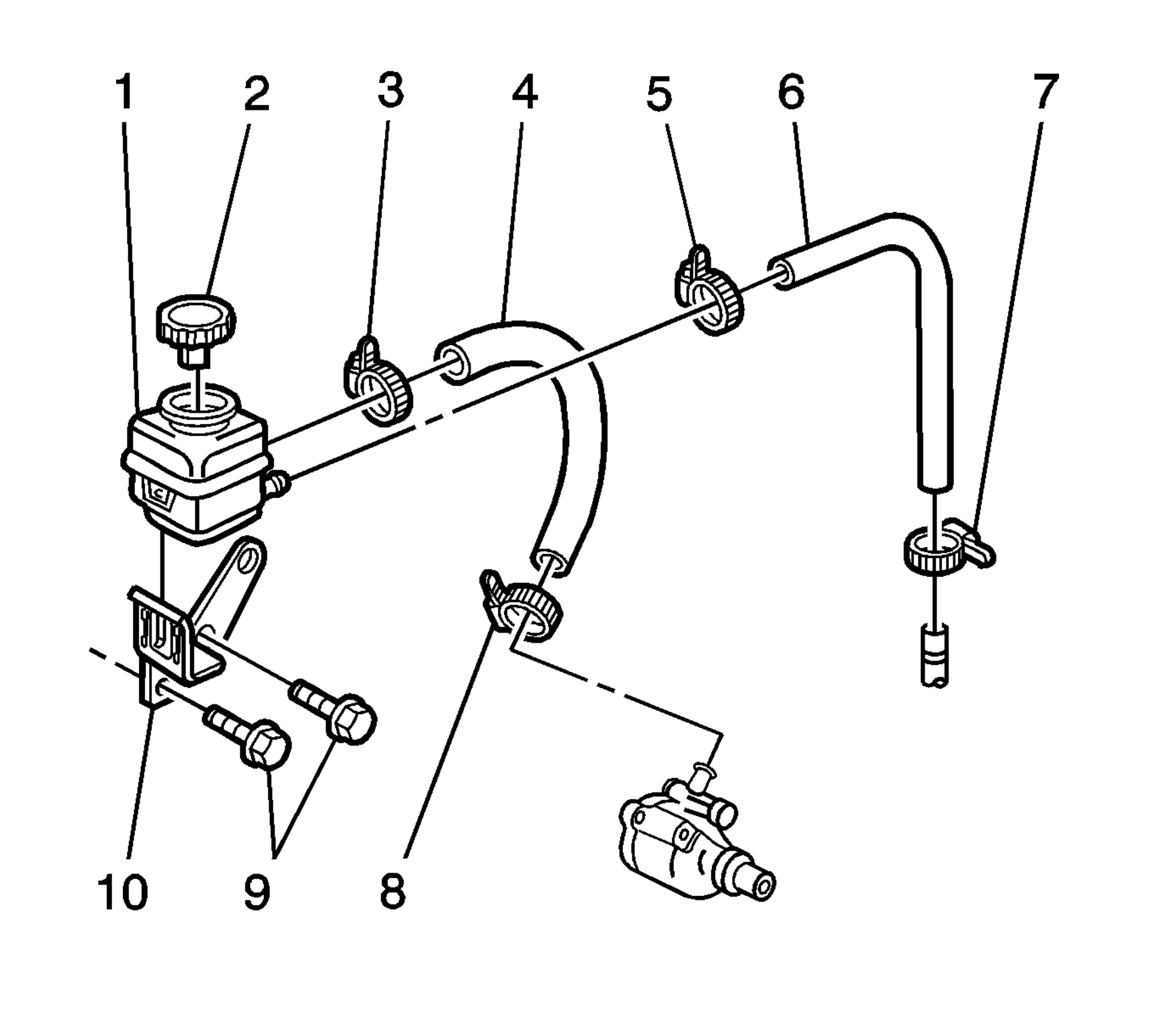

    Fig 1: Exploded View Of Power Steering Fluid Reservoir Assembly
    GM1382285Courtesy of GENERAL MOTORS CORP.
  1. Install the bracket (10) and the 2 bolts (9) to the engine.

    Tighten:  Tighten the 2 bolts to 50 N.m (37 lb ft).

  2. Slide the power steering fluid reservoir (1) onto the bracket. Verify the tab on the bracket retains the reservoir.
