Installation Procedure

  1. Place the selector lever assembly in the vehicle.

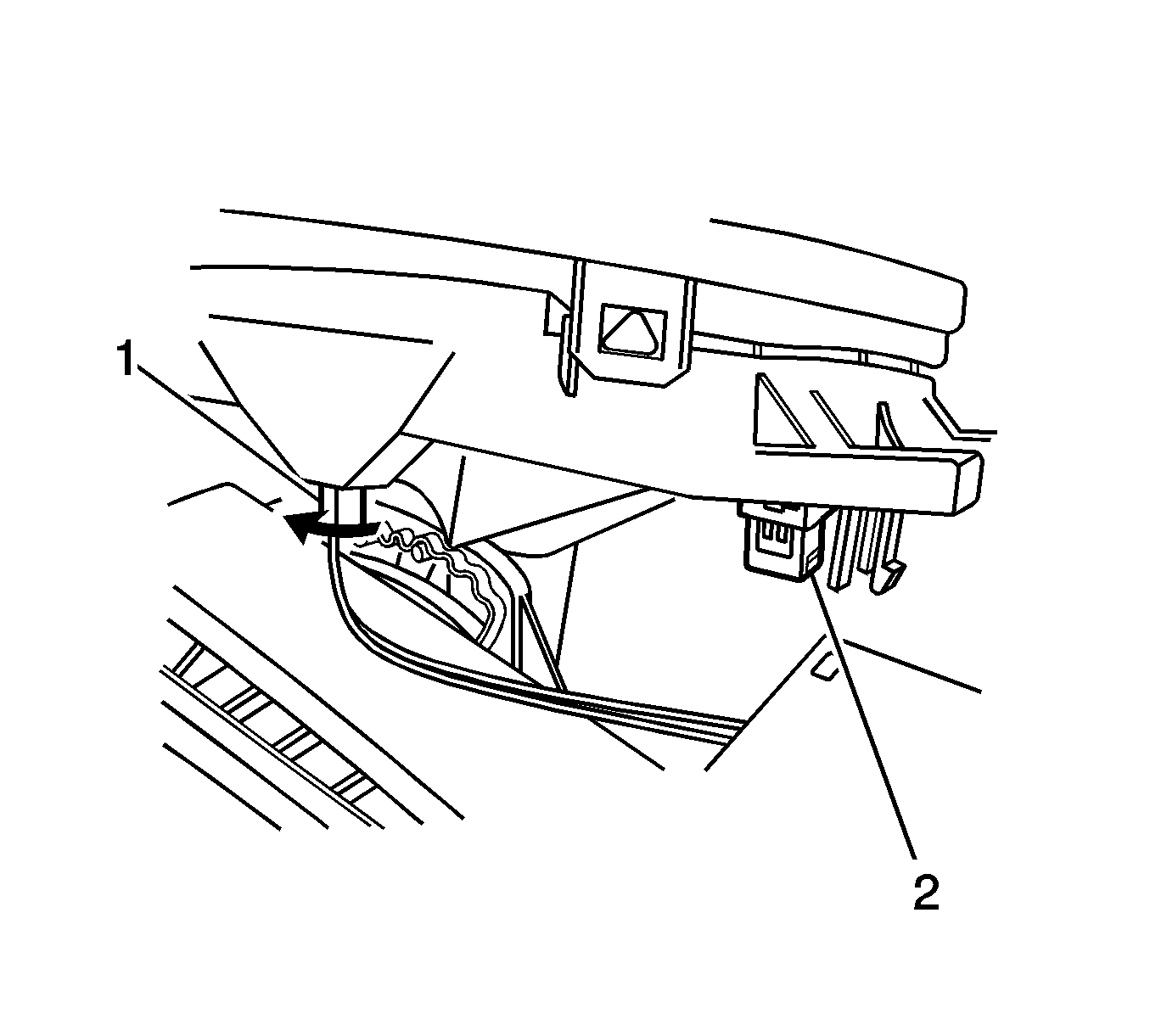

  2. Fig 1: View Of T/C Switch Connector & Selector Lever Indicator Lamp
    GM1361111Courtesy of GENERAL MOTORS CORP.
  3. Slightly raise the selector lever assembly; then connect the T/C switch connector (1).
  4. Rotate the selector lever indicator lamp (2) clockwise to install the lamp assembly in the selector lever assembly.
  5. Raise and suitably support the vehicle.
  6. NOTE: Refer to Fastener Notice in Cautions and Notices.

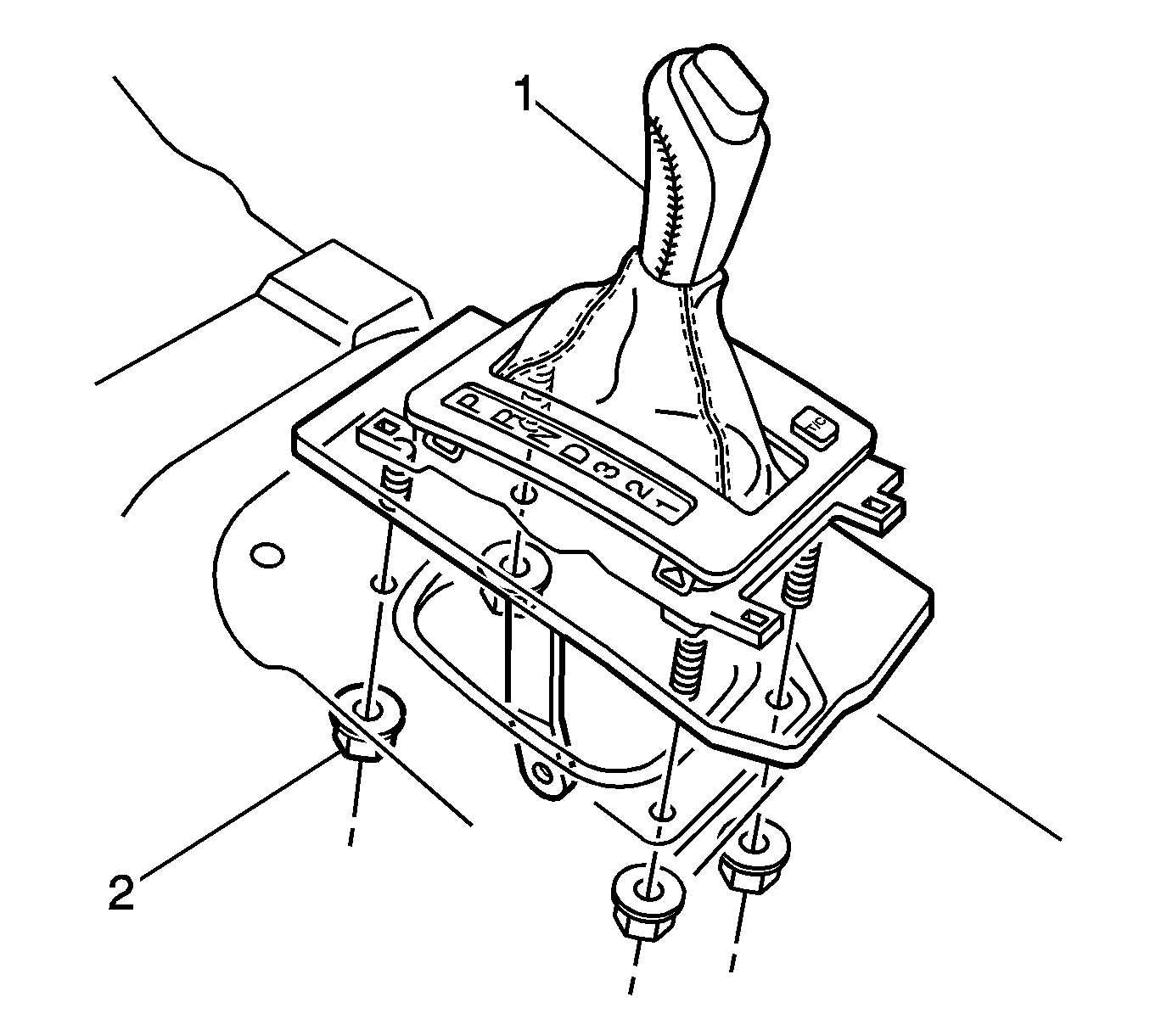

    Fig 2: Locating Selector Lever Assembly Nuts
    GM1361110Courtesy of GENERAL MOTORS CORP.
  7. Install the 4 retaining nuts (2) on the selector lever assembly.

    Tighten:  Tighten the retaining nuts to 15 N.m (11 lb ft).

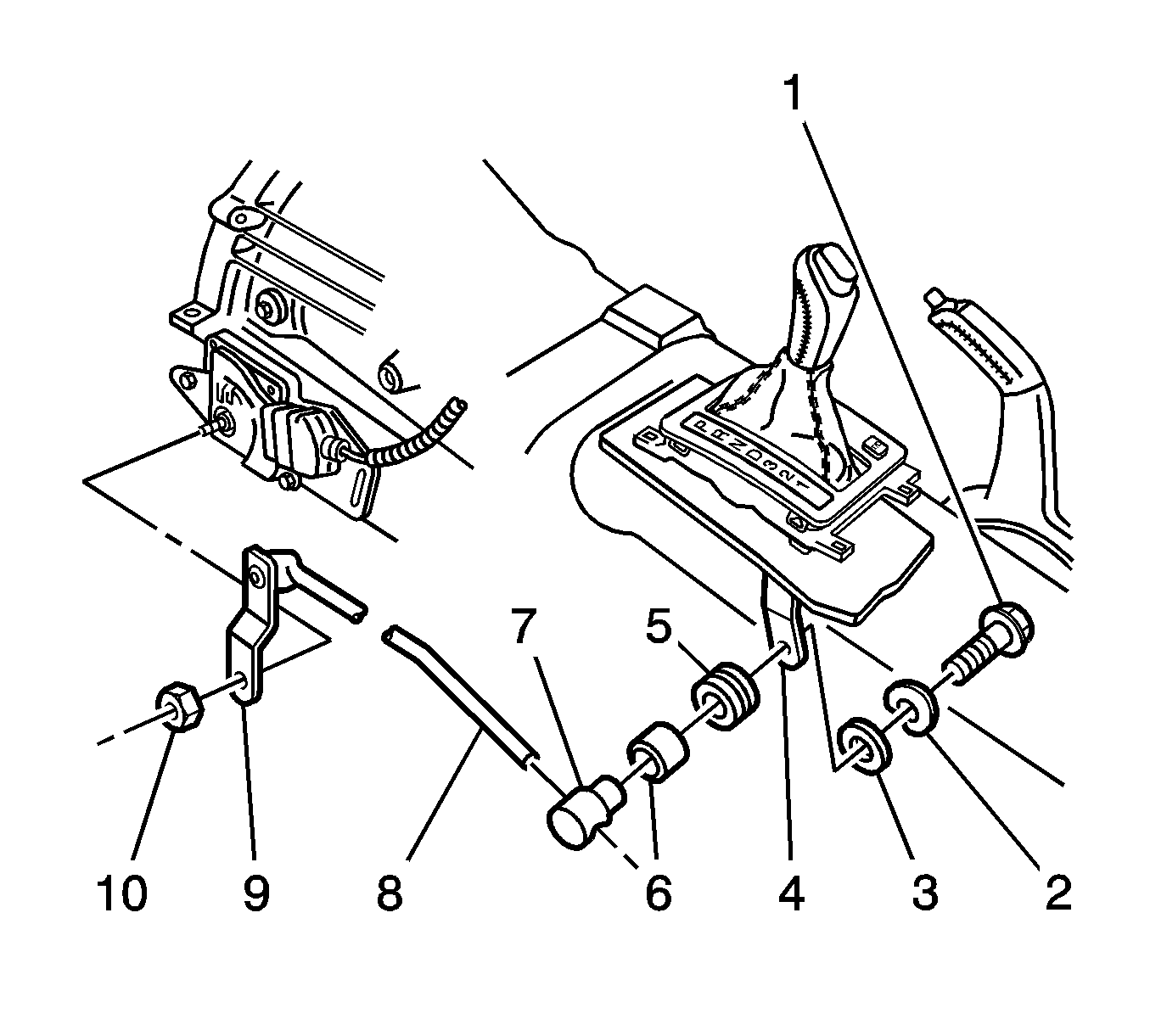

  8. Fig 3: Floor Shift Control Components
    GM1361109Courtesy of GENERAL MOTORS CORP.
  9. Slide the trunnion (6), sleeve (5) and insulator (4) on the end of the selector linkage.
  10. Loosely install the shift linkage adjusting bolt (1) and the washers on the selector lever (8).
  11. Ensure that the transmission and the selector lever assembly are both in the Park position.
  12. Tighten the shift linkage adjusting bolt (1).

    Tighten:  Tighten the retaining nuts to 25 N.m (18 lb ft).

  13. Lower the vehicle.
  14. Install the front console trim plate. Refer to Trim Plate Replacement - Console in Instrument Panel, Gages, and Console.
  15. Enable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling Zone 8 in SIR.
