Entertainment Component Views

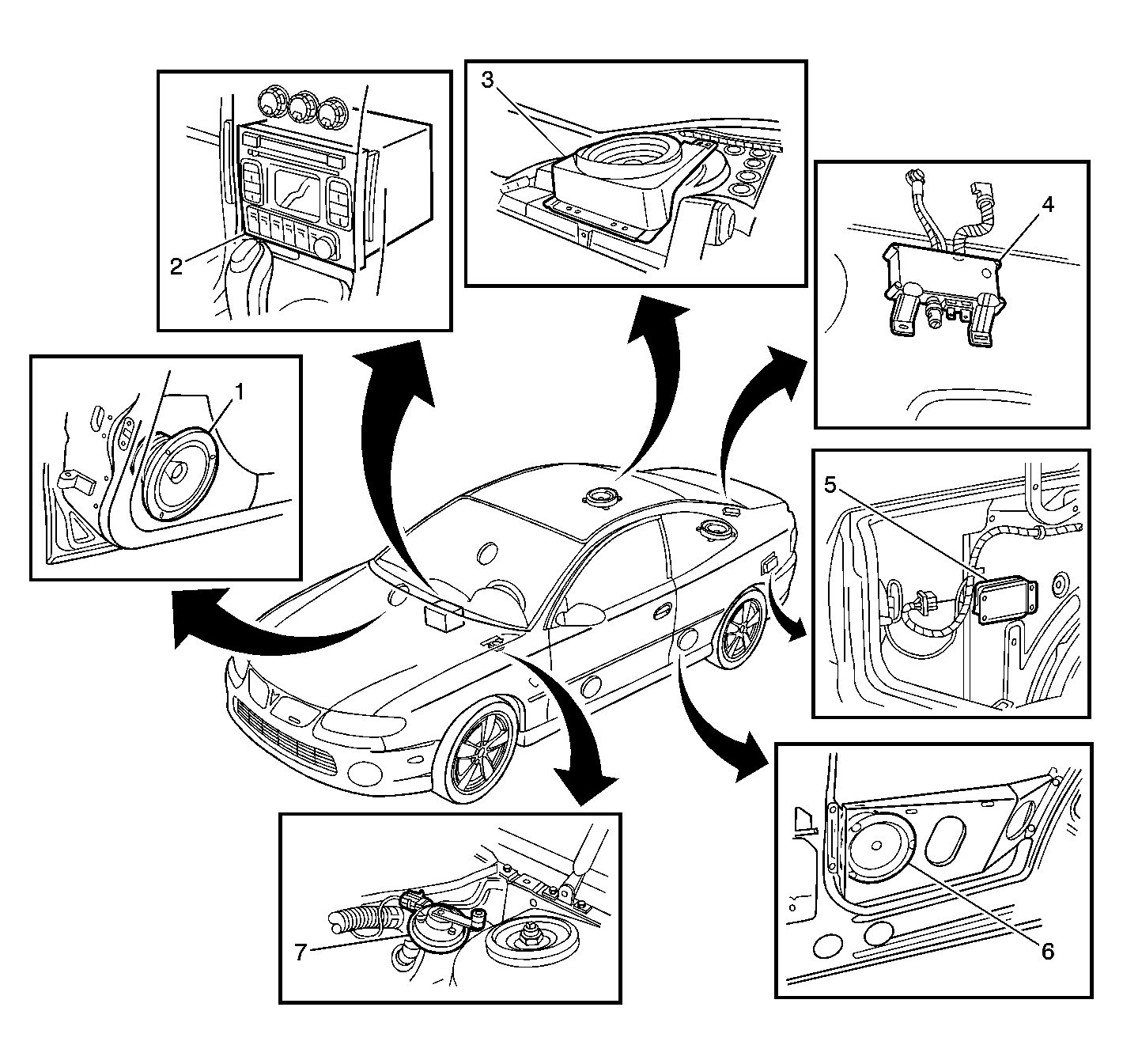

Fig 1: Entertainment System Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Speaker Assembly
2	Radio
3	Subwoofer
4	Antenna/Rear Defogger Module
5	Subwoofer Amplifier
6	Rear Speaker
7	Anti-Theft Horn
