Repair and Diagnosis
›
Brakes
›
Antilock Brake System And Traction Control System
›
Schematic and Routing Diagrams
›
ABS Schematics
ABS Schematics

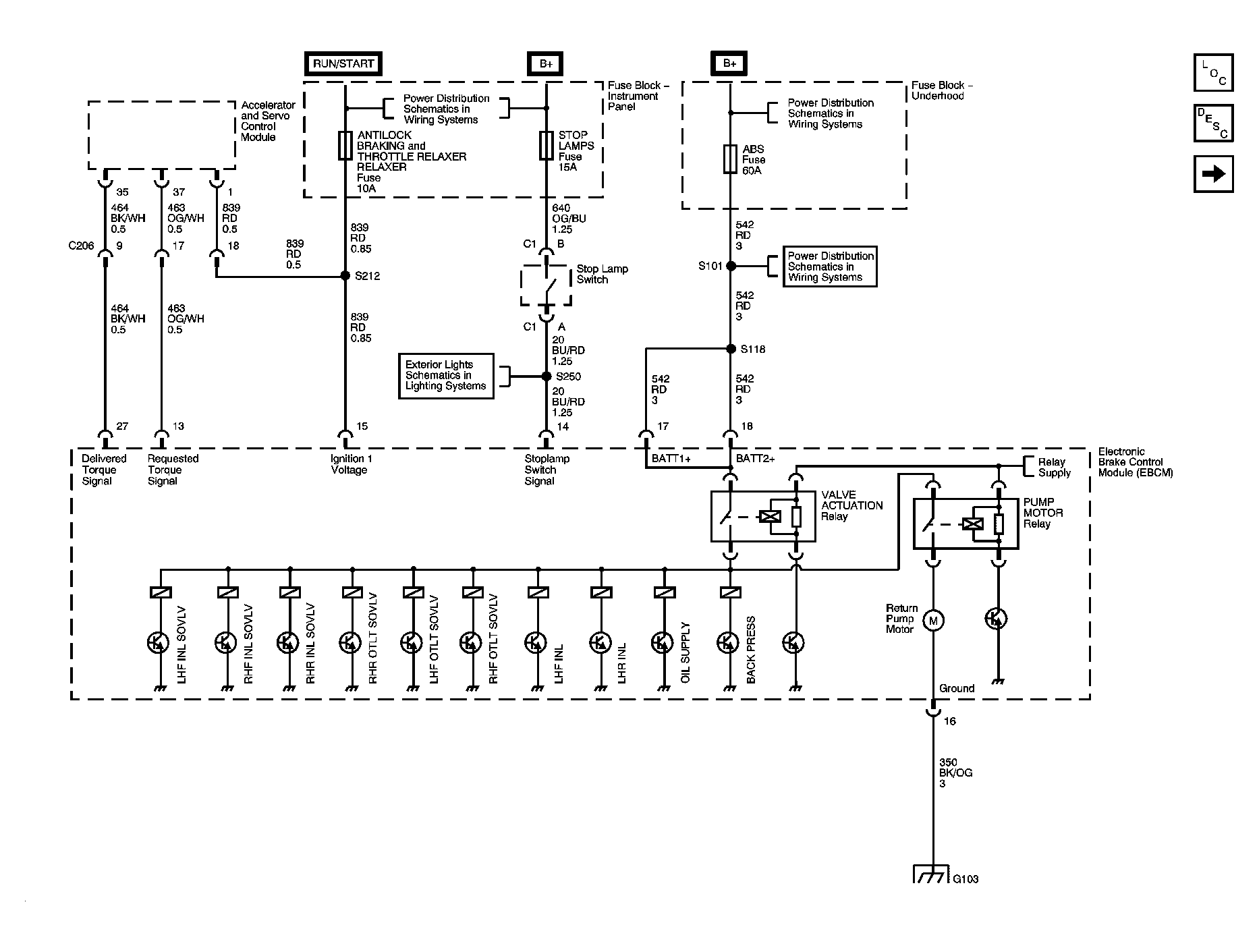

Fig 1: Electronic Brake Control Module (EBCM) Power & Ground, Accelerator & Servo Control Module Schematics
Courtesy of GENERAL MOTORS CORP.
Fig 2: Throttle Relaxer System Schematics
Courtesy of GENERAL MOTORS CORP.

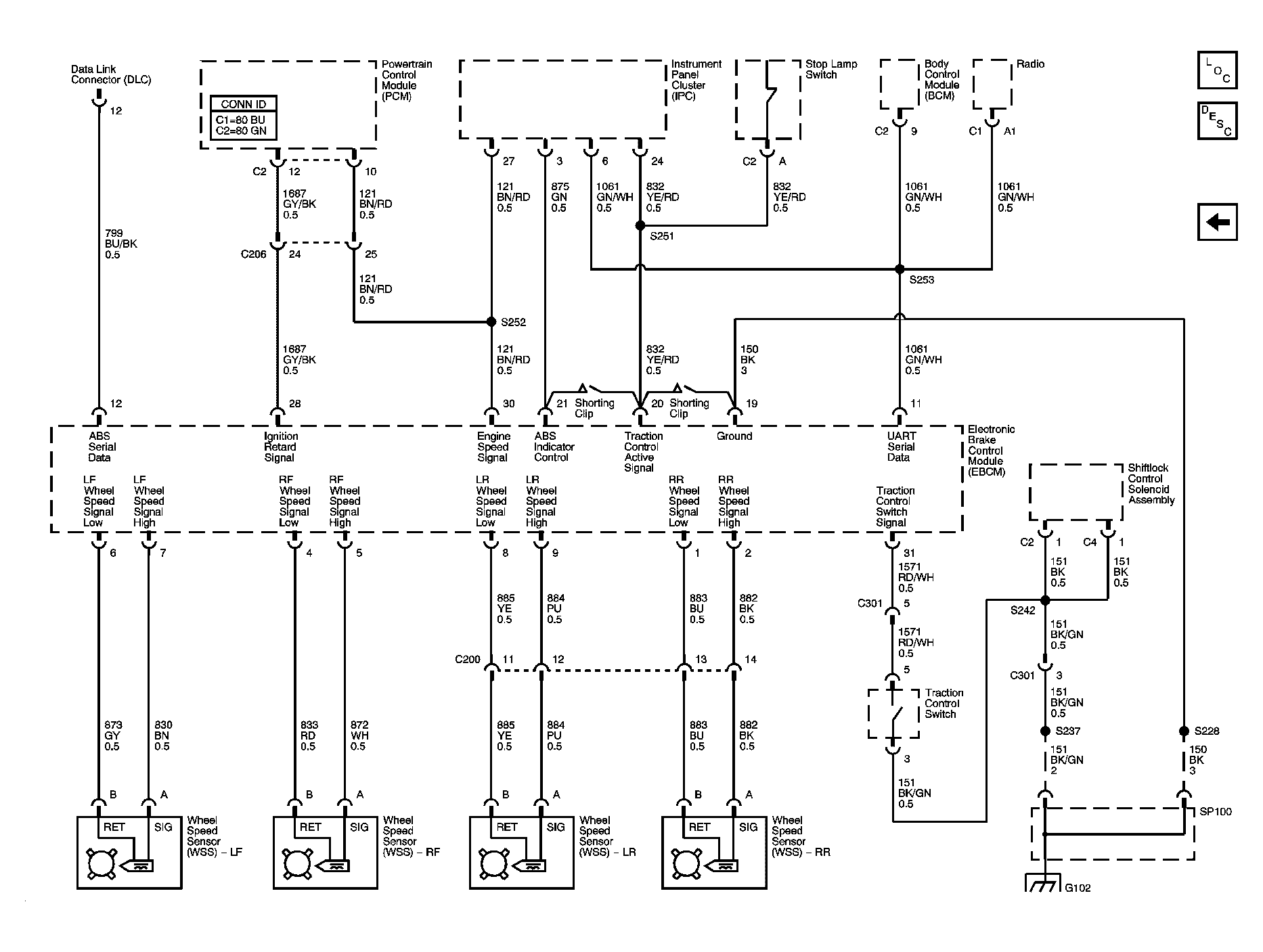

Fig 3: Electronic Brake Control Module (EBCM), Wheel Speed Sensors, DLC, ABS Indicator Schematics
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
