Installation Procedure

    NOTE: Refer to Installing Hoses without Twists or Bends Notice in Cautions and Notices.

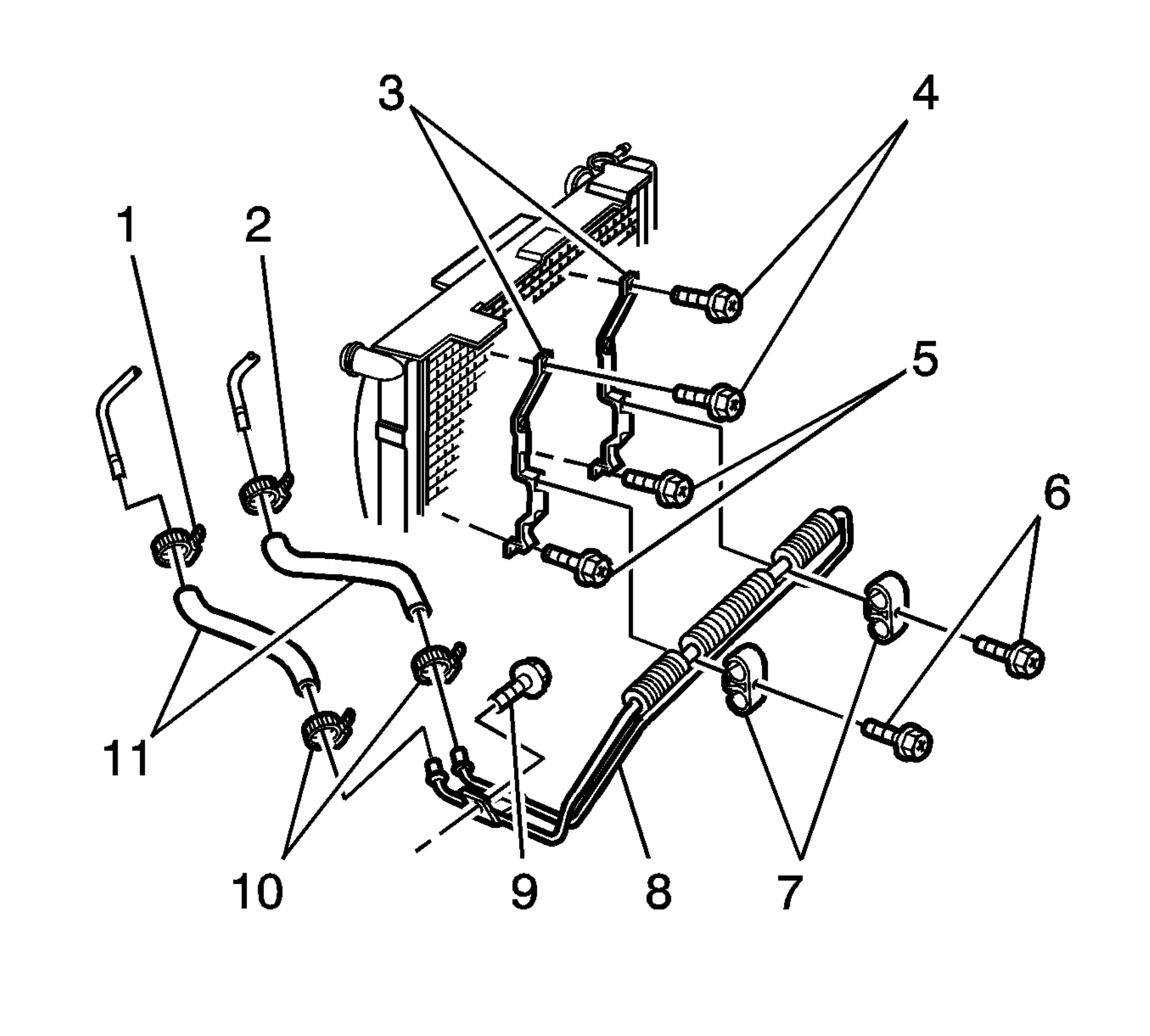

    Fig 1: Exploded View Of Power Steering Cooler
    GM1382329Courtesy of GENERAL MOTORS CORP.
  1. Install the power steering fluid cooler (8) to the cooler brackets (3).
  2. Ensure the cooler clips (7) are in the correct locations.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the 2 bolts (6) to the cooler clips in order to retain the cooler to the cooler brackets.

    Tighten:  Tighten the bolts to 6.5 N.m (57.5 lb in).

  4. Install the bolt (9) in order to retain the cooler to the body.

    Tighten:  Tighten the bolt to 6.5 N.m (57.5 lb in).

  5. Install the 2 cooler hoses (11) to the 2 cooler pipes. Install the 2 hose clamps (10).
  6. Install the 2 power steering gear outlet pipes to the 2 cooler hoses. Install the 2 hose clamps (1, 2).
    7. NOTE: Refer to Using Proper Power Steering Fluid Notice in Cautions and Notices.
  7. Fill the power steering fluid reservoir. Refer to Checking and Adding Power Steering Fluid .
    8. NOTE: Refer to Air in the Power Steering System Notice in Cautions and Notices.
  8. Bleed the power steering system. Refer to Bleeding the Power Steering System .
