Removal Procedure

  1. Remove the console trim panel from the console. Refer to Trim Plate Replacement - Console in Instrument Panel, Gages and Console.

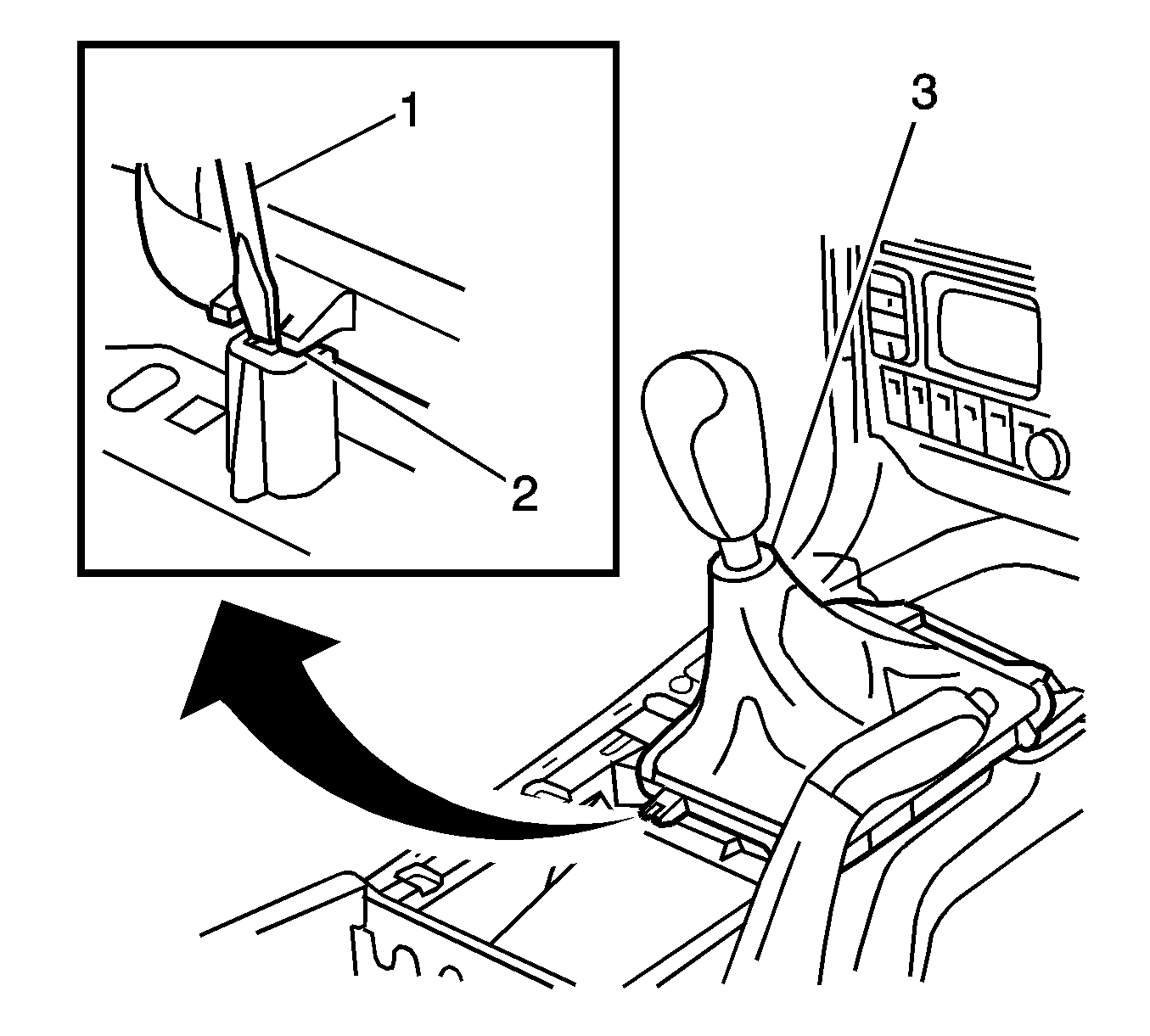

    2. Fig 1: Removing Shift Control Lever Boot
    GM1370962Courtesy of GENERAL MOTORS CORP.
  2. Using a screwdriver, remove the shift control lever boot (2).
    3. Fig 2: View Of Shift Control Lever Assembly & Retaining Bolts
    GM1370967Courtesy of GENERAL MOTORS CORP.
  3. Carefully lift the shift control boot to gain access to the shift lever shaft screws.
  4. Remove the shift control lever shaft retaining bolts (3).
  5. Remove the shift control lever assembly from the vehicle.
